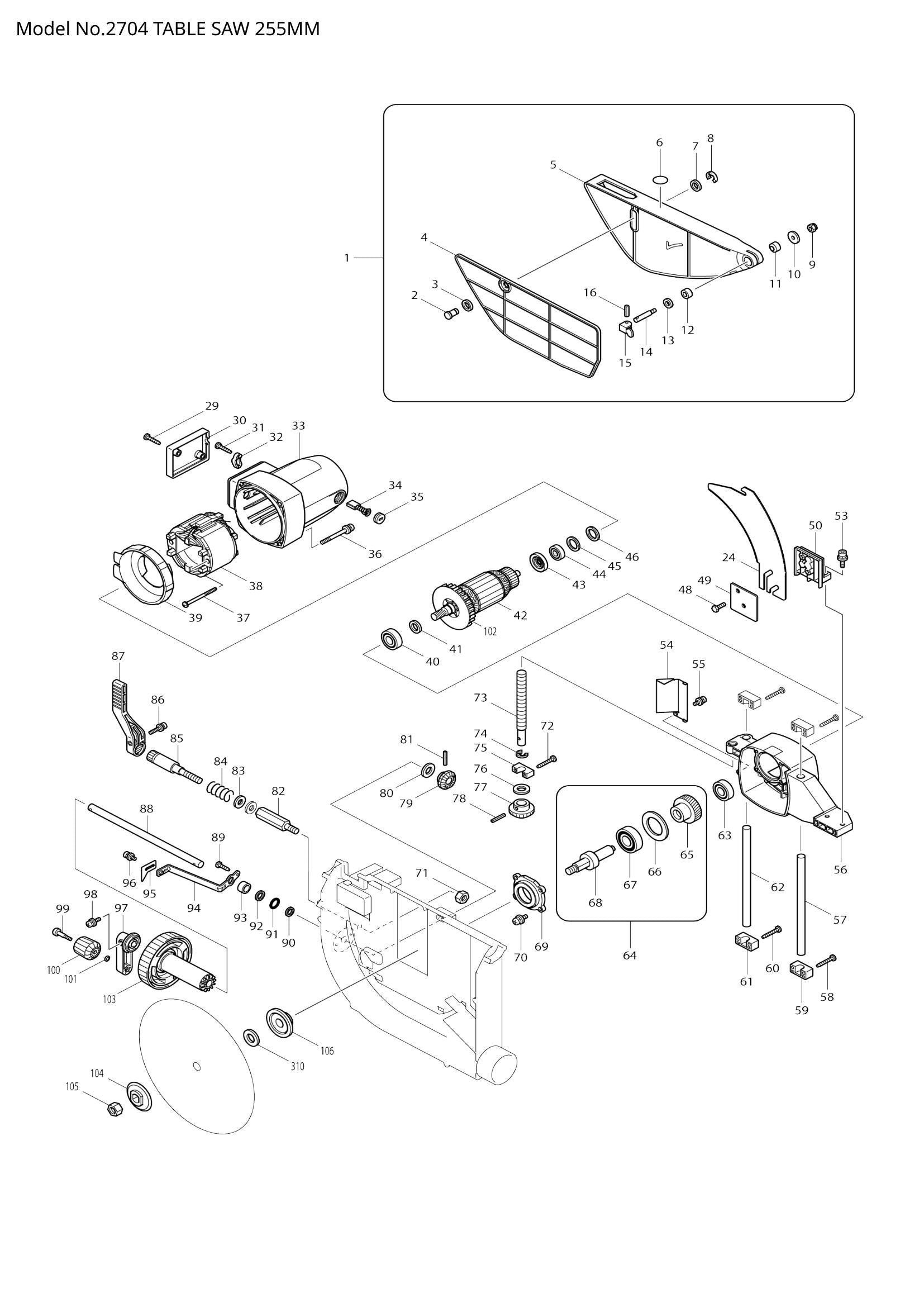

Exploded View – 2704

Name: Exploded View – 2704
Brand: Makita
Availability: InStock

Makita

Price:

€0,00

Quantity:

Share this product

Position 001 – SAFETY GUARD ASS'Y (SKU: 122738-8)
Position 002 – SHOULDER PIN 10 (SKU: 268135-5)
Position 003 – FLAT WASHER 10 (SKU: 253758-2)
Position 004 – SUB COVER (SKU: 418910-1)
Position 005 – COVER (SKU: 418915-1)
Position 006 – CAUTION LABEL (SKU: 817283-3)
Position 007 – FLAT WASHER 10 (SKU: 253758-2)
Position 008 – STOP RING E-9 (SKU: 961015-1)
Position 009 – HEX. LOCK NUT M6-10 (SKU: 252014-7)
Position 010 – FLAT WASHER 6 (SKU: 253010-8)
Position 011 – SLEEVE 8 (SKU: 257752-6)
Position 012 – SLEEVE 8 (SKU: 257752-6)
Position 013 – FLAT WASHER 8 (SKU: 253731-2)
Position 014 – LOCK SHAFT (SKU: 324554-6)
Position 015 – LOCK LEVER (SKU: 345583-6)
Position 016 – SPRING PIN 4-12 (SKU: 951104-0)
Position 024 – RIVING KNIFE (SKU: 345530-7)
Position 030 – COVER (SKU: 416341-8)
Position 032 – STRAIN RELIEF (SKU: 687054-0)
Position 033 – MOTOR HOUSING COMPLETE (SKU: 154602-5)
Position 036 – PAN HEAD SCREW M6X60 (SKU: 911383-2)
Position 039 – BAFFLE PLATE (SKU: 416331-1)
Position 040 – BALL BEARING 6202DDW (SKU: 211228-7)
Position 041 – FLAT WASHER 15 (SKU: 253147-1)
Position 043 – INSULATION WASHER (SKU: 681640-9)
Position 044 – BALL BEARING 6000DDW (SKU: 211088-7)
Position 045 – FLAT WASHER 18 (SKU: 253198-4)
Position 046 – URETHANE WASHER 18 (SKU: 261129-9)
Position 048 – HEX. BOLT M6X20 (SKU: 921331-3)
Position 049 – PRESSURE PLATE (SKU: 345525-0)
Position 050 – KNIFE HOLDER (SKU: 317871-1)
Position 053 – HEX. SOCKET HEAD BOLT M6X20 (SKU: 922334-0)
Position 054 – GEAR HOUSING PLATE (SKU: 344536-2)
Position 055 – PAN HEAD SCREW M5X12 (SKU: 911213-7)
Position 057 – GUIDE BAR (SKU: 323736-7)
Position 058 – TAPPING SCREW CT 4X25 (SKU: 266040-0)
Position 059 – GUIDE BAR RETAINER (SKU: 416340-0)
Position 060 – TAPPING SCREW CT 4X25 (SKU: 266040-0)
Position 061 – GUIDE BAR RETAINER (SKU: 416340-0)
Position 062 – GUIDE BAR (SKU: 323736-7)
Position 063 – BALL BEARING 609LLB (SKU: 211051-0)
Position 064 – SPINDLE COMPLETE (SKU: 154595-6)
Position 065 – HELICAL GEAR 42 (SKU: 226602-6)
Position 066 – FLAT WASHER 34 (SKU: 267170-0)
Position 067 – BALL BEARING 6203DDW (SKU: 211278-2)
Position 068 – SPINDLE (SKU: 324556-2)
Position 069 – BEARING BOX (SKU: 316933-2)
Position 070 – PAN HEAD SCREW M5X20 (SKU: 911233-1)
Position 071 – HEX. NUT M10 (SKU: 931502-4)
Position 072 – TAPPING SCREW CT 4X25 (SKU: 266040-0)
Position 073 – SCREW BAR (SKU: 322968-3)
Position 074 – STOP RING E-10 (SKU: 961016-9)
Position 075 – SCREW BAR RETAINER (SKU: 416339-5)
Position 076 – FLAT WASHER 12 (SKU: 941302-4)
Position 077 – STRAIGHT BEVEL GEAR (SKU: 226747-0)
Position 078 – SPRING PIN 4-20 (SKU: 951116-3)
Position 079 – STRAIGHT BEVEL GEAR (SKU: 226747-0)
Position 080 – FLAT WASHER 12 (SKU: 941302-4)
Position 081 – SPRING PIN 4-20 (SKU: 951116-3)
Position 082 – LOCK LEVER CONNECTOR (SKU: 324562-7)
Position 083 – FLAT WASHER 10 (SKU: 253024-7)
Position 084 – COMPRESSION SPRING 14 (SKU: 231315-6)
Position 085 – LOCK LEVER SHAFT (SKU: 322967-5)
Position 086 – HEX. SOCKET HEAD BOLT M5X20 (SKU: 922232-8)
Position 087 – LEVER 120 (SKU: 272248-6)
Position 088 – HANDLE SHAFT (SKU: 324563-5)
Position 089 – TAPPING SCREW CT 4X16 (SKU: 266034-5)
Position 090 – FLAT WASHER 12 (SKU: 253143-9)
Position 091 – O RING 12 (SKU: 213107-5)
Position 092 – FLAT WASHER 12 (SKU: 253052-2)
Position 093 – PLANE BEARING 12 (SKU: 214114-1)
Position 094 – STAY (SKU: 345520-0)
Position 095 – POINTER (SKU: 344543-5)
Position 096 – HEX. SOCKET HEAD BOLT M4X6 (SKU: 922103-9)
Position 097 – ARM 60 (SKU: 271074-0)
Position 098 – PAN HEAD SCREW M5X16 (SKU: 911223-4)
Position 099 – + PAN HEAD SCREW M5 (SKU: 251382-5)
Position 100 – KNOB 32 (SKU: 271423-1)
Position 101 – FLAT WASHER 5 (SKU: 267010-2)
Position 103 – HANDLE 100 (SKU: 271073-2)
Position 105 – HEX. NUT M12-19 (SKU: 252155-9)
Position 106 – INNER FLANGE 53 (SKU: 224401-0)
Position 107 – GRIP (SKU: 273523-3)
Position 108 – HANDLE PLATE (SKU: 345534-9)
Position 109 – RING 4 (SKU: 257161-9)
Position 110 – FLAT WASHER 4 (SKU: 941051-3)
Position 111 – HEX. SOCKET HEAD BOLT M4X12 (SKU: 922116-0)
Position 112 – HEX. LOCK NUT M10-17 (SKU: 252130-5)
Position 113 – FLAT WASHER 10 (SKU: 941251-5)
Position 114 – PAN HEAD SCREW M5X16 (SKU: 911223-4)
Position 115 – HANDLE PLATE HOLDER (SKU: 345539-9)
Position 116 – HANDLE PLATE (SKU: 345534-9)
Position 117 – RING 4 (SKU: 257161-9)
Position 118 – FLAT WASHER 4 (SKU: 941051-3)
Position 119 – HEX. SOCKET HEAD BOLT M4X12 (SKU: 922116-0)
Position 120 – SLEEVE 10 (SKU: 257753-4)
Position 121 – HEX.BOLT M10X60 (SKU: 265536-8)
Position 122 – GRIP (SKU: 273523-3)
Position 123 – HEX. SOCKET HEAD BOLT M5X20 (SKU: 265382-9)
Position 124 – HOOK RING (SKU: 324559-6)
Position 125 – COMPRESSION SPRING 8 (SKU: 233229-5)
Position 126 – ROD HOLDER (SKU: 418655-1)
Position 127 – ROD HOLDER (SKU: 418655-1)
Position 128 – JOINT PLATE (SKU: 345535-7)
Position 130 – HEX. SOCKET HEAD BOLT M4X12 (SKU: 922116-0)
Position 131 – HEX. SOCKET HEAD BOLT M4X12 (SKU: 922116-0)
Position 132 – FLAT WASHER 4 (SKU: 941051-3)
Position 133 – RING 4 (SKU: 257161-9)
Position 137 – P.H.SCREW M4X16 WITH WR (SKU: 911128-8)
Position 138 – P.H.SCREW M4X16 WITH WR (SKU: 911128-8)
Position 140 – HEX. SOCKET HEAD BOLT M4X12 (SKU: 922116-0)
Position 141 – HEX. SOCKET HEAD BOLT M4X12 (SKU: 922116-0)
Position 142 – FLAT WASHER 4 (SKU: 941051-3)
Position 143 – RING 4 (SKU: 257161-9)
Position 145 – P.H.SCREW M4X16 WITH WR (SKU: 911128-8)
Position 146 – ROD HOLDER (SKU: 418655-1)
Position 147 – PAN HEAD SCREW M6X16 (SKU: 911323-0)
Position 148 – STRAIN RELIEF (SKU: 687049-3)
Position 149 – + PAN HEAD SCREW M4X10 (SKU: 251308-7)
Position 150 – POWER SUPPLY CORD 1.5-5-0.5 (SKU: 664094-5)
Position 151 – PLATE (SKU: 345628-0)
Position 152 – RACK PLATE (SKU: 416333-7)
Position 153 – PAN HEAD SCREW M5X12 (SKU: 911213-7)
Position 154 – ROD HOLDER (SKU: 418655-1)
Position 155 – COMPRESSION SPRING 8 (SKU: 233229-5)
Position 156 – HOOK RING (SKU: 324559-6)
Position 157 – HEX. SOCKET HEAD BOLT M5X20 (SKU: 265382-9)
Position 158 – P.H.SCREW M4X16 WITH WR (SKU: 911128-8)
Position 160 – SLIDE SEAT (SKU: 344529-9)
Position 161 – LEAF SPRING (SKU: 232174-1)
Position 162 – JOINT PLATE (SKU: 345535-7)
Position 163 – DUST GUIDE (SKU: 416439-1)
Position 164 – TAPPING SCREW CT 4X16 (SKU: 266034-5)
Position 166 – DUST JOINT (SKU: 418917-7)
Position 167 – TAPPING SCREW BIND CT 4X8 (SKU: 266061-2)
Position 168 – FRAME COVER COMPLETE (SKU: 154599-8)
Position 169 – PAN HEAD SCREW M4X10 (SKU: 911114-9)
Position 170 – PAN HEAD SCREW M6X20 (SKU: 911333-7)
Position 171 – FRAME RETAINER (SKU: 416332-9)
Position 172 – HEX. BOLT M6X20 (SKU: 265460-5)
Position 174 – TAPPING SCREW 4X18 (SKU: 266300-0)
Position 175 – SLIDE COVER (SKU: 413097-4)
Position 176 – TAPPING SCREW BIND CT 5X12 (SKU: 266035-3)
Position 177 – SWITCH BOX (SKU: 418918-5)
Position 180 – STRAIN RELIEF (SKU: 687054-0)
Position 181 – SWITCH BASE (SKU: 418912-7)
Position 186 – STRAIN RELIEF (SKU: 687052-4)
Position 191 – INNER SCALE PLATE (SKU: 816844-6)
Position 192 – + PAN HEAD SCREW M4X10 (SKU: 251308-7)
Position 193 – PAN HEAD SCREW M5X30 (SKU: 911253-5)
Position 194 – INNER RAIL END (SKU: 418908-8)
Position 195 – HEX. SOCKET HEAD BOLT M4X25 (SKU: 922146-1)
Position 196 – FRONT OUTER RAIL COMPLETE (SKU: 154705-5)
Position 199 – SUB TABLE (SKU: 317877-9)
Position 201 – HEX. SOCKET HEAD BOLT M4X16 (SKU: 922126-7)
Position 203 – PAN HEAD SCREW M5X20 (SKU: 911233-1)
Position 206 – OUTER RAIL END (SKU: 418907-0)
Position 207 – + PAN HEAD SCREW M5X18 (SKU: 265045-7)
Position 212 – H.S.SET SCREW(FLAT POINT)M5X (SKU: 266264-8)
Position 214 – OUTER RAIL END (SKU: 418907-0)
Position 215 – PAN HEAD SCREW M5X20 (SKU: 911233-1)
Position 216 – REAR OUTER RAIL (SKU: 317867-2)
Position 217 – RAIL STOPPER (SKU: 345529-2)
Position 218 – + PAN HEAD SCREW M4X10 (SKU: 251308-7)
Position 220 – HEX. SOCKET HEAD BOLT M4X16 (SKU: 922126-7)
Position 222 – BASE FRONT COVER (SKU: 345533-1)
Position 225 – PAN HEAD SCREW M5X30 (SKU: 911253-5)
Position 226 – HEX. SOCKET HEAD BOLT M4X25 (SKU: 922146-1)
Position 227 – INNER RAIL END (SKU: 418908-8)
Position 228 – CAP 20 (SKU: 286212-1)
Position 229 – BASE COMPLETE (SKU: 154608-3)
Position 231 – STRAIN RELIEF (SKU: 687052-4)
Position 233 – POWER SUPPLY CORD 1.0-2-2.5 (SKU: 665865-3)
Position 234 – HEX. NUT M6 (SKU: 931302-2)
Position 235 – KNOB 37 (SKU: 271318-8)
Position 236 – FLAT WASHER 6 (SKU: 941151-9)
Position 237 – HEX. BOLT M6X25 (SKU: 921342-8)
Position 238 – KNOB 37 (SKU: 271320-1)
Position 239 – HEX.NUT M14 (SKU: 252197-3)
Position 240 – HOLDER (SKU: 421926-7)
Position 241 – HEX. NUT M8 (SKU: 931402-8)
Position 242 – FLAT WASHER 14 (SKU: 253797-2)
Position 243 – HEX.BOLT M14X65 (SKU: 265537-6)
Position 244 – HEX. BOLT M8X40 (SKU: 921462-8)
Position 245 – 2704 NAME PLATE (SKU: 861373-4)
Position 246 – PAN HEAD SCREW M6X25 (SKU: 911344-2)
Position 247 – ANGLE RULE BLOCK (SKU: 317865-6)
Position 248 – R.H.S.NECK BOLT M8X35 (S TYPE) (SKU: 266364-4)
Position 249 – ANGLE RULE GUIDE (SKU: 345522-6)
Position 250 – PIN 6 (SKU: 256769-6)
Position 251 – ANGLE RAIL (SKU: 317872-9)
Position 252 – H.S.SET SCREW M5X5 (SKU: 266378-3)
Position 253 – ANGLE STOPPER (SKU: 345523-4)
Position 254 – SCALE PIN (SKU: 324530-0)
Position 255 – P.H.SCREW M4X20 WITH WR (SKU: 911138-5)
Position 256 – HEX. NUT M4 (SKU: 931102-0)
Position 257 – THUMB NUT M8 (SKU: 252650-9)
Position 259 – HEX.SOCKET HD BOLT M6X20 (SKU: 922333-2)
Position 260 – RULER (SKU: 317897-3)
Position 261 – RULE GUIDE (SKU: 345521-8)
Position 262 – RULER ADAPTER (SKU: 317864-8)
Position 263 – PAN HEAD SCREW M4X8 (SKU: 911108-4)
Position 264 – LENS (SKU: 418945-2)
Position 265 – COVER (SKU: 418943-6)
Position 267 – THUMB SCREW M6X52 (SKU: 265768-7)
Position 268 – SQUARE GUIDE (SKU: 418948-6)
Position 269 – TAPPING SCREW BIND PT3X8 (SKU: 265954-0)
Position 270 – COMPRESSION SPRING 4 (SKU: 231485-1)
Position 271 – RULE HOLDER GUIDE (SKU: 418947-8)
Position 272 – COMPRESSION SPRING 4 (SKU: 231485-1)
Position 274 – +PAN HEAD SCREW M5X25 (SKU: 265155-0)
Position 275 – LEVER (SKU: 418946-0)
Position 276 – COMPRESSION SPRING 9 (SKU: 231297-2)
Position 277 – LOCK LEVER (SKU: 418944-4)
Position 278 – FLAT WASHER 4 (SKU: 253874-0)
Position 279 – TAPPING SCREW 4X12 (SKU: 266020-6)
Position 280 – PAN HEAD SCREW M4X18 (SKU: 911133-5)
Position 281 – PAN HEAD SCREW M5X22 (SKU: 911238-1)
Position 282 – HANDLE CAM (SKU: 345566-6)
Position 286 – PAN HEAD SCREW M4X12 (SKU: 911118-1)
Position 287 – LOCK PLATE STAY (SKU: 345564-0)
Position 289 – HOOK JOINT (SKU: 345565-8)
Position 290 – +P.H.SCREW M5X655 (SKU: 265154-2)
Position 291 – NUT M5 (SKU: 324555-4)
Position 293 – RULER TOP CONNECTER (SKU: 345562-4)
Position 295 – TORSION SPRING 8 (SKU: 231683-7)
Position 296 – RULER TOP (SKU: 313123-8)
Position 297 – RULER TOP GUIDE (SKU: 345563-2)
Position 298 – PAN HEAD SCREW M4X12 (SKU: 911118-1)
Position 299 – PAN HEAD SCREW M4X12 (SKU: 911118-1)
Position 306 – + COUNTERSUNK HEAD SCREW (SKU: 265160-7)
Position 308 – FLAT WASHER 5/16" (SKU: 267305-3)
Position 309 – ANGLE RULE COVER (SKU: 419219-4)
Position 310 – RING 16 (SKU: 257262-3)
Position 311 – SLEEVE 14 (SKU: 262559-7)
Position 312 – BASE UNDER COVER (SKU: 345536-5)
Position 314 – PIN (SKU: 418618-7)
Position 315 – PIN (SKU: 418618-7)
Position 316 – SWITCH BUTTON ON (SKU: 418616-1)
Position 317 – FELT RING 6 (SKU: 443103-1)
Position 318 – FELT RING 6 (SKU: 443103-1)
Position 319 – COMPRESSION SPRING 8 (SKU: 231025-5)
Position 320 – COMPRESSION SPRING 8 (SKU: 231025-5)
Position 321 – FLAT WASHER 7 (SKU: 253186-1)
Position 322 – FLAT WASHER 7 (SKU: 253186-1)
Position 323 – SWITCH BUTTON OFF (SKU: 418617-9)
Position 325 – SOFT START CIRCUIT (SKU: 631613-2)
Position 326 – TERMINAL BLOCK (SKU: 654561-8)
Position 327 – NOISE SUPPRESSOR (SKU: 645006-7)
Position 328 – NOISE SUPPRESSOR (SKU: 645105-5)
Position 329 – CHOKE COIL (SKU: 646049-2)
Position 331 – SLIDE ROD HOLDER (SKU: 317879-5)
Position 332 – REAR ROD (SKU: 324564-3)
Position 333 – REAR TABLE (SKU: 345537-3)
Position 335 – HEX. NUT M10 (SKU: 931502-4)
Position 337 – PAN HEAD SCREW M5X20 (SKU: 911233-1)

Exploded View – 2704

Description

Exploded View – 2704

You may also like

Recently viewed
