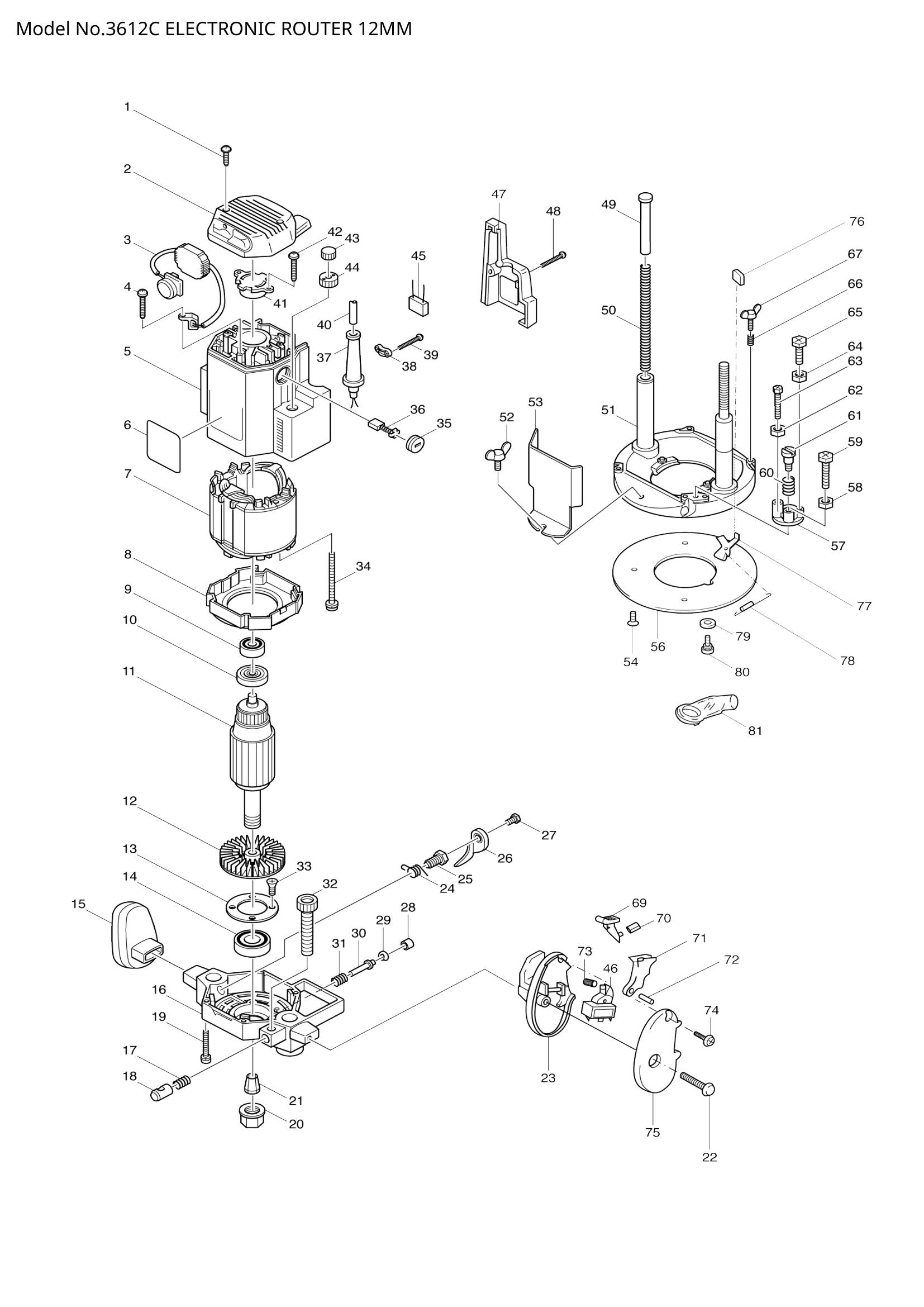

Exploded View – 3612C

Name: Exploded View – 3612C
Brand: Makita
Availability: InStock

Makita

Price:

€0,00

Quantity:

Share this product

Position 002 – REAR COVER (SKU: 415067-9)
Position 004 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 008 – BAFFLE PLATE (SKU: 415069-5)
Position 010 – INSULATION WASHER (SKU: 681631-0)
Position 012 – FAN 74 (SKU: 241861-1)
Position 013 – BEARING RETAINER 50 (SKU: 285657-0)
Position 015 – KNOB (L) (SKU: 415070-0)
Position 017 – COMPRESSION SPRING 10 (SKU: 231142-1)
Position 018 – HALF NUT (SKU: 323559-3)
Position 019 – PAN HEAD SCREW M5X40 (SKU: 911263-2)
Position 020 – COLLET NUT (SKU: 763629-0)
Position 021 – COLLET CONE 12MM (SKU: 763628-2)
Position 022 – PAN HEAD SCREW M6X45 (SKU: 911368-8)
Position 027 – HEX. BOLT M5X12 (SKU: 265269-5)
Position 028 – CAP 11 (SKU: 286235-9)
Position 029 – RETAINING RING R-12 (SKU: 962062-5)
Position 030 – PIN 6 (SKU: 256606-4)
Position 031 – COMPRESSION SPRING 7 (SKU: 231037-8)
Position 032 – SCREW M10X77 (SKU: 251861-3)
Position 035 – BRUSH HOLDER CAP 7-18 (SKU: 643700-5)
Position 039 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 041 – BEARING BOX (SKU: 316499-2)
Position 042 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 043 – NUT M10 (SKU: 252625-8)
Position 044 – NYLON NUT M10 (SKU: 410129-8)
Position 048 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 049 – POLE (SKU: 314062-5)
Position 050 – COMPRESSION SPRING 11 (SKU: 231329-5)
Position 052 – WING BOLT M5X10 (SKU: 924206-5)
Position 053 – CHIP DEFLECTOR (SKU: 410128-0)
Position 054 – COUNTERSUNK HEAD SCREW M4 (SKU: 912112-6)
Position 055 – PAN HEAD SCREW M5X10 (SKU: 911206-4)
Position 056 – BASE PLATE (SKU: 413024-1)
Position 057 – STOPPER ASS'Y (SKU: 134205-1)
Position 060 – COMPRESSION SPRING 12 (SKU: 231231-2)
Position 061 – - FLAT HEAD SCREW M6 (SKU: 251423-7)
Position 066 – COMPRESSION SPRING 7 (SKU: 231240-1)
Position 067 – WING BOLT M5X15 (SKU: 924216-2)
Position 069 – LOCK OFF BUTTON (SKU: 415411-0)
Position 070 – COMPRESSION SPRING 4 (SKU: 233024-3)
Position 071 – SWITCH LEVER (SKU: 415158-6)
Position 072 – PIN 3 (SKU: 256221-4)
Position 073 – COMPRESSION SPRING 5 (SKU: 231372-4)
Position 074 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 075 – KNOB COVER (SKU: 415408-9)
Position 076 – CAP 14 (SKU: 286239-1)
Position 077 – LOCK PLATE (SKU: 344098-0)
Position 078 – TENSION SPRING 5 (SKU: 231794-8)
Position 079 – FLAT WASHER 5 (SKU: 253811-4)
Position 080 – SET BOLT M5X10 (SKU: 266016-7)
Position 081 – DUST NOZZLE (SKU: 415412-8)

Exploded View – 3612C

Description

Exploded View – 3612C
