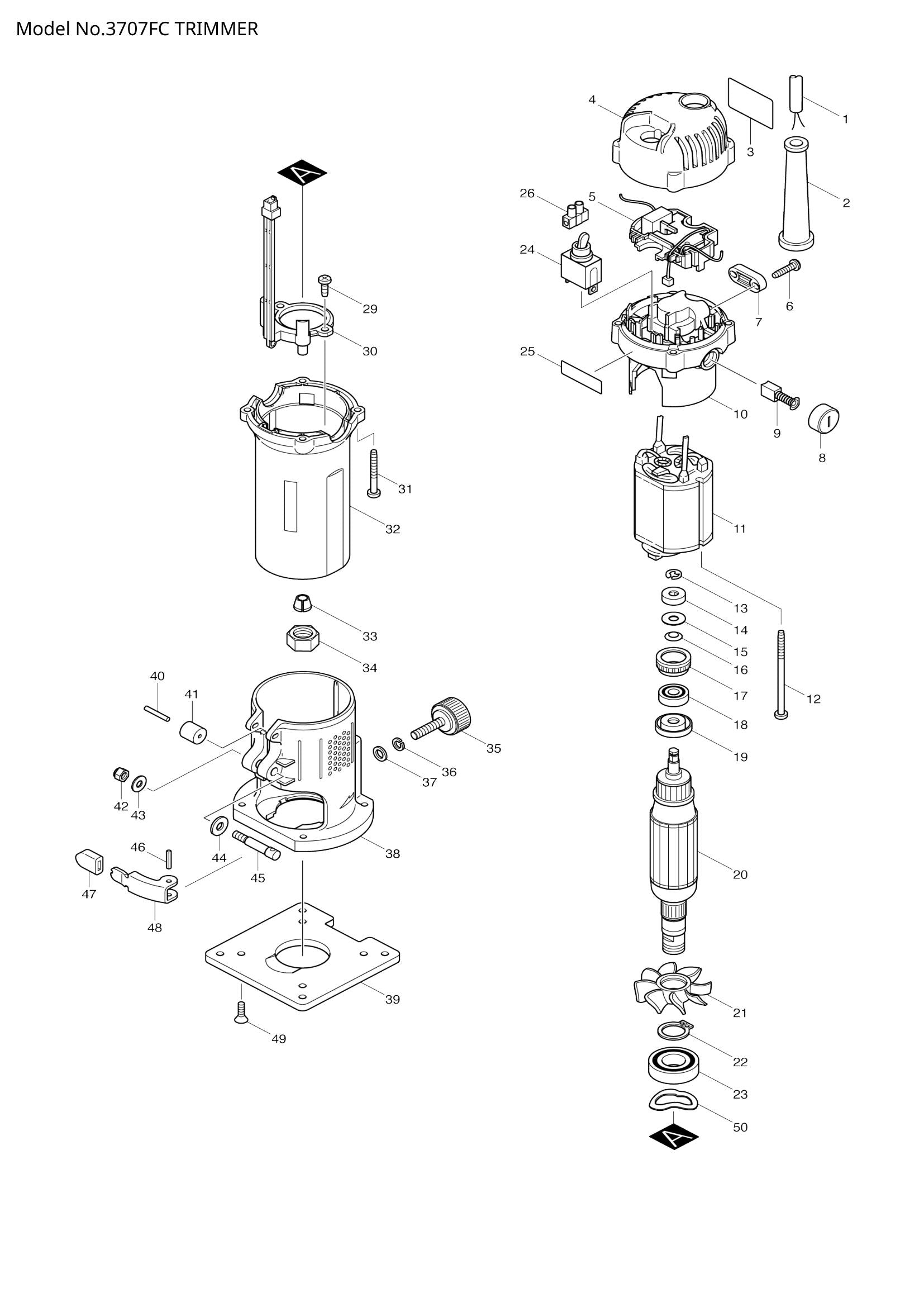

Exploded View – 3707FC

Name: Exploded View – 3707FC
Brand: Makita
Availability: InStock

Makita

Price:

€0,00

Quantity:

Share this product

Position 001 – POWER SUPPLY CORD 1.0-2-2.5 (SKU: 665394-6)
Position 002 – CORD GUARD 8-85 (SKU: 682502-4)
Position 003 – NAME PLATE 3707FC (SKU: 853543-9)
Position 004 – REAR COVER (SKU: 417747-3)
Position 005 – CONTROLLER (SKU: 631487-1)
Position 006 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 007 – STRAIN RELIEF (SKU: 687052-4)
Position 008 – BRUSH HOLDER CAP (SKU: 643928-5)
Position 010 – MOTOR REAR HOUSING (SKU: 183417-3)
Position 011 – FIELD ASS'Y 230-240V (SKU: 595064-2)
Position 012 – TAPPING SCREW 4X70 (SKU: 266004-4)
Position 013 – SELF LOCK 6 (SKU: 259039-2)
Position 015 – THIN WASHER 6 (SKU: 253332-6)
Position 016 – WAVE WASHER 6 (SKU: 267756-0)
Position 017 – RUBBER RING 19 (SKU: 421494-0)
Position 018 – BALL BEARING 607DDW (SKU: 210017-7)
Position 019 – INSULATION WASHER (SKU: 681636-0)
Position 021 – FAN 48 (SKU: 240049-0)
Position 022 – RETAINING RING S-15 (SKU: 961055-9)
Position 023 – BALL BEARING 6002DDW (SKU: 211236-8)
Position 025 – MAKITA LABEL (SKU: 819720-3)
Position 026 – TERMINAL BLOCK (SKU: 654544-8)
Position 029 – + TAPPING SCREW M4X12 (SKU: 251991-0)
Position 030 – LED CIRCUIT (SKU: 631480-5)
Position 031 – TAPPING SCREW 4X35 (SKU: 266053-1)
Position 032 – MOTOR HOUSING COMPLETE (SKU: 153347-2)
Position 034 – COLLET NUT 6 (SKU: 763606-2)
Position 036 – SPRING WASHER 6 (SKU: 942151-2)
Position 037 – FLAT WASHER 6 (SKU: 941151-9)
Position 039 – BASE PROTECTOR (SKU: 417749-9)
Position 041 – ROLLER W/O PIN (SKU: 421566-1)
Position 042 – HEX. LOCK NUT M5-8 (SKU: 252103-8)
Position 043 – FLAT WASHER 5 (SKU: 941101-4)
Position 044 – FLAT WASHER 6 (SKU: 267214-6)
Position 045 – SUPPORT PIN (SKU: 324243-3)
Position 046 – SPRING PIN 3-14 (SKU: 951060-4)
Position 047 – RUBBER CAP (SKU: 421818-0)
Position 048 – LOCK LEVER (SKU: 345229-4)
Position 049 – COUNTERSUNK HEAD SCREW M4 (SKU: 912122-3)
Position 050 – WAVE WASHER 23 (SKU: 253905-5)
