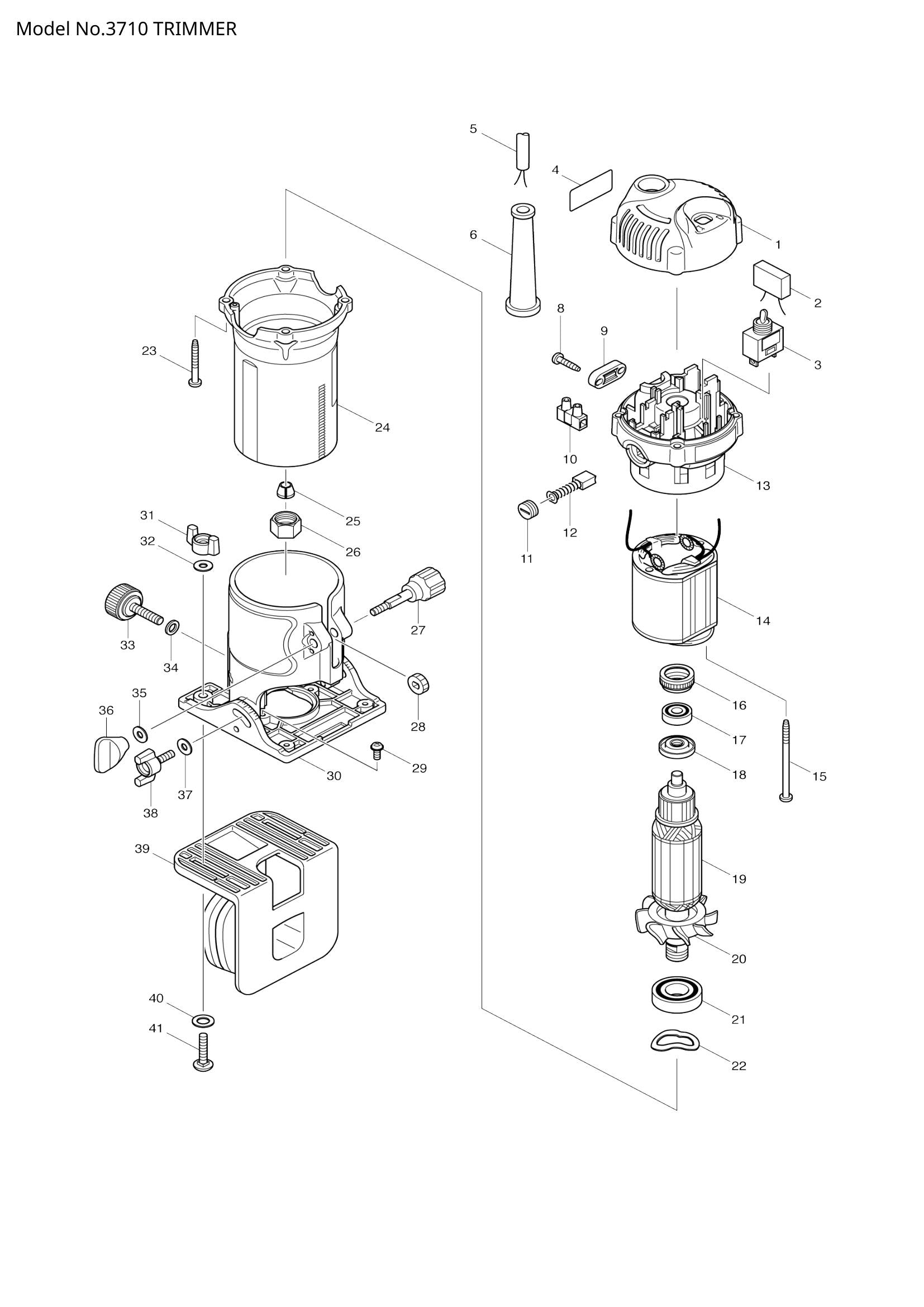

Exploded View – 3710

Name: Exploded View – 3710
Brand: Makita
Availability: InStock

Makita

Price:

€0,00

Quantity:

Share this product

Position 002 – NOISE SUPPRESSOR (SKU: 645200-1)
Position 004 – 3710 NAME PLATE (SKU: 861701-3)
Position 005 – POWER SUPPLY CORD 1.0-2-2.5 (SKU: 665394-6)
Position 006 – CORD GUARD 8-85 (SKU: 682569-2)
Position 008 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 009 – STRAIN RELIEF (SKU: 687124-5)
Position 010 – TERMINAL BLOCK 1P (SKU: 654532-5)
Position 011 – BRUSH HOLDER CAP 5-8 (SKU: 643550-8)
Position 015 – TAPPING SCREW 4X65 (SKU: 266340-8)
Position 016 – RUBBER RING 19 (SKU: 421494-0)
Position 017 – BALL BEARING 607LLB (SKU: 210034-7)
Position 019 – ARMATURE ASS'Y 240V (SKU: 515634-1)
Position 020 – FAN 52 (SKU: 241667-7)
Position 022 – WAVE WASHER 23 (SKU: 267785-3)
Position 023 – TAPPING SCREW 4X35 (SKU: 266351-3)
Position 025 – COLLET CONE 6 (SKU: 763662-2)
Position 026 – COLLET NUT 6 (SKU: 763661-4)
Position 027 – THUMB SCREW M5X33 (SKU: 265771-8)
Position 028 – SPUR GEAR 16 (SKU: 226217-9)
Position 029 – PAN HEAD SCREW M4X10 (SKU: 911114-9)
Position 030 – BASE COMPLETE (SKU: 154670-8)
Position 031 – THUMB NUT M5 (SKU: 252653-3)
Position 032 – FLAT WASHER 5 (SKU: 941101-4)
Position 034 – FLAT WASHER 6 (SKU: 941151-9)
Position 035 – FLAT WASHER 5 (SKU: 941101-4)
Position 036 – THUMB NUT M5 (SKU: 252652-5)
Position 037 – FLAT WASHER 5 (SKU: 941101-4)
Position 038 – THUMB SCREW M5X16 (SKU: 265761-1)
Position 039 – TRIMMER SHOE (SKU: 414304-8)
Position 040 – FLAT WASHER 8 (SKU: 267240-5)
Position 041 – CAP SQUARE NECK BOLT M5X25 (SKU: 923241-0)
