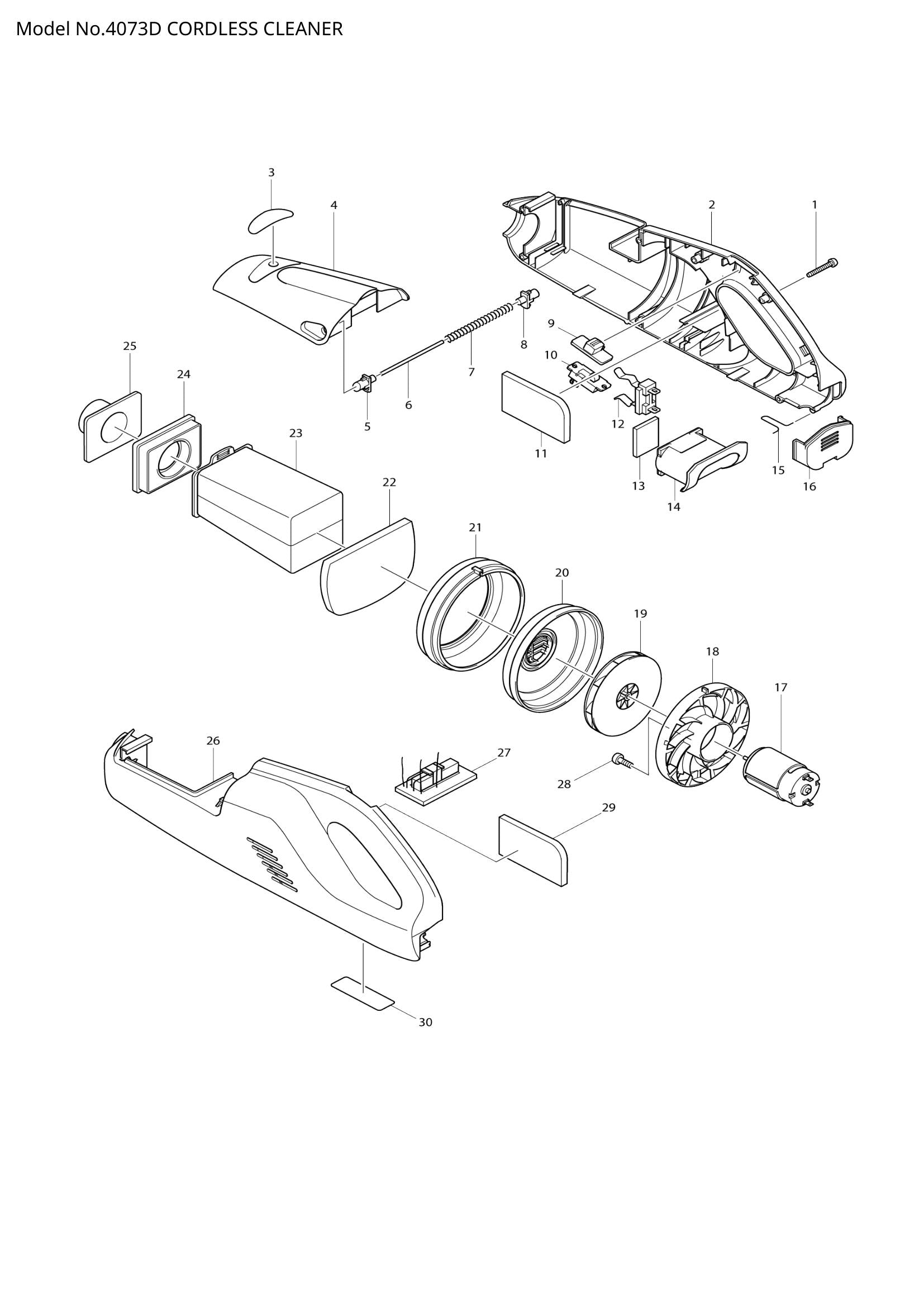

Exploded View – 4073D

Name: Exploded View – 4073D
Brand: Makita
Availability: InStock

Price:

€0,00

Quantity:

Share this product

Position 001 – + TAPPING SCREW PT 3X20 (SKU: 266127-8)
Position 003 – MAKITA LABEL (SKU: 819094-2)
Position 004 – FRONT COVER COMPLETE (IVORY (SKU: 150624-3)
Position 005 – HOOK (SKU: 416032-1)
Position 006 – ROD 2.5 (SKU: 256839-1)
Position 007 – COMPRESSION SPRING 6 (SKU: 233161-3)
Position 008 – HOOK (SKU: 416032-1)
Position 009 – SWITCH LEVER (SKU: 416027-4)
Position 011 – SPONGE SHEET 43-75 (SKU: 423288-9)
Position 012 – BATTERY HOLDER (SKU: 643909-9)
Position 013 – SPONGE 20-34 (SKU: 423303-9)
Position 015 – HANGER (SKU: 322867-9)
Position 016 – COVER (IVORY) (SKU: 416028-2)
Position 017 – DC MOTOR (SKU: 629709-1)
Position 020 – FAN COVER (SKU: 416030-5)
Position 021 – RUBBER RING (SKU: 421554-8)
Position 022 – SPONGE SHEET 70-106 (SKU: 423287-1)
Position 023 – DUST BAG (SKU: 166043-3)
Position 024 – PACKING (SKU: 421553-0)
Position 027 – RESISTANCE CIRCUIT (SKU: 631224-3)
Position 028 – PAN HEAD SCREW M3X8 (SKU: 911007-0)
Position 029 – SPONGE SHEET 43-75 (SKU: 423288-9)
