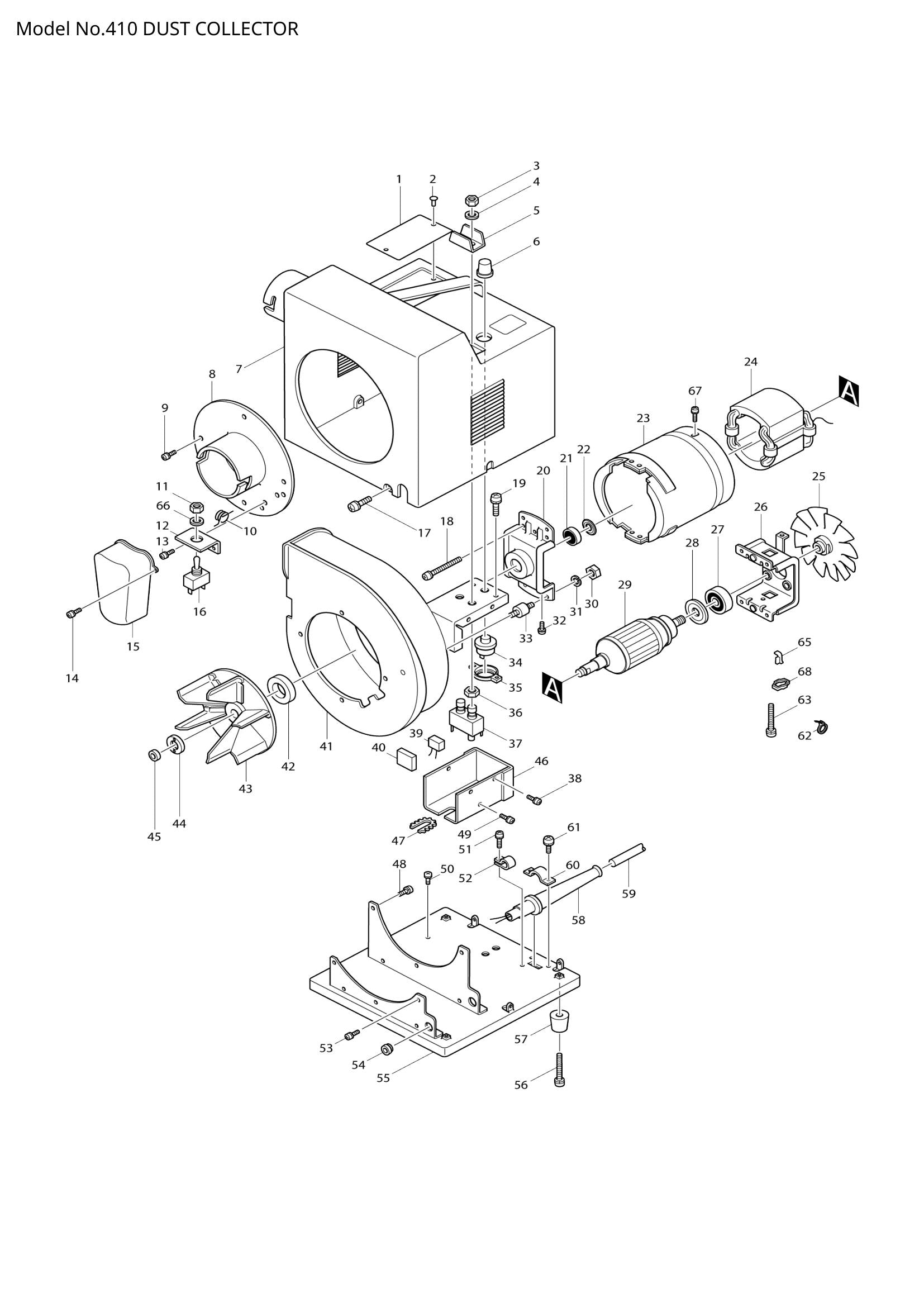

Exploded View – 410

Name: Exploded View – 410
Brand: Makita
Availability: InStock

Makita

Price:

€0,00

Quantity:

Share this product

Position 003 – HEX. NUT M12 (SKU: 652103-2)
Position 004 – WASHER 12 (SKU: 652061-2)
Position 005 – SWITCH PROTECTOR (SKU: 342186-7)
Position 006 – RELAY COVER (SKU: 410646-8)
Position 009 – PAN HEAD SCREW M4X6 (SKU: 911101-8)
Position 010 – TORSION SPRING 10 (SKU: 231575-0)
Position 011 – HEX. NUT M12 (SKU: 652103-2)
Position 012 – SWITCH HOLDER (SKU: 342944-1)
Position 013 – PAN HEAD SCREW M4X6 (SKU: 911101-8)
Position 014 – PAN HEAD SCREW M4X6 (SKU: 911101-8)
Position 015 – SWITCH GUARD (SKU: 342945-9)
Position 017 – PAN HEAD SCREW M4X8 (SKU: 911106-8)
Position 018 – PAN HEAD SCREW M5X70 (SKU: 911291-7)
Position 019 – PAN HEAD SCREW M4X8 (SKU: 911106-8)
Position 020 – BRACKET A (SKU: 164804-5)
Position 022 – DUST SEAL 15 (SKU: 213202-1)
Position 025 – FAN 106 (SKU: 241108-3)
Position 028 – DUST SEAL 10 (SKU: 213051-6)
Position 030 – HEX. NUT M5 (SKU: 931202-6)
Position 031 – SPRING WASHER 5 (SKU: 942101-7)
Position 033 – MOUNT (SKU: 162128-3)
Position 035 – RELAY HOLDER (SKU: 342946-7)
Position 036 – HEX. NUT M12 (SKU: 652101-6)
Position 038 – PAN HEAD SCREW M4X6 (SKU: 911101-8)
Position 041 – SCROLL (SKU: 168151-6)
Position 042 – SEAL (SKU: 443066-1)
Position 044 – LOCK WASHER 12 (SKU: 253972-0)
Position 045 – HEX. NUT M10 (SKU: 931503-2)
Position 046 – SWITCH COVER (SKU: 164801-1)
Position 047 – GROMMET (SKU: 682530-9)
Position 048 – PAN HEAD SCREW M4X6 (SKU: 911101-8)
Position 049 – PAN HEAD SCREW M4X6 (SKU: 911101-8)
Position 050 – PAN HEAD SCREW M4X8 (SKU: 652014-1)
Position 051 – PAN HEAD SCREW M4X12 (SKU: 911116-5)
Position 053 – PAN HEAD SCREW M4X6 (SKU: 911101-8)
Position 054 – GROMMET (SKU: 682527-8)
Position 060 – STRAIN RELIEF (SKU: 687628-7)
Position 061 – PAN HEAD SCREW M5X12 (SKU: 911211-1)
Position 062 – BAND (SKU: 687010-0)
Position 066 – WASHER 12 (SKU: 652061-2)
Position 068 – BRUSH HOLDER CAP (SKU: 643658-8)
Position 400 – DUST BAG (SKU: 166023-9)
