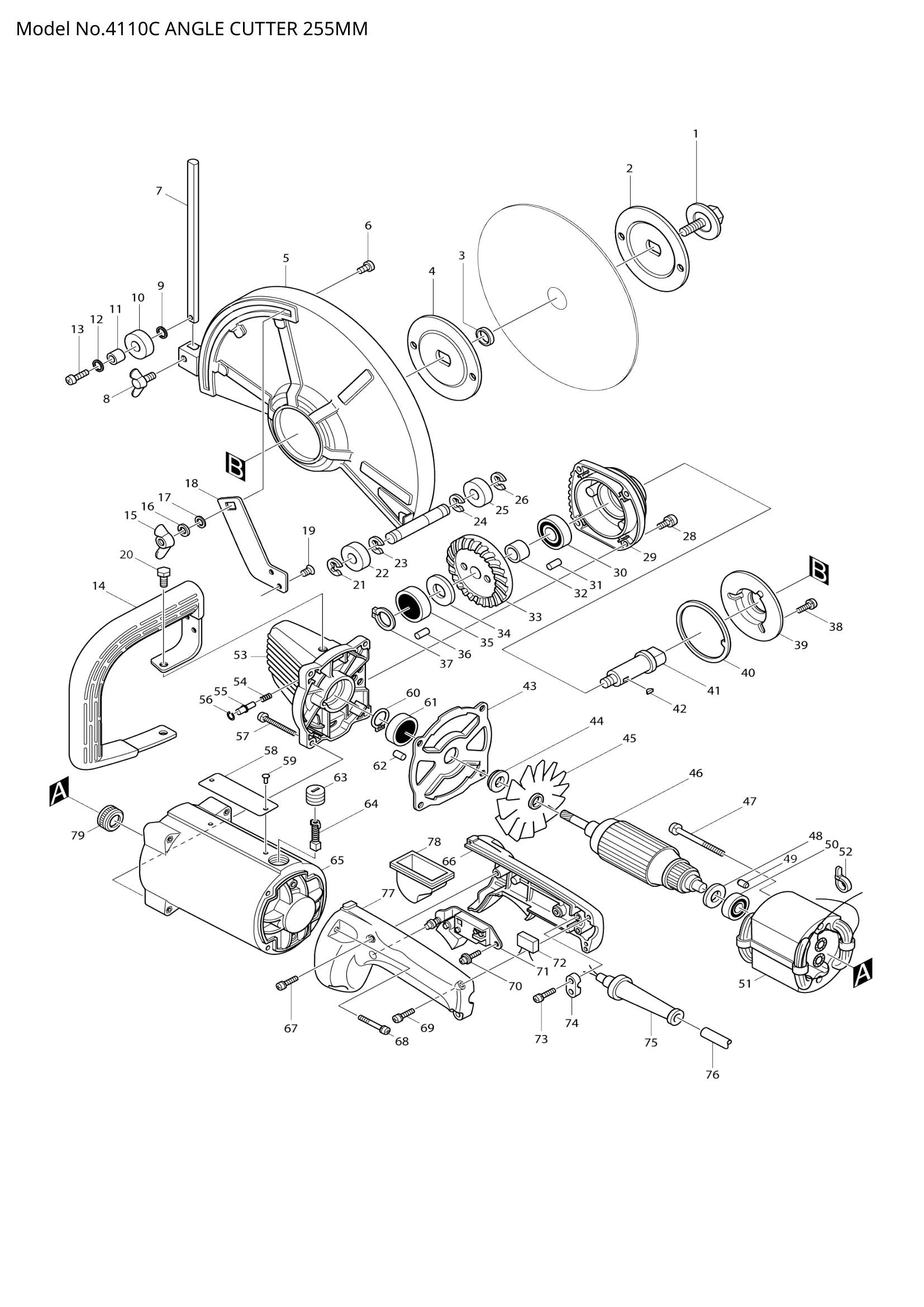

Exploded View – 4110C

Name: Exploded View – 4110C
Brand: Makita
Availability: InStock

Makita

Price:

€0,00

Quantity:

Share this product

Position 001 – HEX. BOLT M10X25 (SKU: 265265-3)
Position 002 – INNER FLANGE 100 (SKU: 224184-2)
Position 003 – RING 20 (SKU: 257054-0)
Position 004 – INNER FLANGE 100 (SKU: 224184-2)
Position 006 – CAP SQUARE NECK BOLT M8X24 (SKU: 251918-0)
Position 007 – ROD 12-210 (SKU: 256923-2)
Position 008 – WING BOLT M8X12 (SKU: 251859-0)
Position 009 – FLAT WASHER 12 (SKU: 253143-9)
Position 010 – RING 12 (SKU: 257091-4)
Position 011 – SLEEVE 8 (SKU: 257580-9)
Position 012 – FLAT WASHER 12 (SKU: 253143-9)
Position 014 – GRIP (SKU: 273615-8)
Position 015 – WING NUT M8 (SKU: 934401-9)
Position 016 – SPRING WASHER 8 (SKU: 942201-3)
Position 017 – FLAT WASHER 8 (SKU: 941201-0)
Position 018 – LOCK PLATE (SKU: 341854-9)
Position 019 – COUNTERSUNK HEAD SCREW M5 (SKU: 912202-5)
Position 020 – HEX. BOLT M8X16 (SKU: 921422-0)
Position 021 – STOP RING E-9 (SKU: 961015-1)
Position 022 – RING 12 (SKU: 257091-4)
Position 023 – STOP RING E-9 (SKU: 961015-1)
Position 024 – STOP RING E-9 (SKU: 961015-1)
Position 025 – RING 12 (SKU: 257091-4)
Position 026 – STOP RING E-9 (SKU: 961015-1)
Position 029 – BEARING BOX COMPLETE (SKU: 152203-3)
Position 030 – BALL BEARING 6203LLB (SKU: 211256-2)
Position 031 – RUBBER PIN 4 (SKU: 263002-9)
Position 032 – SLEEVE 17 (SKU: 257576-0)
Position 033 – SPIRAL BEVEL GEAR 55 (SKU: 221353-6)
Position 034 – FLAT WASHER 10 (SKU: 253180-3)
Position 036 – RUBBER PIN 4 (SKU: 263002-9)
Position 037 – RETAINING RING S-10 (SKU: 961006-2)
Position 038 – PAN HEAD SCREW M5X10 (SKU: 911206-4)
Position 039 – PRESSURE PLATE (SKU: 162107-1)
Position 040 – PLATE B (SKU: 341853-1)
Position 041 – SPINDLE (SKU: 321443-6)
Position 042 – WOODRUFF KEY 4 (SKU: 254001-2)
Position 044 – BUSH 15 (SKU: 321444-4)
Position 045 – FAN 100 (SKU: 241317-4)
Position 052 – BAND (SKU: 687010-0)
Position 054 – COMPRESSION SPRING 7 (SKU: 231240-1)
Position 055 – PIN 6 (SKU: 256633-1)
Position 056 – RING SPRING 8 (SKU: 231928-3)
Position 057 – PAN HEAD SCREW M5X40 (SKU: 911261-6)
Position 058 – NAME PLATE 4110C (SKU: 854730-3)
Position 059 – RIVET 0-5 (SKU: 953106-2)
Position 060 – RETAINING RING S-15 (SKU: 961055-9)
Position 061 – BALL BEARING 6202LLB (SKU: 211206-7)
Position 062 – RUBBER PIN 6 (SKU: 263005-3)
Position 068 – PAN HEAD SCREW M5X28 (SKU: 911248-8)
Position 078 – DUST COVER F/AC/DC SWITCH (SKU: 421279-4)
Position 401 – SOCKET WRENCH 17 (SKU: 782210-8)
Position 404 – BASE SET (SKU: 122263-9)
Position 405 – FLAT WASHER 8 (SKU: 941201-0)
Position 406 – SPRING WASHER 8 (SKU: 942201-3)
Position 407 – WING BOLT M8X15 (SKU: 924416-4)
Position 408 – FLAT WASHER 6 (SKU: 941151-9)
Position 409 – SPRING WASHER 6 (SKU: 942151-2)
Position 410 – WING BOLT M6X12 (SKU: 924311-8)

Exploded View – 4110C

Description

Exploded View – 4110C
