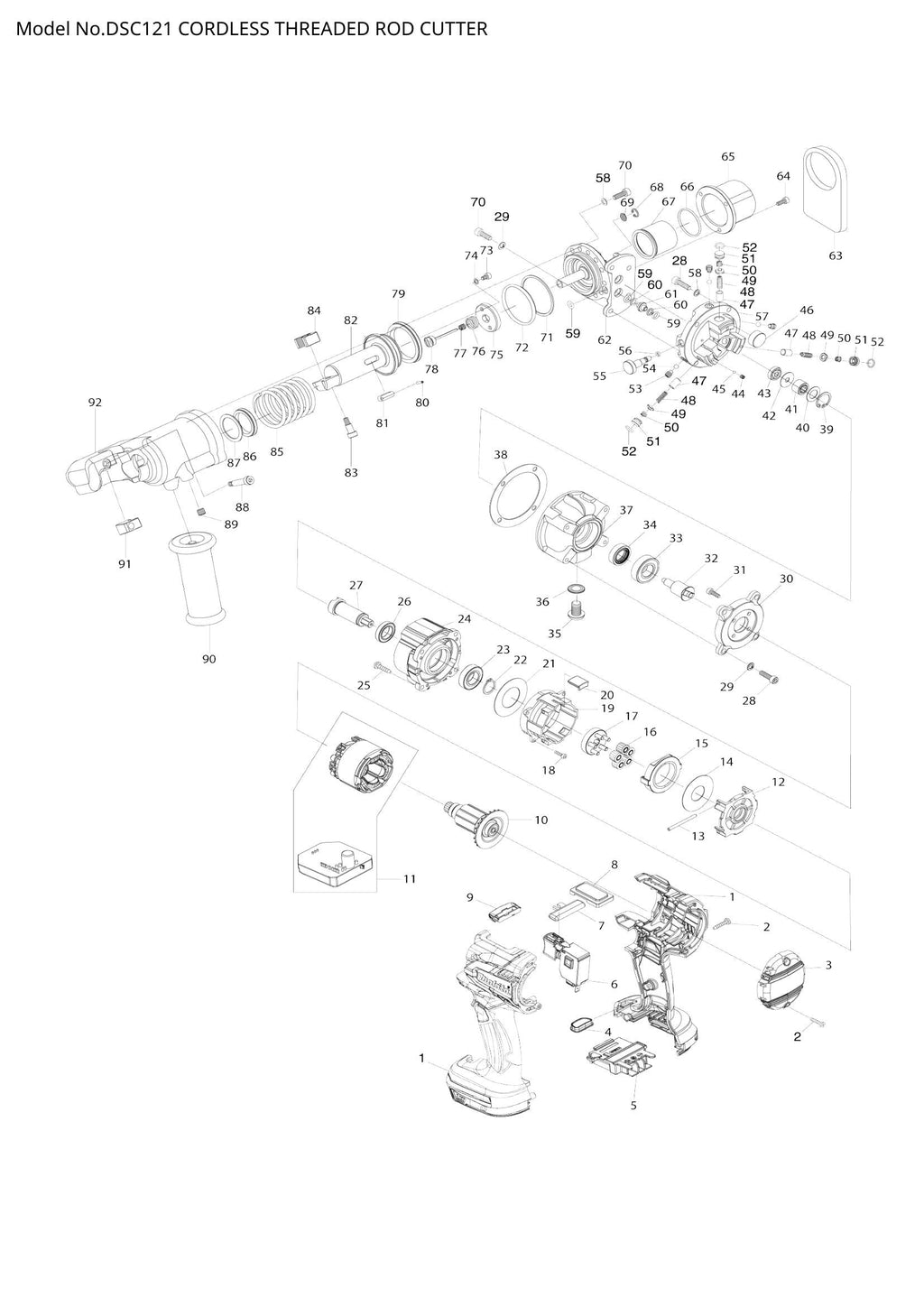

Exploded View – DSC121

Share this product

Position 001 – HOUSING SET (SKU: 183C36-3)
Position 002 – TAPPING SCREW BIND PT 3X16 (SKU: 266130-9)
Position 003 – REAR COVER (SKU: 455011-4)
Position 004 – INDICATOR PANEL COMPLETE (SKU: 142263-3)
Position 005 – TERMINAL (SKU: 643874-2)
Position 006 – SWITCH C3JW-4B (SKU: 650710-5)
Position 008 – COVER (SKU: 457799-2)
Position 009 – LED CIRCUIT (SKU: 620283-2)
Position 010 – ROTOR (SKU: 619336-2)
Position 011 – STATOR COMPLETE (SKU: 629116-8)
Position 012 – MOTOR BRACKET (SKU: 455005-9)
Position 013 – ROD 3 (SKU: 256375-7)
Position 014 – FLAT WASHER 18 (SKU: 253401-3)
Position 015 – INTERNAL SPUR GEAR 41 (SKU: 221558-8)
Position 016 – SPUR GEAR 13 (SKU: 226193-7)
Position 017 – CARRIER COMPLETE (SKU: 144591-2)
Position 018 – PAN HEAD SCREW M3X12 (SKU: 911017-7)
Position 019 – GEAR CASE (SKU: 455006-7)
Position 020 – RUBBER SEAL (SKU: 422168-6)
Position 021 – FLAT WASHER 25 (SKU: 253888-9)
Position 022 – RETAINING RING S-15 (SKU: 961055-9)
Position 023 – BALL BEARING 6902LLB (SKU: 211234-2)
Position 024 – GEAR HOUSING (SKU: 319616-3)
Position 025 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 026 – BALL BEARING 6802LLB (SKU: 211233-4)
Position 027 – SPINDLE (SKU: 326996-0)
Position 030 – MOTOR FLANGE (SKU: SC03220120)
Position 031 – BOLT HB4X12 (SKU: SC07511080)
Position 032 – ECCENTRIC SHAFT T45417 (SKU: SC00000486)
Position 033 – BALL BEARING 6002RU (SKU: SC00000050)
Position 034 – OIL SEAL UE15257 (SKU: SC06504050)
Position 035 – HEX. SOCKET BUTTON BOLT HBB (SKU: SC07550100)
Position 036 – SEAL WASHER (SKU: SC00000489)
Position 037 – PIMP CASE (SKU: SC03210040)
Position 038 – LINER B (SKU: SC04601550)
Position 039 – STOP RING H19 (SKU: SC00000487)
Position 040 – NEEDLE BEARING HOLDER A T45 (SKU: SC00000465)
Position 041 – NEEDLE BEARING #RNAF81510 (SKU: SC00000466)
Position 042 – NEEDLE BEARING HOLDER B T45 (SKU: SC00000467)
Position 043 – BALL BEARING 625 (SKU: SC07100030)
Position 044 – HEX.SOCKET SET SCREW M4X4 (SKU: SC07521010)
Position 045 – STEEL BALL 3 (SKU: SC07900000)
Position 046 – MAGNET (SKU: SC00000020)
Position 048 – PISTON RETURN SPRING (SKU: SC00000022)
Position 049 – CHECK VALVE #T43445 (SKU: SC00000464)
Position 050 – SPRING #43449N2 (SKU: SC00000468)
Position 051 – METAL PACKING (SKU: SC03500540)
Position 052 – O RING S-8 (SKU: SC06505590)
Position 053 – BOLT HS6X8 (SKU: SC07523020)
Position 054 – STEEL BALL D3/16 (SKU: SC07900070)
Position 055 – RETURN VALVE (SKU: SC03503900)
Position 056 – O RING S4 (SKU: SC06505300)
Position 057 – MAIN PUMP (SKU: SC03207610)
Position 058 – WASHER 5 (SKU: SC00000067)
Position 059 – O RING P6 (SKU: SC06505010)
Position 060 – BACKUP RING P6 (SKU: SC06503580)
Position 061 – O-RING GUIDE (SKU: SC03500750)
Position 062 – FLANGE FOR CUTTER HEAD (SKU: SC03515230)
Position 063 – BALANCE STAND (SKU: SC04500710)
Position 064 – HEX. SOCKET HEAD BOLT 4X8 (SKU: SC07511010)
Position 065 – LEVELER COVER (SKU: SC04500690)
Position 066 – O-RING S31.5 (SKU: SC06505570)
Position 067 – OIL LEVELER COVER (SKU: SC04500680)
Position 068 – STOP RING H10 (SKU: SC07410110)
Position 069 – FILTER (SKU: SC03301860)
Position 070 – HEX. SOCKET HEAD BOLT 5X15 (SKU: SC00000098)
Position 071 – BACKUP RING G45 (SKU: SC06503600)
Position 072 – O-RING G45 (SKU: SC06505460)
Position 073 – HEX. SOCKET HEAD BOLT 4X6 (SKU: SC00000060)
Position 074 – FLAT WASHER 4 (SKU: SC00000068)
Position 075 – STOPPER PLATE #45423 (SKU: SC00000481)
Position 076 – SPRING #T45378 (SKU: SC00000471)
Position 077 – RELEASE VALVE SPRING (SKU: SC00000023)
Position 078 – RELEASE VALVE (SKU: SC03500140)
Position 079 – PACKING OSI50406 (SKU: SC00000485)
Position 080 – SPRING PIN 2.5X10 (SKU: SC00000070)
Position 081 – KEY (SKU: SC03700080)
Position 082 – CUTTER ROD (SKU: SC03111710)
Position 083 – BOLT (SKU: SC06602200)
Position 084 – CUTTER W3/8 (SKU: SC09002730)
Position 085 – RETURN SPRING (SKU: SC04000400)
Position 086 – SKY PACKING (SKU: SC06500170)
Position 087 – BACKUP RING TBC-26X34X1 (SKU: SC06503590)
Position 088 – BOLT 6.5X25 (SKU: SC06602190)
Position 089 – HEX SOCKET TAPERED SCREW PL (SKU: SC07850050)
Position 090 – HANDLE SET (SKU: SC09004210)
Position 091 – CUTTER W3/8 (SKU: SC09002730)
Position 092 – CUTTER HEAD (SKU: SC03104210)
