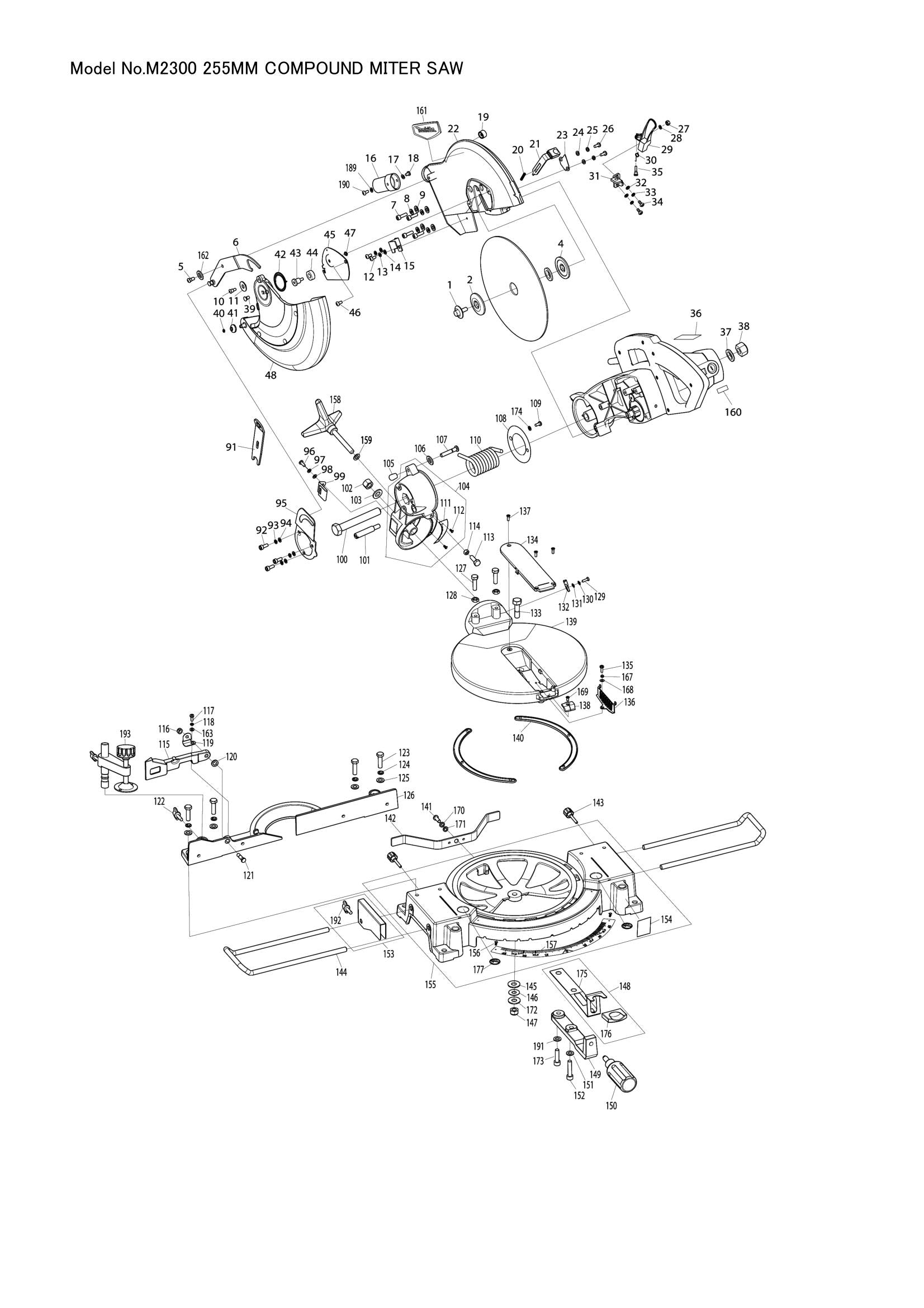

Exploded View – M2300

Share this product

Position 002 – FLANGE (SKU: JM23000065)
Position 004 – FLANGE (SKU: JM23000065)
Position 005 – STEPPED BOLT M6 (SKU: JM23000057)
Position 006 – LINK COMP. (SKU: JM23000058)
Position 008 – SPRING WASHER6 (SKU: JM23000040)
Position 009 – FLAT WASHER6 (SKU: JM23000041)
Position 010 – STEPPED BOLT M5 (SKU: JM23000055)
Position 011 – BUSH (SKU: JM23000056)
Position 013 – SPRING WASHER5 (SKU: JM23000031)
Position 014 – FLAT WASHER5 (SKU: JM23000030)
Position 015 – PLATE (SKU: JM23000053)
Position 019 – LIMIT RING (SKU: JM23000063)
Position 020 – LOCK SPRING (SKU: JM23000066)
Position 021 – SHAFT LOCK (SKU: JM23000067)
Position 023 – COVER (SKU: JM23000068)
Position 024 – FLAT WASHER5 (SKU: JM23000030)
Position 025 – SPRING WASHER5 (SKU: JM23000031)
Position 026 – PAN HEAD SCREW M5X12 (SKU: JM23000069)
Position 037 – FLAT WASHER16 (SKU: JM23000070)
Position 038 – ANTI-LOOSE NUT16 (SKU: JM23000071)
Position 039 – SQUARE NECK BOLTM6X10 (SKU: JM23000074)
Position 040 – PUSH NUT (SKU: JM23000076)
Position 041 – WHEEL (SKU: JM23000075)
Position 042 – TORSION SPRING (SKU: JM23000073)
Position 043 – STEPPED BOLT M6 (SKU: JM23000077)
Position 044 – RUBBER SLEEVE (SKU: JM23000078)
Position 045 – FIX PLATE (SKU: JM23000079)
Position 046 – STEPPED BOLT M5 (SKU: JM23000081)
Position 047 – ANTI-LOOSE NUTM6 (SKU: JM23000080)
Position 048 – SAFETY COVER COMP. (SKU: JM23000072)
Position 049 – HEX.NUTM4 (SKU: JM23000096)
Position 055 – TERMINAL BASE (SKU: JM23000116)
Position 056 – CLAMP (SKU: JM23000111)
Position 058 – STRAIN RELIEF (SKU: JM23000107)
Position 059 – CORD GUARD (SKU: JM23000109)
Position 063 – PAN HEAD SCREW M4X30 (SKU: JM23000118)
Position 067 – MOTOR REAR COVER (SKU: JM23000125)
Position 071 – BRUSH HOLDER CAP (SKU: JM23000120)
Position 072 – SPINDLE (SKU: JM23000084)
Position 073 – TRUSS HEAD SCREW M8X12 (SKU: JM23000090)
Position 074 – KEY5X10 (SKU: JM23000085)
Position 075 – BALL BEARING 6304-RZ (SKU: JM23000086)
Position 076 – RETAINING RING S-20 (SKU: JM23000087)
Position 077 – HELICAL GEAR (SKU: JM23000088)
Position 078 – RETAINING RING S-16 (SKU: JM23000089)
Position 080 – LIMIT PLATE (SKU: JM23000093)
Position 081 – LIMIT PAD (SKU: JM23000094)
Position 082 – ADJUST PAD (SKU: JM23000095)
Position 083 – GEAR HOUSING COMP. (SKU: JM23000091)
Position 084 – FAN GUIDE (SKU: JM23000098)
Position 085 – BALL BEARING 6201Z (SKU: JM23000099)
Position 086 – ARMATURE ASS'Y (230V) (SKU: JM23000100)
Position 088 – BALL BEARING 6001Z (SKU: JM23000102)
Position 089 – RUBBER RING (SKU: JM23000103)
Position 090 – FIELD ASS'Y (230V) (SKU: JM23000104)
Position 092 – PAN HEAD SCREW M6 X 16 (SKU: JM23000039)
Position 093 – SPRING WASHER6 (SKU: JM23000040)
Position 094 – FLAT WASHER6 (SKU: JM23000041)
Position 095 – LINK SUPPORT PLATE (SKU: JM23000038)
Position 096 – PAN HEAD SCREW M5 X 10 (SKU: JM23000032)
Position 097 – SPRING WASHER5 (SKU: JM23000031)
Position 098 – FLAT WASHER5 (SKU: JM23000030)
Position 099 – CLIP (SKU: JM23000042)
Position 100 – SHAFT (SKU: JM23000037)
Position 101 – LIMIT PIN (SKU: JM23000049)
Position 102 – ANTI-LOOSE NUTM12 (SKU: JM23000044)
Position 103 – FLAT WASHER12 (SKU: JM23000045)
Position 104 – ARM COMPLETE (SKU: JM23000036)
Position 105 – LOCK PIN CAP (SKU: JM23000046)
Position 106 – O RING (SKU: JM23000047)
Position 107 – PIN (SKU: JM23000048)
Position 108 – RING (SKU: JM23000051)
Position 110 – TORSIONAL SPRING (SKU: JM23000050)
Position 113 – HEX. BOLT M8X16 (SKU: JM23000033)
Position 114 – HEX. NUT M8 (SKU: JM23000028)
Position 118 – SPRING WASHER4 (SKU: JM23000137)
Position 119 – FIX PLATE (SKU: JM23000202)
Position 123 – HEX.BOLT M8X30 (SKU: JM23000024)
Position 124 – SPRING WASHER8 (SKU: JM23000025)
Position 125 – FLAT WASHER8 (SKU: JM23000026)
Position 126 – GUIDE RULE (SKU: JM23000204)
Position 128 – HEX. NUT M8 (SKU: JM23000028)
Position 129 – PAN HEAD SCREW M5 X 10 (SKU: JM23000032)
Position 131 – FLAT WASHER5 (SKU: JM23000030)
Position 132 – BEVEL POINTER (SKU: JM23000029)
Position 133 – PIVOT (SKU: JM23000019)
Position 136 – PROTECTION NET (SKU: JM23000022)
Position 138 – MITER ANGLE POINTER (SKU: JM23000017)
Position 139 – TURN BASE COMP. (SKU: JM23000021)
Position 140 – SLIDE PLATE (SKU: JM23000016)
Position 141 – SCREW (SKU: JM23000012)
Position 142 – BASE SUPPORTER (SKU: JM23000011)
Position 143 – LOCK KNOB FOR EXT.WINGS (SKU: JM23000006)
Position 144 – HOLDER (SKU: JM23000127)
Position 146 – WAVE WASHER 6 (SKU: JM23000014)
Position 147 – ANTI-LOOSE NUTM10 (SKU: JM23000015)
Position 148 – KNOCK SPRING SET (SKU: JM23000200)
Position 149 – HANDLE BRACKET (SKU: JM23000002)
Position 150 – GRIP (SKU: JM23000001)
Position 153 – SET PLATE (SKU: JM23000128)
Position 159 – FLAT WASHER10 (SKU: JM23000013)
Position 161 – LOGO LABEL (SKU: JM23080143)
Position 162 – WAVE WASHER 6 (SKU: JM23000014)
Position 164 – PAN HEAD SCREW M4X28 (SKU: JM00000210)
Position 165 – FLAT WASHER5 (SKU: JM23000030)
Position 166 – FLAT WASHER5 (SKU: JM23000030)
Position 168 – FLAT WASHER4 (SKU: JM23000136)
Position 169 – FLAT HEAD SCREW M4X8 (SKU: JM00000206)
Position 170 – SPRING WASHER6 (SKU: JM23000040)
Position 171 – FLAT WASHER6 (SKU: JM23000041)
Position 172 – FLAT WASHER10 (SKU: JM23000013)
Position 174 – CONE WASHER 6 (SKU: JM00000208)
Position 175 – KNOCK SPRING (SKU: JM23000005)
Position 176 – LOCKING KNOB (SKU: JM23000185)
Position 177 – CAUTION LABEL (SKU: JM2708B060)
Position 188 – FLAT WASHER4 (SKU: JM23000136)
Position 189 – FLAT WASHER4 (SKU: JM23000136)
Position 190 – PAN HEAD SCREW M4X10 (SKU: JM23000138)
Position 191 – SPRING WASHER8 (SKU: JM23000003)
Position 192 – WING BOLT M6X20 (SKU: JM23000129)
Position 193 – VISE ASS'Y (SKU: JM23000131)
Position 194 – CAPACITOR (SKU: JM23000183)
Position 195 – CAUTION LABEL (SKU: JM23180056)
