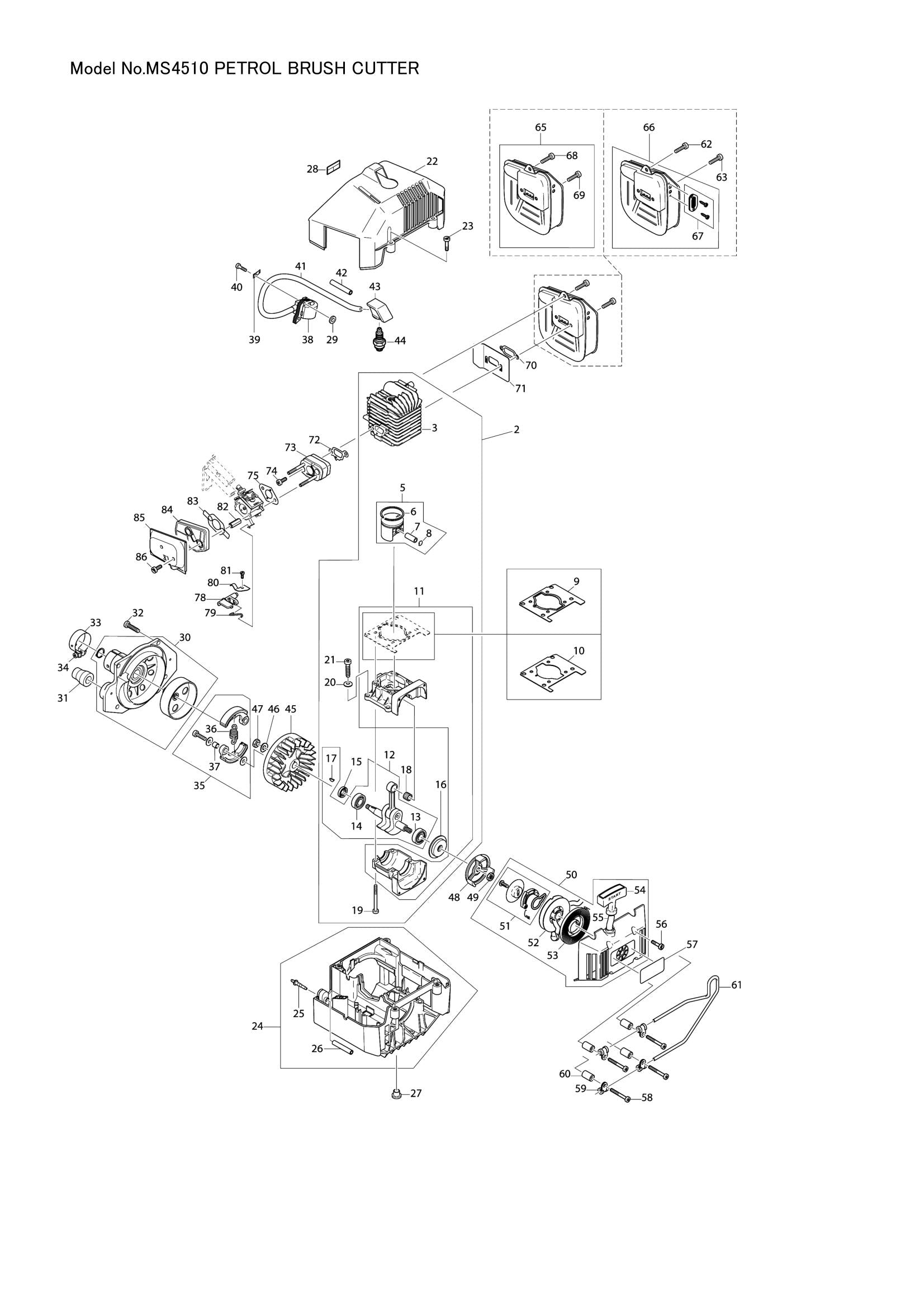

Exploded View – MS4510

Name: Exploded View – MS4510
Brand: Makita
Availability: InStock

Makita

Price:

€0,00

Quantity:

Share this product

Position 002 – SHORT BLOCK 45ML (SKU: 386100100)
Position 003 – CYLINDER 43MM (SKU: 386131011)
Position 005 – PISTON 43MM ASSY (SKU: 957132386)
Position 006 – PISTON RING 43MM (SKU: 364999780)
Position 007 – PISTON PIN (SKU: 385132030)
Position 008 – SPRING RING (SKU: 385132040)
Position 009 – GASKET (SKU: 385131030)
Position 011 – CRANKCASE SET (SKU: 385111102)
Position 012 – CRANK SHAFT ASSY (SKU: 385120100)
Position 013 – BALL BEARING 6201 (SKU: 960102131)
Position 014 – BALL BEARING 6201 (SKU: 960102131)
Position 015 – OIL SEAL 12 (SKU: 962900057)
Position 016 – OIL SEAL (SKU: 962900060)
Position 017 – KEY (SKU: 939620371)
Position 018 – NEEDLE CAGE (SKU: 962211033)
Position 020 – WASHER 5 (SKU: 928014000)
Position 021 – SCREW 6.7X30 (SKU: 913467304)
Position 022 – ENGINE HOUSING UPPER RED (SKU: 385118313)
Position 025 – NIPPLE (SKU: 001131020)
Position 027 – PLUG (SKU: 965404240)
Position 029 – ISOLATION WASHER (SKU: 195143020)
Position 030 – CLUTCH CASE ASSY (SKU: 385217000)
Position 032 – SCREW 6.7X25 (SKU: 913467254)
Position 033 – CLAMPING RING (SKU: 965903062)
Position 035 – CLUTCH SHOE,SET (SKU: 010181000)
Position 036 – SPRING (SKU: 385184020)
Position 037 – CLUTCH SHOE BUSH (SKU: 385183030)
Position 038 – IGNITION COIL COMPLETE (SKU: 385143031)
Position 039 – EARTHING TERMINAL (SKU: 965605411)
Position 041 – IGNITION CABLE L=1M (SKU: 970310200)
Position 043 – PLUG CAP WITH SPRING (SKU: 385147100)
Position 044 – SPARK PLUG (BPMR7A) (SKU: 168648-5)
Position 045 – FLYWHEEL (SKU: 385141013)
Position 048 – STARTER WHEEL (SKU: 385166040)
Position 050 – STARTER ASSY (SKU: 385160303)
Position 051 – STARTER REPAIR SET (SKU: 957160385)
Position 052 – CABLE DRUM (SKU: 385162020)
Position 053 – REWIND SPRING (SKU: 385163100)
Position 054 – STARTER GRIP (SKU: 957404691)
Position 055 – STARTER ROPE (SKU: 387164010)
Position 057 – DOLMAR LOGO LABEL (SKU: 980114100)
Position 065 – MUFFLER (SKU: 957174385)
Position 070 – MUFFLER GASKET (SKU: 965527040)
Position 071 – HEAT INSULATION PLATE (SKU: 385174012)
Position 073 – CARBURETOR INSULATOR (SKU: 385131071)
Position 075 – CARBURETOR GASKET (SKU: 965527020)
Position 076 – ADJUSTING GUIDE (SKU: 385154011)
Position 078 – CHOKE LEVER (SKU: 028150740)
Position 079 – CHOKE LINKAGE (SKU: 385150030)
Position 080 – SPRING SHACKLE (SKU: 385150020)
Position 081 – SCREW 3.5X13 (SKU: 915135130)
Position 082 – ALMINUM HEX. LONG NUT M5 (SKU: 001173060)
Position 083 – AIR FILTER GASKET (SKU: 965527060)
Position 084 – AIR FILTER (SKU: 385173100)
Position 085 – AIR FILTER ELEMENT COVER (SKU: 385118060)
Position 090 – CARBURETOR ASSY WT-225A (SKU: 957151170)
Position 092 – PUMP COVER (SKU: 021151160)
Position 093 – IDLE STOP SCREW (SKU: 001151400)
Position 094 – PRESSURE SPRING (SKU: 021151230)
Position 095 – SCREW (SKU: 118151190)
Position 096 – PUMP DIAPHRAGM,SET (SKU: 957151010)
Position 097 – METERING DIAPHRAGM ,SET (SKU: 957151020)
Position 098 – DIAPHRAGM COVER (SKU: 021151120)
Position 099 – SCREW (SKU: 378151220)
Position 100 – MAIN ADJUSTMENT SCREW(H) (SKU: 001151420)
Position 102 – SPRING(H) (SKU: 021151530)
Position 103 – SPRING (SKU: 021151480)
Position 104 – THROTTLE SHAFT (SKU: 385151040)
Position 105 – SPRING (SKU: 371151310)
Position 106 – THROTTLE SHUTTER (SKU: 001151680)
Position 107 – SCREW (SKU: 118151060)
Position 108 – SHAFT CLIP (SKU: 108151350)
Position 109 – SCREW (SKU: 378151220)
Position 110 – CHOKE SHAFT ASSY (SKU: 385151020)
Position 111 – CHOKE SHUTTER (SKU: 001151350)
Position 112 – SCREW (SKU: 118151060)
Position 113 – LOCKING BALL (SKU: 118151170)
Position 114 – LOCKING SPRING (SKU: 118151160)
Position 115 – SCREEN (SKU: 021151180)
Position 116 – SET OF CONTROL PARTS (SKU: 957150040)
Position 121 – CONTROL CABLE ASSY (SKU: 385726072)
Position 123 – RIGHT GRIP HOUSING R ASSY (SKU: 369313291)
Position 124 – RIGHT GRIP HOUSING L (SKU: 369313011)
Position 125 – SWITCH FOR ENGINE STOP (SKU: 975001241)
Position 126 – THROTTLE RETUNE SPRING (SKU: 369311071)
Position 130 – CLAMPING RING (SKU: 965903080)
Position 132 – RUBBER BUSH (SKU: 965401018)
Position 133 – RETAINING CLIP (SKU: 385176010)
Position 135 – HANDLE (SKU: 385310161)
Position 136 – GRIP LEFT (SKU: 387311100)
Position 139 – HANDLE CLAMP SET RED (SKU: 957310011)
Position 140 – HEX. SCREW M8X55 (SKU: 900108555)
Position 141 – WASHER 8 (SKU: 924108410)
Position 143 – TANK ASSY RED (SKU: 385114317)
Position 144 – TANK CAP CPL.,FUEL (SKU: 010114091)
Position 145 – O-RING (SKU: 963230031)
Position 146 – FUEL LINE (SKU: 965452480)
Position 147 – SUCTION HEAD COMPLETE (SKU: 963601420)
Position 148 – SUCTION HEAD (SKU: 963601150)
Position 149 – DISC (SKU: 928605500)
Position 150 – VENT VALVE ASSY (SKU: 957114011)
Position 152 – LABEL MS-4510 (SKU: 980115965)
Position 153 – PLATE WITH NUT M8 (SKU: 385365011)
Position 155 – TANK MOUNT FRONT RED (SKU: 385310032)
Position 157 – WASHER M6 (SKU: 924106400)
Position 158 – HEX. NUT M6 (SKU: 920206000)
Position 159 – HARNESS HOLDER PLATE (SKU: 385316011)
Position 161 – MAIN PIPE ASSY (SKU: 010261010)
Position 162 – DRIVE SHAFT (SKU: 385228030)
Position 163 – CAUTION LABEL (SKU: 980114628)
Position 165 – LABEL (SKU: 980114119)
Position 166 – PROTECTION HOOD SET (SKU: 010341202)
Position 168 – LINE CUTTER (SKU: 957341010)
Position 173 – GEAR HEAD ASSY (SKU: 385200203)
Position 174 – SPINDLE LOCK PARTS SET (SKU: 957385272)
Position 176 – GASKET (SKU: 963604084)
Position 177 – OIL SEAL (SKU: 962900055)
Position 178 – SPACER RING 15 (SKU: 385228020)
Position 179 – WINDING PREVENTER (SKU: 385224411)
Position 182 – RECEIVE WASHER (SKU: 385224012)
Position 183 – GUARD FOR GRASS WINDING (SKU: 385224521)
Position 184 – CLAMP WASHER (SKU: 385224022)
Position 185 – BLADE CUP (SKU: 385218020)
Position 186 – BLADE NUT M12X1.5LH (SKU: 385228041)
Position 187 – LOCKING WASHER 5 (SKU: 385341080)

Exploded View – MS4510
