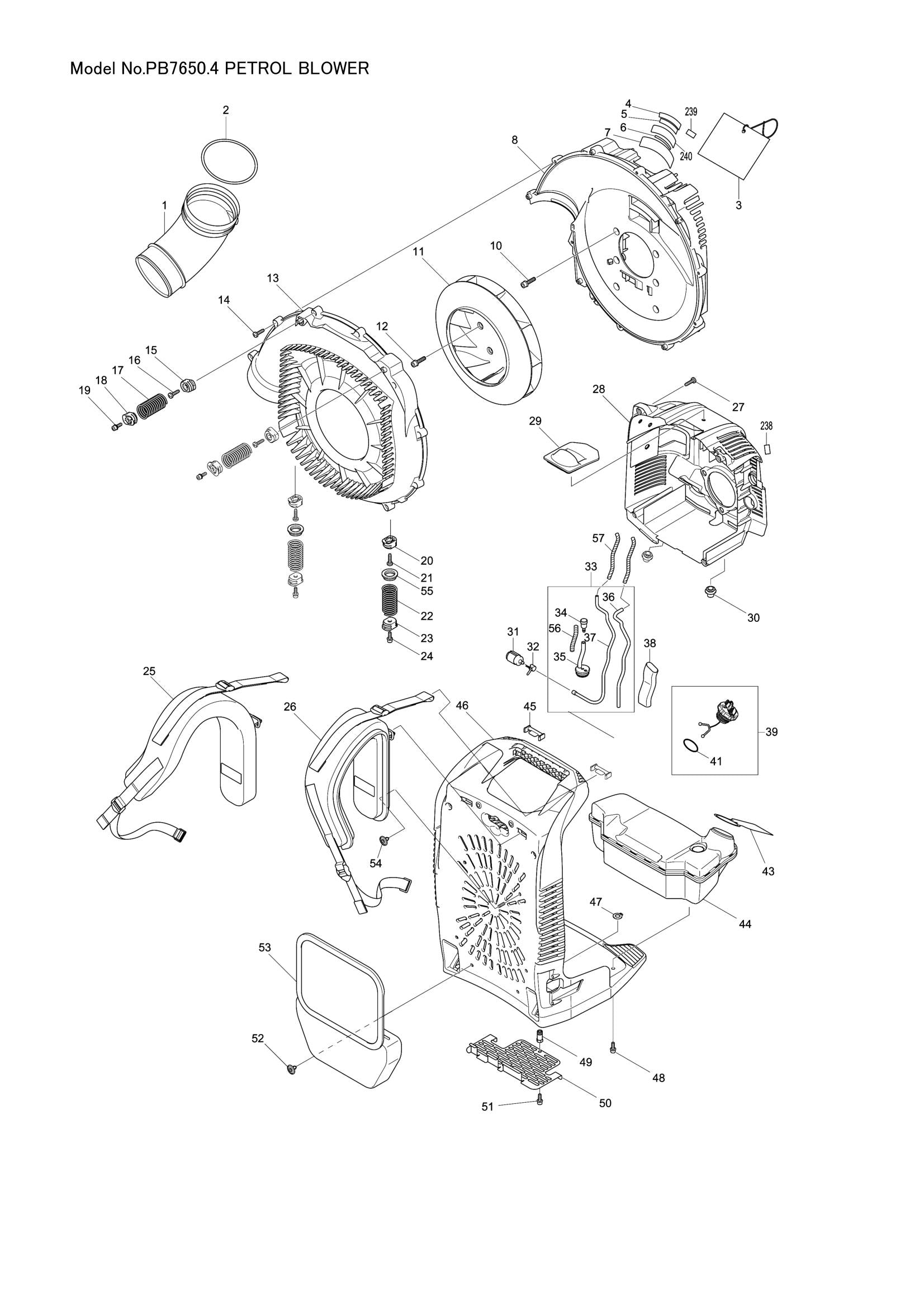

Exploded View – PB7650

Name: Exploded View – PB7650
Brand: Makita
Availability: InStock

Makita

Price:

€0,00

Quantity:

Share this product

Position 001 – ELBOW (SKU: 412144-8)
Position 002 – O RING 93 (SKU: 213645-7)
Position 005 – SOUND 111DB LABEL (SKU: 805X41-3)
Position 006 – SERIAL NO. LABEL (SKU: 801D19-4)
Position 007 – CAUTION LABEL (SKU: 803T61-7)
Position 008 – FRONT VOLUTE CASE (SKU: 454893-1)
Position 010 – H.S.H.BOLT M6X25 WITH WR (SKU: 922343-9)
Position 011 – FAN 250 (SKU: 240152-7)
Position 012 – H.S.H.BOLT M6X25 WITH WR (SKU: 922343-9)
Position 013 – REAR VOLUTE CASE (SKU: 454892-3)
Position 014 – TAPPING SCREW 5X20 (SKU: 266420-0)
Position 015 – SPRING HOLDER A (SKU: 454903-4)
Position 016 – TAPPING SCREW 5X20 (SKU: 266420-0)
Position 017 – COMPRESSION SPRING 22 (SKU: 234324-4)
Position 018 – SPRING HOLDER B (SKU: 454904-2)
Position 019 – H.S.H.BOLT M5X16 WITH WR (SKU: 922223-9)
Position 020 – SPRING HOLDER A (SKU: 454903-4)
Position 021 – TAPPING SCREW 5X20 (SKU: 266420-0)
Position 022 – COMPRESSION SPRING 22 (SKU: 234333-3)
Position 023 – SPRING HOLDER B (SKU: 454904-2)
Position 024 – H.S.H.BOLT M5X16 WITH WR (SKU: 922223-9)
Position 027 – TAPPING SCREW 5X20 (SKU: 266420-0)
Position 028 – ENGINE COVER COMPLETE (SKU: 142666-1)
Position 029 – PLUG COVER (SKU: 424619-5)
Position 030 – DAMPER (SKU: 424620-0)
Position 031 – FILTER (SKU: 163532-9)
Position 032 – HOSE CLAMP (SKU: 345920-4)
Position 033 – FUEL TUBE ASSEMBLY (SKU: 126586-7)
Position 034 – BREATHER (SKU: 168396-6)
Position 035 – FUEL GROMMET (SKU: 424505-0)
Position 036 – FUEL TUBE 3-370 (SKU: 412120-2)
Position 037 – FUEL TUBE 3-370 (SKU: 412114-7)
Position 038 – TUBE GUARD 20-102 (SKU: 422137-7)
Position 043 – CAUTION PLATE (SKU: 898428-2)
Position 044 – FUEL TANK COMPLETE (SKU: 142427-9)
Position 045 – BAND HOLDER (SKU: 454905-0)
Position 046 – FRAME (SKU: 454894-9)
Position 047 – RETAINING RING S-9 (SKU: 961005-4)
Position 048 – H.S.H.BOLT M5X16 WITH WR (SKU: 922223-9)
Position 049 – HEX NUT M5-10 (SKU: 264098-3)
Position 050 – GUARD (SKU: 346771-8)
Position 051 – H.S.H.BOLT M5X16 WITH WR (SKU: 922223-9)
Position 055 – RUBBER RING 25 (SKU: 424678-9)
Position 056 – COIL SPRING 8 (SKU: 326356-6)
Position 057 – SPIRAL TUBE 6-100 (SKU: 454425-4)
Position 060 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 062 – SWITCH UNIT (SKU: 638642-6)
Position 063 – LEAD UNIT (SKU: 632C07-2)
Position 064 – CORRUGATE TUBE (SKU: 455191-6)
Position 065 – COMPRESSION SPRING 4 (SKU: 231469-9)
Position 066 – THROTTLE LEVER A (SKU: 454899-9)
Position 067 – CONTROL CABLE (SKU: 168843-7)
Position 068 – HEX. LOCK NUT M4-7 (SKU: 252126-6)
Position 069 – THROTTLE LINK (SKU: 454924-6)
Position 070 – THROTTLE LEVER B (SKU: 454900-0)
Position 071 – WAVE WASHER 6 (SKU: 253903-9)
Position 072 – FLAT WASHER 5 (SKU: 267010-2)
Position 075 – THUMB SCREW M5X30 (SKU: 265762-9)
Position 076 – FLAT WASHER 12 (SKU: 253052-2)
Position 090 – HOSE CLAMP 100 (SKU: 282025-8)
Position 092 – HOSE CLAMP 100 (SKU: 282025-8)
Position 094 – CABLE HOLDER (SKU: 454922-0)
Position 101 – PAN HEAD SCREW M5X20 (SKU: 911233-1)
Position 102 – PB-7650.4 MODEL NO. LABEL (SKU: 803T59-4)
Position 103 – CAUTION TAG (SKU: 819430-2)
Position 131 – ROCKER COVER COMPLETE (SKU: 141771-1)
Position 132 – ROCKER COVER GASKET (SKU: 5971500900)
Position 134 – CYLINDER HEAD GASKET (SKU: 442167-2)
Position 135 – SPARK PLUG (SKU: 168401-9)
Position 136 – H.S.H.BOLT M6X35 (SKU: 266586-6)
Position 138 – CHECK VALVE (SKU: 424201-0)
Position 140 – CAM GEAR GASKET (SKU: 442168-0)
Position 141 – CAM GEAR COVER (SKU: 318725-5)
Position 143 – OIL CAP (SKU: 452047-4)
Position 144 – GASKET (SKU: 424343-0)
Position 145 – LEAD VALVE (SKU: 346083-9)
Position 146 – RETAINER PLATE (SKU: 5931501300)
Position 148 – OIL CASE GASKET (SKU: 5976500100)
Position 149 – OIL CASE (SKU: 319008-6)
Position 150 – GASKET (SKU: 346452-4)
Position 154 – PISTON RING SET (SKU: 197040-8)
Position 157 – PISTON PIN (SKU: 326039-8)
Position 158 – RING SPRING 12 (SKU: 233995-4)
Position 160 – WOODRUFF KEY 4 (SKU: 254001-2)
Position 161 – FLAT WASHER 41 (SKU: 267448-1)
Position 163 – CRANK SHAFT COMPLETE (SKU: 143043-0)
Position 164 – INTAKE VALVE (SKU: 331964-0)
Position 165 – EXHAUST VALVE (SKU: 331965-8)
Position 166 – COMPRESSION SPRING 11 (SKU: 234212-5)
Position 167 – RETAINER (SKU: 331966-6)
Position 170 – PUSH ROD (SKU: 256526-2)
Position 174 – PIN 5 (SKU: 256200-2)
Position 175 – EXHAUST PORT SPACER (SKU: 331937-3)
Position 176 – COTTER (SKU: 331967-4)
Position 177 – CAM LIFTER R (SKU: 313267-4)
Position 178 – OIL GUARD (SKU: 424621-8)
Position 179 – MUFFLER GASKET (SKU: 346772-6)
Position 181 – SOCKET HEAD BOLT M6X18 (SKU: 266771-1)
Position 182 – PLUG CAP (SKU: 424105-6)
Position 183 – PLUG CAP SPRING (SKU: 324891-8)
Position 185 – LEAD UNIT (SKU: 632C08-0)
Position 186 – LEAD WIRE (SKU: 638710-5)
Position 189 – FLANGE NUT M10 (SKU: 264054-3)
Position 190 – RECOIL (SKU: 126165-1)
Position 191 – TAPPING SCREW 5X12 (SKU: 266585-8)
Position 192 – COLLAR (SKU: 424516-5)
Position 193 – SWING ARM (SKU: 326200-7)
Position 194 – FRICTION SPRING (SKU: 234257-3)
Position 195 – REEL (SKU: 441075-4)
Position 197 – STARTER CASE COMPLETE (SKU: 141649-8)
Position 198 – STARTER ROPE (SKU: 444043-6)
Position 199 – STARTER KNOB (SKU: 424361-8)
Position 200 – ROPE STOPPER (SKU: 424360-0)
Position 204 – SEPARATOR PLATE (SKU: 162346-3)
Position 205 – SEPARATOR MESH (SKU: 352020-3)
Position 207 – CHECK VALVE (SKU: 424316-3)
Position 208 – SEPARATOR CASE (SKU: 453865-3)
Position 209 – PAN HEAD SCREW M5X60 (SKU: 911283-6)
Position 210 – CHOKE PLATE (SKU: 454910-7)
Position 211 – TAPPING SCREW 4X14 (SKU: 266192-7)
Position 212 – TAPPING SCREW 5X20 (SKU: 266420-0)
Position 213 – AIR CLEANER CASE (SKU: 454913-1)
Position 214 – SERIAL NO. LABEL (SKU: 815N78-2)
Position 215 – CHOKE LEVER (SKU: 454902-6)
Position 216 – CARBURETOR GASKET (SKU: 5233504200)
Position 217 – PLATE 31 (SKU: 346770-0)
Position 218 – TUBE 3-60 (SKU: 412112-1)
Position 219 – PRIMER PUMP (SKU: 168398-2)
Position 220 – CARBURETOR (SKU: 168859-2)
Position 221 – CARBURETOR GASKET (SKU: 442206-8)
Position 222 – TUBE 3-25 (SKU: 422096-5)
Position 223 – TUBE 3-55 (SKU: 422127-0)
Position 224 – HOSE JOINT (SKU: 452952-5)
Position 225 – TUBE 3-130 (SKU: 412121-0)
Position 226 – TUBE 3-160 (SKU: 422126-2)
Position 228 – HEX. S.H.B. M5X25 WITH WR (SKU: 266749-4)
Position 229 – GROMMET (SKU: 424623-4)
Position 231 – INSULATOR COMPLETE (SKU: 142926-1)
Position 232 – INSULATOR GASKET (SKU: 162333-2)
Position 233 – O RING 20 (SKU: 213304-3)
Position 234 – ICING VALVE (SKU: 454911-5)
Position 235 – ICING VALVE COVER (SKU: 454912-3)
Position 236 – TAPPING SCREW 4X14 (SKU: 266192-7)
Position 237 – O RING 17 (SKU: 213261-5)
Position 250 – ADJUST SCREW (SKU: 266795-7)
Position 251 – CABLE ADJUST NUT M6 (SKU: 264065-8)
Position 252 – PAN HEAD SCREW M3X10 (SKU: 266704-6)
Position 253 – BRACKET CABLE (SKU: 346491-4)
Position 254 – SWIVEL (SKU: 325922-6)
Position 255 – WASHER (SKU: 413140-9)
Position 256 – STOP RING E-3 (SKU: 257964-1)
Position 257 – PACKING RING (SKU: 424444-4)
Position 259 – O RING (SKU: WJ00016104)
Position 260 – MAIN JET (SKU: WJ00112478)
Position 261 – PUMP GASKET (SKU: 442155-9)
Position 263 – PUMP BODY ASSEMBLY (SKU: 141672-3)
Position 265 – METERING DIAPHRAGM (SKU: 168620-7)
Position 267 – SCREW (SKU: WJ00096325)
Position 268 – SPRING (SKU: WJ00983160)
Position 269 – SCREW (SKU: WJ00096424)
Position 270 – METERING LEVER PIN (SKU: WJ00014477)
Position 271 – LEVER (SKU: WJ00016648)
Position 272 – INLET NEEDLE VALVE (SKU: WJ00008282)

Exploded View – PB7650
