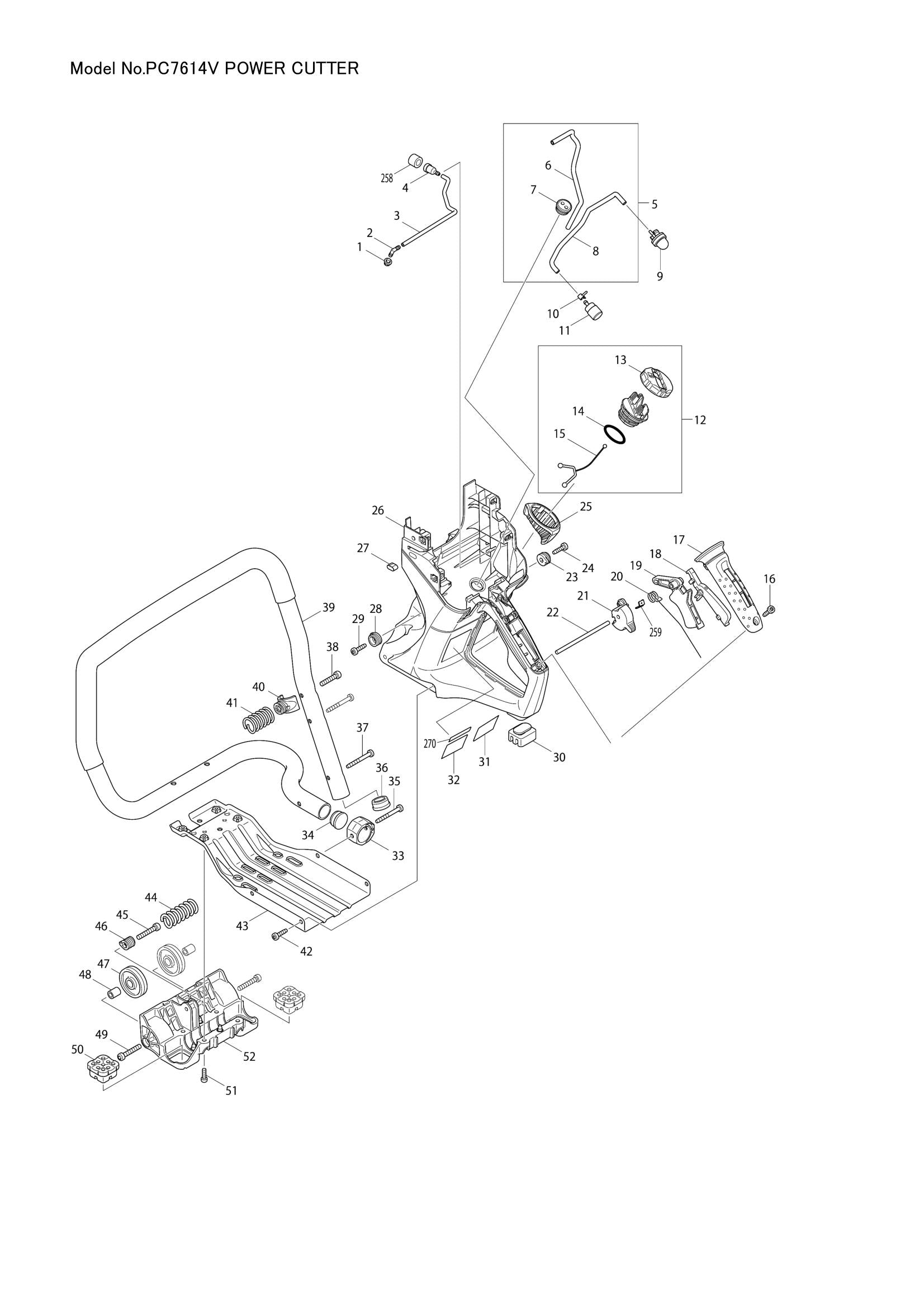

Exploded View – PC7614V

Name: Exploded View – PC7614V
Brand: Makita
Availability: InStock

Makita

Price:

€0,00

Quantity:

Share this product

Position 001 – GROMMET (SKU: 421875-8)
Position 002 – HOSE JOINT 4-4 (SKU: 452800-8)
Position 003 – TUBE 3-190 (SKU: 422083-4)
Position 004 – BREATHER (SKU: 168396-6)
Position 005 – TUBE COMPLETE (SKU: 142150-6)
Position 006 – TUBE 3-120 (SKU: 422074-5)
Position 007 – FUEL GROMMET (SKU: 424101-4)
Position 008 – FUEL TUBE 3-300 (SKU: 422119-9)
Position 009 – PRIMER PUMP (SKU: 168398-2)
Position 010 – HOSE CLAMP (SKU: 324616-0)
Position 013 – TANK CAP KNOB (SKU: 452697-5)
Position 015 – STRAP (SKU: 450957-9)
Position 016 – H.L.TAPPING SCREW 5.5X20 (SKU: 266475-5)
Position 017 – GRIP COVER (SKU: 452736-1)
Position 018 – LOCK OFF LEVER (SKU: 452722-2)
Position 019 – THROTTLE LEVER (SKU: 452721-4)
Position 020 – TORSION SPRING 12 (SKU: 233590-0)
Position 021 – SWITCH LEVER (SKU: 452723-0)
Position 022 – ROD 5 (SKU: 256520-4)
Position 023 – REAR INNER HOLDER (SKU: 452742-6)
Position 024 – H.L.TAPPING SCREW 5.5X20 (SKU: 266475-5)
Position 025 – TANK GUARD (SKU: 424408-8)
Position 026 – TANK COMPLETE (SKU: 140775-0)
Position 027 – PLUG (SKU: 424583-0)
Position 028 – REAR INNER HOLDER (SKU: 452742-6)
Position 029 – H.L.TAPPING SCREW 5.5X20 (SKU: 266475-5)
Position 030 – REAR FOOT (SKU: 424404-6)
Position 031 – PC-7614V NAME PLATE (SKU: 869695-6)
Position 033 – CLAMP (SKU: 452737-9)
Position 034 – RUBBER CAP (SKU: 424410-1)
Position 035 – TAPPING SCREW 5.5X45 (SKU: 266687-0)
Position 036 – RUBBER CAP (SKU: 424410-1)
Position 037 – TAPPING SCREW 5.5X45 (SKU: 266687-0)
Position 039 – FRONT HANDLE (SKU: 331940-4)
Position 040 – CENTER OUTER HOLDER (SKU: 452741-8)
Position 041 – COMPRESSION SPRING 16 (SKU: 234214-1)
Position 042 – H.L.TAPPING SCREW 5.5X20 (SKU: 266475-5)
Position 043 – BOTTOM PLATE (SKU: 346433-8)
Position 044 – COMPRESSION SPRING 13 (SKU: 234213-3)
Position 046 – FRONT INNER HOLDER (SKU: 452740-0)
Position 047 – ROLLER 45 (SKU: 318727-1)
Position 048 – SLEEVE 6.5 (SKU: 257972-2)
Position 050 – FRONT FOOT (SKU: 424405-4)
Position 052 – GUARD (SKU: 318712-4)
Position 053 – TOP COVER COMPLETE (SKU: 140903-7)
Position 054 – THUMB SCREW M6X15 (SKU: 266692-7)
Position 056 – FILTER COVER COMPLETE (SKU: 141040-0)
Position 057 – PLUG COVER (SKU: 424409-6)
Position 058 – PACKING (SKU: 424417-7)
Position 062 – AIR FILTER (SKU: 442165-6)
Position 063 – INNER FILTER (SKU: 424399-3)
Position 064 – + TAPPING SCREW PT 3X20 (SKU: 266127-8)
Position 065 – SEPARATER COVER (SKU: 452739-5)
Position 066 – O RING 32 (SKU: 213459-4)
Position 067 – SEPARATOR MESH (SKU: 352012-2)
Position 069 – FILTER BRACKET (SKU: 452720-6)
Position 070 – CARBURETOR GASKET (SKU: 442166-4)
Position 071 – THROTTLE LINKAGE (SKU: 326040-3)
Position 072 – RUBBER JOINT (SKU: 424407-0)
Position 073 – CARBURETOR WT (SKU: 168653-2)
Position 074 – CHOKE LINKAGE (SKU: 326041-1)
Position 075 – TUBE 3-190 (SKU: 422077-9)
Position 076 – TUBE 3-35 (SKU: 422080-0)
Position 077 – HOSE JOINT (SKU: 452952-5)
Position 078 – TUBE 3-45 (SKU: 422079-5)
Position 079 – SEAL (SKU: 424418-5)
Position 080 – TUBE 3-130 (SKU: 422082-6)
Position 081 – TUBE 3-75 (SKU: 422081-8)
Position 082 – HOSE JOINT 4-4 (SKU: 452951-7)
Position 083 – HOSE JOINT 4-6 (SKU: 452799-7)
Position 084 – HOSE JOINT 4-6 (SKU: 452799-7)
Position 085 – GUIDE RING (SKU: 346397-6)
Position 086 – CARBURETOR MOUNT (SKU: 452724-8)
Position 087 – SUCTION LINE (SKU: 424397-7)
Position 088 – HOSE CLAMP 30 (SKU: 346495-6)
Position 090 – ROCKER COVER COMPLETE (SKU: 140898-4)
Position 091 – TUBE 3-8 (SKU: 422073-7)
Position 092 – ROCKER COVER (SKU: 318708-5)
Position 093 – OIL LINE (SKU: 452726-4)
Position 094 – HOSE CLAMP (SKU: 345918-1)
Position 095 – TUBE 5-70 (SKU: 422078-7)
Position 096 – HOSE CLAMP (SKU: 345918-1)
Position 097 – TUBE 3-170 (SKU: 422076-1)
Position 098 – IGNITION COIL ASSEMBLY (SKU: 126006-1)
Position 099 – PLUG CAP (SKU: 424105-6)
Position 100 – IGNITION COIL (SKU: 125920-8)
Position 101 – PLUG CAP SPRING (SKU: 326148-3)
Position 102 – SPARK PLUG (SKU: 168652-4)
Position 105 – VALVE GUIDE (SKU: 331969-0)
Position 106 – VALVE STEM SEAL (SKU: 424424-0)
Position 108 – COMPRESSION SPRING 11 (SKU: 234212-5)
Position 109 – RETAINER (SKU: 331966-6)
Position 111 – EXHAUST PORT SPACER (SKU: 331937-3)
Position 113 – MUFFLER GASKET (SKU: 346399-2)
Position 116 – ROCKER ARM ASSEMBLY (SKU: 126005-3)
Position 117 – PUSH ROD (SKU: 256526-2)
Position 118 – CYLINDER HEAD GASKET (SKU: 442167-2)
Position 119 – EXHAUST VALVE (SKU: 331965-8)
Position 120 – INTAKE VALVE (SKU: 331964-0)
Position 122 – CENTER INNER HOLDER (SKU: 318729-7)
Position 124 – LEAD UNIT (SKU: 638776-5)
Position 126 – PIN 5 (SKU: 256200-2)
Position 128 – CAM GEAR COMPLETE (SKU: 140817-0)
Position 130 – CAM GEAR PLATE (SKU: 346434-6)
Position 131 – FLY WEIGHT (SKU: 318707-7)
Position 132 – PIN 5 (SKU: 256186-0)
Position 133 – CAM LIFTER L (SKU: 313209-8)
Position 134 – CAM LIFTER R (SKU: 313210-3)
Position 135 – CAM GEAR GASKET (SKU: 442168-0)
Position 136 – CAM GEAR COVER (SKU: 318725-5)
Position 139 – WOODRUFF KEY 4 (SKU: 254001-2)
Position 141 – RING SPRING 12 (SKU: 233995-4)
Position 142 – PISTON PIN (SKU: 326039-8)
Position 148 – LEAD UNIT (SKU: 638777-3)
Position 149 – CONTACT SPRING (SKU: 232268-2)
Position 150 – REAR OUTER HOLDER (SKU: 318730-2)
Position 151 – COMPRESSION SPRING 16 (SKU: 234214-1)
Position 153 – CHECK VALVE (SKU: 424201-0)
Position 154 – GROMMET (SKU: 424406-2)
Position 157 – OIL CASE GASKET (SKU: 452738-7)
Position 158 – HOSE CLAMP (SKU: 345918-1)
Position 159 – TUBE 5-55 (SKU: 422084-2)
Position 160 – LEAD VALVE (SKU: 346398-4)
Position 161 – RETAINER PLATE (SKU: 318709-3)
Position 163 – HOSE CLAMP (SKU: 345918-1)
Position 164 – OIL TUBE COMPLETE (SKU: 168655-8)
Position 165 – OIL WEIGHT (SKU: 326177-6)
Position 166 – OIL TUBE (SKU: 424384-6)
Position 167 – OIL CASE (SKU: 318710-8)
Position 168 – GASKET (SKU: 346452-4)
Position 169 – HEX. BOLT M8X12 (SKU: 921412-3)
Position 171 – O-RING 20 (SKU: 213548-5)
Position 173 – OIL PIPE (SKU: 452614-5)
Position 174 – OIL CAP COMPLETE (SKU: 140899-2)
Position 175 – OIL CAP GASKET (SKU: 424421-6)
Position 176 – FLYWHEEL (SKU: 318704-3)
Position 177 – FLANGE NUT M10 (SKU: 264054-3)
Position 178 – CYLINDER COVER (SKU: 452627-6)
Position 180 – FAN COVER (SKU: 452628-4)
Position 183 – FRONT OUTER HOLDER (SKU: 318728-9)
Position 184 – FLAT WASHER 41 (SKU: 267448-1)
Position 187 – COMPRESSION SPRING 16 (SKU: 234214-1)
Position 188 – REAR OUTER HOLDER (SKU: 318730-2)
Position 191 – V BELT 5-800 (SKU: 225094-6)
Position 192 – SPACER17 (SKU: 331970-5)
Position 193 – CLUTCH DRUM ASSEMBLY (SKU: 125945-2)
Position 194 – CLUTCH DRUM (SKU: 165636-3)
Position 195 – RETAINING RING R-35 (SKU: 962163-9)
Position 196 – BALL BEARING 6003LLU (SKU: 210138-5)
Position 197 – SPACER17 (SKU: 331970-5)
Position 200 – CLUTCH SHOE (SKU: 313207-2)
Position 201 – CLUTCH HOLDER (SKU: 313208-0)
Position 202 – PC-7614V MODEL NO.LABEL (SKU: 893206-5)
Position 213 – HOLDER (SKU: 452930-5)
Position 216 – HEX. LOCK NUT M10-17 (SKU: 264080-2)
Position 224 – HEX. BOLT M8X25 (SKU: 266690-1)
Position 226 – RING17 (SKU: 257312-4)
Position 228 – PRESSURE RING (SKU: 318746-7)
Position 229 – SLIDING DISC (SKU: 442169-8)
Position 230 – RUBBER RING(INNER) (SKU: 424426-6)
Position 233 – CUTTING DEVICE (SKU: 318722-1)
Position 234 – O-RING 9 (SKU: 213625-3)
Position 235 – LOCK SHAFT (SKU: 326038-0)
Position 237 – SLIDING DISC (SKU: 442169-8)
Position 238 – IMPACT PLATE (SKU: 346455-8)
Position 239 – RUBBER RING(OUTER) (SKU: 424427-4)
Position 241 – GRIP (SKU: 452938-9)
Position 244 – O RING 14 (SKU: 213162-7)
Position 245 – RING 17 (SKU: 257971-4)
Position 246 – BALL BEARING 6203LLU (SKU: 211281-3)
Position 247 – RETAINING RING R-40 (SKU: 962157-4)
Position 248 – SPINDLE (SKU: 326062-3)
Position 249 – BALL BEARING 6203LLU (SKU: 211281-3)
Position 250 – V PULLEY 5-95.8 (SKU: 222174-9)
Position 251 – HEX. BOLT M8X25 (SKU: 266690-1)
Position 254 – COMPRESSION SPRING 6 (SKU: 234215-9)
Position 255 – SQUARE NUT M6 (SKU: 252157-5)
Position 256 – PLATE (SKU: 346457-4)
Position 258 – SPONGE SLEEVE 9 (SKU: 424023-8)
Position 259 – PLATE (SKU: 346554-6)
Position 260 – CHECK VALVE (SKU: 424316-3)
Position 261 – DUST BAG (SKU: 166106-5)
Position 262 – RUBBER SLEEVE 22 (SKU: 424499-9)
Position 263 – CAUTION LABEL (SKU: 800E23-6)
Position 264 – STARTER COVER GASKET (SKU: 346611-0)
Position 265 – COTTER (SKU: 331967-4)
Position 268 – JOINT PIPE (SKU: 325665-0)
Position 269 – BALL (SKU: 331897-9)
Position 275 – SCREW ASSEMBLY (SKU: WJ00096589)
Position 276 – METERING COVER ASSEMBLY (SKU: 141943-8)
Position 277 – METERING DIAPHRAGM (SKU: 168620-7)
Position 279 – SCREW (SKU: WJ00096475)
Position 280 – THROTTLE LEVER (SKU: WJ00183498)
Position 281 – SPRING (SKU: WJ00983707)
Position 282 – BUSHING 148-86 (SKU: WJ00014886)
Position 283 – BUSHING (SKU: WJ00148545)
Position 284 – THROTTLE SHAFT SEAL (SKU: WJ00015631)
Position 285 – PLUG CAP (SKU: WJ00088119)
Position 286 – CHOKE VALVE (SKU: WJ00343480)
Position 287 – SCREW (SKU: WJ00096475)
Position 288 – BALL (SKU: 5806122220)
Position 289 – SPRING (SKU: 5806122210)
Position 291 – PUMP DIAPHRAGM (SKU: WJ00009589)
Position 297 – IDLE ADJUST SCREW (SKU: WJ00096368)
Position 298 – SCREW (SKU: 5016004110)
Position 299 – METERING LEVER PIN (SKU: WJ00014477)
Position 300 – LEVER (SKU: WJ00016648)
Position 301 – INLET NEEDLE VALVE (SKU: WJ00008282)
Position 302 – COMPRESSION SPRING 3 (SKU: 234277-7)
Position 303 – PLUG-WELCH (SKU: 5416036160)
Position 304 – CUP PLUG (SKU: WJ00088229)
Position 305 – BALL (SKU: WJ00008995)
Position 307 – SPRING (SKU: WJ00983164)
Position 308 – SCREW (SKU: WJ00096475)
Position 309 – THROTTLE VALVE (SKU: 5806122260)
Position 310 – NEEDLE (SKU: WJ01023347)
Position 311 – LIMITER CAP (SKU: WJ00025162)
Position 312 – NEEDLE (SKU: WJ01023343)
Position 313 – LIMITER CAP (SKU: WJ00025162)
Position 320 – THROTTLE SHAFT SEAL (SKU: WJ00015631)
Position 321 – WASHER (SKU: WJ00136194)
Position 322 – SPACER-THROTTLE LEVER (SKU: WJ00014896)
Position 324 – SLEEVE-CHOKE (SKU: WJ00148542)
Position 325 – WASHER (SKU: WJ00136231)
Position 326 – SHAFT ASSEMBLY-CHOKE (SKU: WJ00224210)

Exploded View – PC7614V
