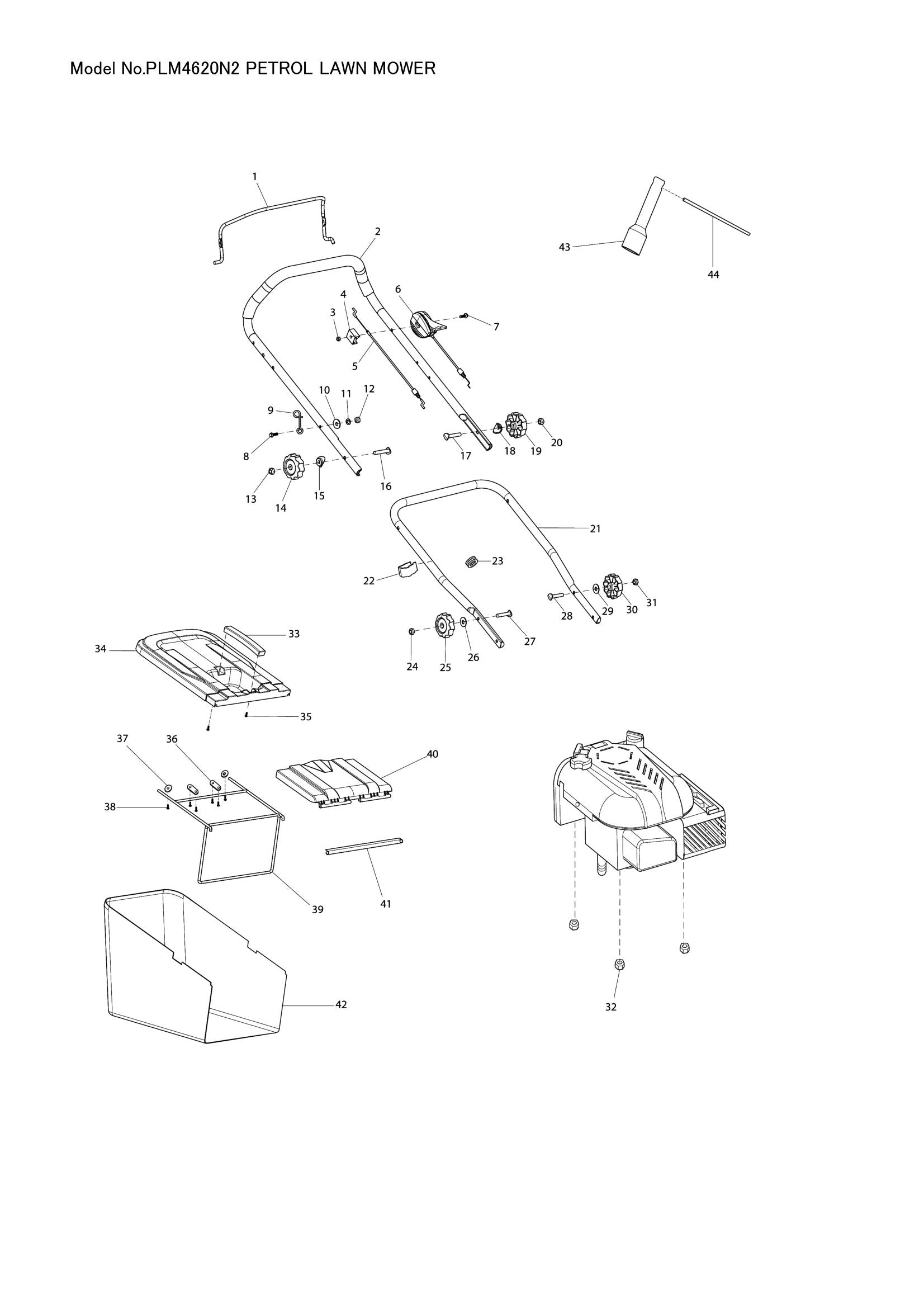

Exploded View – PLM4620N2

Share this product

Position 001 – ENGINE CLUTCH LEVER (SKU: DA00000961)
Position 002 – UPPER HANDLE BAR ASSY (SKU: 671002001)
Position 003 – HEX.CAP NUT M6 (SKU: DA00000575)
Position 004 – OUTER WIRE STOPPER (SKU: DA00000573)
Position 005 – FRAMEOUT CORD ASSY (SKU: DA00001155)
Position 006 – THROTTLE HANDLE ASSY (SKU: DA00001156)
Position 007 – HEX.FLANGE BOLT M6X55 (SKU: DA00000572)
Position 008 – HEX.FLANGE BOLT M6X35 (SKU: DA00000577)
Position 009 – STARTER GRIP HOOK (SKU: DA00000579)
Position 010 – FLAT WASHER 6 (SKU: DA00000574)
Position 011 – SPRING WASHER 6 (SKU: DA00000576)
Position 012 – HEX.CAP NUT M6 (SKU: DA00000575)
Position 013 – HEXAGON NUT M8 (SKU: DA00000563)
Position 014 – KNOB (SKU: DA00000564)
Position 015 – PLASTIC SADDLE WASHER 8 (SKU: DA00000924)
Position 016 – SADDLE HEAD BOLT M8X58 (SKU: DA00000569)
Position 017 – SADDLE HEAD BOLT M8X58 (SKU: DA00000569)
Position 018 – PLASTIC SADDLE WASHER 8 (SKU: DA00000924)
Position 019 – KNOB (SKU: DA00000564)
Position 020 – HEXAGON NUT M8 (SKU: DA00000563)
Position 021 – LOWER HANDLE BAR (SKU: 671001606)
Position 022 – CABLE CLIP (SKU: 671611001)
Position 023 – GROMMET (SKU: 671800104)
Position 024 – HEXAGON NUT M8 (SKU: DA00000563)
Position 025 – KNOB (SKU: DA00000564)
Position 026 – FLAT WASHER 8 (SKU: 671007007)
Position 027 – SADDLE HEAD BOLT M8X35 (SKU: DA00000880)
Position 028 – SADDLE HEAD BOLT M8X35 (SKU: DA00000880)
Position 029 – FLAT WASHER 8 (SKU: 671007007)
Position 030 – KNOB (SKU: DA00000564)
Position 031 – HEXAGON NUT M8 (SKU: DA00000563)
Position 032 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 033 – GRASS CATCHER HANDLE (SKU: 671454001)
Position 035 – TAPPING SCREW ST5X16 (SKU: DA00000326)
Position 036 – RETAINER PLATE (SKU: DA00000335)
Position 037 – WASHER 5 (SKU: DA00000025)
Position 038 – TAPPING SCREW ST5X12 (SKU: DA00000888)
Position 039 – GRASS CATCHER FRAME (SKU: 671001443)
Position 040 – REAR FLAP (SKU: 671468001)
Position 043 – BOX WRENCH 16MM (SKU: DA00000583)
Position 044 – WRENCH HANDLE (SKU: DA00000584)
Position 045 – MULCHING PLUG BOX (SKU: 671660001)
Position 046 – LOCKING BUTTON (SKU: 671316004)
Position 047 – COMPRESSION SPRING (SKU: 671011005)
Position 049 – TAPPING SCREW ST4X16 (SKU: DA00000603)
Position 050 – HEX.FLANGE BOLT M8X16 (SKU: DA00000562)
Position 052 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 053 – STOP RING E-6 (SKU: 671009017)
Position 054 – REAR FLAP HINGE ROD (SKU: 671001518)
Position 055 – REAR FLAP TORSION SPRING (SKU: 671011101)
Position 056 – STOP RING E-6 (SKU: 671009017)
Position 057 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 058 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 059 – LEFT HANDLE BRACKET BLUE (SKU: 671001179)
Position 060 – HEX.FLANGE BOLT M8X16 (SKU: DA00000562)
Position 061 – TRUSS HEAD SCREW M6X12 (SKU: 671002019)
Position 063 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 064 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 065 – DECK BLUE (SKU: 671001517)
Position 067 – LINK ROD (SKU: DA00001154)
Position 070 – WHEEL COVER 7 INCH (SKU: DA00000536)
Position 071 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 072 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 073 – WHEEL ASSY 8 INCH (SKU: 671020160)
Position 074 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 075 – PAN. HEAD SCREW M6X14 (SKU: 671002030)
Position 076 – HANDLE (SKU: DA00001174)
Position 078 – HEIGHT ADJUSTMENT KNOB (SKU: DA00001058)
Position 079 – REAR WHEEL AXIS ASSY (SKU: DA00001175)
Position 080 – TRUSS HEAD SCREW M6X12 (SKU: 671002019)
Position 081 – BEARING CASE RETAINER (SKU: DA00000542)
Position 082 – REAR AXLE MOUNT (SKU: DA00001025)
Position 083 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 084 – BEARING CASE RETAINER (SKU: DA00000542)
Position 085 – TRUSS HEAD SCREW M6X12 (SKU: 671002019)
Position 086 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 087 – WHEEL ASSY 8 INCH (SKU: 671020160)
Position 088 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 089 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 090 – WHEEL COVER 7 INCH (SKU: DA00000536)
Position 091 – WHEEL COVER 6.5 INCH (SKU: 671001176)
Position 092 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 093 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 094 – WHEEL ASSY 7 INCH (SKU: 671020150)
Position 095 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 097 – FRONT AXLE RETAINER (SKU: 671445001)
Position 098 – FRONT AXLE (SKU: 671001786)
Position 100 – FRONT AXLE RETAINER (SKU: 671445001)
Position 101 – FRONT AXLE MOUNT (SKU: 671418001)
Position 102 – PAN.HED SCREW M6X45 (SKU: 671002028)
Position 103 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 104 – WHEEL ASSY 7 INCH (SKU: 671020150)
Position 105 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 106 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 107 – WHEEL COVER 6.5 INCH (SKU: 671001176)
Position 108 – FRONT AXLE COVER (SKU: 671659001)
Position 109 – TAPPING SCREW ST4.2X10 (SKU: DA00000911)
Position 110 – FLAT WASHER 8 (SKU: 671007007)
Position 111 – SPRING WASHER 8 (SKU: DA00000832)
Position 112 – HEX. BOLT M8X35 (SKU: DA00000586)
Position 114 – BLADE SUPPORT BUSH (SKU: 671002092)
Position 115 – INNER FRANGE (SKU: 671015252)
Position 117 – DISH SPRING WASHER 10 (SKU: DA00000529)
