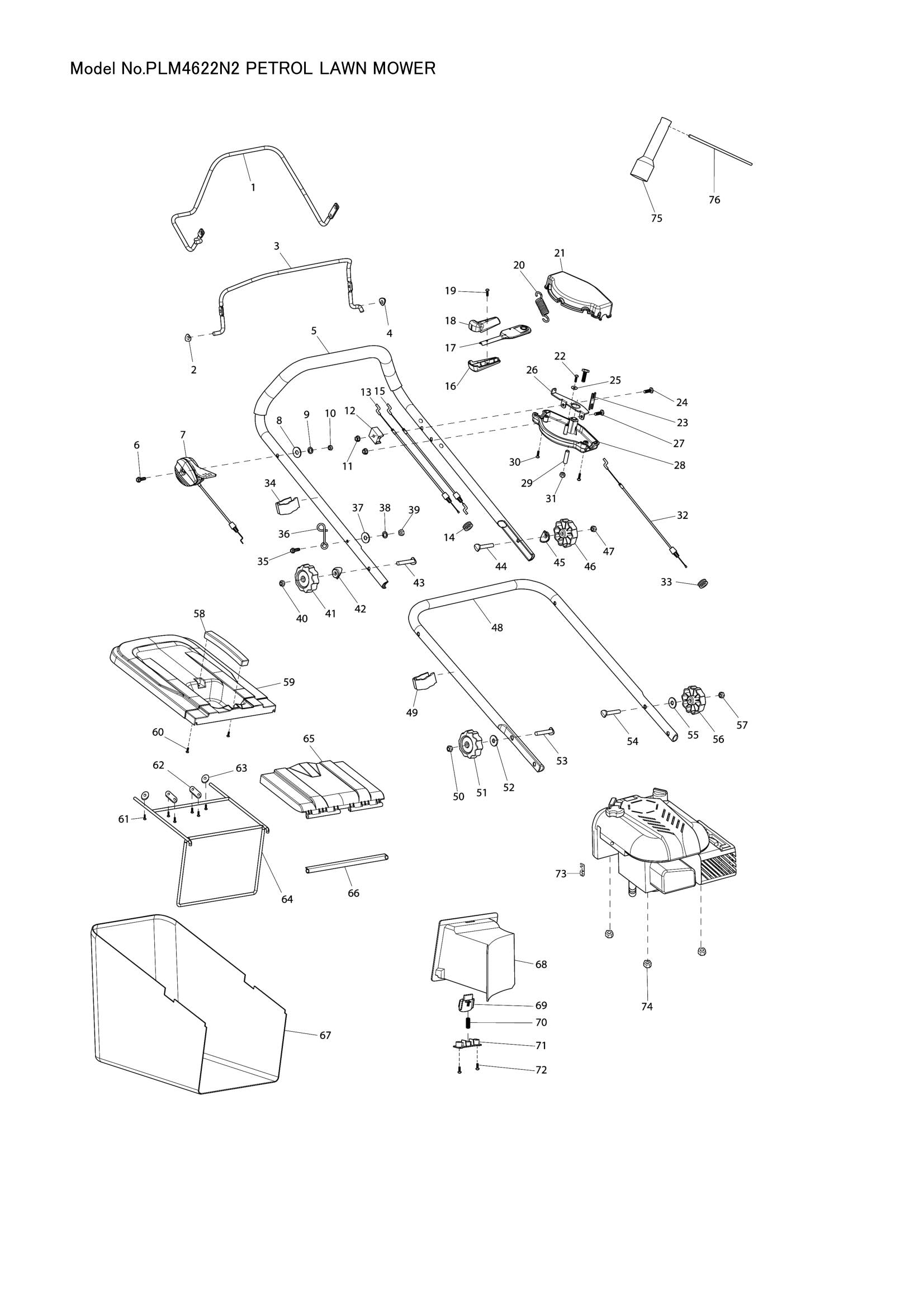

Exploded View – PLM4622N2

Share this product

Position 001 – SELF DRIVE CONTROL LEVER (SKU: DA00000964)
Position 002 – SADDLE WASHER 8 (SKU: 671001524)
Position 003 – ENGINE CLUTCH LEVER (SKU: DA00000961)
Position 004 – SADDLE WASHER 8 (SKU: 671001524)
Position 005 – UPPER HANDLE ASSY (SKU: 671002002)
Position 006 – HEX. FLANGE BOLT M6X50 (SKU: 671006082)
Position 007 – THROTTLE HANDLE ASS'Y (SKU: DA00001158)
Position 008 – FLAT WASHER 6 (SKU: DA00000574)
Position 009 – SPRING WASHER 6 (SKU: DA00000576)
Position 010 – HEX.CAP NUT M6 (SKU: DA00000575)
Position 011 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 012 – OUTER WIRE STOPPER (SKU: DA00000573)
Position 014 – GROMMET (SKU: 671800104)
Position 015 – FRAMEOUT CORD ASSY (SKU: DA00001155)
Position 017 – DRIVE SPEED ADJUST LEVER (SKU: DA00000972)
Position 019 – TAPPING SCREW ST4.2X15 (SKU: DA00000873)
Position 020 – EXTENTION SPRING (SKU: 671011123)
Position 022 – TAPPING SCREW ST4X16 (SKU: DA00000603)
Position 023 – OUTER WIRE STOPPER PLATE (SKU: 671001511)
Position 024 – HEX.BOLT M6X40 (SKU: 671006063)
Position 025 – FLAT WASHER 4 (SKU: 671002075)
Position 027 – HEX.FLANGE BOLT M6X35 (SKU: DA00000577)
Position 029 – SHEATH (SKU: 671001513)
Position 030 – TAPPING SCREW ST4.2X25 (SKU: 671010630)
Position 031 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 033 – GROMMET (SKU: 671800104)
Position 034 – CABLE CLIP (SKU: 671611001)
Position 035 – HEX.FLANGE BOLT M6X35 (SKU: DA00000577)
Position 036 – STARTER GRIP HOOK (SKU: DA00000579)
Position 037 – FLAT WASHER 6 (SKU: DA00000574)
Position 038 – SPRING WASHER 6 (SKU: DA00000576)
Position 039 – HEX.CAP NUT M6 (SKU: DA00000575)
Position 040 – HEXAGON NUT M8 (SKU: DA00000563)
Position 041 – KNOB (SKU: DA00000564)
Position 042 – PLASTIC SADDLE WASHER 8 (SKU: DA00000924)
Position 043 – SADDLE HEAD BOLT M8X58 (SKU: DA00000569)
Position 044 – SADDLE HEAD BOLT M8X58 (SKU: DA00000569)
Position 045 – PLASTIC SADDLE WASHER 8 (SKU: DA00000924)
Position 046 – KNOB (SKU: DA00000564)
Position 047 – HEXAGON NUT M8 (SKU: DA00000563)
Position 048 – LOWER HANDLE BAR (SKU: 671001606)
Position 049 – CABLE CLIP (SKU: 671611001)
Position 050 – HEXAGON NUT M8 (SKU: DA00000563)
Position 051 – KNOB (SKU: DA00000564)
Position 052 – FLAT WASHER 8 (SKU: 671007007)
Position 053 – SADDLE HEAD BOLT M8X35 (SKU: DA00000880)
Position 054 – SADDLE HEAD BOLT M8X35 (SKU: DA00000880)
Position 055 – FLAT WASHER 8 (SKU: 671007007)
Position 056 – KNOB (SKU: DA00000564)
Position 057 – HEXAGON NUT M8 (SKU: DA00000563)
Position 058 – GRASS CATCHER HANDLE (SKU: 671454001)
Position 060 – TAPPING SCREW ST5X16 (SKU: DA00000326)
Position 061 – TAPPING SCREW ST5X12 (SKU: DA00000888)
Position 062 – RETAINER PLATE (SKU: DA00000335)
Position 063 – WASHER 5 (SKU: DA00000025)
Position 064 – GRASS CATCHER FRAME (SKU: 671001443)
Position 065 – REAR FLAP (SKU: 671468001)
Position 068 – MULCHING PLUG BOX (SKU: 671660001)
Position 069 – LOCKING BUTTON (SKU: 671316004)
Position 070 – COMPRESSION SPRING (SKU: 671011005)
Position 072 – TAPPING SCREW ST4X16 (SKU: DA00000603)
Position 073 – CABLE HOOK (SKU: DA00001157)
Position 074 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 075 – BOX WRENCH 16MM (SKU: DA00000583)
Position 076 – WRENCH HANDLE (SKU: DA00000584)
Position 077 – HEX.FLANGE BOLT M8X16 (SKU: DA00000562)
Position 079 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 080 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 081 – STOP RING E-6 (SKU: 671009017)
Position 082 – REAR FLAP HINGE ROD (SKU: 671001518)
Position 083 – REAR FLAP TORSION SPRING (SKU: 671011101)
Position 084 – STOP RING E-6 (SKU: 671009017)
Position 085 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 086 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 087 – LEFT HANDLE BRACKET BLUE (SKU: 671001179)
Position 088 – HEX.FLANGE BOLT M8X16 (SKU: DA00000562)
Position 089 – TRUSS HEAD SCREW M6X12 (SKU: 671002019)
Position 091 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 092 – DECK BLUE (SKU: 671001529)
Position 094 – LINK ROD (SKU: DA00001154)
Position 097 – WHEEL COVER 7 INCH (SKU: DA00000536)
Position 098 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 099 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 100 – WHEEL ASSY 8 INCH (SKU: 671020300)
Position 101 – INTERNAL GEAR (SKU: DA00000602)
Position 102 – TAPPING SCREW ST4X16 (SKU: DA00000603)
Position 104 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 105 – PAN. HEAD SCREW M6X14 (SKU: 671002030)
Position 106 – HANDLE (SKU: DA00001174)
Position 107 – HEIGHT ADJUSTMENT KNOB (SKU: DA00001058)
Position 109 – STOP RING E-19 (SKU: DA00000612)
Position 110 – REAR WHEEL AXIS ASS'Y (SKU: DA00001176)
Position 111 – STOP RING E-19 (SKU: DA00000612)
Position 112 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 114 – TAPPING SCREW ST4X16 (SKU: DA00000603)
Position 115 – INTERNAL GEAR (SKU: DA00000602)
Position 116 – WHEEL ASSY 8 INCH (SKU: 671020300)
Position 117 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 118 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 119 – WHEEL COVER 7 INCH (SKU: DA00000536)
Position 120 – WHEEL COVER 6.5 INCH (SKU: 671001176)
Position 121 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 122 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 123 – WHEEL ASSY 7 INCH (SKU: 671020150)
Position 124 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 126 – FRONT AXLE RETAINER (SKU: 671445001)
Position 127 – FRONT AXLE (SKU: 671001786)
Position 129 – FRONT AXLE RETAINER (SKU: 671445001)
Position 130 – FRONT AXLE MOUNT (SKU: 671418001)
Position 131 – PAN.HED SCREW M6X45 (SKU: 671002028)
Position 132 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 133 – WHEEL ASSY 7 INCH (SKU: 671020150)
Position 134 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 135 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 136 – WHEEL COVER 6.5 INCH (SKU: 671001176)
Position 137 – FRONT AXLE COVER (SKU: 671659001)
Position 138 – TAPPING SCREW ST4.2X10 (SKU: DA00000911)
Position 139 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 140 – SHAFT SHEATH (SKU: 671002038)
Position 141 – SPRING (SKU: 671011156)
Position 143 – GEAR BOX MOUNT FLAT (SKU: 671001717)
Position 144 – HEX. BOLT M5X55 LH (SKU: 671006123)
Position 145 – SPRING WASHER 5 (SKU: DA00000198)
Position 146 – RETAINING RING S-19 (SKU: 671009020)
Position 147 – CUP WASHER (SKU: 671001457)
Position 151 – HEIGHT ADJUSTMENT PLATE (SKU: DA00000788)
Position 152 – BALL BEARING R8ZZ (SKU: DA00001029)
Position 153 – STOP RING E-12 (SKU: DA00000604)
Position 154 – CABLE HOOK (SKU: DA00001157)
Position 155 – HEX. BOLT M8X35 (SKU: DA00000586)
Position 156 – HEX.FLANGE BOLT M8X16 (SKU: DA00000562)
Position 157 – STOP RING E-12 (SKU: DA00000604)
Position 158 – SPUR GEAR 14 RIGHT (SKU: DA00001091)
Position 159 – BALL BEARING R8ZZ (SKU: DA00001029)
Position 160 – DRIVE SHAFT BEARING CASE (SKU: DA00000610)
Position 161 – COLUMN PIN 5X21.5 (SKU: DA00000597)
Position 163 – COLUMN PIN 5X21.5 (SKU: DA00000597)
Position 164 – DRIVE SHAFT BEARING CASE (SKU: DA00000610)
Position 165 – BALL BEARING R8ZZ (SKU: DA00001029)
Position 167 – STOP RING E-12 (SKU: DA00000604)
Position 168 – TRUSS HEAD SCREW M6X12 (SKU: 671002019)
Position 169 – AXLE RETAINER (SKU: DA00000542)
Position 170 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 171 – AXLE RETAINER (SKU: DA00000542)
Position 172 – TRUSS HEAD SCREW M6X12 (SKU: 671002019)
Position 173 – SPRING (SKU: 671011021)
Position 174 – STEPPED BOLT M8 (SKU: 671003042)
Position 176 – BELT TENSIONER PULLEY (SKU: 671001056)
Position 177 – BALL BEARING 6001ZZ (SKU: 671004015)
Position 178 – RETAINING RING R-28 (SKU: 671009021)
Position 179 – HEXAGON NUT M8 (SKU: DA00000563)
Position 181 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 184 – BELT TENSIONER BASE (SKU: DA00000971)
Position 185 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 186 – TRUSS HEAD SCREW M6X12 (SKU: 671002019)
Position 187 – FLAT WASHER 8 (SKU: 671007007)
Position 188 – SPRING WASHER 8 (SKU: DA00000832)
Position 189 – HEX. BOLT M8X35 (SKU: DA00000586)
Position 191 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 192 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 193 – BALL BEARING 6001ZZ (SKU: 671004015)
Position 194 – IDLER BRACKET (SKU: DA00000974)
Position 195 – TORSION SPRING (SKU: 671011136)
Position 196 – BELT PROTECTING COVER (SKU: 671658001)
Position 199 – HEX. BOLT M6X25 (SKU: 671006066)
Position 200 – V BELT 10MMX6MM L=785MM (SKU: 671020282)
Position 201 – V PULLEY (SKU: 671401201)
Position 204 – BLADE SUPPORT BUSH (SKU: 671002092)
Position 205 – INNER FRANGE (SKU: 671015252)
Position 207 – DISH SPRING WASHER 10 (SKU: DA00000529)
