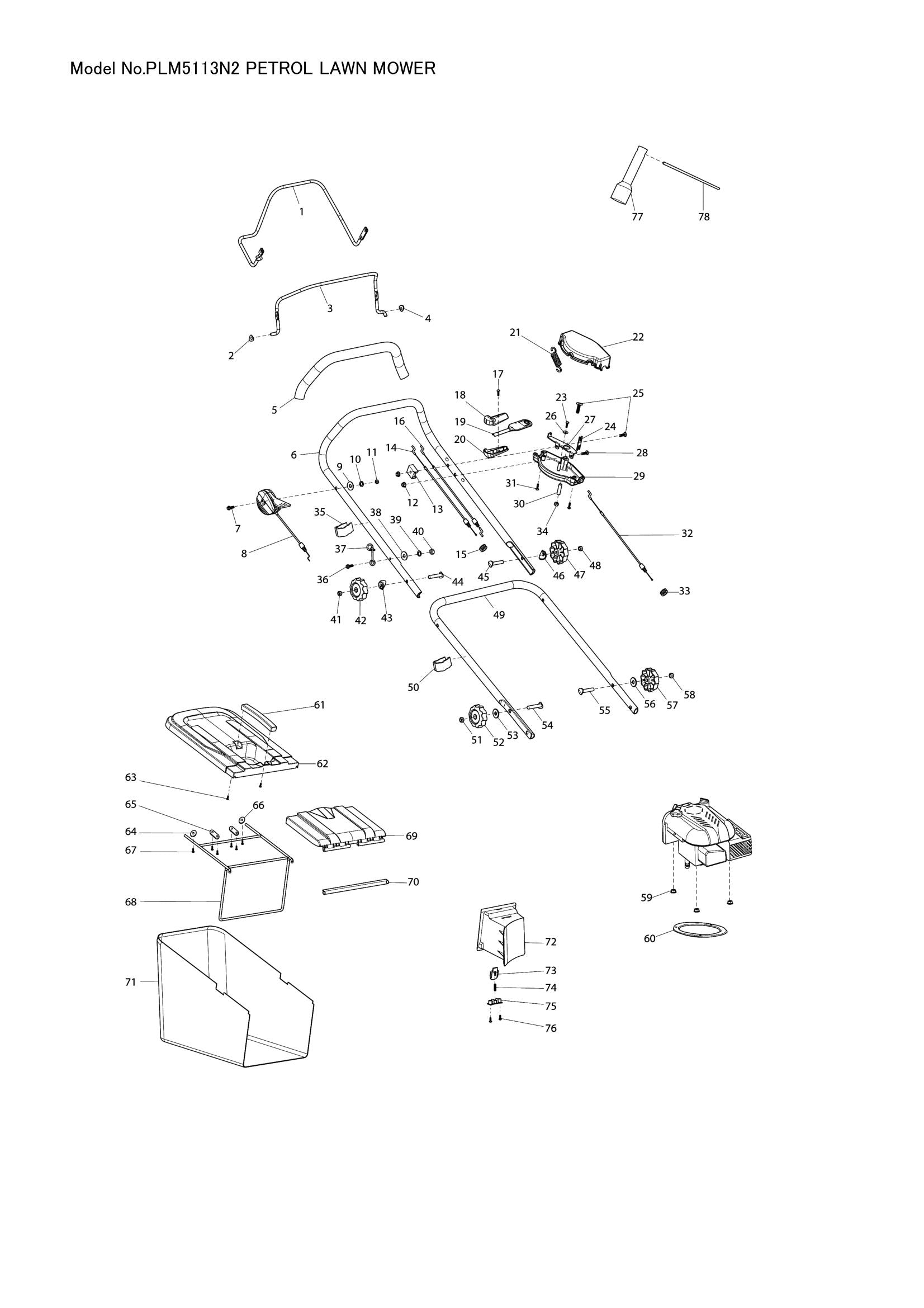

Exploded View – PLM5113N2

Share this product

Position 001 – SELF DRIVE CONTROL LEVER (SKU: DA00000964)
Position 002 – SADDLE WASHER 8 (SKU: 671001524)
Position 003 – ENGINE CLUTCH LEVER (SKU: DA00000961)
Position 004 – SADDLE WASHER 8 (SKU: 671001524)
Position 005 – HANDLE SHEATH (SKU: 671001029)
Position 006 – UPPER HANDLE BAR (SKU: DA00000963)
Position 007 – HEX. FLANGE BOLT M6X50 (SKU: 671006082)
Position 008 – THROTTLE HANDLE ASS'Y (SKU: DA00001160)
Position 009 – FLAT WASHER 6 (SKU: DA00000574)
Position 010 – SPRING WASHER 6 (SKU: DA00000576)
Position 011 – HEX.CAP NUT M6 (SKU: DA00000575)
Position 012 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 013 – OUTER WIRE STOPPER (SKU: DA00000573)
Position 015 – GROMMET (SKU: 671800104)
Position 016 – FRAMEOUT CORD ASS'Y (SKU: DA00001173)
Position 017 – TAPPING SCREW ST4.2X15 (SKU: DA00000873)
Position 019 – DRIVE SPEED ADJUST LEVER (SKU: DA00000972)
Position 021 – EXTENTION SPRING (SKU: 671011123)
Position 023 – TAPPING SCREW ST4X16 (SKU: DA00000603)
Position 024 – OUTER WIRE STOPPER PLATE (SKU: 671001511)
Position 025 – HEX.BOLT M6X40 (SKU: 671006063)
Position 026 – FLAT WASHER 4 (SKU: 671002075)
Position 028 – HEX.FLANGE BOLT M6X35 (SKU: DA00000577)
Position 030 – SHEATH (SKU: 671001513)
Position 031 – TAPPING SCREW ST4.2X25 (SKU: 671010630)
Position 033 – GROMMET (SKU: 671800104)
Position 034 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 035 – CABLE CLIP (SKU: 671611001)
Position 036 – HEX.FLANGE BOLT M6X35 (SKU: DA00000577)
Position 037 – STARTER GRIP HOOK (SKU: DA00000579)
Position 038 – FLAT WASHER 6 (SKU: DA00000574)
Position 039 – SPRING WASHER 6 (SKU: DA00000576)
Position 040 – HEX.CAP NUT M6 (SKU: DA00000575)
Position 041 – HEXAGON NUT M8 (SKU: DA00000563)
Position 042 – KNOB (SKU: DA00000564)
Position 043 – PLASTIC SADDLE WASHER 8 (SKU: DA00000924)
Position 044 – SADDLE HEAD BOLT M8X58 (SKU: DA00000569)
Position 045 – SADDLE HEAD BOLT M8X58 (SKU: DA00000569)
Position 046 – PLASTIC SADDLE WASHER 8 (SKU: DA00000924)
Position 047 – KNOB (SKU: DA00000564)
Position 048 – HEXAGON NUT M8 (SKU: DA00000563)
Position 049 – LOWER HANDLE BAR (SKU: 671001606)
Position 050 – CABLE CLIP (SKU: 671611001)
Position 051 – HEXAGON NUT M8 (SKU: DA00000563)
Position 052 – KNOB (SKU: DA00000564)
Position 053 – FLAT WASHER 8 (SKU: 671007007)
Position 054 – SADDLE HEAD BOLT M8X35 (SKU: DA00000880)
Position 055 – SADDLE HEAD BOLT M8X35 (SKU: DA00000880)
Position 056 – FLAT WASHER 8 (SKU: 671007007)
Position 057 – KNOB (SKU: DA00000564)
Position 058 – HEXAGON NUT M8 (SKU: DA00000563)
Position 059 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 060 – ENGINE MOUNT RUBBER RING (SKU: 671144701)
Position 061 – GRASS CATCHER HANDLE (SKU: 671454001)
Position 063 – TAPPING SCREW ST5X16 (SKU: DA00000326)
Position 064 – WASHER 5 (SKU: DA00000025)
Position 065 – RETAINER PLATE (SKU: DA00000335)
Position 066 – WASHER 5 (SKU: DA00000025)
Position 067 – TAPPING SCREW ST5X12 (SKU: DA00000888)
Position 068 – GRASS CATCHER FRAME (SKU: 671001443)
Position 069 – REAR FLAP (SKU: 671468001)
Position 072 – MULCHING PLUG BOX (SKU: 671509001)
Position 073 – LOCKING BUTTON (SKU: 671316004)
Position 074 – COMPRESSION SPRING (SKU: 671011005)
Position 076 – TAPPING SCREW ST4X16 (SKU: DA00000603)
Position 077 – BOX WRENCH 16MM (SKU: DA00000583)
Position 078 – WRENCH HANDLE (SKU: DA00000584)
Position 079 – HEX.FLANGE BOLT M8X16 (SKU: DA00000562)
Position 081 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 082 – STOP RING E-6 (SKU: 671009017)
Position 083 – REAR FLAP HINGE ROD (SKU: 671001518)
Position 084 – REAR FLAP TORSION SPRING (SKU: 671011101)
Position 085 – STOP RING E-6 (SKU: 671009017)
Position 086 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 087 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 088 – LEFT HANDLE BRACKET BLUE (SKU: 671001324)
Position 089 – HEX.FLANGE BOLT M8X16 (SKU: DA00000562)
Position 090 – TRUSS HEAD SCREW M6X12 (SKU: 671002019)
Position 091 – HEIGHT ADJUSTMENT PLATE (SKU: DA00000788)
Position 092 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 093 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 094 – DECK BLUE (SKU: 671132602)
Position 096 – LINK ROD (SKU: DA00001159)
Position 099 – SIDE DISCHARGE OUTLET (SKU: DA00000969)
Position 101 – SIDE FLAP TORSION SPRING (SKU: 671111300)
Position 103 – SIDE FLAP HINGE PLATE (SKU: 671001571)
Position 104 – SPRING WASHER 5 (SKU: DA00000198)
Position 105 – PAN HEAD SCREW M5X10 (SKU: 671201501)
Position 106 – WHEEL COVER 10 INCH (SKU: 671001322)
Position 107 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 108 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 109 – WHEEL ASSY 11 INCH (SKU: 671002021)
Position 110 – INTERNAL GEAR (SKU: 671200010)
Position 111 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 112 – TAPPING SCREW ST4X16 (SKU: DA00000603)
Position 113 – DUST-PROOF WHEEL COVER (SKU: 671251800)
Position 114 – PAN. HEAD SCREW M6X14 (SKU: 671002030)
Position 116 – HEIGHT ADJUSTMENT KNOB (SKU: DA00001058)
Position 118 – STOP RING E-19 (SKU: DA00000612)
Position 119 – REAR AXLE (SKU: 671001574)
Position 120 – STOP RING E-19 (SKU: DA00000612)
Position 121 – DUST-PROOF WHEEL COVER (SKU: 671251800)
Position 122 – TAPPING SCREW ST4X16 (SKU: DA00000603)
Position 123 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 124 – INTERNAL GEAR (SKU: 671200010)
Position 125 – WHEEL ASSY 11 INCH (SKU: 671002021)
Position 126 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 127 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 128 – WHEEL COVER 10 INCH (SKU: 671001322)
Position 129 – WHEEL COVER 7 INCH (SKU: DA00000536)
Position 130 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 131 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 132 – WHEEL ASSY 8 INCH (SKU: 671020160)
Position 133 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 135 – FRONT AXLE RETAINER (SKU: 671445001)
Position 136 – FRONT AXLE (SKU: 671001573)
Position 138 – FRONT AXLE RETAINER (SKU: 671445001)
Position 139 – FRONT AXLE MOUNT (SKU: 671418001)
Position 140 – PAN.HED SCREW M6X45 (SKU: 671002028)
Position 141 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 142 – WHEEL ASSY 8 INCH (SKU: 671020160)
Position 143 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 144 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 145 – WHEEL COVER 7 INCH (SKU: DA00000536)
Position 146 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 147 – SHAFT SHEATH (SKU: 671002038)
Position 148 – SPRING (SKU: 671011156)
Position 150 – GEAR BOX MOUNT FLAT (SKU: 671001717)
Position 151 – HEX. BOLT M5X55 LH (SKU: 671006123)
Position 153 – RETAINING RING S-19 (SKU: 671009020)
Position 154 – CUP WASHER (SKU: 671001457)
Position 158 – HEX.FLANGE BOLT M8X16 (SKU: DA00000562)
Position 159 – SPRING WASHER 8 (SKU: DA00000832)
Position 160 – FLAT WASHER 8 (SKU: 671007007)
Position 161 – GEAR BOX MOUNT ANGLE (SKU: DA00000915)
Position 162 – SPRING WASHER 6 (SKU: DA00000576)
Position 163 – TRUSS HEAD SCREW M6X12 (SKU: 671002019)
Position 164 – STOP RING E-12 (SKU: DA00000604)
Position 165 – SPUR GEAR 14 RIGHT (SKU: DA00001091)
Position 166 – BALL BEARING R8ZZ (SKU: DA00001029)
Position 167 – DRIVE SHAFT BEARING CASE (SKU: 671002024)
Position 170 – COLUMN PIN 5X21.5 (SKU: DA00000597)
Position 171 – DRIVE SHAFT BEARING CASE (SKU: 671002024)
Position 172 – BALL BEARING R8ZZ (SKU: DA00001029)
Position 173 – SPUR GEAR 14 LEFT (SKU: DA00001090)
Position 174 – STOP RING E-12 (SKU: DA00000604)
Position 175 – TRUSS HEAD SCREW M6X12 (SKU: 671002019)
Position 176 – AXLE RETAINER (SKU: DA00000542)
Position 177 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 178 – AXLE RETAINER (SKU: DA00000542)
Position 179 – TRUSS HEAD SCREW M6X12 (SKU: 671002019)
Position 180 – STEPPED BOLT M8 (SKU: 671003042)
Position 182 – BELT TENSIONER PULLEY (SKU: 671001056)
Position 183 – BALL BEARING 6001ZZ (SKU: 671004015)
Position 184 – RETAINING RING R-28 (SKU: 671009021)
Position 185 – HEXAGON NUT M8 (SKU: DA00000563)
Position 187 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 189 – SPRING (SKU: 671011021)
Position 191 – BELT TENSIONER BASE (SKU: DA00000971)
Position 192 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 193 – TRUSS HEAD SCREW M6X12 (SKU: 671002019)
Position 194 – FLAT WASHER 8 (SKU: 671007007)
Position 195 – SPRING WASHER 8 (SKU: DA00000832)
Position 196 – CABLE HOOK (SKU: DA00001157)
Position 197 – HEX. BOLT M8X35 (SKU: DA00000586)
Position 199 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 200 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 201 – BALL BEARING 6001ZZ (SKU: 671004015)
Position 202 – IDLER BRACKET (SKU: DA00000974)
Position 203 – TORSION SPRING (SKU: 671011136)
Position 204 – BELT PROTECTING COVER (SKU: 671522001)
Position 206 – TAPPING SCREW ST4.2X15 (SKU: DA00000873)
Position 207 – HEX. BOLT M6X25 (SKU: 671006066)
Position 208 – V BELT 10MMX6MM L=885MM (SKU: DA00000968)
Position 209 – V PULLEY (SKU: 671004013)
Position 212 – INNER FRANGE (SKU: 671015252)
Position 213 – BLADE 51 (SKU: DA00000973)
Position 214 – DISH SPRING WASHER 10 (SKU: DA00000529)
Position 216 – FRONT AXLE COVER (SKU: 671513001)
Position 217 – TAPPING SCREW ST4.2X10 (SKU: DA00000911)
