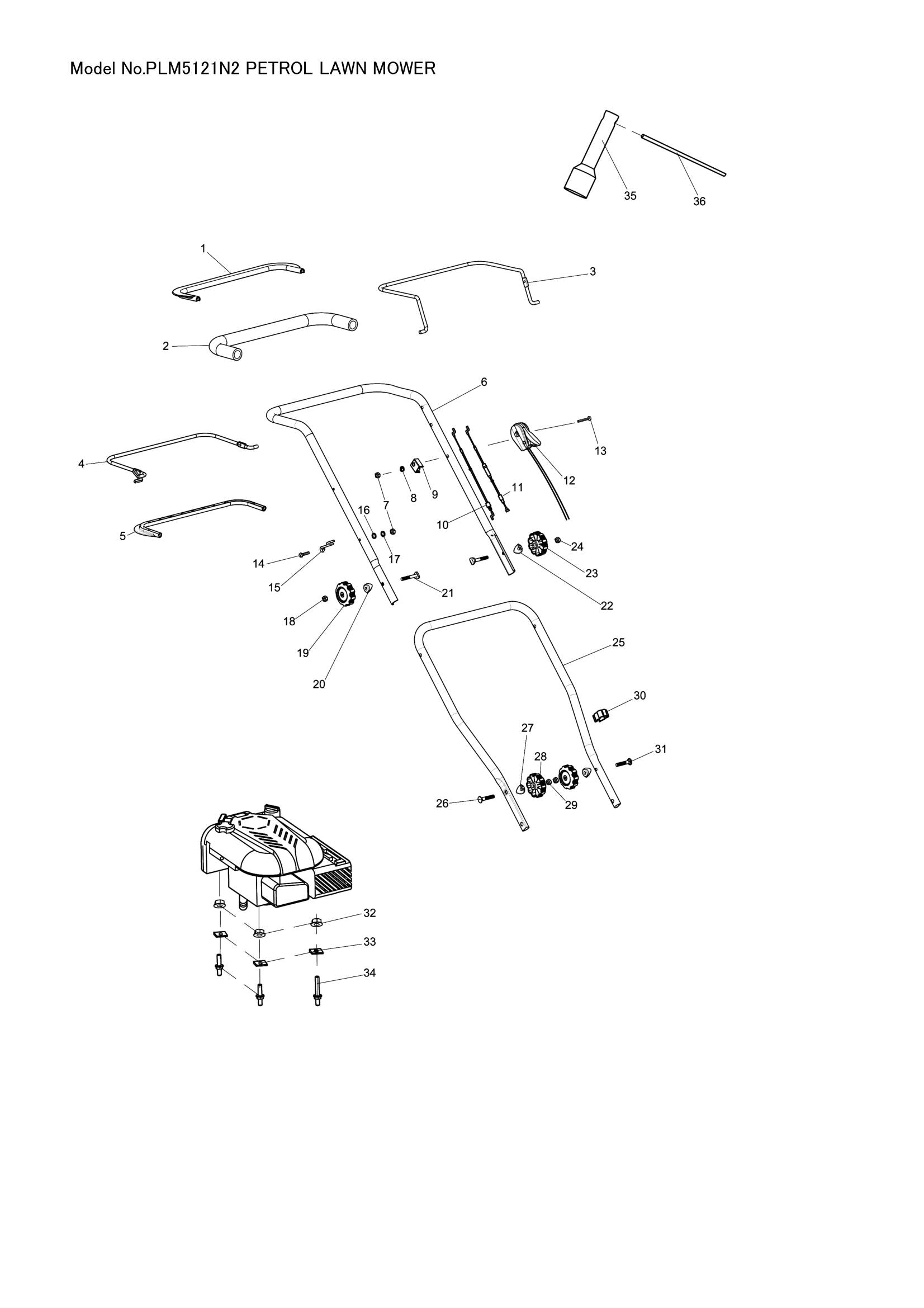

Exploded View – PLM5121N2

Share this product

Position 001 – LEVER SHEATH (SKU: 671687001)
Position 002 – HANDLE SHEATH (SKU: 671103001)
Position 003 – FRAMOUT POLE (SKU: DA00001087)
Position 004 – DRIVING POLE (SKU: DA00001060)
Position 005 – LEVER SHEATH (SKU: 671687001)
Position 006 – UPPER HANDLE (SKU: 671001814)
Position 007 – HEX.CAP NUT M6 (SKU: DA00000575)
Position 008 – FLAT WASHER 6 (SKU: DA00000574)
Position 009 – OUTER WIRE STOPPER (SKU: DA00000573)
Position 010 – FRAMOUT CABLE (SKU: DA00001164)
Position 011 – DRIVING CABLE (SKU: DA00000952)
Position 012 – THROTTLE ASS'Y (SKU: DA00001165)
Position 013 – HEX.FLANGE BOLT M6X55 (SKU: DA00000572)
Position 014 – HEX.FLANGE BOLT M6X35 (SKU: DA00000577)
Position 015 – STARTER GRIP HOOK (SKU: DA00000579)
Position 016 – FLAT WASHER 6 (SKU: DA00000574)
Position 017 – SPRING WASHER 6 (SKU: DA00000576)
Position 018 – HEXAGON NUT M8 (SKU: DA00000563)
Position 019 – KNOB (SKU: DA00000564)
Position 020 – PLASTIC SADDLE WASHER 8 (SKU: DA00000924)
Position 021 – SADDLE HEAD BOLT M8X58 (SKU: DA00000569)
Position 022 – PLASTIC SADDLE WASHER 8 (SKU: DA00000924)
Position 023 – KNOB (SKU: DA00000564)
Position 024 – HEXAGON NUT M8 (SKU: DA00000563)
Position 025 – LOWER HANDLE (SKU: DA00000951)
Position 026 – BOLT M8X40 (SKU: DA00000566)
Position 027 – PLASTIC SADDLE WASHER 8 (SKU: DA00000924)
Position 028 – KNOB (SKU: DA00000564)
Position 029 – HEXAGON NUT M8 (SKU: DA00000563)
Position 030 – CABLE CLIP (SKU: DA00001170)
Position 031 – BOLT M8X40 (SKU: DA00000566)
Position 032 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 033 – SQUARE WASHER 8 (SKU: DA00000582)
Position 035 – BOX WRENCH 16MM (SKU: DA00000583)
Position 036 – WRENCH HANDLE (SKU: DA00000584)
Position 038 – COVER FIXING CAP (SKU: 671314001)
Position 039 – TAPPING SCREW ST4.8X19 (SKU: DA00000614)
Position 040 – HEX.FLANGE BOLT M8X16 (SKU: DA00000562)
Position 042 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 044 – HEX.FLANGE BOLT M8X16 (SKU: DA00000562)
Position 045 – LEFT HANDLE BRACKET BLUE (SKU: DA00000587)
Position 046 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 049 – SIDE FLAP TORSION SPRING (SKU: DA00000556)
Position 051 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 052 – SIDE FLAP HINGE PLATE (SKU: DA00000555)
Position 053 – TRUSS HEAD SCREW M6X16 (SKU: DA00000552)
Position 054 – DECK(MAKITA BLUE) (SKU: 671015250)
Position 055 – CONNECTION ROD SPRING (SKU: DA00000546)
Position 056 – CONNECTION ROD (SKU: 671001813)
Position 059 – WHEEL COVER 10 INCH (SKU: 671001322)
Position 060 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 061 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 062 – WHEEL ASSY 11 INCH (SKU: 671002021)
Position 063 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 064 – INTERNAL GEAR (SKU: 671200010)
Position 065 – TAPPING SCREW ST4X16 (SKU: DA00000603)
Position 066 – WASHER (SKU: 671007065)
Position 067 – DUST-PROOF WHEEL COVER (SKU: 671251800)
Position 068 – STOP RING E-12 (SKU: DA00000604)
Position 069 – SPUR GEAR 14 RIGHT (SKU: DA00001091)
Position 070 – FLAT WASHER (SKU: 671007059)
Position 071 – BALL BEARING R8ZZ (SKU: DA00001029)
Position 072 – DRIVE SHAFT BEARING CASE (SKU: DA00000610)
Position 073 – STOP RING E-19 (SKU: DA00000612)
Position 074 – REAR WHEEL AXIS SS'Y (SKU: 671001812)
Position 076 – HANDLE (SKU: 671001707)
Position 077 – HEIGHT ADJUSTMENT KNOB (SKU: DA00001058)
Position 078 – PAN. HEAD SCREW M6X14 (SKU: 671002030)
Position 079 – TRUSS HEAD SCREW M6X12 (SKU: 671002019)
Position 080 – BEARING CASE RETAINER (SKU: DA00000542)
Position 081 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 082 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 083 – BEARING CASE RETAINER (SKU: DA00000542)
Position 084 – TRUSS HEAD SCREW M6X12 (SKU: 671002019)
Position 085 – STOP RING E-19 (SKU: DA00000612)
Position 086 – DRIVE SHAFT BEARING CASE (SKU: DA00000610)
Position 087 – DUST-PROOF WHEEL COVER (SKU: 671251800)
Position 088 – WASHER (SKU: 671007065)
Position 089 – BALL BEARING R8ZZ (SKU: DA00001029)
Position 090 – FLAT WASHER (SKU: 671007059)
Position 091 – SPUR GEAR 14 LEFT (SKU: DA00001090)
Position 092 – STOP RING E-12 (SKU: DA00000604)
Position 093 – TAPPING SCREW ST4X16 (SKU: DA00000603)
Position 094 – INTERNAL GEAR (SKU: 671200010)
Position 095 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 096 – WHEEL ASSY 11 INCH (SKU: 671002021)
Position 097 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 098 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 099 – WHEEL COVER 10 INCH (SKU: 671001322)
Position 100 – WHEEL COVER 7 INCH (SKU: DA00000536)
Position 101 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 102 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 103 – WHEEL ASSY 8 INCH (SKU: 671020160)
Position 104 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 105 – TRUSS HEAD SCREW M6X12 (SKU: 671002019)
Position 106 – BEARING CASE RETAINER (SKU: DA00000542)
Position 107 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 108 – AXLE MOUNT (SKU: DA00000545)
Position 109 – FRONT AXLE (SKU: 671001811)
Position 110 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 111 – BEARING CASE RETAINER (SKU: DA00000542)
Position 112 – TRUSS HEAD SCREW M6X12 (SKU: 671002019)
Position 113 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 114 – WHEEL ASSY 8 INCH (SKU: 671020160)
Position 115 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 116 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 117 – WHEEL COVER 7 INCH (SKU: DA00000536)
Position 118 – GEAR BOX SPRING (SKU: 671011173)
Position 119 – GEAR BOX (SKU: 671502015)
Position 120 – COLUMN PIN 5X21.5 (SKU: DA00000597)
Position 121 – TRIANGLE BELT (SKU: 671020380)
Position 122 – DRIVING WHEEL (SKU: DA00000599)
Position 124 – BELT PROTECTING COVER (SKU: DA00000594)
Position 125 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 126 – BLADE LINING SHEATH (SKU: 671319001)
Position 128 – BLADE SUPPORT (SKU: 671002049)
Position 129 – NYLON FLAT WASHER 32 (SKU: DA00000533)
Position 130 – BLADE 51 (SKU: DA00000944)
Position 131 – NYLON CUP WASHER 32 (SKU: DA00000531)
Position 132 – OUTER FRANGE (SKU: DA00000530)
Position 133 – DISH SPRING WASHER 10 (SKU: DA00000529)
