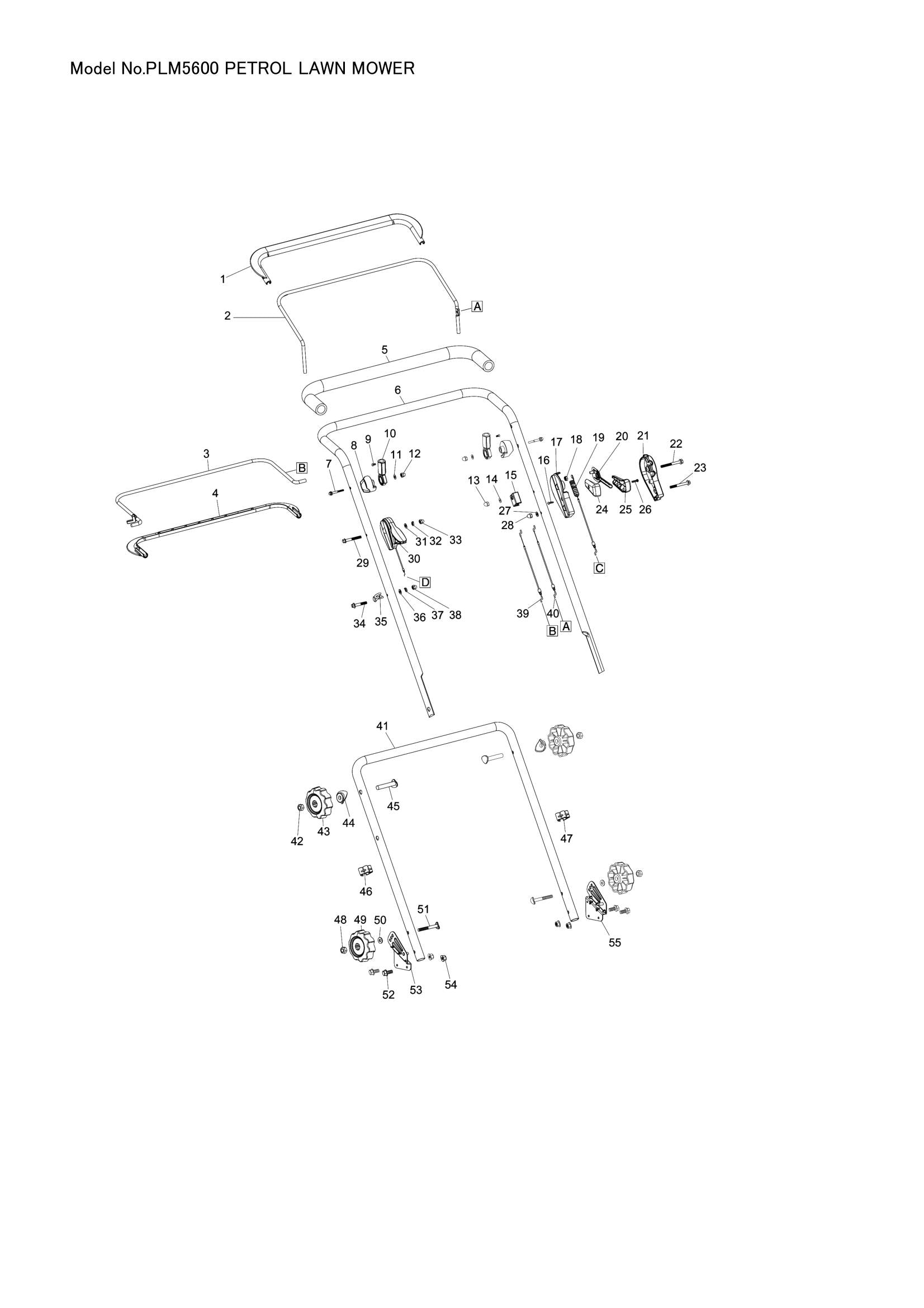

Exploded View – PLM5600

Share this product

Position 001 – LEVER SHEATH RED (SKU: 671020120)
Position 002 – ENGINE CLUTCH LEVER (SKU: 671002293)
Position 003 – SELF DRIVE CONTROL LEVER (SKU: 671002294)
Position 004 – LEVER SHEATH BLACK (SKU: 671020110)
Position 005 – HANDLE SHEATH (SKU: DA00000580)
Position 006 – UPPER HANDLE BAR ASSY (SKU: 671001868)
Position 007 – HEX. FLANGE BOLT M6X45 (SKU: 671006029)
Position 009 – PAN. HEAD SCREW M4X8 (SKU: 671002025)
Position 011 – FLAT WASHER 6 (SKU: 671007070)
Position 012 – HEX.CAP NUT M6 (SKU: DA00000575)
Position 013 – HEX.CAP NUT M6 (SKU: DA00000575)
Position 014 – FLAT WASHER 6 (SKU: DA00000574)
Position 015 – OUTER WIRE STOPPER (SKU: DA00000573)
Position 020 – DRIVE SPEED ADJUST LEVER (SKU: 671002279)
Position 022 – HEX.FLANGE BOLT M6X55 (SKU: DA00000572)
Position 023 – HEX. FLANGE BOLT M6X50 (SKU: 671006082)
Position 026 – TAPPING SCREW ST4.2X15 (SKU: DA00000873)
Position 027 – FLAT WASHER 6 (SKU: DA00000574)
Position 028 – HEX.CAP NUT M6 (SKU: DA00000575)
Position 029 – HEX. FLANGE BOLT M6X50 (SKU: 671006082)
Position 031 – FLAT WASHER 6 (SKU: DA00000574)
Position 032 – SPRING WASHER 6 (SKU: DA00000576)
Position 033 – HEX.CAP NUT M6 (SKU: DA00000575)
Position 034 – HEX.FLANGE BOLT M6X35 (SKU: DA00000577)
Position 035 – STARTER GRIP HOOK (SKU: DA00000579)
Position 036 – FLAT WASHER 6 (SKU: DA00000574)
Position 037 – SPRING WASHER 6 (SKU: DA00000576)
Position 038 – HEX.CAP NUT M6 (SKU: DA00000575)
Position 040 – ENGINE CLUTCH WIRE (SKU: 671001241)
Position 041 – LOWER HANDLE POLE (SKU: 671001869)
Position 042 – HEXAGON NUT M8 (SKU: DA00000563)
Position 043 – KNOB (SKU: DA00000564)
Position 044 – PLASTIC SADDLE WASHER 8 (SKU: DA00000924)
Position 045 – SADDLE HEAD BOLT M8X58 (SKU: DA00000569)
Position 046 – CABLE CLIP (SKU: DA00001170)
Position 047 – CABLE CLIP (SKU: DA00001170)
Position 048 – HEXAGON NUT M8 (SKU: DA00000563)
Position 049 – KNOB (SKU: DA00000564)
Position 050 – FLAT WASHER 8 (SKU: 671007007)
Position 051 – SADDLE HEAD BOLT M8X35 (SKU: DA00000880)
Position 052 – HEX.FLANGE BOLT M8X16 (SKU: DA00000562)
Position 054 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 055 – LEFT HANDLE BRACKET BLUE (SKU: 671018260)
Position 057 – TAPPING SCREW ST4X12 (SKU: 671010710)
Position 058 – REAR FLAP (SKU: 671004613)
Position 059 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 061 – REAR FLAP HINGE ROD (SKU: 671001484)
Position 063 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 064 – TRUSS HEAD SCREW M6X12 (SKU: 671002019)
Position 066 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 067 – GROMMET (SKU: 671800104)
Position 068 – DECK BLUE (SKU: 671001690)
Position 070 – PAN.HED SCREW M5X12 (SKU: 671002010)
Position 071 – SPRING WASHER 5 (SKU: DA00000198)
Position 072 – SIDE FLAP HINGE PLATE (SKU: 671002183)
Position 073 – SIDE FLAP TORSION SPRING (SKU: 671111300)
Position 075 – SCREW M4X10 (SKU: 671006085)
Position 076 – SIDE PROTECTOR LEFT SIDE (SKU: DA00000878)
Position 077 – HEX NUT M4 (SKU: DA00000033)
Position 078 – FRONT AXLE COVER (SKU: 671825001)
Position 079 – WASHER 5 (SKU: 671007004)
Position 080 – TAPPING SCREW ST5X12 (SKU: DA00000888)
Position 082 – SQUARE WASHER 8 (SKU: DA00000582)
Position 084 – HEX. BOLT M8X35 (SKU: DA00000586)
Position 088 – HEX. FLANGE BOLT M6X12 (SKU: DA00000553)
Position 089 – GEAR BOX MOUNT ANGLE (SKU: 671002297)
Position 090 – HEX. FLANGE BOLT M6X17 (SKU: 671006181)
Position 091 – V BELT 10MMX6MM L=817MM (SKU: 671002065)
Position 092 – FLAT WASHER (SKU: 671002351)
Position 093 – V PULLEY ASSY (SKU: 671004019)
Position 094 – BELT PROTECTING COVER (SKU: 671560001)
Position 095 – TOOTHED LOCK WASHER 5 (SKU: 671008011)
Position 097 – FLAT WASHER 8 (SKU: 671007007)
Position 099 – FLAT KEY (SKU: 671090002)
Position 100 – BLADE SPASER SLEEVE (SKU: 671002089)
Position 101 – INNER FRANGE (SKU: 671015252)
Position 103 – DISH SPRING WASHER 10 (SKU: DA00000529)
Position 105 – WHEEL COVER 10 INCH (SKU: 671001322)
Position 106 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 107 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 108 – WHEEL ASSY 11 INCH (SKU: 671002021)
Position 109 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 110 – INTERNAL GEAR (SKU: 671200010)
Position 111 – TAPPING SCREW ST4X16 (SKU: DA00000603)
Position 112 – WASHER (SKU: 671007065)
Position 113 – DUST-PROOF WHEEL COVER (SKU: 671251800)
Position 114 – REAR AXLE (SKU: 671002296)
Position 115 – PAN. HEAD SCREW M6X14 (SKU: 671002030)
Position 116 – HEIGHT ADJUSTER HANDLE (SKU: DA00000879)
Position 117 – HEIGHT ADJUSTMENT KNOB (SKU: DA00001058)
Position 119 – STOP RING E-12 (SKU: DA00000604)
Position 120 – SPUR GEAR 14 RIGHT (SKU: DA00000607)
Position 121 – COLUMN PIN 5X21.5 (SKU: DA00000597)
Position 122 – STOP RING E-12 (SKU: DA00000604)
Position 123 – BALL BEARING R8ZZ (SKU: DA00001029)
Position 124 – DRIVE SHAFT BEARING CASE (SKU: DA00000610)
Position 125 – STOP RING E-19 (SKU: DA00000612)
Position 126 – TRUSS HEAD SCREW M6X12 (SKU: 671002019)
Position 127 – BEARING CASE RETAINER (SKU: DA00000542)
Position 128 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 129 – SPUR GEAR 14 LEFT (SKU: DA00000605)
Position 131 – LINK ROD (SKU: 671002292)
Position 133 – WHEEL COVER 7 INCH (SKU: DA00000536)
Position 134 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 135 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 136 – WHEEL ASSY 8 INCH (SKU: 671020160)
Position 137 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 139 – FRONT AXLE RETAINER (SKU: 671445001)
Position 140 – FRONT AXLE MOUNT (SKU: 671076001)
Position 141 – HEX. BOLT M6X65 (SKU: 671006002)
Position 143 – FRONT AXLE (SKU: 671002295)
Position 145 – GRASS CATCHER HANDLE (SKU: 671384001)
Position 148 – TAPPING SCREW ST4.2X18 (SKU: 671001032)
Position 149 – GRASS CATCHER FRAME (SKU: 671001382)
Position 151 – MULCHING PLUG BOX (SKU: 671315001)
Position 153 – COMPRESSION SPRING (SKU: 671011005)
Position 154 – LOCKING BUTTON (SKU: 671316004)
Position 155 – TAPPING SCREW ST4X16 (SKU: DA00000603)
Position 156 – SIDE DISCHARGE OUTLET (SKU: 671065001)
