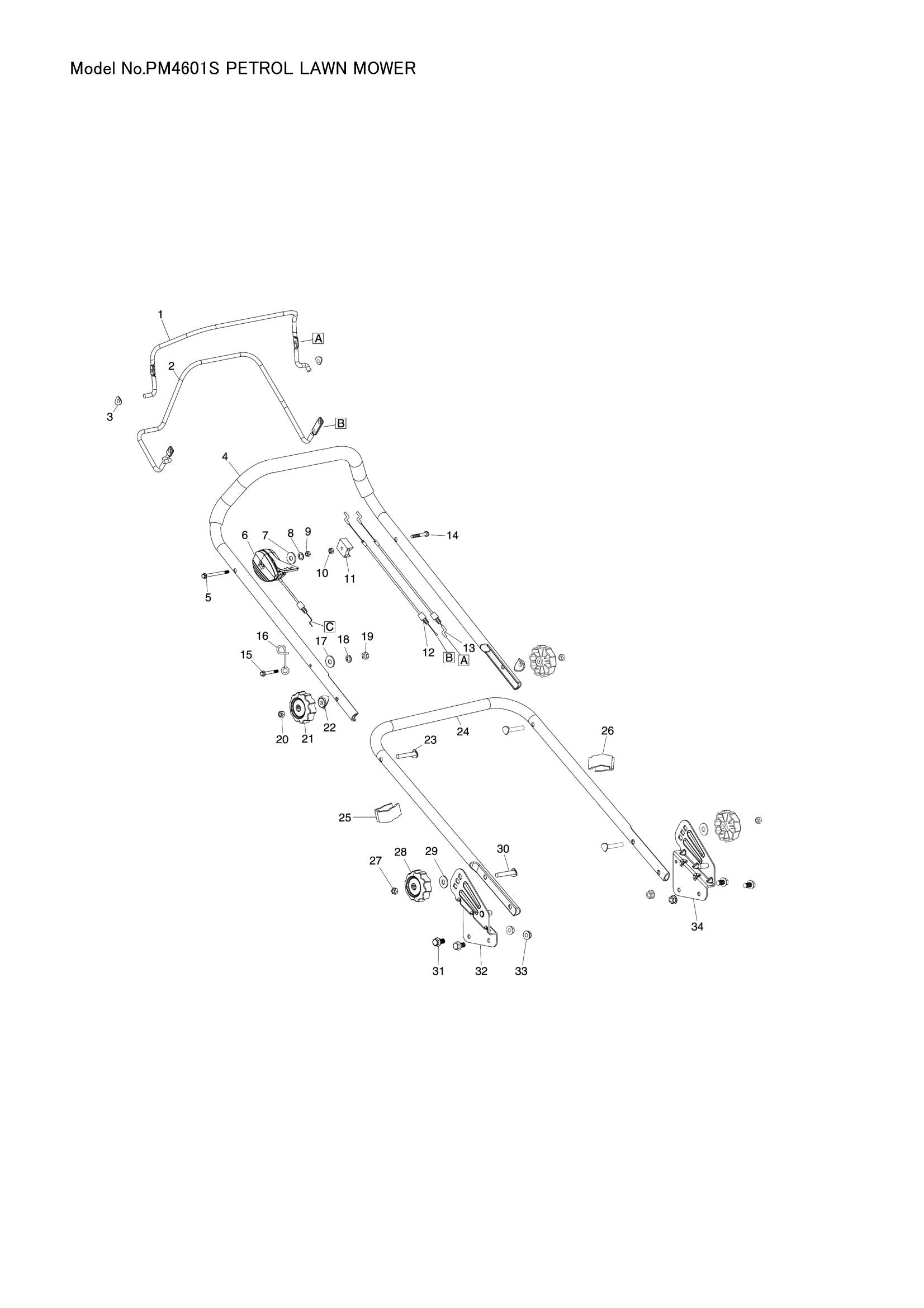

Exploded View – PM4601S

Share this product

Position 001 – ENGINE CLUTCH LEVER (SKU: DA00000961)
Position 002 – SELF DRIVE CONTROL LEVER (SKU: DA00000964)
Position 003 – SADDLE WASHER 8 (SKU: 671001524)
Position 004 – UPPER HANDLE BAR ASSY (SKU: 671002001)
Position 005 – HEX. FLANGE BOLT M6X50 (SKU: 671006082)
Position 007 – FLAT WASHER 6 (SKU: DA00000574)
Position 008 – SPRING WASHER 6 (SKU: DA00000864)
Position 009 – HEX.CAP NUT M6 (SKU: DA00000575)
Position 010 – HEX.CAP NUT M6 (SKU: DA00000575)
Position 011 – OUTER WIRE STOPPER (SKU: DA00000573)
Position 013 – ENGINE CLUTCH WIRE (SKU: 671001113)
Position 014 – HEX.FLANGE BOLT M6X35 (SKU: DA00000577)
Position 015 – HEX.FLANGE BOLT M6X35 (SKU: DA00000577)
Position 016 – STARTER GRIP HOOK (SKU: DA00000579)
Position 017 – FLAT WASHER 6 (SKU: DA00000574)
Position 018 – SPRING WASHER 6 (SKU: DA00000864)
Position 019 – HEX.CAP NUT M6 (SKU: DA00000575)
Position 020 – HEXAGON NUT M8 (SKU: DA00000563)
Position 021 – KNOB (SKU: DA00000564)
Position 022 – PLASTIC SADDLE WASHER 8 (SKU: DA00000565)
Position 023 – SADDLE HEAD BOLT M8X58 (SKU: DA00000569)
Position 024 – LOWER HANDLE BAR (SKU: 671001606)
Position 027 – HEXAGON NUT M8 (SKU: DA00000563)
Position 028 – KNOB (SKU: DA00000564)
Position 029 – FLAT WASHER 8 (SKU: 671007007)
Position 030 – SADDLE HEAD BOLT M8X35 (SKU: 671006118)
Position 031 – HEX.FLANGE BOLT M8X16 (SKU: DA00000562)
Position 032 – RIGHT HANDLE BRACKET RED (SKU: 671001213)
Position 033 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 034 – LEFT HANDLE BRACKET RED (SKU: 671001212)
Position 035 – HEX. BOLT M5X14 (SKU: 671003012)
Position 036 – OUTER WIRE STOPPER (SKU: 671010830)
Position 037 – REAR FLAP (SKU: 671468001)
Position 038 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 039 – STOP RING E-6 (SKU: 671009017)
Position 040 – REAR FLAP HINGE ROD (SKU: 671001518)
Position 041 – REAR FLAP TORSION SPRING (SKU: 671011101)
Position 042 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 043 – GROMMET (SKU: 671800104)
Position 044 – DECK RED (SKU: 671001526)
Position 045 – FRONT AXLE COVER (SKU: 671659001)
Position 046 – TAPPING SCREW ST4.2X10 (SKU: DA00000911)
Position 047 – TRUSS HEAD SCREW M6X12 (SKU: 671002019)
Position 049 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 050 – FLAT WASHER 8 (SKU: 671007007)
Position 051 – SPRING WASHER 8 (SKU: DA00000832)
Position 053 – HEX. BOLT M8X35 (SKU: DA00000586)
Position 055 – V PULLEY (SKU: 671004002)
Position 057 – V BELT 10MMX6MM L=762MM (SKU: 671002043)
Position 058 – SPRING WASHER 6 (SKU: DA00000864)
Position 059 – TRUSS HEAD SCREW M6X12 (SKU: 671002019)
Position 061 – GEAR BOX MOUNT PLATE (SKU: 671001460)
Position 062 – GEAR BOX MOUNT ANGLE (SKU: DA00000915)
Position 063 – HEX.FLANGE BOLT M8X16 (SKU: DA00000562)
Position 064 – SPRING WASHER 8 (SKU: DA00000832)
Position 065 – FLAT WASHER 8 (SKU: 671007007)
Position 068 – BELT PROTECTING COVER (SKU: 671658001)
Position 071 – FLAT KEY (SKU: 671090002)
Position 072 – BLADE SPACER SLEEVE (SKU: 671007046)
Position 073 – INNER FRANGE (SKU: 671015252)
Position 075 – DISH SPRING WASHER (SKU: 671010730)
Position 077 – WHEEL COVER 7 INCH (SKU: DA00000536)
Position 078 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 079 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 080 – WHEEL ASSY 8 INCH (SKU: 671020300)
Position 081 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 082 – INTERNAL GEAR (SKU: DA00000849)
Position 083 – TAPPING SCREW ST4X16 (SKU: DA00000603)
Position 085 – REAR AXLE (SKU: 671144602)
Position 086 – PAN.HED SCREW M5X14 (SKU: DA00000912)
Position 088 – HEIGHT ADJUSTMENT KNOB (SKU: DA00001058)
Position 090 – STOP RING E-12 (SKU: DA00000604)
Position 091 – SPUR GEAR 14 RIGHT (SKU: DA00000607)
Position 092 – COLUMN PIN 5X21.5 (SKU: DA00000597)
Position 093 – STOP RING E-12 (SKU: DA00000604)
Position 094 – BALL BEARING R8ZZ (SKU: DA00001029)
Position 095 – DRIVE SHAFT BEARING CASE (SKU: DA00000610)
Position 096 – STOP RING E-19 (SKU: DA00000612)
Position 097 – TRUSS HEAD SCREW M6X12 (SKU: 671002019)
Position 098 – AXLE RETAINER (SKU: DA00000542)
Position 099 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 100 – SPUR GEAR 14 LEFT (SKU: DA00000605)
Position 102 – LINK ROD (SKU: DA00001154)
Position 104 – WHEEL COVER 6.5 INCH (SKU: 671001176)
Position 105 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 106 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 107 – WHEEL ASSY 7 INCH (SKU: 671020150)
Position 108 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 109 – FRONT AXLE (SKU: 671001786)
Position 111 – FRONT AXLE RETAINER (SKU: 671445001)
Position 112 – FRONT AXLE MOUNT (SKU: 671418001)
Position 113 – PAN.HED SCREW M6X45 (SKU: 671002028)
Position 115 – GRASS CATCHER HANDLE (SKU: 671454001)
Position 117 – TAPPING SCREW ST5X16 (SKU: DA00000326)
Position 118 – GRASS CATCHER FRAME (SKU: 671001443)
Position 120 – TAPPING SCREW ST5X12 (SKU: DA00000888)
Position 121 – RETAINER PLATE (SKU: DA00000335)
Position 122 – TAPPING SCREW ST5X12 (SKU: DA00000888)
Position 125 – MULCHING PLUG BOX (SKU: 671660001)
Position 126 – LOCKING BUTTON (SKU: 671316004)
Position 127 – COMPRESSION SPRING (SKU: 671011005)
Position 129 – TAPPING SCREW ST4X16 (SKU: DA00000603)
