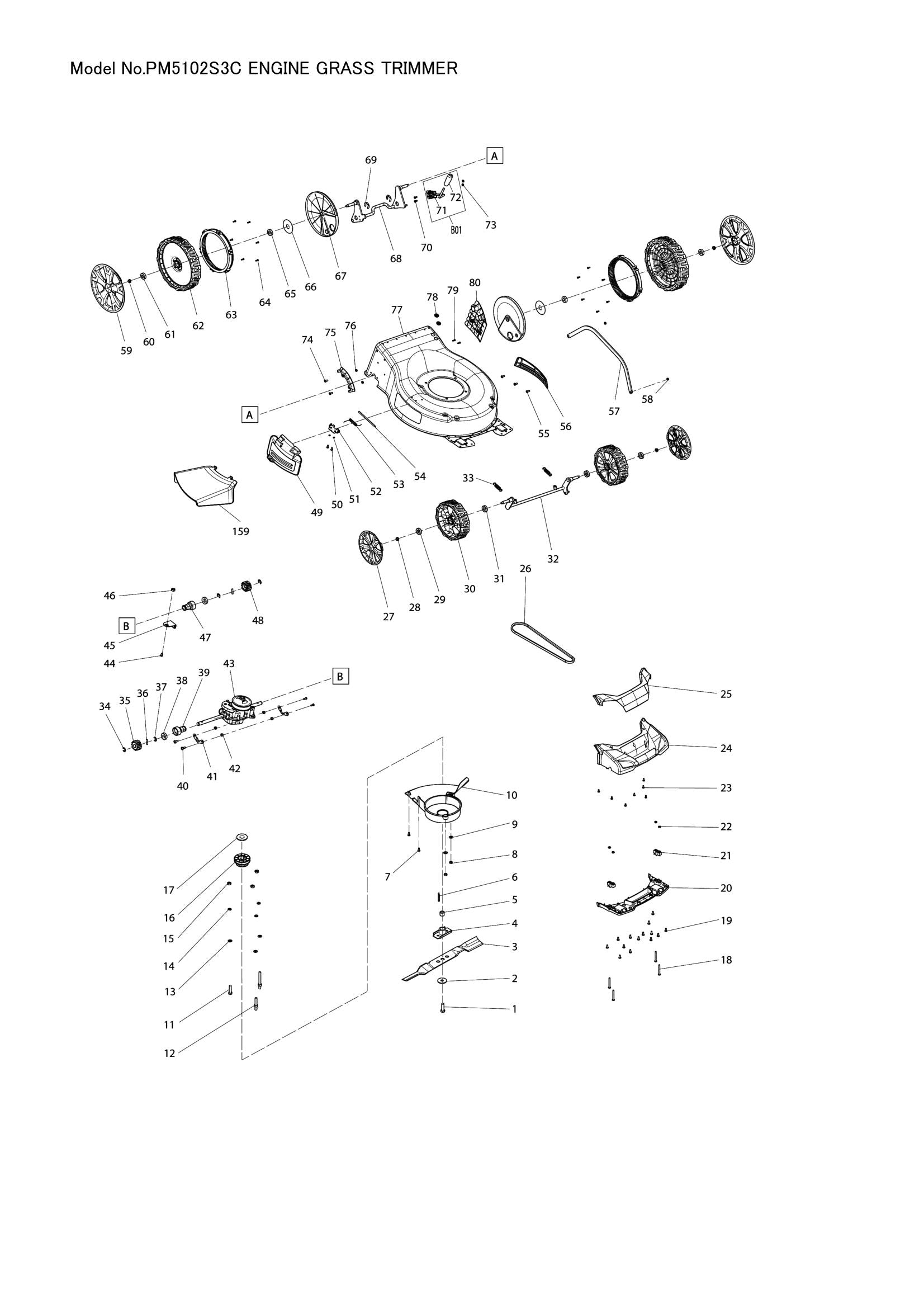

Exploded View – PM5102S3C

Share this product

Position 002 – DISH SPRING WASHER (SKU: 671010730)
Position 004 – INNER FRANGE (SKU: DA00000857)
Position 005 – BLADE SPASER SLEEVE (SKU: 671002093)
Position 009 – FLAT WASHER 8 (SKU: 671007007)
Position 010 – BELT PROTECTING COVER (SKU: 671030010)
Position 011 – HEX. BOLT M8X35 (SKU: DA00000586)
Position 013 – FLAT WASHER 8 (SKU: 671007007)
Position 014 – SPRING WASHER 8 (SKU: DA00000832)
Position 015 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 016 – V PULLEY ASSY (SKU: 671004019)
Position 017 – FLAT WASHER (SKU: 671002351)
Position 018 – HEX. FRANGE BOLT M6X60 (SKU: 671006119)
Position 021 – FRONT AXLE RETAINER (SKU: 671445001)
Position 024 – FRONT COVER (SKU: 671030420)
Position 025 – FRONT COVER BOARD (SKU: 671999001)
Position 026 – TRIANGLE BELT (SKU: 671002056)
Position 027 – WHEEL COVER 7 INCH (SKU: 671030150)
Position 028 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 029 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 030 – WHEEL ASSY 8 INCH (SKU: 671020160)
Position 031 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 032 – FRONT WHEEL AXLE ASS'Y (SKU: 671002429)
Position 034 – STOP RING E-12 (SKU: DA00000604)
Position 035 – SPUR GEAR 14 RIGHT (SKU: DA00000607)
Position 036 – COLUMN PIN 5X21.5 (SKU: DA00000597)
Position 037 – STOP RING E-12 (SKU: DA00000604)
Position 038 – BEARING (SKU: DA00000609)
Position 040 – TRUSS HEAD SCREW M6X12 (SKU: 671002019)
Position 041 – AXLE RETAINER (SKU: DA00000542)
Position 042 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 044 – HEX. FLANGE BOLT M6X17 (SKU: 671006181)
Position 045 – GEAR BOX MOUNT ANGLE (SKU: 671002297)
Position 047 – DRIVE SHAFT BEARING CASE (SKU: DA00000610)
Position 048 – SPUR GEAR 14 LEFT (SKU: DA00000605)
Position 050 – PAN.HED SCREW M5X12 (SKU: 671002010)
Position 052 – SIDE FLAP HINGE PLATE (SKU: 671001571)
Position 053 – SIDE FLAP TORSION SPRING (SKU: 671011205)
Position 055 – TAPPING SCREW ST4.2X8 (SKU: 671010310)
Position 056 – PROTECTING BOARD (SKU: 671427001)
Position 057 – LINK ROD (SKU: 671002430)
Position 059 – 11WHEEL COVER (SKU: 671003017)
Position 060 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 061 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 062 – WHEEL ASSY 11 INCH (SKU: 671002021)
Position 063 – INTERNAL GEAR (SKU: 671200010)
Position 064 – TAPPING SCREW ST4X16 (SKU: DA00000603)
Position 065 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 066 – WASHER (SKU: 671007065)
Position 067 – DUST-PROOF WHEEL COVER (SKU: 671251800)
Position 068 – REAR WHEEL AXLE ASS'Y (SKU: 671002347)
Position 069 – STOP RING E-19 (SKU: DA00000612)
Position 071 – HANDLE ASS'Y (SKU: DA00000874)
Position 074 – TRUSS HEAD SCREW M6X16 (SKU: DA00000552)
Position 075 – HEIGHT ADJUSTMENT BOARD (SKU: DA00000790)
Position 077 – DECK(DOLMAR RED) (SKU: 671001825)
Position 078 – GROMMET (SKU: 671800104)
Position 079 – HEX. FLANGE BOLT M6X12 (SKU: DA00000553)
Position 081 – MULCHING PLUG BOX (SKU: DA00000844)
Position 082 – TAPPING SCREW ST4X16 (SKU: DA00000603)
Position 084 – COMPRESSION SPRING (SKU: 671011005)
Position 085 – LOCKING BUTTON (SKU: 671316004)
Position 087 – REAR FLAP BRACKET BLUE (SKU: 671932001)
Position 088 – REAR FLAP HINGE ROD (SKU: 671002365)
Position 089 – REAR FLAP TORSION SPRING (SKU: 671011203)
Position 090 – STOP RING E-6 (SKU: 671009017)
Position 091 – REAR FLAP BLUE (SKU: 671933001)
Position 092 – CABLE CLIP (SKU: 671611001)
Position 093 – HEXAGON NUT M8 (SKU: DA00000563)
Position 094 – KNOB (SKU: DA00000564)
Position 095 – FLAT WASHER 8 (SKU: 671007007)
Position 096 – HEX.FLANGE BOLT M8X16 (SKU: DA00000562)
Position 097 – RIGHT HANDLE BRACKET RED (SKU: DA00000868)
Position 098 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 099 – SADDLE HEAD BOLT M8X35 (SKU: DA00000839)
Position 100 – LEFT HANDLE BRACKET RED (SKU: DA00000867)
Position 101 – PIN 5.3X20 (SKU: 671090040)
Position 102 – TENSION LEVER (SKU: 671431001)
Position 103 – RETAINER PLATE (SKU: 671001119)
Position 104 – TENSION BOLT M8 (SKU: 671006167)
Position 111 – CABLE FIXING RING (SKU: 671002361)
Position 112 – FLAT WASHER 8 (SKU: 671007007)
Position 115 – FRAMEOUT CORD ASS'Y (SKU: 671001286)
Position 116 – LOWER HANDLE BAR (SKU: 671017070)
Position 117 – HEX.CAP NUT M6 (SKU: DA00000575)
Position 119 – FLAT WASHER 6 (SKU: DA00000574)
Position 120 – STARTER GRIP HOOK (SKU: DA00000579)
Position 121 – HEX.FLANGE BOLT M6X35 (SKU: DA00000577)
Position 122 – HEX.CAP NUT M6 (SKU: DA00000575)
Position 124 – FLAT WASHER 6 (SKU: DA00000574)
Position 126 – HEX. FLANGE BOLT M6X50 (SKU: 671006082)
Position 127 – HEX.CAP NUT M6 (SKU: DA00000575)
Position 128 – FLAT WASHER 6 (SKU: DA00000574)
Position 129 – OUTER WIRE STOPPER (SKU: DA00000573)
Position 130 – HEX.CAP NUT M6 (SKU: DA00000575)
Position 131 – FLAT WASHER 6 (SKU: DA00000574)
Position 136 – TAPPING SCREW ST4.2X15 (SKU: DA00000873)
Position 138 – DRIVE SPEED ADJUST LEVER (SKU: 671002279)
Position 141 – HEX. FLANGE BOLT M6X50 (SKU: 671006082)
Position 142 – HEX.FLANGE BOLT M6X55 (SKU: DA00000572)
Position 143 – LEVER SHEATH BLACK (SKU: 671201401)
Position 144 – SELF DRIVE CONTROL LEVER (SKU: 671001874)
Position 145 – HEX. FLANGE BOLT M6X45 (SKU: 671006029)
Position 148 – PAN. HEAD SCREW M4X8 (SKU: 671002025)
Position 149 – FLAT WASHER 6 (SKU: 671007070)
Position 150 – HEX.CAP NUT M6 (SKU: DA00000575)
Position 151 – UPPER HANDLE BAR ASSY (SKU: 671001756)
Position 152 – HANDLE SHEATH (SKU: 671103001)
Position 153 – ENGINE CLUTCH LEVER (SKU: 671018730)
Position 154 – LEVER SHEATH RED (SKU: 671020130)
Position 155 – GRASS CATCHER BRACKET (SKU: DA00000875)
Position 156 – TAPPING SCREW ST4X16 (SKU: DA00000603)
Position 161 – TAPPING SCREW ST4X16 (SKU: DA00000603)
Position 162 – GRASS CATCHER HANDLE (SKU: 671937001)
