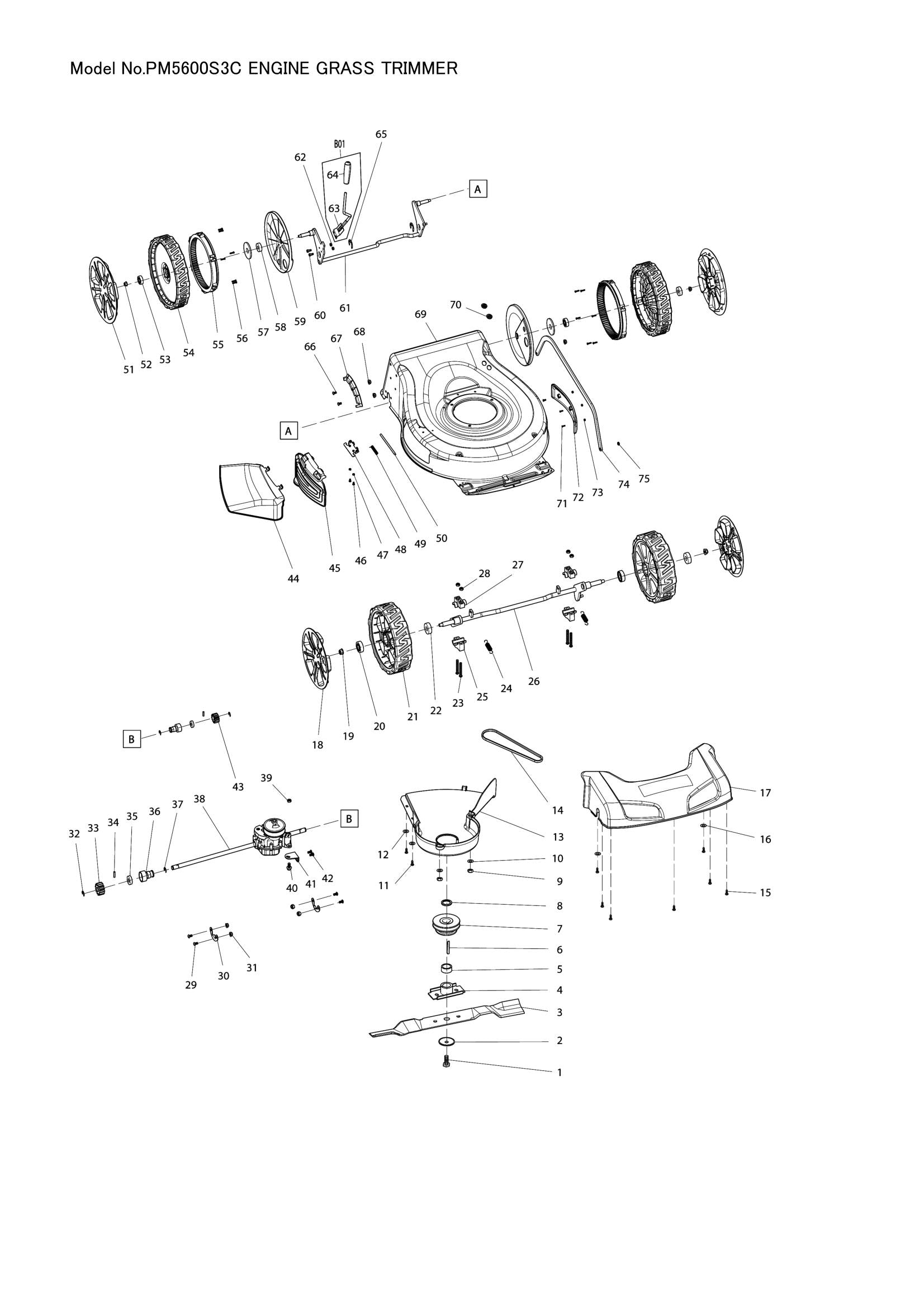

Exploded View – PM5600S3C

Share this product

Position 002 – DISH SPRING WASHER (SKU: 671010730)
Position 004 – INNER FRANGE (SKU: DA00000857)
Position 005 – BLADE SPASER SLEEVE (SKU: 671002093)
Position 007 – V PULLEY ASSY (SKU: 671004019)
Position 008 – FLAT WASHER (SKU: 671002351)
Position 010 – FLAT WASHER 8 (SKU: 671007007)
Position 012 – TOOTHED LOCK WASHER 5 (SKU: 671008011)
Position 013 – BELT PROTECTING COVER (SKU: 671560001)
Position 014 – V BELT 10MMX6MM L=817MM (SKU: 671002065)
Position 016 – WASHER 5 (SKU: 671007004)
Position 017 – FRONT AXLE COVER (SKU: 671825001)
Position 018 – WHEEL COVER 7 INCH (SKU: DA00000536)
Position 019 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 020 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 021 – WHEEL ASSY 8 INCH (SKU: 671020160)
Position 022 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 023 – HEX. BOLT M6X65 (SKU: 671006002)
Position 025 – FRONT AXLE MOUNT (SKU: 671076001)
Position 026 – FRONT AXLE (SKU: 671002295)
Position 027 – FRONT AXLE RETAINER (SKU: 671445001)
Position 029 – TRUSS HEAD SCREW M6X12 (SKU: 671002019)
Position 030 – AXLE RETAINER (SKU: DA00000542)
Position 031 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 032 – STOP RING E-12 (SKU: DA00000604)
Position 033 – SPUR GEAR 14 RIGHT (SKU: DA00000607)
Position 034 – COLUMN PIN 5X21.5 (SKU: DA00000597)
Position 035 – BEARING (SKU: DA00000609)
Position 036 – DRIVE SHAFT BEARING CASE (SKU: DA00000610)
Position 037 – STOP RING E-12 (SKU: DA00000604)
Position 040 – HEX. FLANGE BOLT M6X17 (SKU: 671006181)
Position 041 – GEAR BOX MOUNT ANGLE (SKU: 671002297)
Position 042 – HEX. FLANGE BOLT M6X12 (SKU: DA00000553)
Position 043 – SPUR GEAR 14 LEFT (SKU: DA00000605)
Position 044 – SIDE DISCHARGE OUTLET (SKU: 671065001)
Position 046 – PAN.HED SCREW M5X12 (SKU: 671002010)
Position 049 – SIDE FLAP TORSION SPRING (SKU: 671111300)
Position 051 – WHEEL COVER 10 INCH (SKU: 671001322)
Position 052 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 053 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 054 – WHEEL ASSY 11 INCH (SKU: 671002021)
Position 055 – INTERNAL GEAR (SKU: 671200010)
Position 056 – TAPPING SCREW ST4X16 (SKU: DA00000603)
Position 057 – WASHER (SKU: 671007065)
Position 058 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 059 – DUST-PROOF WHEEL COVER (SKU: 671251800)
Position 060 – PAN. HEAD SCREW M6X14 (SKU: 671002030)
Position 061 – REAR AXLE (SKU: 671002296)
Position 063 – HEIGHT ADJUSTER HANDLE (SKU: DA00000879)
Position 065 – STOP RING E-19 (SKU: DA00000612)
Position 066 – TRUSS HEAD SCREW M6X12 (SKU: 671002019)
Position 068 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 069 – DECK RED (SKU: 671001878)
Position 070 – GROMMET (SKU: 671800104)
Position 071 – SCREW M4X10 (SKU: 671006085)
Position 072 – SIDE PROTECTOR LEFT SIDE (SKU: DA00000878)
Position 073 – HEXAGON LOCKING NUT M4 (SKU: 671005014)
Position 074 – LINK ROD (SKU: 671002292)
Position 076 – MULCHING PLUG BOX (SKU: 671315001)
Position 077 – TAPPING SCREW ST4X16 (SKU: DA00000603)
Position 079 – COMPRESSION SPRING (SKU: 671011005)
Position 080 – LOCKING BUTTON (SKU: 671316004)
Position 082 – REAR FLAP HINGE ROD (SKU: 671001484)
Position 084 – REAR FLAP (SKU: 671004613)
Position 085 – TAPPING SCREW ST4X12 (SKU: 671010710)
Position 088 – GRASS CATCHER FRAME (SKU: 671001382)
Position 089 – TAPPING SCREW ST4.2X18 (SKU: 671001032)
Position 092 – GRASS CATCHER HANDLE (SKU: 671384001)
Position 094 – SADDLE HEAD BOLT M8X35 (SKU: DA00000880)
Position 095 – HEX.FLANGE BOLT M8X16 (SKU: DA00000562)
Position 096 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 097 – RIGHT HANDLE BRACKET RED (SKU: 671001829)
Position 098 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 099 – CABLE CLAMP (SKU: DA00000881)
Position 100 – FLAT WASHER 8 (SKU: 671007007)
Position 101 – KNOB (SKU: DA00000564)
Position 102 – HEXAGON NUT M8 (SKU: DA00000563)
Position 103 – LEFT HANDLE BRACKET RED (SKU: 671018270)
Position 104 – HEXAGON NUT M8 (SKU: DA00000563)
Position 105 – KNOB (SKU: DA00000564)
Position 106 – PLASTIC SADDLE WASHER 8 (SKU: DA00000565)
Position 107 – SADDLE HEAD BOLT M8X58 (SKU: DA00000569)
Position 108 – LOWER HANDLE POLE (SKU: 671001869)
Position 109 – HEX.FLANGE BOLT M6X35 (SKU: DA00000577)
Position 110 – STARTER GRIP HOOK (SKU: DA00000579)
Position 111 – FLAT WASHER 6 (SKU: DA00000574)
Position 113 – HEX.CAP NUT M6 (SKU: DA00000575)
Position 115 – ENGINE CLUTCH WIRE (SKU: 671001241)
Position 116 – HEX. FLANGE BOLT M6X50 (SKU: 671006082)
Position 118 – FLAT WASHER 6 (SKU: DA00000574)
Position 120 – HEX.CAP NUT M6 (SKU: DA00000575)
Position 121 – HEX.CAP NUT M6 (SKU: DA00000575)
Position 122 – FLAT WASHER 6 (SKU: DA00000574)
Position 123 – OUTER WIRE STOPPER (SKU: DA00000573)
Position 129 – DRIVE SPEED ADJUST LEVER (SKU: 671002279)
Position 131 – TAPPING SCREW ST4.2X15 (SKU: DA00000873)
Position 133 – HEX.FLANGE BOLT M6X55 (SKU: DA00000572)
Position 134 – HEX. FLANGE BOLT M6X50 (SKU: 671006082)
Position 135 – HEX. FLANGE BOLT M6X45 (SKU: 671006029)
Position 138 – PAN. HEAD SCREW M4X8 (SKU: 671002025)
Position 139 – FLAT WASHER 6 (SKU: 671007070)
Position 140 – HEX.CAP NUT M6 (SKU: DA00000575)
Position 141 – UPPER HANDLE BAR ASSY (SKU: 671001868)
Position 142 – HANDLE SHEATH (SKU: DA00000580)
Position 143 – ENGINE CLUTCH LEVER (SKU: 671002293)
Position 144 – LEVER SHEATH RED (SKU: 671020120)
Position 145 – SELF DRIVE CONTROL LEVER (SKU: 671002294)
Position 146 – LEVER SHEATH BLACK (SKU: 671020110)
Position 148 – HEX. BOLT M8X35 (SKU: DA00000586)
Position 150 – SQUARE WASHER 8 (SKU: DA00000582)
Position 151 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
