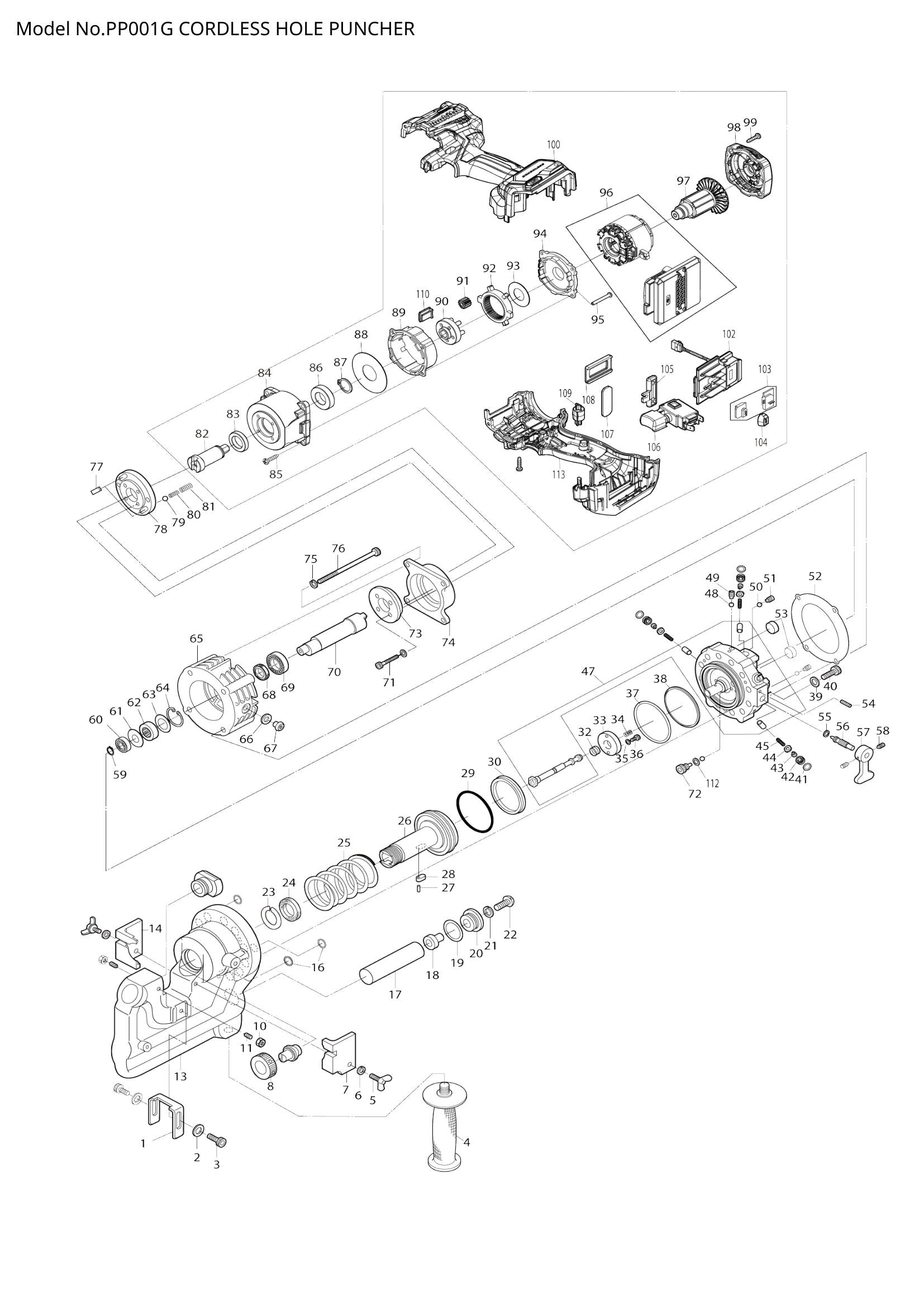

Exploded View – PP001G

Share this product

Position 001 – SLIDE STOPPPER (SKU: SC03505970)
Position 002 – FLAT WASHER 5 (SKU: 941101-4)
Position 003 – HEX. SOCKET HEAD BOLT M5X12 (SKU: SC00000059)
Position 004 – GRIP M14 (SKU: SC00000155)
Position 005 – WING BOLT M6X15 (SKU: SC07552000)
Position 006 – WASHER SW6 (SKU: SC07610040)
Position 007 – STRIPPER R (SKU: SC03303570)
Position 008 – PUNCH RETAINING NUT (SKU: SC03505320)
Position 010 – HEX. NUT M6 (SKU: 931301-4)
Position 011 – SET SCREW (CONE POINT) M6X1 (SKU: 913327-8)
Position 013 – C FRAME COMPLETE (SKU: SC03103740)
Position 014 – STRIPPER L (SKU: SC03302580)
Position 016 – O RING P8 (SKU: SC06506010)
Position 017 – OIL LEVELER SACK (SKU: SC09004910)
Position 018 – BUSHING (SKU: SC03507000)
Position 019 – O RING P26 (SKU: SC06505320)
Position 020 – BUSHING HOLDER (SKU: SC03507010)
Position 021 – SPRING WASHER 8 (SKU: SC00000065)
Position 022 – SPECIAL PAN HEAD SCREW M8X2 (SKU: SC00000034)
Position 023 – BACK UP RING (SKU: SC06503640)
Position 024 – SKY PACKING (SKU: SC06505880)
Position 025 – RETURN SPRING FOR CUTTER RO (SKU: SC04000370)
Position 026 – PUNCHING ROD (SKU: SC03110760)
Position 027 – SPRING PIN 2.5X10 (SKU: SC00000070)
Position 028 – KEY (SKU: SC03700020)
Position 029 – O RING S67 (SKU: SC06505510)
Position 030 – ROD PACKING (SKU: SC00000096)
Position 032 – VALVE RETURN SPRING (SKU: SC04005170)
Position 033 – STOPPER PLATE (SKU: SC03500690)
Position 034 – RELEASE BULB SPRING (SKU: SC04004170)
Position 035 – FLAT WASHER 4 (SKU: SC00000068)
Position 036 – HEX. SOCKET HEAD BOLT 4X6 (SKU: SC00000060)
Position 037 – O RING G65 (SKU: SC06505190)
Position 038 – BACK UP RING G65 (SKU: SC06503630)
Position 039 – WASHER HW8 (SKU: SC07620040)
Position 040 – HEX. SOCKET HEAD BOLT M8X22 (SKU: SC07514130)
Position 041 – O RING S-8 (SKU: SC06505590)
Position 042 – METAL PACKING (SKU: SC03500540)
Position 043 – SPRING #43449N2 (SKU: SC00000468)
Position 044 – CHECK VALVE #T43445 (SKU: SC00000464)
Position 045 – PISTON RETURN SPRING (SKU: SC00000022)
Position 047 – CYLINDER,PISTON & VALVE SET (SKU: SC09050360)
Position 049 – HEX.SOCKET SET SCREW M5X5 (SKU: SC07523040)
Position 050 – STEEL BALL 3 (SKU: SC07900000)
Position 051 – HEX.SOCKET SET SCREW M4X4 (SKU: SC07521010)
Position 052 – LINER B (SKU: SC04601600)
Position 053 – MAGNET (SKU: SC00000020)
Position 054 – SPRING PIN 4-20 (SKU: 951116-3)
Position 055 – O RING P4 (SKU: SC00000158)
Position 056 – RETURN VALVE (SKU: SC00000146)
Position 057 – RETURN LEVER (SKU: SC00000147)
Position 058 – SET SCREW (CUP POINT) M6X6 (SKU: 913301-6)
Position 059 – CIRCLIP STW5 (SKU: SC07411250)
Position 060 – BALL BEARING 698 (SKU: SC07100050)
Position 061 – WASHER B (SKU: SC03301350)
Position 062 – NEEDLE BEARING (SKU: SC07201030)
Position 063 – WASHER A (SKU: SC03301340)
Position 064 – RETAINING RING H25 (SKU: SC07411330)
Position 065 – PUMP CASE (SKU: SC03211330)
Position 066 – SEAL WASHER (SKU: SC00000489)
Position 067 – T50 BUTTON HEAD BOLT M10X1 (SKU: SC07550510)
Position 068 – OIL SEAL UE15257 (SKU: SC06504050)
Position 069 – BALL BEARING 6002RU (SKU: SC00000050)
Position 070 – CRANK SHAFT (SKU: SC03501070)
Position 071 – HEX. SOCKET HEAD BOLT M4X25 (SKU: SC07511070)
Position 072 – SEAL BOLT (SKU: SC03513230)
Position 073 – FLANGE (SKU: SC03251180)
Position 074 – SPACER (SKU: SC03251320)
Position 075 – SPRING WASHER 5 (SKU: SC07610030)
Position 076 – HEX. SOCKET HEAD BOLT M5X65 (SKU: SC07512130)
Position 077 – LEAF SPRING (SKU: SC04007990)
Position 078 – FLANGE FOR MOTOR (SKU: SC03252560)
Position 079 – STEEL BALL D6 (SKU: SC07900080)
Position 080 – POSITION SPRING B (SKU: SC04007970)
Position 081 – POSITION SPRING A (SKU: SC04007960)
Position 082 – SPINDLE (SKU: 327B59-7)
Position 083 – BALL BEARING 6802LLB (SKU: 211233-4)
Position 084 – GEAR HOUSING (SKU: 312D97-4)
Position 085 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 086 – BALL BEARING 6902LLB (SKU: 211234-2)
Position 087 – RETAINING RING S-15 (SKU: 961055-9)
Position 088 – FLAT WASHER 15 (SKU: 253577-6)
Position 089 – GEAR CASE (SKU: 412367-8)
Position 090 – CARRIER COMPLETE (SKU: 141P06-6)
Position 091 – SPUR GEAR 13 (SKU: 227A51-6)
Position 092 – INTERNAL GEAR 41 (SKU: 227A50-8)
Position 093 – FLAT WASHER 13 (SKU: 253465-7)
Position 094 – MOTOR BRACKET (SKU: 412368-6)
Position 095 – P.H.SCREW M3X25 (SKU: 911047-8)
Position 096 – STATOR COMPLETE (SKU: 629B35-0)
Position 097 – ROTOR (SKU: 619655-6)
Position 098 – REAR COVER (SKU: 412361-0)
Position 099 – TAPPING SCREW BIND PT 3X16 (SKU: 266130-9)
Position 100 – HOUSING SET (SKU: 1830K2-9)
Position 102 – TERMINAL UNIT (SKU: 632P49-4)
Position 103 – SENSOR CIRCUIT (SKU: 620C81-2)
Position 104 – LED CIRCUIT (SKU: 620549-0)
Position 105 – LOCK LEVER (SKU: 413R94-8)
Position 106 – SWITCH C3JR-4B (SKU: 651443-5)
Position 107 – MASKING LABEL (SKU: 8063D5-2)
Position 108 – COVER A (SKU: 413P19-0)
Position 109 – COVER B (SKU: 413P20-5)
Position 110 – COVER C (SKU: 413P38-6)
Position 112 – SPRING WASHER 5 (SKU: SC07610030)
Position 113 – HOUSING SET (SKU: 1830K2-9)
