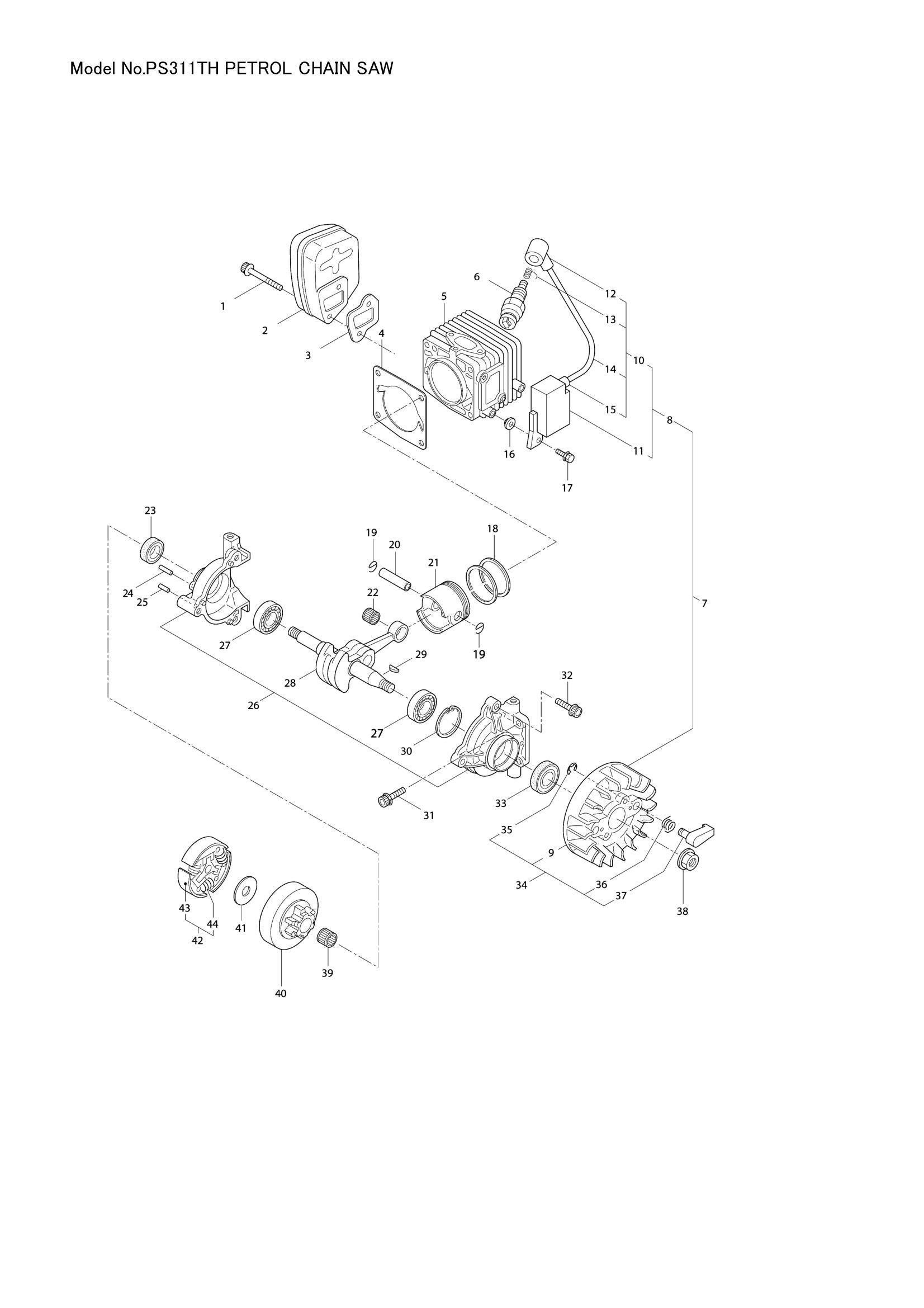

Exploded View – PS311TH

Share this product

Position 001 – CAP SCREW M5X40 (SKU: MR00264223)
Position 003 – GASKET (SKU: MR00285472)
Position 006 – SPARK PLUG NGK BPMR8Y (SKU: MR00288264)
Position 007 – MAGNETO ASS'Y (SKU: MR00289489)
Position 008 – IGNITION COIL ASS'Y (SKU: MR00289548)
Position 009 – MAGNETO ROTOR (SKU: MR00285555)
Position 010 – CORD ASS'Y (SKU: MR00286096)
Position 011 – COIL (SKU: MR00289650)
Position 012 – PLUG BOOT (SKU: MR00261074)
Position 013 – CONNECTOR (SKU: MR00261075)
Position 014 – CORD (SKU: MR00286097)
Position 015 – CAP (SKU: MR00261072)
Position 016 – SPACER (SKU: MR00289481)
Position 017 – CAP SCREW M4X20 (SKU: MR00281211)
Position 018 – PISTON RING (SKU: MR00285590)
Position 019 – CLIP,PISTON (SKU: MR00261576)
Position 020 – PISTON PIN (SKU: MR00285591)
Position 021 – PISTON (SKU: MR00288399)
Position 023 – OIL SEAL (SKU: MR00285626)
Position 027 – BEARING (SKU: MR00285521)
Position 028 – CRANKSHAFT COMP. (SKU: MR00285599)
Position 029 – WOODRUFF KEY 3X10 (SKU: MR00261076)
Position 030 – SNAP RING #28 (SKU: MR00055185)
Position 031 – HEXAGON BOLT (SKU: MR00261250)
Position 032 – CAP SCREW M5X20 (SKU: MR00261232)
Position 033 – OIL SEAL (SKU: MR00261492)
Position 034 – ROTOR ASS'Y (SKU: MR00288365)
Position 035 – E-RING #4 (SKU: MR00020299)
Position 036 – SPRING (SKU: MR00285552)
Position 037 – STARTER PAWL (SKU: MR00285553)
Position 038 – NUT,ROTOR M8 (SKU: MR00261417)
Position 039 – NEEDLE BEARING 10X13X13 (SKU: MR00285624)
Position 040 – CLUTCH DRUM (SKU: MR00286238)
Position 041 – WASHER 8X26XT2 (SKU: MR00285537)
Position 042 – CLUTCH ASS'Y (SKU: MR00285535)
Position 043 – CLUTCH SHOE (SKU: MR00285655)
Position 044 – SPRING (SKU: MR00285656)
Position 045 – WASHER (SKU: MR00286241)
Position 046 – BUSH (SKU: MR00286305)
Position 047 – SCREW M4X16 (SKU: MR00285631)
Position 048 – OIL PUMP COVER (SKU: MR00285598)
Position 049 – WORM GEAR (SKU: MR00286303)
Position 050 – BUSH (SKU: MR00286843)
Position 051 – GROMMET (SKU: MR00285528)
Position 052 – OIL PUMP ASS'Y (SKU: MR00286816)
Position 053 – SCREW M4X25 (SKU: MR00285617)
Position 054 – SLEEVE (SKU: MR00288184)
Position 055 – PUMP CAP (SKU: MR00285534)
Position 056 – WHEEL GEAR (SKU: MR00285550)
Position 057 – SPRING (SKU: MR00285551)
Position 058 – WASHER 6.5X9.8XT0.5 (SKU: MR00286801)
Position 059 – O-RING P6 (SKU: MR00014759)
Position 060 – SCREW M3X8 (SKU: MR00285630)
Position 061 – PUMP BODY (SKU: MR00285527)
Position 062 – OIL PIPE A (SKU: MR00285522)
Position 063 – OIL PIPE B ASS'Y (SKU: MR00286802)
Position 064 – OIL PIPE B ASS'Y (SKU: MR00285523)
Position 065 – OIL FILTTER ASS'Y (SKU: MR00286818)
Position 066 – GROMMET (SKU: MR00261339)
Position 067 – PIPE L=220 (SKU: MR00265725)
Position 068 – OIL FILTTER BODY (SKU: MR00285525)
Position 069 – OIL FILTTER (SKU: MR00285524)
Position 070 – CLIP (SKU: MR00261117)
Position 071 – FUEL PIPE ASS'Y (SKU: MR00285488)
Position 072 – PIPE ASS'Y (SKU: MR00285489)
Position 073 – FUEL PIPE A 3X5 L=222 (SKU: MR00285491)
Position 074 – FUEL GROMMET (SKU: MR00285490)
Position 075 – CLIP (SKU: MR00261117)
Position 077 – CHOKE ROD (SKU: MR00285580)
Position 078 – KNOB (SKU: MR00285540)
Position 079 – WASHER (SKU: MR00288404)
Position 080 – CLEANER COVER (SKU: MR00285579)
Position 081 – ELEMENT (SKU: MR00285584)
Position 082 – SCREW M5X45 (SKU: MR00285633)
Position 083 – SCREW M4X16 (SKU: MR00285631)
Position 084 – CLEANER BODY (SKU: MR00285539)
Position 085 – CARBURETOR ASS'Y (SKU: MR00289500)
Position 086 – SCREW (SKU: MR00287169)
Position 087 – PUMP COVER (SKU: MR00287168)
Position 088 – SPRING (SKU: MR00287178)
Position 089 – IDLE ADJUST SCREW (SKU: MR00287179)
Position 090 – GASKET (SKU: MR00287171)
Position 091 – DIAPHRAGM (SKU: MR00287170)
Position 092 – SCREEN (SKU: MR00261872)
Position 093 – SCREW (SKU: MR00287180)
Position 094 – LEVER (SKU: MR00287181)
Position 095 – RING (SKU: MR00287182)
Position 096 – SCREW (SKU: MR00287184)
Position 097 – THROTTLE VALVE (SKU: MR00287183)
Position 098 – SPRING (SKU: MR00287185)
Position 099 – SHAFT (SKU: MR00287186)
Position 100 – SHAFT (SKU: MR00287190)
Position 101 – WASHER (SKU: MR00287189)
Position 102 – LEVER (SKU: MR00287191)
Position 103 – SPRING (SKU: MR00287188)
Position 104 – CHOKE VALVE (SKU: MR00287187)
Position 105 – SPRING (SKU: MR00287172)
Position 106 – NEEDLE VALVE (SKU: MR00262986)
Position 107 – LEVER PIN (SKU: MR00262989)
Position 108 – LEVER (SKU: MR00262990)
Position 109 – PLUG (SKU: MR00287174)
Position 110 – SCREW (SKU: MR00287173)
Position 111 – GASKET (SKU: MR00263727)
Position 112 – DIAPHRAGM, METERRING (SKU: MR00283905)
Position 113 – COVER PLATE (SKU: MR00263726)
Position 114 – SCREW (SKU: MR00287192)
Position 119 – RING (SKU: MR00288551)
Position 120 – SCREW M4X16 (SKU: MR00285631)
Position 121 – PLATE (SKU: MR00285497)
Position 122 – INSULATOR (SKU: MR00285495)
Position 123 – BOLT M4X12 (SKU: MR00285618)
Position 124 – FUEL PIPE B 2.4X5 L=145 (SKU: MR00285492)
Position 125 – PUMP (SKU: MR00282299)
Position 126 – CHAIN CATCHER ASS'Y (SKU: MR00286803)
Position 127 – TUBE 7X10.5 L=18 (SKU: MR00285585)
Position 128 – CHAIN CATCHER (SKU: MR00285583)
Position 129 – SCREW M5X14 (SKU: MR00285634)
Position 130 – SCREW M3X8 (SKU: MR00285627)
Position 131 – SCREW M5X20X8 (SKU: MR00286804)
Position 132 – GUIDE PLATE L (SKU: MR00285531)
Position 133 – BOLT M5X16 (SKU: MR00285632)
Position 134 – ELEMENT (SKU: MR00285526)
Position 135 – BREATHER (SKU: MR00285574)
Position 136 – ENGINE CASE ASS'Y (SKU: MR00285694)
Position 137 – BREATHER GROMMET (SKU: MR00285573)
Position 138 – BREATHER ASS'Y (SKU: MR00285832)
Position 139 – FUEL CAP ASS'Y (SKU: MR00286051)
Position 140 – HOLDER (SKU: MR00285504)
Position 141 – PACKING (SKU: MR00286063)
Position 142 – FUEL CAP (SKU: MR00286052)
Position 143 – OIL CAP ASS'Y (SKU: MR00285501)
Position 144 – HOLDER (SKU: MR00285504)
Position 145 – PACKING (SKU: MR00285503)
Position 146 – OIL CAP (SKU: MR00285502)
Position 147 – RECOIL STARTER ASS'Y (SKU: MR00288401)
Position 148 – SCREW (SKU: MR00267213)
Position 149 – CAM PLATE (SKU: MR00285597)
Position 150 – DAMPER SPRING (SKU: MR00283276)
Position 151 – REEL (SKU: MR00283274)
Position 152 – SPRING ASS'Y (SKU: MR00283275)
Position 153 – FAN COVER (SKU: MR00285548)
Position 154 – STARTER CASE COMP. (SKU: MR00288402)
Position 155 – SCREW M4X16 (SKU: MR00285631)
Position 156 – ROPE ASS'Y (SKU: MR00285697)
Position 157 – ROPE STOPPER (SKU: MR00283281)
Position 158 – STARTER KNOB (SKU: MR00285581)
Position 159 – STARTER ROPE (SKU: MR00283279)
Position 160 – CAP (SKU: MR00285473)
Position 161 – STOPPER BOLT (SKU: MR00285474)
Position 162 – BUFFER (SKU: MR00285582)
Position 163 – SWITCH ASS'Y (SKU: MR00286224)
Position 164 – SCREW (SKU: MR00282172)
Position 165 – KNOB (SKU: MR00282171)
Position 166 – LABEL (SKU: MR00286226)
Position 167 – SWITCH (SKU: MR00286225)
Position 168 – SCREW M4X14 (SKU: MR00285635)
Position 169 – TOP HANDLE COVER (SKU: MR00285621)
Position 170 – SPRING (SKU: MR00285594)
Position 171 – THROTTLE LEVER (SKU: MR00285602)
Position 172 – SAFETY LEVER (SKU: MR00285603)
Position 173 – PIPE (SKU: MR00285565)
Position 174 – CABLE COMP. (SKU: MR00285558)
Position 175 – SCREW M4X12 (SKU: MR00285644)
Position 176 – STAY (SKU: MR00285645)
Position 177 – SPRING (SKU: MR00285592)
Position 179 – SIDE HANDLE (SKU: MR00285619)
Position 180 – SCREW M5X14 (SKU: MR00285634)
Position 181 – SPRING (SKU: MR00285593)
Position 182 – BOSS (SKU: MR00285604)
Position 183 – WASHER 5.7X15.8XT2 (SKU: MR00263743)
Position 184 – SCREW M5X20 (SKU: MR00285636)
Position 185 – TOP COVER (SKU: MR00285547)
Position 186 – SCREW M4X16 (SKU: MR00285631)
Position 188 – GROMMET (SKU: MR00285642)
Position 189 – GROMMET (SKU: MR00285549)
Position 190 – GROMMET (SKU: MR00287300)
Position 191 – GASKET (SKU: MR00286002)
Position 193 – RETURN SPRING (SKU: MR00285595)
Position 196 – GUIDE PLATE R (SKU: MR00285532)
Position 197 – SCREW M3X8 (SKU: MR00285627)
Position 198 – TENSIONER ASS'Y (SKU: MR00286060)
Position 199 – BOSS (SKU: MR00285564)
Position 201 – SCREW M5X35 (SKU: MR00285471)
Position 202 – FRONT GUARD COMP (SKU: MR00288843)
Position 203 – PIN 3X23.8L (SKU: MR00286048)
Position 204 – PIN 3X29.8 (SKU: MR00285563)
Position 205 – FRONT GUARD (SKU: MR00288815)
Position 206 – SCREW M5X30 (SKU: MR00285638)
Position 207 – WASHER 5.3X15XT1.2 (SKU: MR00286045)
Position 208 – COLLAR 5.2X7.5 L=22.5 (SKU: MR00285607)
Position 209 – NUT M5X0.8 (SKU: MR00285640)
Position 210 – BRAKE ASS'Y (SKU: MR00286823)
Position 211 – COLLAR 8.2X12 L=7.2 (SKU: MR00285606)
Position 212 – LEVER COMP. (SKU: MR00285570)
Position 213 – SPRING (SKU: MR00285605)
Position 214 – PIN 3X9.8 (SKU: MR00285560)
Position 215 – BAND (SKU: MR00285572)
Position 216 – SIDE COVER (SKU: MR00288546)
Position 217 – SCREW M4X12 (SKU: MR00285644)
Position 218 – SCREW M5X12 (SKU: MR00285637)
Position 219 – SCREW M4X14 (SKU: MR00285639)
Position 220 – LABEL PS-311TH (SKU: MR00272950)
Position 221 – DOLMAR LOGO LABEL (SKU: MR00288486)
Position 222 – DOLMAR LOGO LABEL (SKU: MR00288487)
Position 224 – LABEL 110 DB (SKU: MR00273036)
Position 225 – LABEL (SKU: MR00287161)
Position 226 – LABEL (SKU: MR00287616)
Position 227 – LABEL (SKU: MR00287653)
Position 228 – LABEL (SKU: MR00272020)
Position 229 – CLIP S (SKU: MR00247492)
