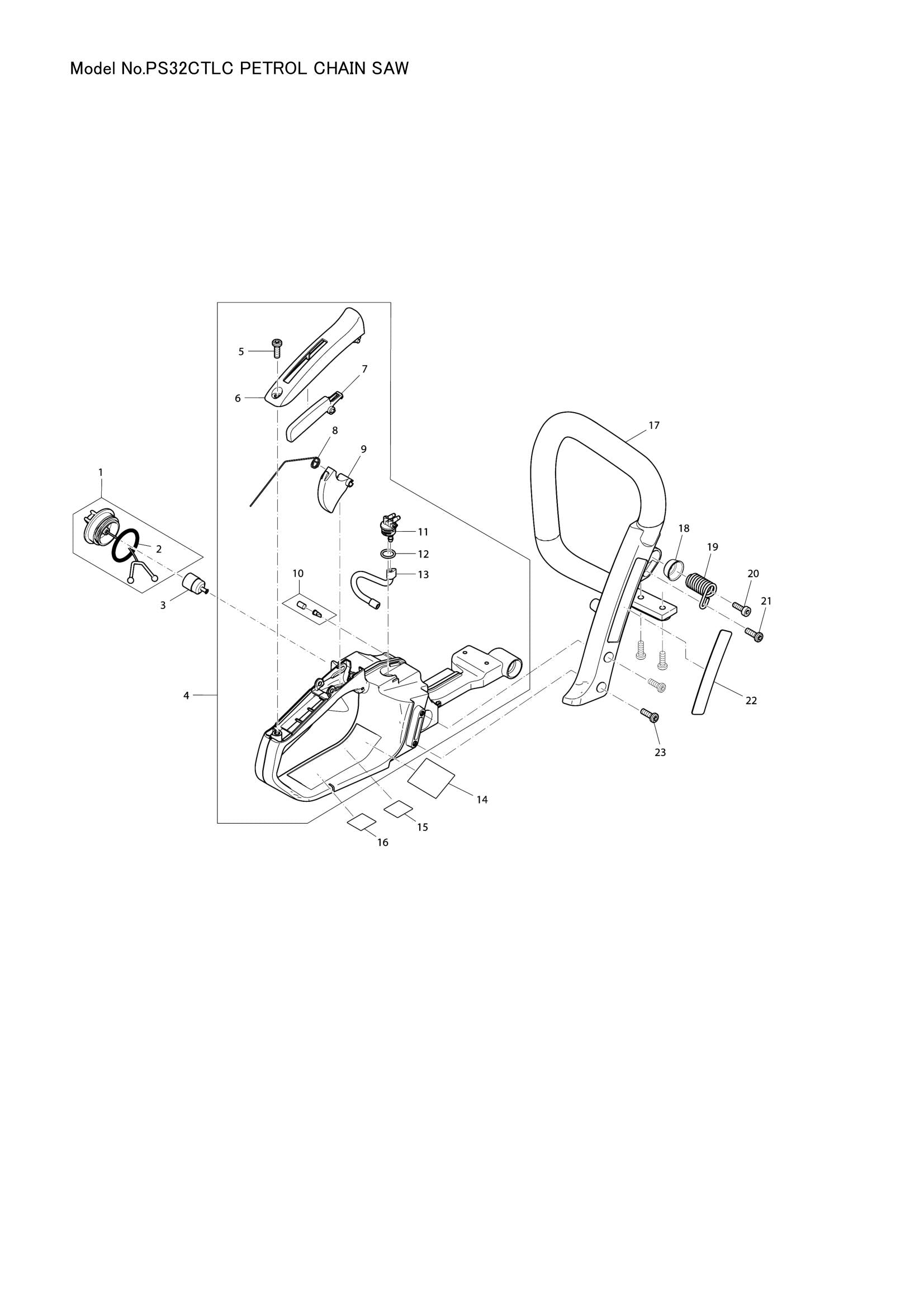

Exploded View – PS32CTLC

Name: Exploded View – PS32CTLC
Brand: Makita
Availability: InStock

Makita

Price:

€0,00

Quantity:

Share this product

Position 002 – O RING 29.5 (SKU: 213080-9)
Position 004 – TANK ASSEMBLY A RED (SKU: 195757-7)
Position 005 – H.L. TAPPING SCREW 5.5X16 (SKU: 266651-1)
Position 006 – GRIP SHELL (SKU: 452021-2)
Position 007 – CATCH LEVER (SKU: 452020-4)
Position 008 – TORSION SPRING 10 (SKU: 231866-9)
Position 009 – THROTTLE LEVER (SKU: 452019-9)
Position 010 – AIR VALVE SET (SKU: 195762-4)
Position 011 – FUEL NIPPLE (SKU: 452018-1)
Position 012 – O RING 11.5 (SKU: 213586-7)
Position 013 – FUEL LINE (SKU: 424456-7)
Position 014 – PS-32C TLC NAME PLATE (SKU: 869092-6)
Position 017 – TUBULAR HANDLE (SKU: 452036-9)
Position 018 – CUP WASHER 6 (SKU: 346517-2)
Position 019 – COMPRESSION SPRING 12 (SKU: 234189-4)
Position 021 – H.L. TAPPING SCREW 5.5X16 (SKU: 266651-1)
Position 022 – DOLMAR LOGO LABEL (SKU: 891899-2)
Position 023 – H.L. TAPPING SCREW 5.5X16 (SKU: 266651-1)
Position 024 – AIR FILTER COVER (SKU: 452031-9)
Position 025 – AIR FILTER (SKU: 423414-0)
Position 026 – INTAKE MANIFOLD (SKU: 452030-1)
Position 028 – DAMPING PLUG (SKU: 424173-9)
Position 029 – PRIMER PUMP (SKU: 168398-2)
Position 030 – TUBE 2.5-55 (SKU: 422067-2)
Position 031 – TUBE 2.5-112 (SKU: 422065-6)
Position 032 – TUBE 3-70 (SKU: 422068-0)
Position 033 – TUBE 2.5-72 (SKU: 422066-4)
Position 034 – FLANGE RING (SKU: 318634-8)
Position 035 – BUSH 17 (SKU: 346413-4)
Position 036 – INTERMEDIATE FLANGE (SKU: 452024-6)
Position 037 – INTAKE HOSE (SKU: 424340-6)
Position 038 – RING SPRING (SKU: 233971-8)
Position 039 – H.L. TAPPING SCREW 5.5X16 (SKU: 266651-1)
Position 040 – SNAP NUT M5 (SKU: 264044-6)
Position 042 – TAPPING SCREW 3X10 (SKU: 266421-8)
Position 043 – CONTACT SPRING (SKU: 346290-4)
Position 044 – H.L. TAPPING SCREW 5.5X16 (SKU: 266651-1)
Position 048 – COOLING PLATE (SKU: 346306-5)
Position 049 – CONNECTING LINK (SKU: 325939-9)
Position 050 – GASKET (SKU: 346304-9)
Position 052 – MUFFLER COMPLETE (SKU: 168604-5)
Position 053 – SPARK ARRESTER SCREEN (SKU: 346294-6)
Position 057 – PISTON SET (SKU: 195760-8)
Position 058 – PISTON RING 38 (SKU: 325991-7)
Position 059 – PISTON PIN 8 (SKU: 325992-5)
Position 060 – RING SPRING 8 (SKU: 233988-1)
Position 062 – BALL BEARING 6201 (SKU: 211341-1)
Position 063 – NEEDLE CAGE 810 (SKU: 212086-4)
Position 065 – BALL BEARING 6201 (SKU: 211341-1)
Position 068 – CRANKCASE UNDERSIDE (SKU: 318633-0)
Position 070 – O RING 29.5 (SKU: 213080-9)
Position 072 – H.L. TAPPING SCREW 5.5X16 (SKU: 266651-1)
Position 073 – COMPRESSION SPRING 12 (SKU: 234189-4)
Position 074 – INDICATION LABEL (SKU: 816917-5)
Position 075 – CHOKE LEVER (SKU: 452025-4)
Position 076 – THROTTLE LINKAGE (SKU: 452022-0)
Position 077 – H.L.TAPPING SCREW 5X40 (SKU: 266608-2)
Position 078 – BUSH 6 (SKU: 325946-2)
Position 079 – COMPRESSION SPRING 12 (SKU: 234189-4)
Position 080 – H.L. TAPPING SCREW 5.5X16 (SKU: 266651-1)
Position 081 – COMPRESSION SPRING 12 (SKU: 234189-4)
Position 082 – H.L. TAPPING SCREW 5.5X16 (SKU: 266651-1)
Position 083 – H.L. TAPPING SCREW 5.5X16 (SKU: 266651-1)
Position 084 – VENT VALVE (SKU: 168504-9)
Position 085 – SPIKE BAR (SKU: 346301-5)
Position 086 – HEAT PROTECTION FOIL (SKU: 346385-3)
Position 090 – ISOLATING WASHER (SKU: 452670-5)
Position 093 – CABLE HARNESS (SKU: 168601-1)
Position 094 – H.L. TAPPING SCREW 5.5X16 (SKU: 266651-1)
Position 095 – PS-32 MODEL NO. LABEL (SKU: 819544-7)
Position 097 – STARTER GRIP (SKU: 453783-5)
Position 098 – SQUARE WASHER 4 (SKU: 267847-7)
Position 099 – STARTER ROPE (SKU: 444038-9)
Position 102 – TORSION SPRING 20 (SKU: 234253-1)
Position 103 – CAM PLATE (SKU: 453786-9)
Position 104 – TAPPING SCREW 5X12 (SKU: 266777-9)
Position 105 – AIR GUIDE PLATE (SKU: 452026-2)
Position 106 – HEX. NUT M8X1 (SKU: 264053-5)
Position 107 – SPRING WASHER 8 (SKU: 267822-3)
Position 108 – FLYWHEEL COMPLETE (SKU: 140480-9)
Position 109 – RATCHET SET (SKU: 195761-6)
Position 110 – HAND GUARD (SKU: 452032-7)
Position 112 – H.L. TAPPING SCREW 4.7X16 (SKU: 266627-8)
Position 113 – FLAT WASHER 5 (SKU: 267066-5)
Position 114 – HAND GUARD GUIDE (SKU: 313212-9)
Position 115 – COMPRESSION SPRING 3 (SKU: 234210-9)
Position 116 – TENSION SPRING 10 (SKU: 231868-5)
Position 117 – LINK PLATE COMPLETE (SKU: 163500-2)
Position 118 – BUSH 6 (SKU: 325947-0)
Position 119 – SPACER SHEET METAL (SKU: 346299-6)
Position 120 – STOP RING E-4 (SKU: 961011-9)
Position 122 – TAPPING SCREW 3X10 (SKU: 266421-8)
Position 123 – PUMP DRIVE (SKU: 452035-1)
Position 124 – OIL SUCTION LINE COMPLETE (SKU: 168645-1)
Position 125 – COMPRESSION SPRING 6 (SKU: 234207-8)
Position 127 – OIL PRESSURE LINE (SKU: 424342-2)
Position 130 – H.L. TAPPING SCREW 4.7X16 (SKU: 266627-8)
Position 131 – FLAT WASHER 10 (SKU: 267430-0)
Position 132 – FLAT WASHER 10 (SKU: 267431-8)
Position 133 – CLUTCH COMPLETE (SKU: 168607-9)
Position 134 – TENSION SPRING 5 (SKU: 231873-2)
Position 137 – RETAINING RING E TYPE 6 (SKU: 259033-4)
Position 141 – REWIND SPRING SET (SKU: 195955-3)
Position 155 – COVER (SKU: 417403-5)
Position 156 – ADJUST PIN (SKU: 324068-5)
Position 157 – HELICAL GEAR 17 (SKU: 226681-4)
Position 158 – HELICAL GEAR 8 (SKU: 226534-7)
Position 159 – GUIDE PLATE (SKU: 346518-0)
Position 160 – INDICATION LABEL (SKU: 892502-8)
Position 161 – COMPRESSION SPRING 4 (SKU: 233033-2)
Position 162 – STEEL BALL 4 (SKU: 216008-6)
Position 163 – DIAL 40 (SKU: 419233-0)
Position 164 – FLAT WASHER 4 (SKU: 253874-0)
Position 165 – BINDING HEAD SCREW M4X8 (SKU: 915106-0)
Position 167 – COMPRESSION SPRING 8 (SKU: 231025-5)
Position 212 – HOOD CAP (SKU: 424519-9)
Position 218 – LOCK WASHER 8 S (SKU: 267858-2)

Exploded View – PS32CTLC
