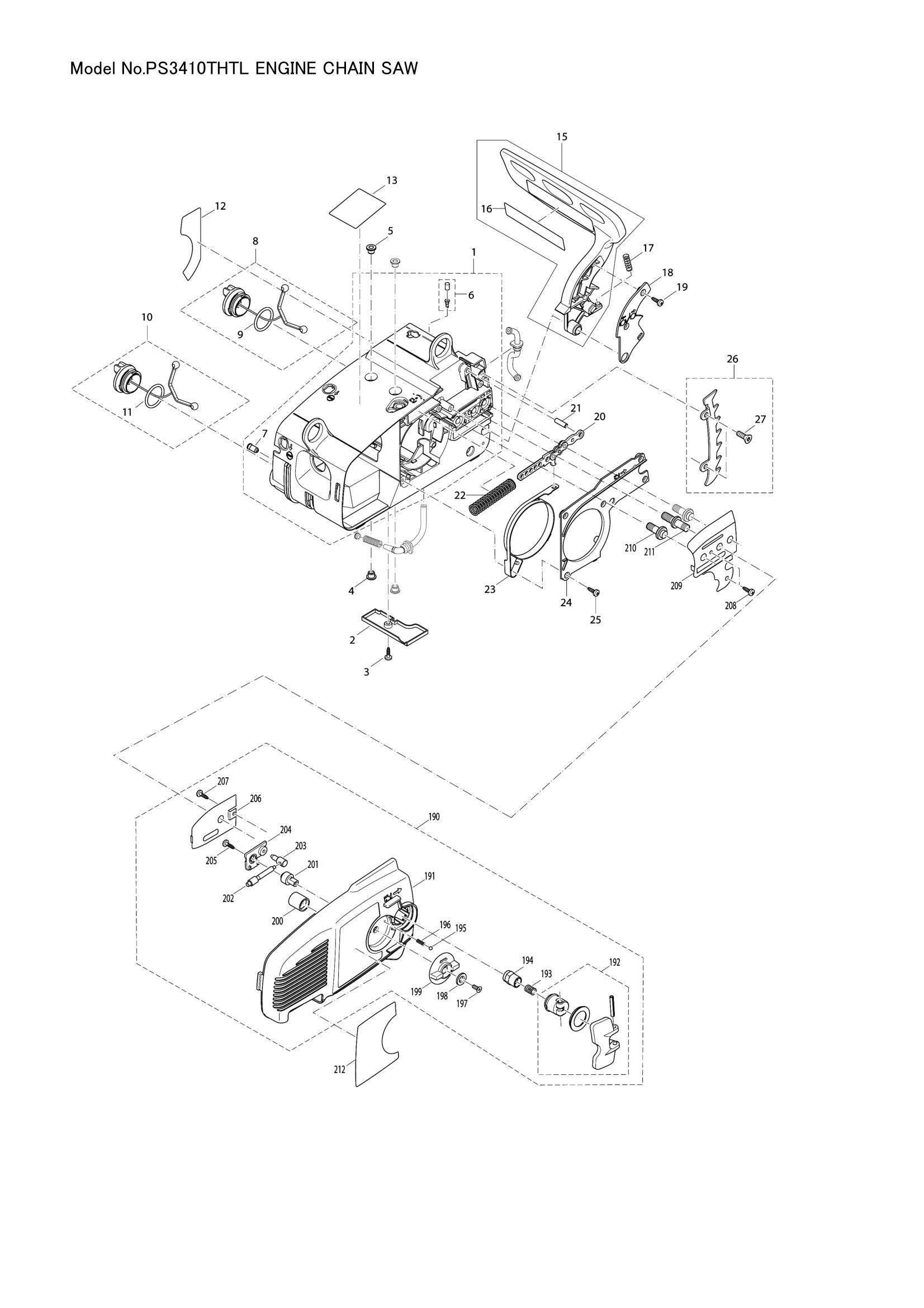

Exploded View – PS3410THTL

Name: Exploded View – PS3410THTL
Brand: Makita
Availability: InStock

Makita

Price:

€0,00

Quantity:

Share this product

Position 001 – HOUSING COMPLETE RED (SKU: 170111304)
Position 002 – COVER, RED (SKU: 170111180)
Position 004 – BUSHING (SKU: 170111050)
Position 005 – BUSHING (SKU: 170111050)
Position 012 – LABEL (CHOKE) (SKU: 980114904)
Position 013 – CAUTION LABEL (SKU: 980114919)
Position 015 – HAND GUARD COMPLETE (SKU: 170213020)
Position 016 – CAUTION LABEL (SKU: 810449-4)
Position 018 – HAND GUARD COVER (SKU: 170213040)
Position 021 – PIN 5X20 (SKU: 962650200)
Position 023 – BRAKE BAND (SKU: 170213080)
Position 024 – BRAKE BAND COVER (SKU: 170213050)
Position 026 – SPIKE BAR SET (SKU: 170250200)
Position 030 – CYLINDER (SKU: 170131010)
Position 032 – PISTON RING (SKU: 170132030)
Position 033 – PISTON PIN (SKU: 170132020)
Position 034 – CIRCLIP (SKU: 170132040)
Position 036 – HEAT INSULATION PLATE (SKU: 170174081)
Position 037 – MUFFLER GASKET (SKU: 170174050)
Position 038 – MUFFLER (SKU: 170174100)
Position 040 – CRANKSHAFT COMPLETE (SKU: 170120101)
Position 041 – NEEDLE CAGE (SKU: 962211006)
Position 042 – BALL BEARING 6201 (SKU: 960102131)
Position 043 – BALL BEARING 6201 (SKU: 960102131)
Position 044 – OIL SEAL (SKU: 962900060)
Position 045 – OIL SEAL (SKU: 962900060)
Position 046 – CRANKCASE COMPLETE (SKU: 170111201)
Position 049 – REED VALVE GASKET (SKU: 170131040)
Position 050 – REED VALVE COMPLETE (SKU: 170131100)
Position 052 – CARBURETOR GASKET (SKU: 965524023)
Position 053 – FUEL LINE WITH GROMMET (SKU: 170114070)
Position 054 – FUEL FILTER (SKU: 163447-0)
Position 059 – CHOKE LEVER EXTENSION (SKU: 170155050)
Position 060 – CHOKE LEVER (SKU: 170155040)
Position 062 – AIR FILTER COVER MOUNT (SKU: 170151051)
Position 064 – AIR FILTER ELEMENT FLEECE (SKU: 170173021)
Position 065 – AIR FILTER ELEMENT COVER (SKU: 170118100)
Position 066 – SCREW FOR AIR FILTER (SKU: 170118020)
Position 067 – PRIMER PUMP (SKU: 168398-2)
Position 070 – CHAIN OIL PUMP ASSY (SKU: 170245101)
Position 071 – CHAIN OIL OUTLET TUBE (SKU: 170245110)
Position 072 – CHAIN OIL PUMP REPAIR KIT (SKU: 170245300)
Position 076 – PUMP DRIVE (SKU: 170245130)
Position 081 – SPRING (SKU: 231975-4)
Position 086 – SHIM RING 8X14X0.5 (SKU: 900006064)
Position 102 – STARTER ASSY RED (SKU: 170160250)
Position 103 – LABEL PS-3410 (SKU: 980115686)
Position 107 – STARTER GRIP (SKU: 170160760)
Position 108 – GASKET (SKU: 965404840)
Position 109 – TOOTHED WASHER (SKU: 930216030)
Position 110 – REWIND SPRING (SKU: 170160730)
Position 111 – CABLE DRUM (SKU: 170160740)
Position 112 – SPRING (SKU: 170160770)
Position 114 – TAPPING SCREW (SKU: 170160790)
Position 120 – BUFFLE PLATE RED (SKU: 170160021)
Position 123 – SPARK PLUG (BPMR7A) (SKU: 168648-5)
Position 124 – WIRE HARNESS (SKU: 170147010)
Position 125 – GROUND CONNECTOR (SKU: 170143031)
Position 128 – FLYWHEEL ASSEMBLY (SKU: 170141101)
Position 130 – IGNITION COIL COMPLETE (SKU: 170143110)
Position 170 – TOP HANDLE LEFT (SKU: 170311010)
Position 171 – TOP HANDLE RIGHT (SKU: 170313010)
Position 173 – RUBBER BUFFER (SKU: 965403491)
Position 174 – HOOK (SKU: 170313080)
Position 175 – H.L. TAPPING SCREW 5X30 (SKU: 913650304)
Position 176 – CATCH LEVER (SKU: 170117040)
Position 177 – THROTTLE LEVER (SKU: 170117030)
Position 178 – SPRING (SKU: 170117050)
Position 179 – THROTTLE CONTROL CABLE (SKU: 170312011)
Position 181 – H.L. TAPPING SCREW 5X30 (SKU: 913650304)
Position 182 – FRONT HANDLE (SKU: 170310010)
Position 183 – H.L. TAPPING SCREW 5X30 (SKU: 913650304)
Position 184 – FIXING BUSH (SKU: 036114020)
Position 185 – RUBBER BUFFER (SKU: 965403491)
Position 186 – TOGGLE SWITCH (SKU: 170146050)
Position 188 – BLIND PLUG (SKU: 170111060)
Position 191 – SPROCKET GUARD TLC RED (SKU: 170213800)
Position 192 – WING GRIP CPL. (SKU: 170213150)
Position 194 – CLAMP NUT (SKU: 170213720)
Position 196 – COMPRESSION SPRING 4 (SKU: 233033-2)
Position 197 – SCREW 4X8 (SKU: 904704084)
Position 198 – WASHER (SKU: 170213700)
Position 200 – CHAIN CATCH (SKU: 170213100)
Position 203 – TENSIONING NUT (SKU: 170213660)
Position 205 – SCREW 3X10 (SKU: 915730100)
Position 206 – GUIDE PLATE TLC LEFT (SKU: 170111790)
Position 207 – SCREW 3X10 (SKU: 915730100)
Position 209 – GUIDE PLATE (SKU: 170111070)
Position 210 – BOLT, SILVER (SKU: 170111040)
Position 211 – BOLT, BLACK M8X1 (SKU: 170110010)
Position 212 – DOLMAR LOGO LABEL (SKU: 980114924)
Position 213 – FUEL LINE FOR PRIMER PUMP (SKU: 170118070)
Position 300 – CARBURETOR (SKU: 170151100)
Position 302 – IDLE STOP SCREW (SKU: 378151210)
Position 303 – SPRING (SKU: 170151260)
Position 304 – SCREW (SKU: 118151190)
Position 305 – PUMP COVER (SKU: 021151160)
Position 306 – SET GASKET/DIAPHRAGM (SKU: 021151540)
Position 307 – PUMP DIAPHRAGM,RUBBER (SKU: 021151150)
Position 308 – KIT CHOKE SHAFT (SKU: 957151040)
Position 309 – SHAFT CLIP (SKU: 119151350)
Position 310 – SPRING (SKU: 170151280)
Position 311 – KIT THROTTLE SHAFT (SKU: 957151060)
Position 312 – SHAFT CLIP (SKU: 119151350)
Position 313 – SPRING (SKU: 001151310)
Position 314 – SCREEN (SKU: 021151180)
Position 315 – ACCELERATOR PUMP SET (SKU: 957151070)
Position 316 – SET OF CONTROL PARTS (SKU: 957150040)
Position 317 – DIAPHRAGM COVER (SKU: 021151120)
Position 318 – SCREW (SKU: 378151220)
Position 320 – IDLE ADJUSTMENT SCREW (SKU: 001151810)
Position 321 – MAIN ADJUSTMENT SCREW (SKU: 001151820)
Position 322 – SPRING(H) (SKU: 021151530)
