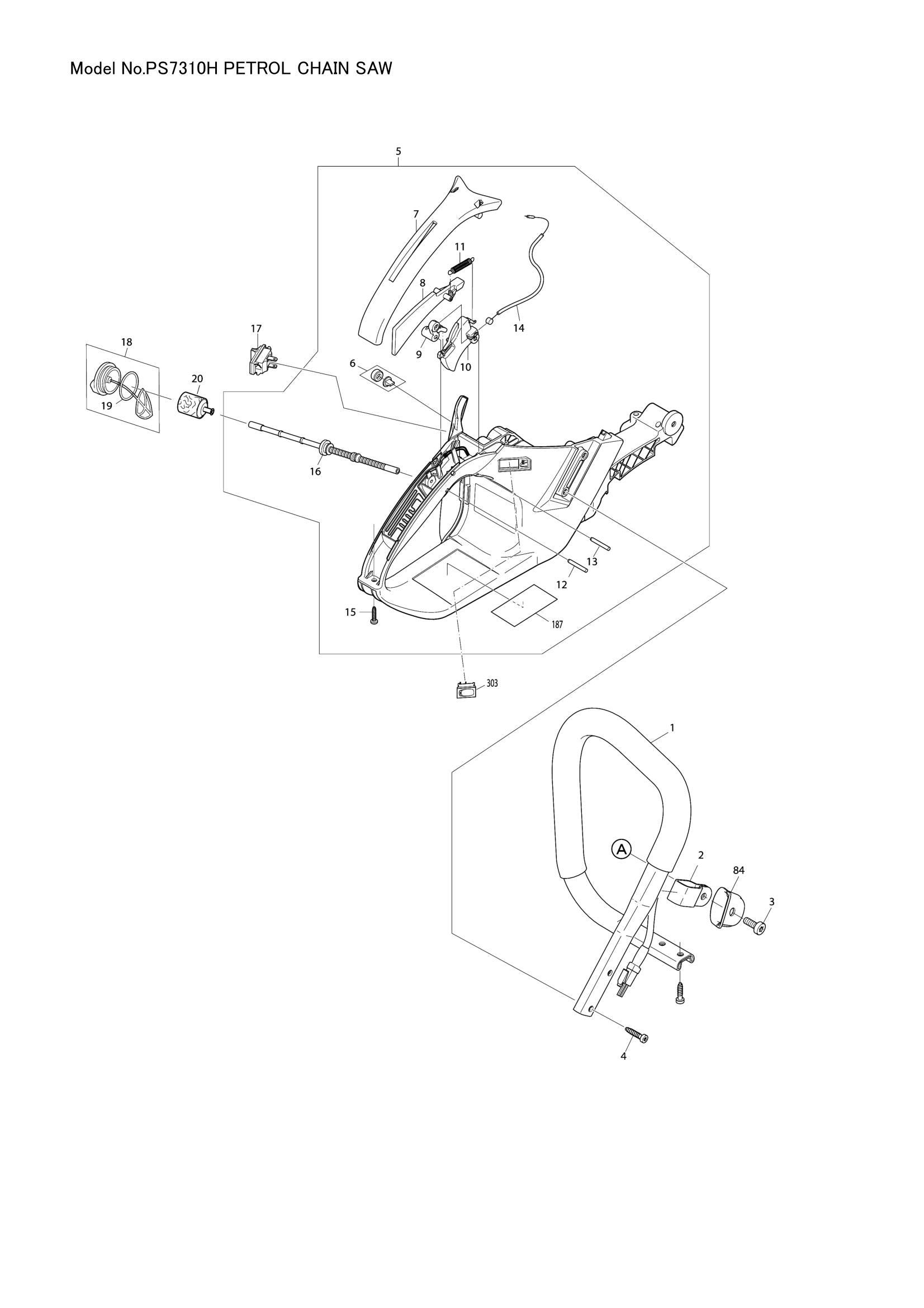

Exploded View – PS7310H

Name: Exploded View – PS7310H
Brand: Makita
Availability: InStock

Makita

Price:

€0,00

Quantity:

Share this product

Position 002 – CLAMP (SKU: 038310062)
Position 006 – AIR VALVE CPL. (SKU: 957114061)
Position 007 – GRIP PLATE RED (SKU: 038114031)
Position 008 – CATCH LEVER (SKU: 038117020)
Position 009 – ROCKER (SKU: 038117030)
Position 010 – THROTTLE LEVER (SKU: 038117010)
Position 011 – SPRING (SKU: 038117050)
Position 014 – THROTTLE CONTROL CABLE (SKU: 038117041)
Position 016 – FUEL LINE FOR FUEL TANK (SKU: 038114052)
Position 017 – SWITCH FOR ENGINE STOP (SKU: 975001241)
Position 018 – TANK CAP ASSY (SKU: 010114050)
Position 019 – O-RING 28 (SKU: 963228030)
Position 026 – RUBBER FLAP (SKU: 038118110)
Position 027 – RIVET (SKU: 938650062)
Position 028 – ADJUSTING GUIDE (SKU: 038118085)
Position 030 – CHOKE SHAFT (SKU: 038155052)
Position 031 – CHOKE GUIDE (SKU: 038155020)
Position 032 – RUBBER BUSH (SKU: 038118300)
Position 034 – SPACER 30MM (SKU: 038155060)
Position 037 – CLIP (SKU: 038111050)
Position 038 – SQUARE NUT M5 (SKU: 264108-6)
Position 040 – SQUARE NUT M4 (SKU: 921804004)
Position 041 – RETAINING CLIP (SKU: 038155012)
Position 042 – INSERT FOR SUCTION HOSE (SKU: 038131031)
Position 043 – FLANGE (SKU: 038171041)
Position 044 – SUCTION HOSE (SKU: 038131011)
Position 047 – CONNECTING MUFF (SKU: 038171012)
Position 048 – ENGINE HOOD BLACK (SKU: 038118050)
Position 049 – ANTI ICING PLATE (SKU: 038118140)
Position 052 – HOLDER (SKU: 038171031)
Position 053 – PLUG (SKU: 038118100)
Position 055 – MUFFLER (SLR) (SKU: 038174702)
Position 058 – MUFFLER GASKET (SKU: 038174811)
Position 059 – HEAT INSULATION PLATE (SKU: 038174023)
Position 070 – DAMPING SPRING,CPL. (SKU: 181114401)
Position 074 – BALL BEARING 6202 (SKU: 211154-0)
Position 078 – SPIKE BAR (SKU: 038250021)
Position 080 – CHAIN CATCH (SKU: 038111171)
Position 082 – TANK CAP ASSY (SKU: 010114050)
Position 083 – O-RING 28 (SKU: 963228030)
Position 084 – SPRING LIMITER (SKU: 038310070)
Position 086 – RADIAL RING (SKU: 213814-0)
Position 087 – OIL SEAL (SKU: 962900061)
Position 088 – SPRING CPL.WITH CAP (SKU: 038114130)
Position 090 – SPRING CPL.WITH CAP (SKU: 038114130)
Position 091 – POT (SKU: 038114191)
Position 093 – SPRING CPL.WITH CAP (SKU: 038114141)
Position 096 – CRANKCASE GASKET (SKU: 038111043)
Position 097 – SPRING PIN 6X24 (SKU: 934660250)
Position 100 – GUIDE BAR BOLT M8 (SKU: 038232011)
Position 101 – STARTER ASSY RED (SKU: 038160015)
Position 103 – STARTER HOUSING RED (SKU: 038112033)
Position 104 – STARTER GRIP (SKU: 001161020)
Position 108 – CABLE DRUM CPL. (SKU: 038162024)
Position 109 – WASHER 5.5/18X1.6 (SKU: 924605510)
Position 111 – LABEL PS-7310 (SKU: 980115706)
Position 112 – AIR DUCT (SKU: 038112061)
Position 114 – IGNITION COIL COMPLETE (SKU: 038143201)
Position 115 – GROMMET (SKU: 038143030)
Position 116 – SPARK PLUG CAP CPL. (SKU: 957604240)
Position 118 – GROMMET (SKU: 965401011)
Position 119 – EARTH SET (SKU: 957311590)
Position 122 – CLIP (SKU: 038111110)
Position 127 – OIL PUMP CPL. (SKU: 038245011)
Position 128 – OIL PUMP REPAIR SET (SKU: 030245070)
Position 129 – ANGULAR NIPPLE (SKU: 001245140)
Position 130 – OIL LINE (SKU: 038245110)
Position 131 – PUMP DRIVE (SKU: 038245031)
Position 133 – WASHER (SKU: 038224021)
Position 134 – OIL LINE (SKU: 038245061)
Position 135 – SUCTION LINE OIL CPL. (SKU: 038245020)
Position 136 – WEIGHT RING (SKU: 900005066)
Position 137 – SCREEN (SKU: 963601100)
Position 138 – FLAT WASHER 12 (SKU: 267389-1)
Position 143 – RIM SPROCKET 3/8" SD7-7 (SKU: 119224070)
Position 150 – BUSHING (SKU: 038213160)
Position 154 – POT (SKU: 038213152)
Position 155 – SPRING (SKU: 038213130)
Position 156 – FORM SPONGE (SKU: 038213200)
Position 157 – BRAKE SPRING (SKU: 038213010)
Position 159 – PLATE (SKU: 038213040)
Position 161 – GUIDE PLATE (SKU: 038111030)
Position 164 – SPROCKET GUARD RED (SKU: 038213036)
Position 165 – DOLMAR LOGO LABEL RED (SKU: 980116004)
Position 166 – CHIP GUIDE (SKU: 038213190)
Position 167 – CHAIN TENSIONER CPL. (SKU: 957213023)
Position 168 – BUSHING (SKU: 038213080)
Position 169 – WAVE WASHER 8 (SKU: 038213230)
Position 170 – WASHER 12X9 (SKU: 028213012)
Position 171 – CHAIN TENSIONER GEAR SET (SKU: 957213040)
Position 172 – CHAIN TENSIONER NUT (SKU: 038213091)
Position 173 – CHAIN TENSIONER BEARING (SKU: 038213070)
Position 175 – CHAIN GUIDE (SKU: 024213240)
Position 181 – SPACER (SKU: 038162050)
Position 184 – CLAMP (SKU: 038111150)
Position 185 – WASHER 4.3 (SKU: 924104300)
Position 186 – CYLINDRICAL PIN 4X10 (SKU: 935940100)
Position 189 – CLUTCH DRUM CPL. (SKU: 957223092)
Position 191 – SPACER WASHER (SKU: 038223100)
Position 195 – MUFFLER HOLDER PLATE (SKU: 038174400)
Position 202 – PUMP COVER (SKU: 038153030)
Position 203 – SCREW (SKU: 038153360)
Position 204 – DIAPHRAGM COVER ASSY (SKU: 038153540)
Position 205 – SCREW (WITH SERRATION) (SKU: ZJ00000014)
Position 208 – LOCKING BALL (SKU: 038153210)
Position 209 – IDLE STOP SCREW (SKU: 038153220)
Position 210 – SCREEN (SKU: 036153040)
Position 211 – KIT THROTTLE SHAFT (SKU: 038153570)
Position 212 – KIT CHOKE SHAFT (SKU: 038153580)
Position 227 – COVER PLATE (SKU: 038153350)
Position 229 – SCREW (SKU: 028153200)
Position 230 – DIAPHRAGM & GASKETS (SKU: 038153550)
Position 231 – REBUILD KIT (SKU: 038153560)
Position 232 – IDLE ADJUSTMENT SCREW L (SKU: 038153232)
Position 303 – SWITCH FOR HANDLE HEATER (SKU: 975001250)
Position 305 – GENERATOR COIL ASSY (SKU: 957148020)
Position 306 – INSULATING CAP (SKU: 038146030)
