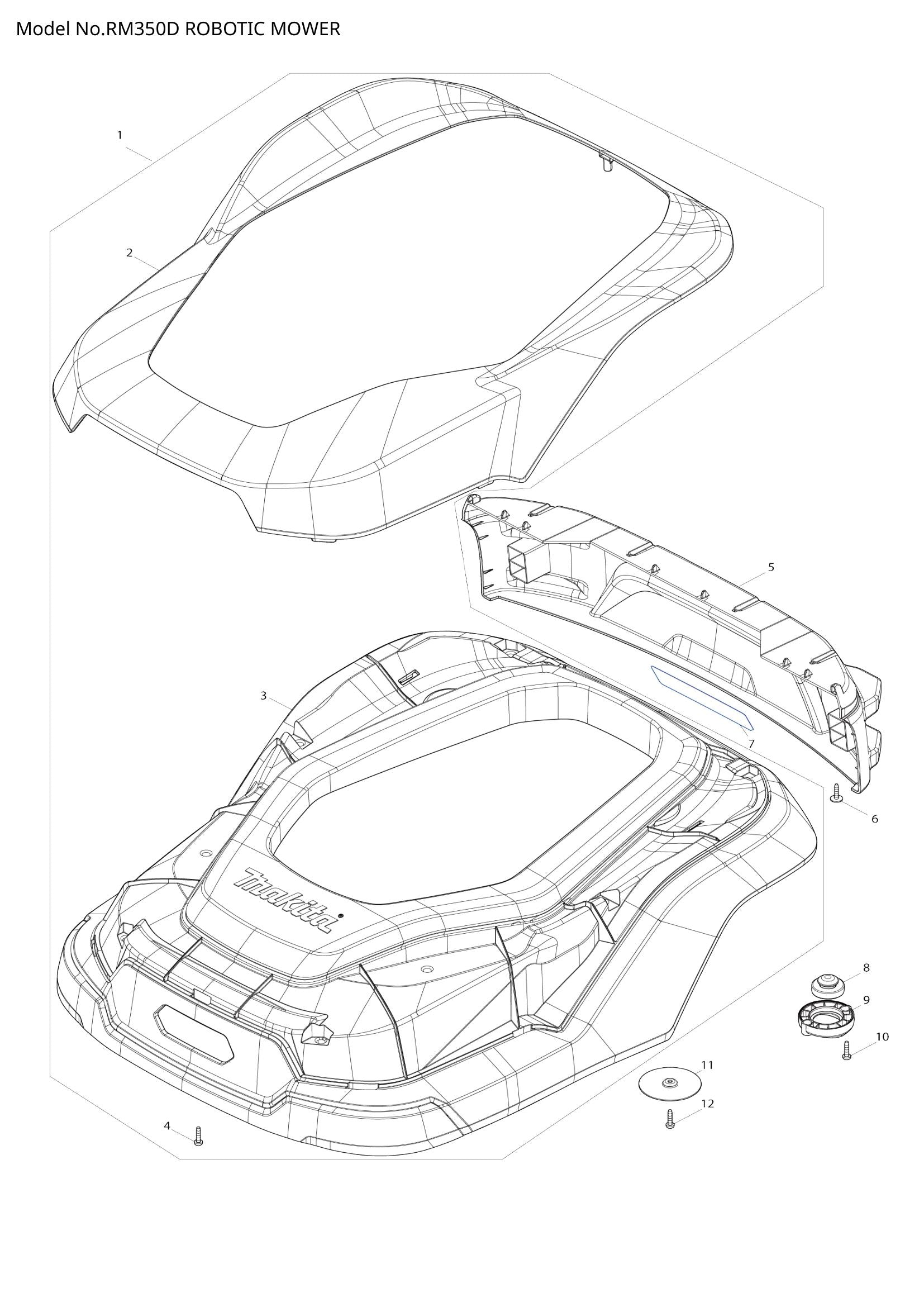

Exploded View – RM350D

Name: Exploded View – RM350D
Brand: Makita
Availability: InStock

Makita

Price:

€0,00

Quantity:

Share this product

Position 001 – TOP COVER ASSEMBLY (SKU: 122E85-7)
Position 002 – COVER (SKU: 413S26-1)
Position 003 – TOP COVER COMPLETE (SKU: 141R82-2)
Position 004 – TAPPING SCREW 4X20 (SKU: 266045-0)
Position 006 – TAPPING SCREW FLANGE 4X18 (SKU: 265620-9)
Position 007 – RM350D NAME PLATE (SKU: 8143H9-8)
Position 008 – RUBBER RETAINER (SKU: 422A40-8)
Position 009 – RUBBER HOLDER (SKU: 413S28-7)
Position 010 – TAPPING SCREW 4X20 (SKU: 266045-0)
Position 011 – SENSOR PLATE (SKU: 347B51-7)
Position 012 – TAPPING SCREW 4X20 (SKU: 266045-0)
Position 013 – STOP BUTTON (SKU: 413S11-4)
Position 014 – COMPRESSION SPRING 6 (SKU: 232836-1)
Position 015 – STOP BUTTON ARM (SKU: 413S12-2)
Position 016 – TAPPING SCREW 4X20 (SKU: 266045-0)
Position 017 – LOCK OFF BUTTON (SKU: 413S13-0)
Position 018 – COMPRESSION SPRING 11 (SKU: 234347-2)
Position 019 – SWICTH UNIT (SKU: 632U81-8)
Position 020 – SWITCH HOLDER (SKU: 413S14-8)
Position 021 – TAPPING SCREW 4X20 (SKU: 266045-0)
Position 022 – DISPLAY COVER A (SKU: 413S09-1)
Position 024 – TAPPING SCREW 4X20 (SKU: 266045-0)
Position 025 – DISPLAY COVER B (SKU: 413S10-6)
Position 026 – ROD 6 (SKU: 327C13-7)
Position 027 – TAPPING SCREW 4X14 (SKU: 266192-7)
Position 028 – TORSION SPRING 8 (SKU: 232600-0)
Position 029 – TAPPING SCREW 4X20 (SKU: 266045-0)
Position 030 – REFLECTOR (SKU: 413S17-2)
Position 031 – UI CONTROLLER REPAIR SET (SKU: 1914D5-4)
Position 032 – BUZZER CIRCUIT (SKU: 620M23-6)
Position 033 – TAPPING SCREW FLANGE 4X18 (SKU: 265620-9)
Position 034 – LEAD UNIT H (SKU: 638A52-3)
Position 035 – LEAD UNIT G (SKU: 638A51-5)
Position 036 – LEAD UNIT H (SKU: 638A52-3)
Position 037 – SLIDER COVER (SKU: 413S45-7)
Position 038 – FELT RING 9 (SKU: 422A88-0)
Position 039 – TAPPING SCREW 4X20 (SKU: 266045-0)
Position 040 – SPRING COVER (SKU: 413S44-9)
Position 041 – SLIDER (SKU: 413S43-1)
Position 042 – SPRING HOLDER (SKU: 413S42-3)
Position 043 – SHAFT (SKU: 327C14-5)
Position 044 – TENSION SPRING 7 (SKU: 232809-4)
Position 045 – SLIDER BASE COMPLETE (SKU: 141R83-0)
Position 046 – LED CIRCUIT (SKU: 620M22-8)
Position 047 – SEAL (SKU: 422A46-6)
Position 048 – FILTER (SKU: 443129-3)
Position 049 – Compression spring 11 (SKU: 232858-1)
Position 050 – TAPPING SCREW 4X20 (SKU: 266045-0)
Position 051 – UPPER HOUSING ASSEMBLY (SKU: 122E82-3)
Position 052 – CLAMP (SKU: 687F91-0)
Position 053 – TAPPING SCREW 4X20 (SKU: 266045-0)
Position 054 – INDUCTIVE SENSOR CIRCUIT (SKU: 620M20-2)
Position 055 – TAPPING SCREW FLANGE 4X14 (SKU: 265D18-4)
Position 056 – INDUCTIVE SENSOR CIRCUIT (SKU: 620M20-2)
Position 057 – TAPPING SCREW FLANGE 4X14 (SKU: 265D18-4)
Position 058 – HALL IC CIRCUIT (SKU: 620M21-0)
Position 059 – TAPPING SCREW FLANGE 4X14 (SKU: 265D18-4)
Position 060 – HALL IC CIRCUIT (SKU: 620M21-0)
Position 061 – TAPPING SCREW FLANGE 4X14 (SKU: 265D18-4)
Position 062 – HALL IC CIRCUIT (SKU: 620M21-0)
Position 063 – TAPPING SCREW FLANGE 4X14 (SKU: 265D18-4)
Position 064 – CLAMP (SKU: 687F91-0)
Position 065 – BATTERY HOLDER (SKU: 413S21-1)
Position 066 – TAPPING SCREW 4X20 (SKU: 266045-0)
Position 067 – SWITCH DRH-03S-DDK32-02R (SKU: 650047-0)
Position 069 – LEAD UNIT F (SKU: 638A50-7)
Position 070 – Battery BL1850V set (SKU: 1914M2-3)
Position 071 – CUSHION (SKU: 422A43-2)
Position 072 – SEAL (SKU: 422A47-4)
Position 073 – TAPPING SCREW 4X20 (SKU: 266045-0)
Position 074 – CONTROLLER REPAIR SET (SKU: 1914D4-6)
Position 075 – LEAD UNIT C (SKU: 638A47-6)
Position 076 – LEAD UNIT E (SKU: 638A49-2)
Position 077 – LEAD UNIT B (SKU: 638A46-8)
Position 078 – LEAD UNIT A (SKU: 638A45-0)
Position 079 – ROD 6 (SKU: 327C13-7)
Position 080 – PHOTO INTERRUPTER REPAIR SE (SKU: 1910J8-6)
Position 081 – SENSOR BASE B (SKU: 413S40-7)
Position 082 – CLAMP (SKU: 687F91-0)
Position 083 – TAPPING SCREW FLANGE 4X14 (SKU: 265D18-4)
Position 084 – WIRE SENSING CIRCUIT (SKU: 620M19-7)
Position 085 – TAPPING SCREW FLANGE 4X14 (SKU: 265D18-4)
Position 086 – WIRE SENSING CIRCUIT (SKU: 620M19-7)
Position 087 – TAPPING SCREW FLANGE 4X14 (SKU: 265D18-4)
Position 088 – WIRE SENSING CIRCUIT (SKU: 620M19-7)
Position 089 – PHOTO INTERRUPTER REPAIR SE (SKU: 1910J8-6)
Position 090 – SENSOR BASE A (SKU: 413S39-2)
Position 091 – PHOTO INTERRUPTER REPAIR SE (SKU: 1910J8-6)
Position 092 – SENSOR BASE A (SKU: 413S39-2)
Position 093 – TAPPING SCREW 4X20 (SKU: 266045-0)
Position 094 – TERMINAL HOLDER COVER (SKU: 413S23-7)
Position 095 – COMPRESSION SPRING 17 (SKU: 232849-2)
Position 096 – TERMINAL HOLDER ASSEMBLY (SKU: 137070-7)
Position 097 – Flat washer 8 (SKU: 253608-1)
Position 098 – TERMINAL SLIDER (SKU: 413U92-0)
Position 099 – COMPRESSION SPRING 8 (SKU: 232837-9)
Position 100 – TERMINAL A (SKU: 654896-7)
Position 101 – TAPPING SCREW FLANGE 4X18 (SKU: 265620-9)
Position 102 – TERMINAL SLIDER (SKU: 413U92-0)
Position 103 – TERMINAL A (SKU: 654896-7)
Position 104 – COMPRESSION SPRING 8 (SKU: 232837-9)
Position 105 – TAPPING SCREW FLANGE 4X18 (SKU: 265620-9)
Position 107 – Flat washer 8 (SKU: 253608-1)
Position 108 – O-RING 22 (SKU: 213382-3)
Position 109 – USB CAP (SKU: 413S22-9)
Position 110 – TAPPING SCREW 4X20 (SKU: 266045-0)
Position 111 – DC MOTOR (SKU: 629C26-7)
Position 112 – TAPPING SCREW 4X20 (SKU: 266045-0)
Position 113 – HEIGHT ADJUST BASE (SKU: 413S35-0)
Position 114 – PAN HEAD SCREW M3X8 (SKU: 911008-8)
Position 115 – SPUR GEAR 16 (SKU: 227B09-1)
Position 116 – HEIGHT ADJUST SCREW (SKU: 413S36-8)
Position 117 – SPUR GEAR 27 (SKU: 227B10-6)
Position 118 – TAPPING SCREW BIND 3X14 (SKU: 266404-8)
Position 122 – MOTOR CASE (SKU: 413S29-5)
Position 123 – PAN HEAD SCREW M4X12 (SKU: 911118-1)
Position 126 – BELLOWS A (SKU: 422A44-0)
Position 127 – BLADE COVER (SKU: 413S31-8)
Position 128 – TAPPING SCREW 4X20 (SKU: 266045-0)
Position 130 – BLADE BASE (SKU: 413S32-6)
Position 131 – BLADE SET G (SKU: 1913M9-3)
Position 132 – + BINDING HEAD SCREW M4X5 (SKU: 265D19-2)
Position 133 – PAN HEAD SCREW M3X8 (SKU: 911008-8)
Position 134 – SKID PLATE (SKU: 347B52-5)
Position 135 – BALL BEARING 6800ZZ (SKU: 210171-7)
Position 136 – HUB (SKU: 413S33-4)
Position 137 – BALL BEARING 6800ZZ (SKU: 210171-7)
Position 138 – HEX. NUT M8 (SKU: 931402-8)
Position 139 – NUT COVER ASSEMBLY (SKU: 122G00-3)
Position 140 – TAPPING SCREW BIND 3X14 (SKU: 266404-8)
Position 142 – REAR WHEEL COVER (SKU: 413S50-4)
Position 143 – HEX. LOCK NUT M8-13 (SKU: 252105-4)
Position 144 – FLAT WASHER 8 (SKU: 941201-0)
Position 145 – TAPPING SCREW FLANGE 4X14 (SKU: 265D18-4)
Position 146 – WIRE SENSING CIRCUIT (SKU: 620M19-7)
Position 147 – REAR WHEEL ASSEMBLY (SKU: 122E87-3)
Position 148 – KEY 4 (SKU: 254204-8)
Position 149 – PAN HEAD SCREW M4X12 (SKU: 911118-1)
Position 150 – TAPPING SCREW 4X20 (SKU: 266045-0)
Position 151 – MOTOR BRACKET ASSEMBLY (SKU: 122F99-2)
Position 153 – DC MOTOR (SKU: 629C25-9)
Position 155 – RETAINING RING (EXT) S-8 (SKU: 961004-6)
Position 156 – BALL BEARING 688LLU (SKU: 210211-1)
Position 157 – BALL BEARING 688LLU (SKU: 210211-1)
Position 158 – FRONT SHAFT (SKU: 327C11-1)
Position 159 – FRONT WHEEL CAP (SKU: 413S48-1)
Position 160 – BALL BEARING 688LLU (SKU: 210211-1)
Position 161 – FRONT WHEEL L (SKU: 413S46-5)
Position 162 – BALL BEARING 688LLU (SKU: 210211-1)
Position 163 – RETAINING RING (EXT) S-8 (SKU: 961004-6)
Position 164 – FRONT TIRE (SKU: 422A41-6)
Position 165 – FRONT WHEEL R (SKU: 413S47-3)
Position 166 – TAPPING SCREW 4X20 (SKU: 266045-0)
Position 171 – ROOF COVER B (SKU: 413S62-7)
Position 172 – ROOF COVER A (SKU: 413S61-9)
Position 173 – RIVET 7 (SKU: 412987-8)
Position 174 – TAPPING SCREW 4X20 (SKU: 266045-0)
Position 175 – ROOF (SKU: 413S60-1)
Position 176 – CHARGING CIRCUIT REPAIR SET (SKU: 1914D7-0)
Position 177 – WIRE COVER (SKU: 413S63-5)
Position 178 – ST CONTROLLER REPAIR SET (SKU: 1914D6-2)
Position 179 – RM350D STATION NAME PLATE (SKU: 8143J3-4)
Position 180 – STATION HOUSING (SKU: 413S54-6)
Position 181 – O RING 5 (SKU: 213005-3)
Position 182 – LENS ST (SKU: 413S65-1)
Position 183 – PLUG ADAPTER (SKU: 413S64-3)
Position 184 – TERMINAL HOUSING COVER (SKU: 413S59-6)
Position 185 – TAPPING SCREW 4X20 (SKU: 266045-0)
Position 186 – CAP 19 (SKU: 286238-3)
Position 187 – TERMINAL C (SKU: 654899-1)
Position 188 – TERMINAL (SKU: 654898-3)
Position 189 – TAPPING SCREW 4X20 (SKU: 266045-0)
Position 190 – CHARGING COVER (SKU: 413S55-4)
Position 191 – SEAL (SKU: 422A48-2)
Position 192 – STATION BASE COMPLETE (SKU: 141R84-8)
Position 193 – TAPPING SCREW 4X20 (SKU: 266045-0)
