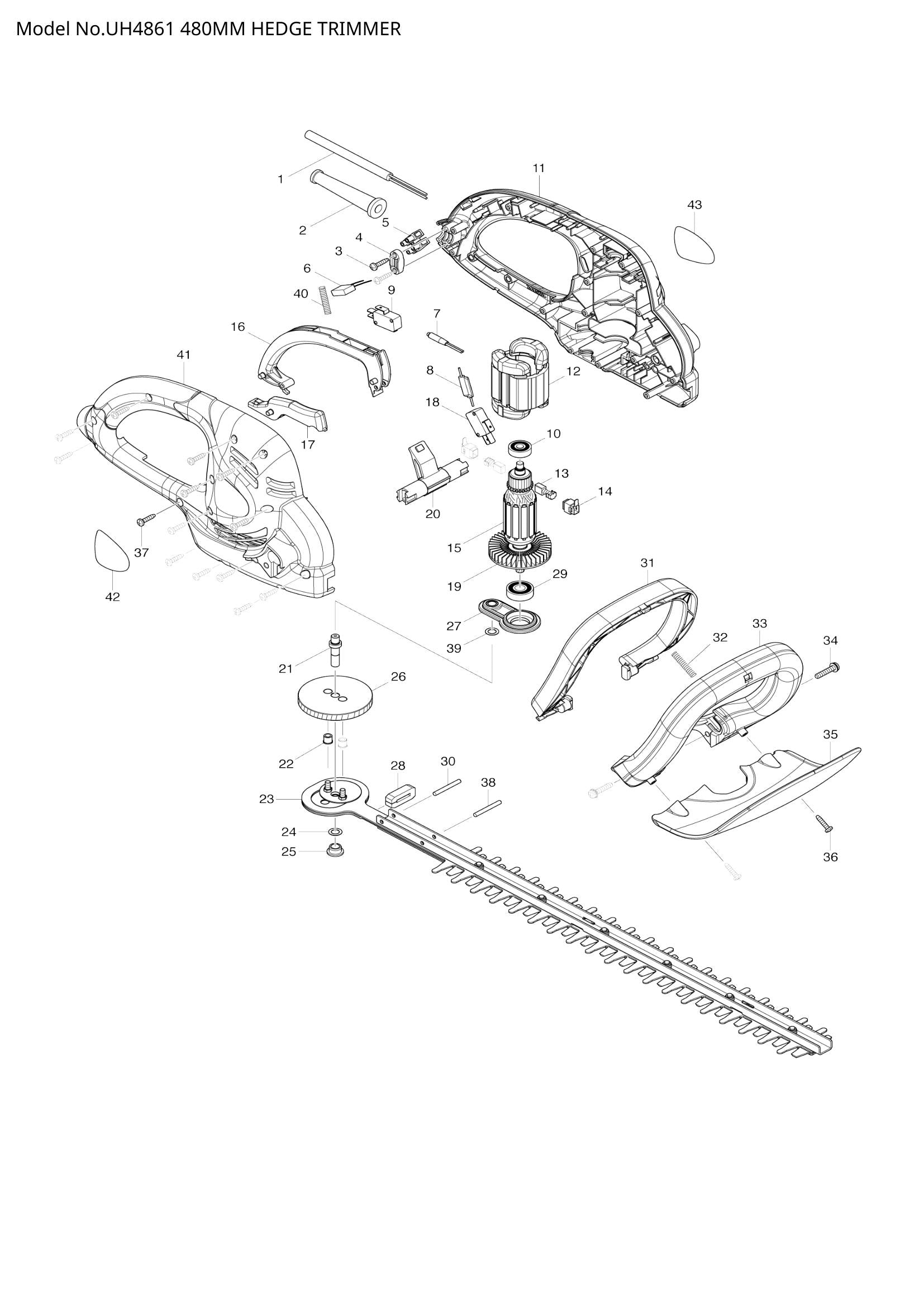

Exploded View – UH4861

Name: Exploded View – UH4861
Brand: Makita
Availability: InStock

Makita

Price:

€0,00

Quantity:

Share this product

Position 002 – CORD GUARD 9.3-85 (SKU: 682516-3)
Position 003 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 004 – STRAIN RELIEF (SKU: 687124-5)
Position 005 – TERMINAL BLOCK 2P (SKU: 654531-7)
Position 008 – CHOKE COIL (SKU: 646090-5)
Position 009 – SWITCH (SKU: 650642-6)
Position 010 – BALL BEARING 627ZZ (SKU: 210030-5)
Position 012 – FIELD 220-240V (SKU: 621753-4)
Position 014 – BRUSH HOLDER (SKU: 643923-5)
Position 015 – ARMATURE ASS'Y 240V (SKU: 515824-6)
Position 016 – SWITCH LEVER A (SKU: 452677-1)
Position 017 – SWITCH LEVER C (SKU: 452680-2)
Position 018 – SWITCH (SKU: 650642-6)
Position 019 – FAN 60 (SKU: 241850-6)
Position 020 – SWITCH ARM (SKU: 452681-0)
Position 021 – SPINDLE (SKU: 326034-8)
Position 022 – NYLON SLEEVE 5 (SKU: 262570-9)
Position 023 – SHEAR BLADE COMPLETE (SKU: 140830-8)
Position 024 – FLAT WASHER 8 (SKU: 253777-8)
Position 025 – PLANE BEARING 8 (SKU: 214064-0)
Position 027 – BEARING BOX COMPLETE (SKU: 140828-5)
Position 028 – DUST GUARD (SKU: 423417-4)
Position 029 – BALL BEARING 6000ZZ (SKU: 211062-5)
Position 030 – PIN 4 (SKU: 268136-3)
Position 031 – SWITCH LEVER B (SKU: 452678-9)
Position 032 – COMPRESSION SPRING 5 (SKU: 233156-6)
Position 033 – FRONT GRIP (SKU: 452682-8)
Position 034 – PAN HEAD SCREW M5X25 (SKU: 911243-8)
Position 036 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 037 – TAPPING SCREW 4X18 (SKU: 266326-2)
Position 038 – PIN 4 (SKU: 268136-3)
Position 039 – FLAT WASHER 8 (SKU: 253777-8)
Position 040 – COMPRESSION SPRING 5 (SKU: 233156-6)
Position 042 – UH4861 NAME PLATE (SKU: 869253-8)
Position 043 – MAKITA LOGO LABEL (SKU: 892589-0)
Position 044 – CAPACITOR (SKU: 645277-6)

Exploded View – UH4861

Description

Exploded View – UH4861
