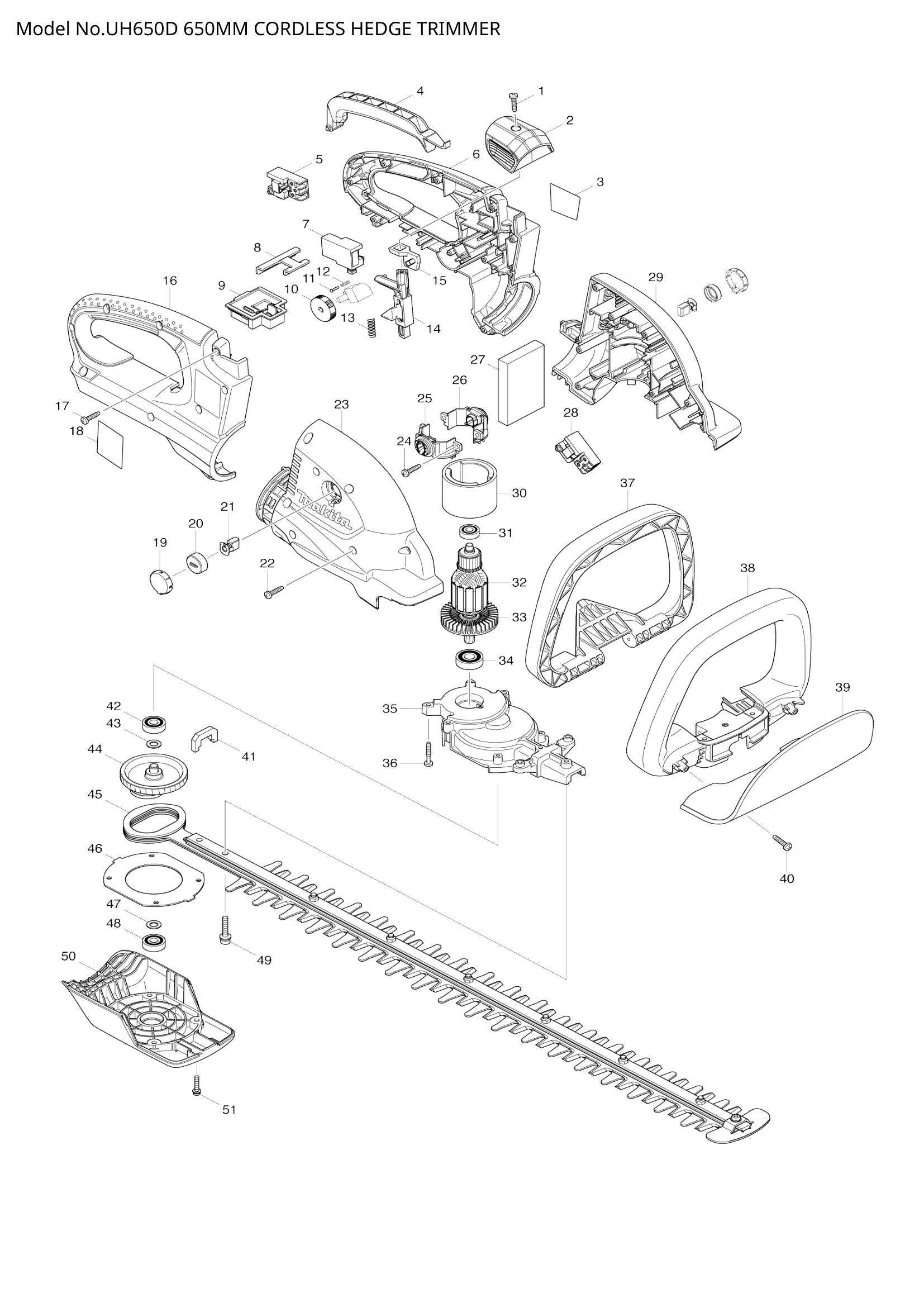

Exploded View – UH650D

Name: Exploded View – UH650D
Brand: Makita
Availability: InStock

Makita

Price:

€0,00

Quantity:

Share this product

Position 001 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 002 – KNOB (SKU: 452164-0)
Position 003 – INDICATION LABEL (SKU: 891002-5)
Position 005 – SWITCH TG73BDH (SKU: 650635-3)
Position 006 – HANDLE SET (SKU: 188948-7)
Position 008 – SUPPORT PLATE (SKU: 346039-2)
Position 009 – TERMINAL (SKU: 643849-1)
Position 010 – DIAL 28 (SKU: 271427-3)
Position 011 – RIVET 2 (SKU: 255058-6)
Position 012 – COMPRESSION SPRING 3 (SKU: 233002-3)
Position 014 – LOCK LEVER (SKU: 452162-4)
Position 016 – HANDLE SET (SKU: 188948-7)
Position 017 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 018 – UH650D NAME PLATE (SKU: 869495-4)
Position 019 – HOLDER CAP COVER (SKU: 452145-4)
Position 020 – BRUSH HOLDER CAP (SKU: 643941-3)
Position 022 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 023 – HOUSING SET (SKU: 188950-0)
Position 024 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 025 – BRUSH HOLDER (SKU: 643857-2)
Position 026 – BRUSH HOLDER (SKU: 643856-4)
Position 027 – CONTROLLER (SKU: 631988-9)
Position 028 – SWITCH TG73BDH (SKU: 650635-3)
Position 029 – HOUSING SET (SKU: 188950-0)
Position 030 – YOKE UNIT (SKU: 638020-0)
Position 031 – BALL BEARING 607ZZ (SKU: 211022-7)
Position 032 – ARMATURE ASSEMBLY 36V (SKU: 519261-6)
Position 033 – FAN 55 (SKU: 240045-8)
Position 034 – BALL BEARING 6000ZZ (SKU: 211062-5)
Position 035 – GEAR HOUSING COMPLETE (SKU: 140604-7)
Position 036 – TAPPING SCREW 4X25 (SKU: 265999-8)
Position 037 – SWITCH LEVER B (SKU: 452160-8)
Position 038 – FRONT GRIP (SKU: 452158-5)
Position 039 – PROTECTOR (SKU: 452147-0)
Position 040 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 041 – DUST GUARD (SKU: 443142-1)
Position 043 – FLAT WASHER 8 (SKU: 253835-0)
Position 044 – GEAR COMPLETE (SKU: 140536-8)
Position 046 – PLATE (SKU: 346325-1)
Position 047 – FLAT WASHER 8 (SKU: 253835-0)
Position 049 – + PAN HEAD SCREW M5X25 (SKU: 265182-7)
Position 050 – UNDER COVER (SKU: 452156-9)
Position 051 – P.H.SCREW M4X20 WITH WR (SKU: 911138-5)

Exploded View – UH650D
