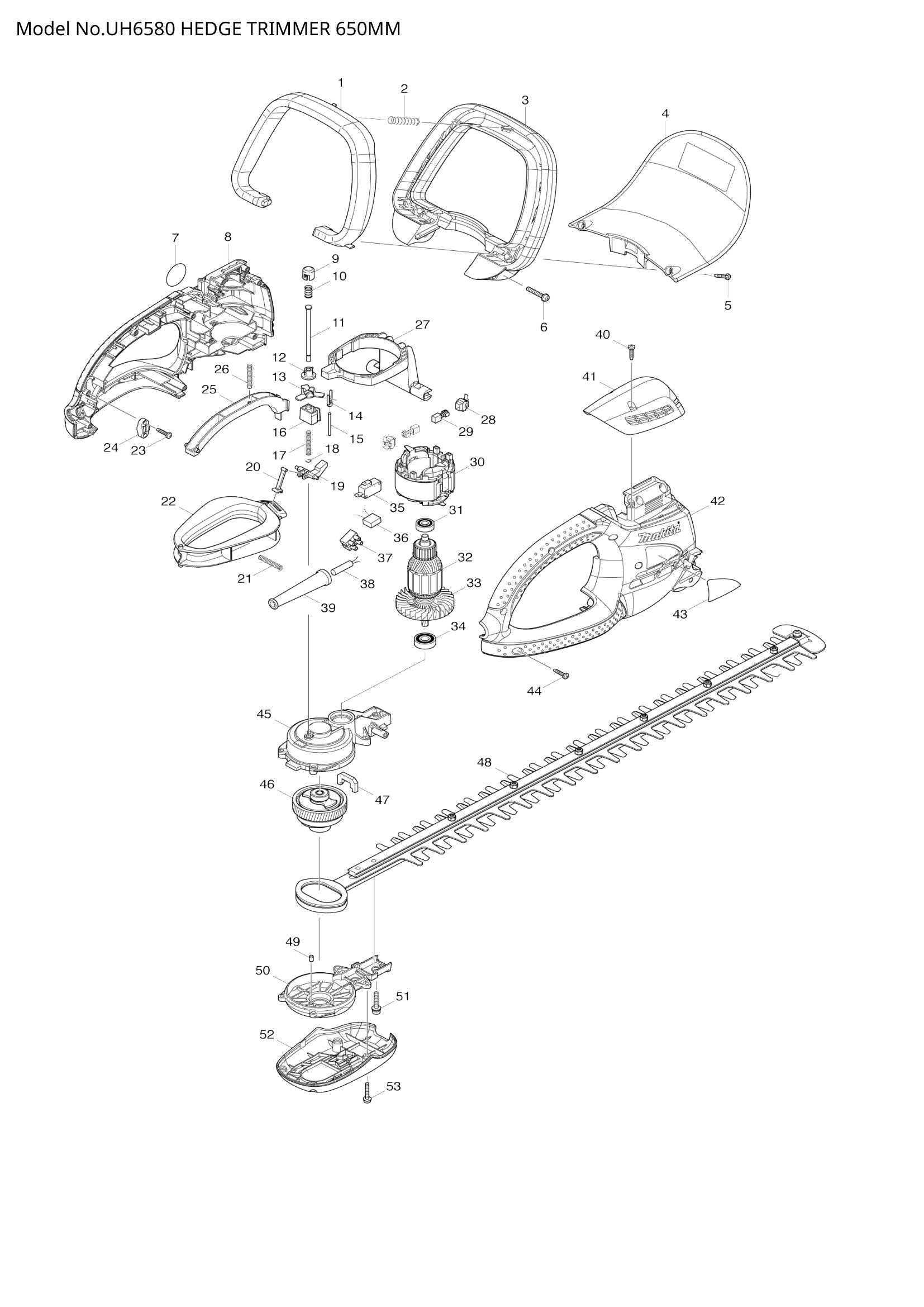

Exploded View – UH6580

Exploded View – UH6580

Price: €0,00
List Price:
Price: €0,00
View Cart
  • Position 001 – SWITCH LEVER B (SKU: 450444-8)
  • Position 002 – COMPRESSION SPRING 9 (SKU: 233157-4)
  • Position 003 – FRONT GRIP (SKU: 450442-2)
  • Position 005 – TAPPING SCREW 4X18 (SKU: 265995-6)
  • Position 006 – PAN HEAD SCREW M5X30 (SKU: 911253-5)
  • Position 008 – HOUSING SET (SKU: 188569-5)
  • Position 009 – INSULATION CAP (SKU: 417740-7)
  • Position 010 – COMPRESSION SPRING 8 (SKU: 233288-9)
  • Position 011 – PIN 5 (SKU: 268077-3)
  • Position 012 – CAP HOLDER (SKU: 417727-9)
  • Position 013 – LIFTER (SKU: 417736-8)
  • Position 014 – PUSHER CAP (SKU: 417735-0)
  • Position 015 – PIN 3 (SKU: 268078-1)
  • Position 016 – PIN HOLDER (SKU: 417781-3)
  • Position 017 – COMPRESSION SPRING 5 (SKU: 233156-6)
  • Position 018 – STOP RING E-4 (SKU: 257934-0)
  • Position 019 – LINK (SKU: 417737-6)
  • Position 020 – ROD (SKU: 417739-2)
  • Position 021 – COMPRESSION SPRING 5 (SKU: 233156-6)
  • Position 022 – SWITCH LEVER C (SKU: 417731-8)
  • Position 023 – TAPPING SCREW 4X18 (SKU: 265995-6)
  • Position 024 – CORD CLAMP (SKU: 687063-9)
  • Position 025 – SWITCH LEVER A (SKU: 450443-0)
  • Position 026 – COMPRESSION SPRING 5 (SKU: 233156-6)
  • Position 027 – LEVER (SKU: 417738-4)
  • Position 028 – BRUSH HOLDER (SKU: 643936-6)
  • Position 031 – BALL BEARING 608ZZ (SKU: 211032-4)
  • Position 032 – ARMATURE ASS'Y 220-240V (SKU: 516499-4)
  • Position 033 – FAN 70 (SKU: 241858-0)
  • Position 034 – BALL BEARING 6000ZZ (SKU: 211062-5)
  • Position 037 – TERMINAL BLOCK 2P (SKU: 654531-7)
  • Position 038 – POWER SUPPLY CORD 1.5-2-0.3 (SKU: 666246-4)
  • Position 039 – CORD GUARD 8-90 (SKU: 682503-2)
  • Position 040 – TAPPING SCREW 4X18 (SKU: 265995-6)
  • Position 041 – TOP COVER (SKU: 450445-6)
  • Position 042 – HOUSING SET (SKU: 188569-5)
  • Position 043 – UH6580 NAME PLATE (SKU: 865786-1)
  • Position 044 – TAPPING SCREW 4X18 (SKU: 265995-6)
  • Position 045 – GEAR HOUSING (SKU: 318257-2)
  • Position 046 – GEAR ASS'Y (SKU: 135217-7)
  • Position 047 – DUST GUARD (SKU: 443142-1)
  • Position 048 – SHEAR BLADE ASS'Y SET (SKU: 194673-0)
  • Position 049 – RUBBER PIN 4 (SKU: 263002-9)
  • Position 050 – GEAR HOUSING COVER (SKU: 318265-3)
  • Position 051 – + PAN HEAD SCREW M5X25 (SKU: 265182-7)
  • Position 052 – UNDER COVER (SKU: 450440-6)
  • Position 053 – PAN HEAD SCREW M4X25 (SKU: 911148-2)
