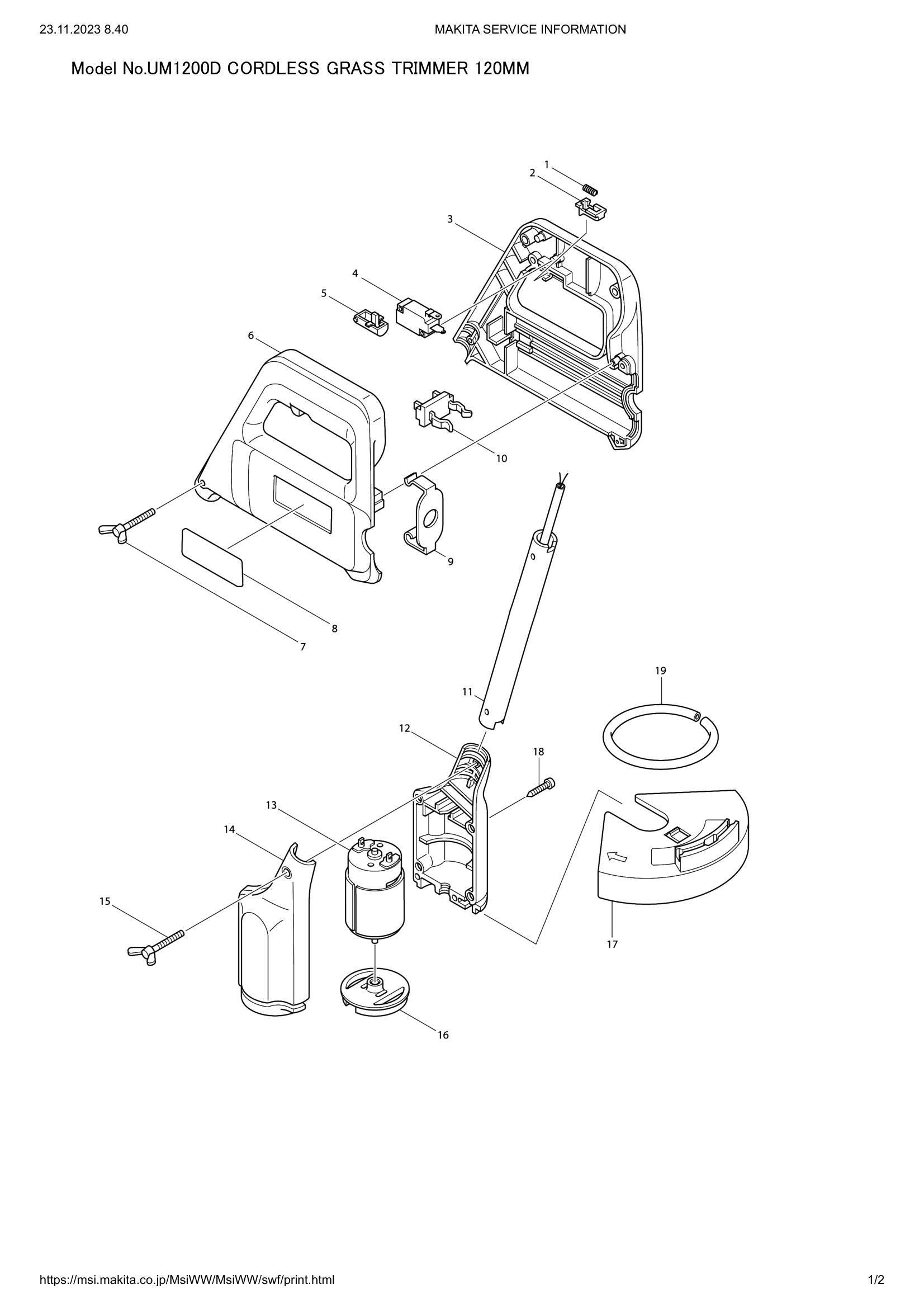

Exploded View – UM1200D

Name: Exploded View – UM1200D
Brand: Makita
Availability: InStock

Price:

€0,00

Quantity:

Share this product

Position 001 – COMPRESSION SPRING 3 (SKU: 231390-2)
Position 003 – GRIP SET (SKU: 181841-4)
Position 005 – SWITCH LEVER (SKU: 410632-9)
Position 006 – GRIP SET (SKU: 181841-4)
Position 007 – WING BOLT M4X30 (SKU: 924151-4)
Position 008 – NAME PLATE UM1200D (SKU: 855406-5)
Position 009 – SET PLATE (SKU: 342833-0)
Position 010 – BATTERY HOLDER (SKU: 643909-9)
Position 011 – PIPE 18 (SKU: 331278-7)
Position 012 – MOTOR HOUSING SET (SKU: 181842-2)
Position 013 – DC MOTOR 7.2V (SKU: 629539-0)
Position 014 – MOTOR HOUSING SET (SKU: 181842-2)
Position 015 – WING BOLT M4X30 (SKU: 924151-4)
Position 016 – BLADE HOLDER (SKU: 410631-1)
Position 018 – + TAPPING SCREW 3X20 (SKU: 265837-4)
Position 019 – POLYETHYLENE TUBE 4 (SKU: 412074-3)
Position 401 – BATTERY COVER (SKU: 414938-7)
