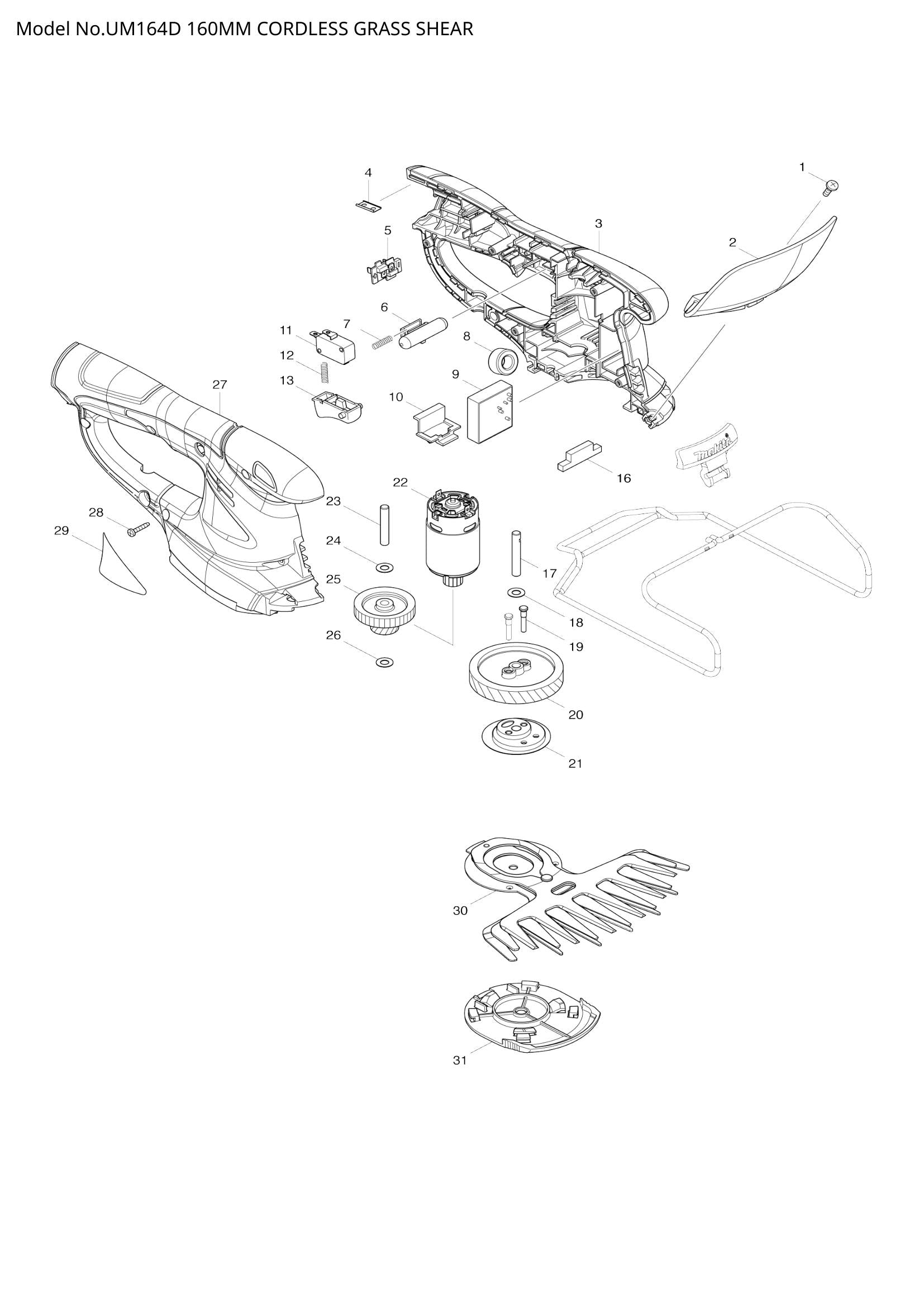

Exploded View – UM164D

Name: Exploded View – UM164D
Brand: Makita
Availability: InStock

Price:

€0,00

Quantity:

Share this product

Position 001 – BINDING HEAD SCREW M4X12 (SKU: 915116-7)
Position 002 – PROTECTOR COMPLETE (SKU: 140599-4)
Position 003 – HOUSING SET (SKU: 188830-0)
Position 004 – SET PLATE (SKU: 345998-7)
Position 005 – TERMINAL (SKU: 643817-4)
Position 007 – COMPRESSION SPRING 4 (SKU: 231473-8)
Position 009 – CONTROLLER ASSY (SKU: 135383-0)
Position 010 – LOCK LEVER (SKU: 451812-8)
Position 011 – SWITCH DMC-1115-13 (SKU: 651944-3)
Position 012 – COMPRESSION SPRING 4 (SKU: 231473-8)
Position 013 – SWITCH LEVER (SKU: 417564-1)
Position 016 – DUST GUARD (SKU: 451814-4)
Position 017 – PIN 6 (SKU: 268254-7)
Position 018 – WASHER 6 (SKU: 261122-3)
Position 019 – PIN 4 (SKU: 268256-3)
Position 020 – HELICAL GEAR 47 (SKU: 227728-7)
Position 021 – CRANK COMPLETE (SKU: 165609-6)
Position 022 – DC MOTOR (SKU: 629877-0)
Position 023 – PIN 6 (SKU: 268076-5)
Position 024 – WASHER 6 (SKU: 261122-3)
Position 025 – GEAR 12-31 (SKU: 226831-1)
Position 026 – WASHER 6 (SKU: 261122-3)
Position 027 – HOUSING SET (SKU: 188830-0)
Position 028 – TAPPING SCREW 3X16 (SKU: 266429-2)
Position 029 – UM164D NAME PLATE (SKU: 867905-5)
