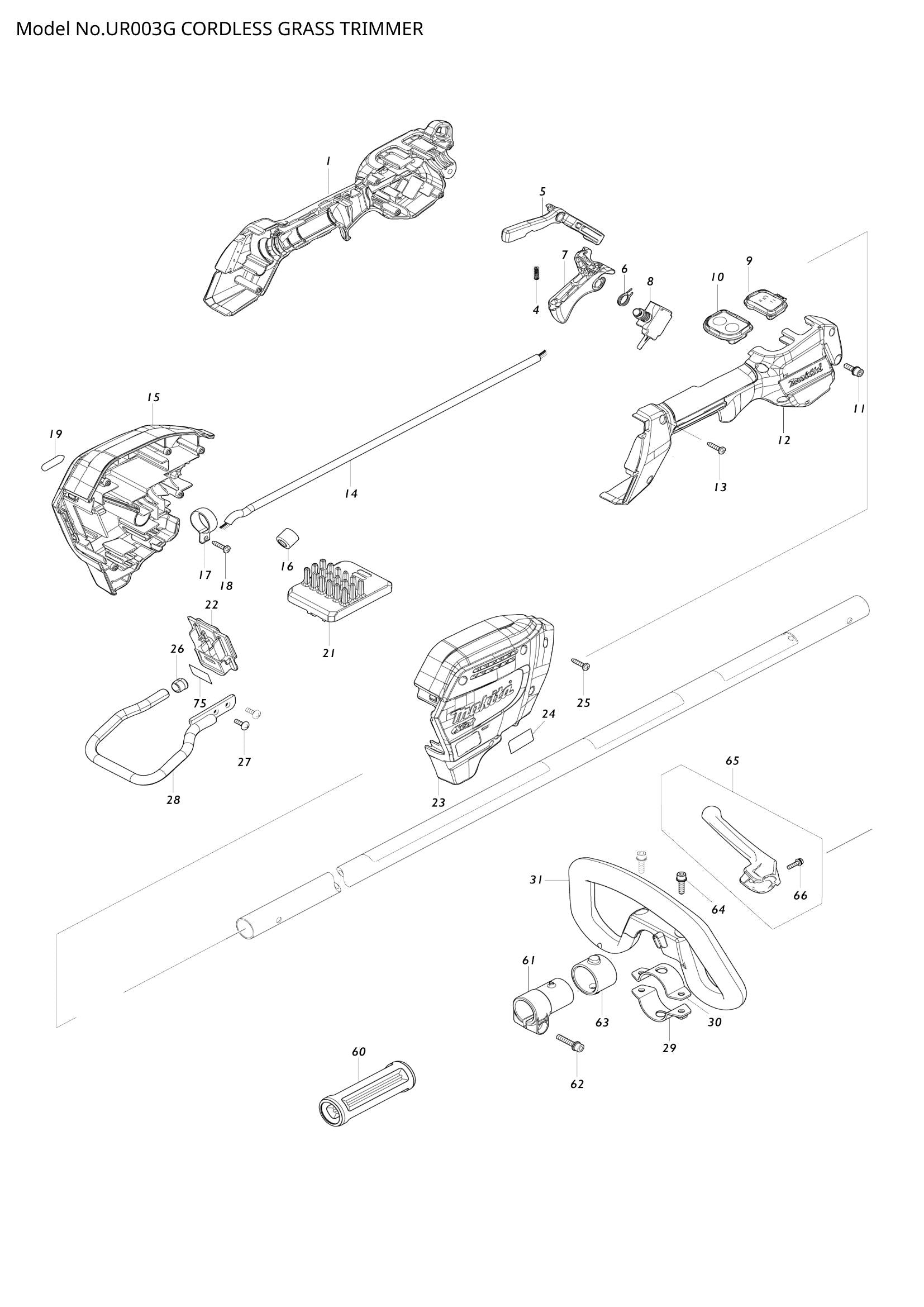

• UR003G exploded view

Exploded View – UR003G

Exploded View – UR003G

Price: €0,00
List Price:
Price: €0,00
View Cart
  • Position 001 – GRIP SET (SKU: 183S36-9)
  • Position 004 – COMPRESSION SPRING 4 (SKU: 233101-1)
  • Position 005 – LOCK OFF LEVER (SKU: 459759-0)
  • Position 006 – TORSION SPRING 12 (SKU: 233622-3)
  • Position 007 – SWITCH LEVER (SKU: 459758-2)
  • Position 008 – SWITCH C3JR-1A-PAXD3 (SKU: 651492-2)
  • Position 009 – INDICATION CIRCUIT COMPLETE (SKU: 141B31-3)
  • Position 010 – SWITCH CIRCUIT COMPLETE G (SKU: 140W06-5)
  • Position 011 – H.S.H.BOLT M5X20 WITH WR (SKU: 922233-6)
  • Position 012 – GRIP SET (SKU: 183S36-9)
  • Position 013 – TAPPING SCREW 4X18 (SKU: 266326-2)
  • Position 015 – HOUSING SET (SKU: 183S34-3)
  • Position 016 – LINE FILTER (SKU: 688163-8)
  • Position 017 – CLAMP 24 (SKU: 346248-3)
  • Position 018 – TAPPING SCREW 4X18 (SKU: 266326-2)
  • Position 019 – XGT LOGO LABEL (SKU: 8012U4-2)
  • Position 022 – TERMINAL UNIT (SKU: 632P49-4)
  • Position 023 – HOUSING SET (SKU: 183S34-3)
  • Position 024 – UR003G NAME PLATE (SKU: 811A61-9)
  • Position 025 – TAPPING SCREW 4X18 (SKU: 266326-2)
  • Position 026 – CAP (SKU: 422230-7)
  • Position 027 – TAPPING SCREW 5X20 (SKU: 266420-0)
  • Position 028 – BATTERY GUARD (SKU: 347752-5)
  • Position 029 – LOWER CLAMP 35 (SKU: 347114-7)
  • Position 030 – UPPER CLAMP 35 (SKU: 347113-9)
  • Position 031 – LOOP HANDLE (SKU: 457267-5)
  • Position 032 – PAN HEAD SCREW M5X20 (SKU: 911233-1)
  • Position 033 – TOP COVER (SKU: 413335-4)
  • Position 034 – BALL BEARING 607ZZ (SKU: 210062-2)
  • Position 036 – ROTOR (SKU: 619462-7)
  • Position 037 – P.H.SCREW M4X16 WITH WR (SKU: 911128-8)
  • Position 038 – INNER COVER (SKU: 455628-3)
  • Position 040 – P.H.SCREW M4X16 WITH WR (SKU: 911128-8)
  • Position 041 – STRAIN RELIEF (SKU: 687042-7)
  • Position 042 – H.S.H.BOLT M5X16 WITH WR (SKU: 922223-9)
  • Position 043 – HEX. SOCKET HEAD BOLT M5X25 (SKU: 922241-7)
  • Position 044 – MOTOR HOUSING COMPLETE (SKU: 141A05-8)
  • Position 045 – BALL BEARING 6001DDW (SKU: 211131-2)
  • Position 046 – RETAINING RING R-28 (SKU: 962106-1)
  • Position 047 – RECEIVE WASHER COMPLETE G (SKU: 140L84-9)
  • Position 048 – CLAMP WASHER (SKU: 346084-7)
  • Position 049 – HEX. SOCKET HEAD BOLT M5X20 (SKU: 266896-1)
  • Position 050 – POLYPROPYLENE WASHER 4 (SKU: 261156-6)
  • Position 051 – PROTECTOR CLAMP (SKU: 346785-7)
  • Position 052 – PROTECTOR (SKU: 413336-2)
  • Position 053 – PROTECTOR U EXT. 350 COMPLE (SKU: 141A09-0)
  • Position 054 – CUTTER (SKU: 347115-5)
  • Position 055 – TAPPING SCREW 5X16 (SKU: 266388-0)
  • Position 056 – PIPE COMPLETE O (SKU: 141B05-4)
  • Position 057 – O RING 19 (SKU: 213325-5)
  • Position 058 – CUP (SKU: 168526-9)
  • Position 059 – HEX. NUT M10-17 (SKU: 264025-0)
  • Position 060 – SPACER 24 (SKU: 451601-1)
  • Position 061 – PIPE HOLDER 24 (SKU: 457269-1)
  • Position 062 – H.S.H.BOLT M5X25 WITH WG (SKU: 922244-1)
  • Position 063 – DAMPER (SKU: 424942-8)
  • Position 064 – H.S.H.BOLT M5X20 WITH WG (SKU: 922234-4)
  • Position 065 – BARRIER COMPLETE (SKU: 144315-6)
  • Position 066 – P.H.SCREW M4X16 WITH WR (SKU: 911128-8)
  • Position 074 – RUBBER CAP 24 (SKU: 422727-6)
  • Position 075 – UR003G SERIAL NO. LABEL (SKU: 811A67-7)
