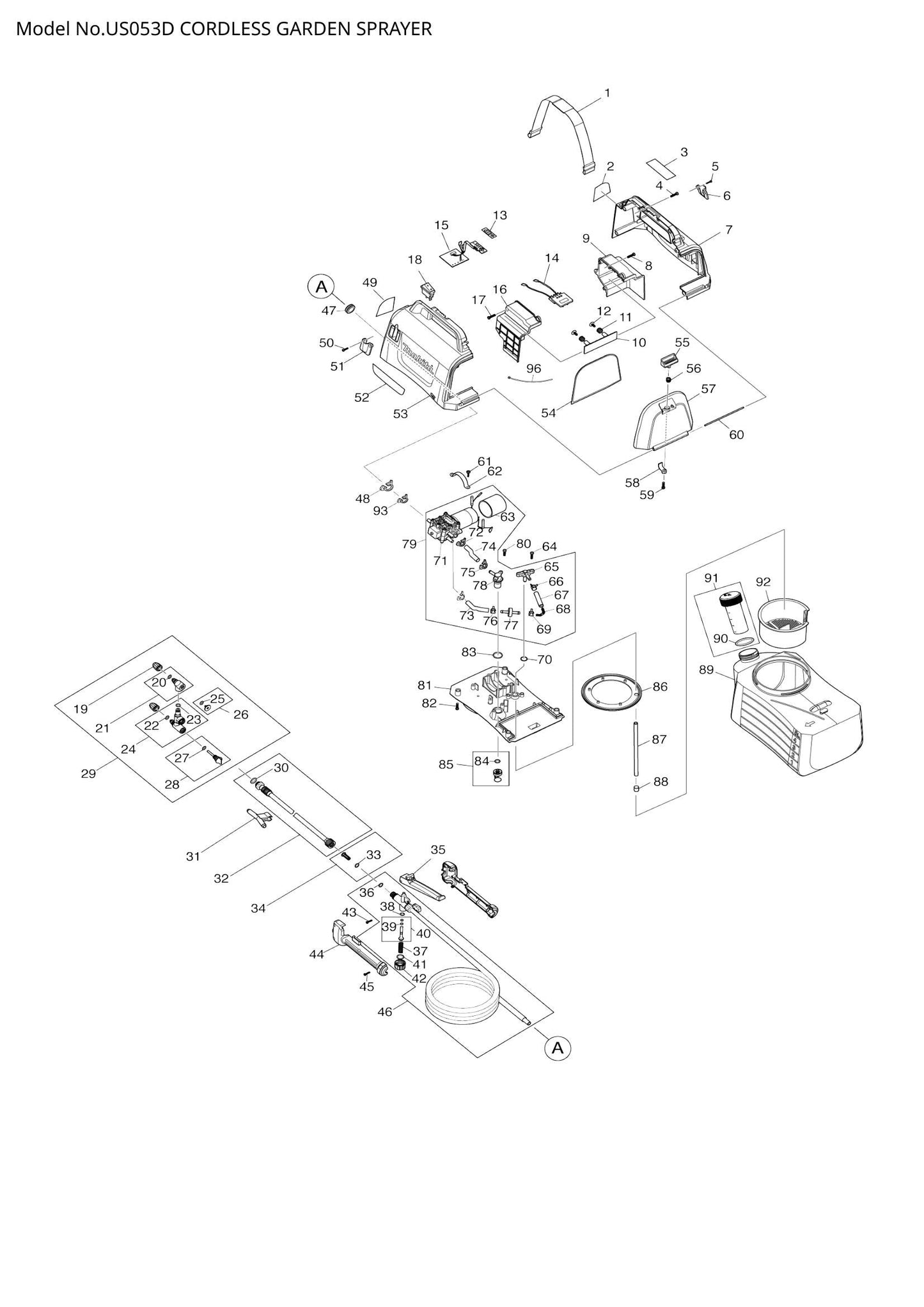

Exploded View – US053D

Exploded View – US053D

Price: €0,00
List Price:
Price: €0,00
View Cart
  • Position 001 – SHOULDER STRAP (SKU: PR00000128)
  • Position 002 – WARNING TEXT LABEL-EN (SKU: PR00000206)
  • Position 003 – RATING LABEL-0002 (SKU: PR00000214)
  • Position 004 – TAPPINNG SCREW ST4.0X16 (SKU: PR00000183)
  • Position 005 – TAPPINNG SCREW ST2.9X12 (SKU: PR00000182)
  • Position 007 – HOUSING SET (SKU: PR00000129)
  • Position 008 – TAPPINNG SCREW ST4.0X16 (SKU: PR00000183)
  • Position 009 – BATTERY HOUSING (SKU: PR00000185)
  • Position 010 – DAM-BOARD (SKU: PR00000130)
  • Position 011 – DAM-BOARD SPRING (SKU: PR00000131)
  • Position 012 – TAPPING SCREW ST4.0X12 (SKU: PR00000132)
  • Position 013 – INDICATION LABEL (SKU: PR00000133)
  • Position 015 – PCB (SKU: PR00000135)
  • Position 016 – BATTERY HOUSING (SKU: PR00000185)
  • Position 017 – TAPPINNG SCREW ST4.0X16 (SKU: PR00000183)
  • Position 018 – SWITCH (SKU: PR00000136)
  • Position 019 – SPRAY HEAD (SKU: PR00000137)
  • Position 020 – O RING 6X2 (SKU: PR00000186)
  • Position 021 – NOZZLE HOLDER (SKU: PR00000138)
  • Position 022 – O RING 6X2 (SKU: PR00000186)
  • Position 023 – O RING 6X2 (SKU: PR00000186)
  • Position 024 – ROD JOINT (SKU: PR00000139)
  • Position 025 – O RING 6X2 (SKU: PR00000186)
  • Position 026 – END CAP (SKU: PR00000140)
  • Position 027 – O RING 6X2 (SKU: PR00000186)
  • Position 028 – ADJUSTING KNOB (SKU: PR00000141)
  • Position 029 – TWO HEAD NOZZLE (SKU: PR00000142)
  • Position 030 – SEAL PAD 9X17X2 (SKU: PR00000143)
  • Position 031 – HOOK (SKU: PR00000144)
  • Position 033 – O SEAL RING 4.5X1.5 (SKU: PR00000146)
  • Position 034 – FILTER ASSEMBLY (SKU: PR00000147)
  • Position 035 – HANDLE TRIGGER ASSEMBLY (SKU: PR00000148)
  • Position 036 – O RING 8X1.8 (SKU: PR00000149)
  • Position 037 – SPRING (SKU: PR00000150)
  • Position 039 – O RING 3X1.5 (SKU: PR00000205)
  • Position 040 – VALVE ROD (SKU: PR00000151)
  • Position 041 – O RING 12X2 (SKU: PR00000190)
  • Position 042 – LOCK COVER (SKU: PR00000152)
  • Position 043 – TAPPINNG SCREW ST2.9X12 (SKU: PR00000182)
  • Position 045 – TAPPINNG SCREW ST2.9X12 (SKU: PR00000182)
  • Position 047 – GROMMET (SKU: PR00000155)
  • Position 048 – SNAPPER HOSE CLAMP (L) (SKU: PR00000184)
  • Position 049 – WARNING LOGO LABEL (SKU: PR00000211)
  • Position 050 – TAPPINNG SCREW ST2.9X12 (SKU: PR00000182)
  • Position 052 – DECORATION LABEL 12V MAX (SKU: PR00000157)
  • Position 053 – HOUSING SET (SKU: PR00000129)
  • Position 054 – BATTERY COVER SEAL PAD (SKU: PR00000158)
  • Position 055 – BATTERY COVER BUTTON (SKU: PR00000159)
  • Position 056 – SPRING (SKU: PR00000160)
  • Position 057 – BATTERY COVER (SKU: PR00000161)
  • Position 058 – PRESS-BUTTON (SKU: PR00000162)
  • Position 059 – TAPPING SCREW ST2.9X15 (SKU: PR00000007)
  • Position 060 – SHAFT (SKU: PR00000163)
  • Position 061 – TAPPINNG SCREW ST4.0X16 (SKU: PR00000183)
  • Position 062 – MOTOR FIXED BLOCK (SKU: PR00000164)
  • Position 063 – SHOCK ABSORBER RING (SKU: PR00000165)
  • Position 064 – TAPPINNG SCREW ST4.0X16 (SKU: PR00000183)
  • Position 065 – INLET CONNECTION (SKU: PR00000166)
  • Position 066 – HOSE CLIP (SKU: PR00000188)
  • Position 067 – DELIVERY TUBE (55MM) (SKU: PR00000187)
  • Position 068 – SPRING (SKU: PR00000167)
  • Position 069 – HOSE CLIP (SKU: PR00000188)
  • Position 070 – O RING 12X2 (SKU: PR00000190)
  • Position 076 – HOSE CLIP (SKU: PR00000188)
  • Position 077 – CHECK VALVE ASSEMBLY (SKU: PR00000169)
  • Position 078 – WATER INLET (SKU: PR00000170)
  • Position 080 – TAPPINNG SCREW ST4.0X16 (SKU: PR00000183)
  • Position 081 – BASE BOARD (SKU: PR00000172)
  • Position 082 – TAPPINNG SCREW ST4.0X16 (SKU: PR00000183)
  • Position 083 – O RING 17X2 (SKU: PR00000173)
  • Position 084 – O RING 6X2 (SKU: PR00000186)
  • Position 085 – KNOB LOCK CAP ASSEMBLY (SKU: PR00000174)
  • Position 086 – SEAL PAD FOR TANK (SKU: PR00000175)
  • Position 087 – SUCTION TUBE 190MM (SKU: PR00000176)
  • Position 088 – FILTER (SKU: PR00000177)
  • Position 089 – TANK (LITRE) (SKU: PR00000178)
  • Position 090 – O RING 34X3.5 (SKU: PR00000179)
  • Position 091 – TANK CAP WITH MEASURING CU (SKU: PR00000180)
  • Position 092 – FILTER CARTRIDGE (SKU: PR00000181)
  • Position 096 – BAND (SKU: 687010-0)
