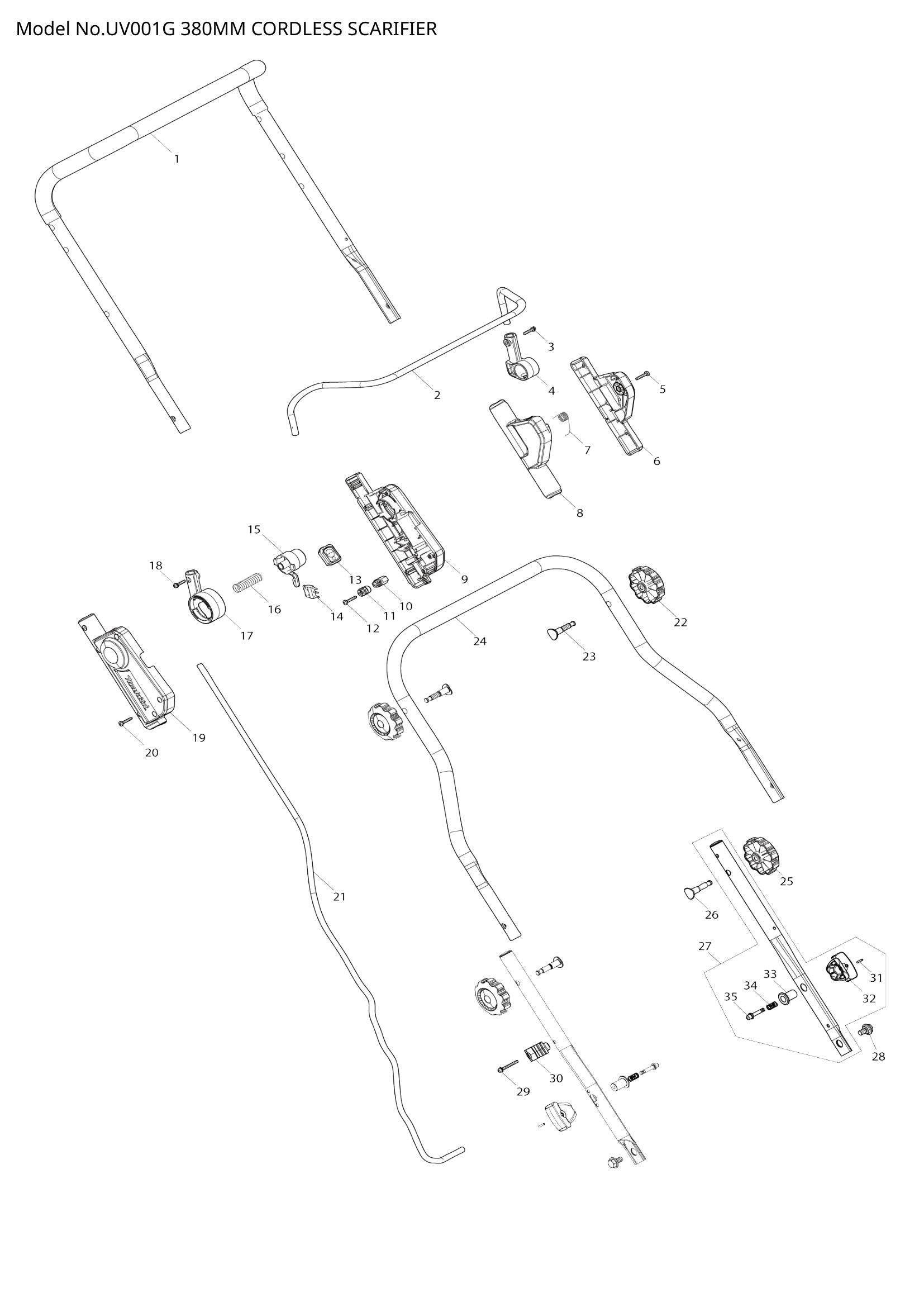

• UV001G exploded view

Exploded View – UV001G

Exploded View – UV001G

Price: €0,00
List Price:
Price: €0,00
View Cart
  • Position 001 – HANDLE UPPER (SKU: 327871-3)
  • Position 002 – SWITCH LEVER (SKU: 327424-8)
  • Position 003 – P.H.SCREW M4X20 WITH WR (SKU: 911138-5)
  • Position 004 – SWITCH LEVER SUPPORT L (SKU: 459863-5)
  • Position 005 – TAPPING SCREW 4X20 (SKU: 266424-2)
  • Position 006 – LEVER BOX SET (SKU: 183U21-4)
  • Position 007 – TORSION SPRING 12 (SKU: 232575-3)
  • Position 008 – LEVER BOX SET (SKU: 183U21-4)
  • Position 009 – SWITCH BOX SET (SKU: 1830B2-6)
  • Position 010 – STRAIN RELIEF (SKU: 687051-6)
  • Position 011 – STRAIN RELIEF (SKU: 687123-7)
  • Position 012 – TAPPING SCREW 4X20 (SKU: 266424-2)
  • Position 013 – SWITCH CIRCUIT COMPLETE (SKU: 140X08-7)
  • Position 014 – SWITCH UNIT (SKU: 632T11-3)
  • Position 015 – LOCK OFF BUTTON (SKU: 459857-0)
  • Position 016 – COMPRESSION SPRING 15 (SKU: 231227-3)
  • Position 017 – SWITCH LEVER SUPPORT R (SKU: 459856-2)
  • Position 018 – P.H.SCREW M4X20 WITH WR (SKU: 911138-5)
  • Position 019 – SWITCH BOX SET (SKU: 1830B2-6)
  • Position 020 – TAPPING SCREW 4X20 (SKU: 266424-2)
  • Position 021 – POWER SUPPLY CORD UNIT (SKU: 699226-5)
  • Position 022 – THUMB NUT M8 (SKU: 265C06-5)
  • Position 023 – FLAT HEAD BOLT M8X50 (SKU: 265C08-1)
  • Position 024 – HANDLE MIDDLE (SKU: 327C02-2)
  • Position 025 – THUMB NUT M8 (SKU: 265C06-5)
  • Position 026 – FLAT HEAD BOLT M8X50 (SKU: 265C08-1)
  • Position 027 – HANDLE LOWER ASSEMBLY (SKU: 122E95-4)
  • Position 028 – HEX. BOLT M8 (SKU: 265C07-3)
  • Position 029 – PAN HEAD SCREW M4X35 (SKU: 911163-6)
  • Position 030 – CLAMP (SKU: 413944-9)
  • Position 031 – SPRING PIN 2.5-16 (SKU: 258004-8)
  • Position 032 – KNOB (SKU: 413943-1)
  • Position 033 – LOCK HOLDER (SKU: 327877-1)
  • Position 034 – COMPRESSION SPRING 8 (SKU: 234121-8)
  • Position 035 – LOCK PIN (SKU: 327876-3)
  • Position 037 – BATTERY COVER ASSEMBLY (SKU: 137022-8)
  • Position 039 – STOP RING E-5 (SKU: 961018-5)
  • Position 040 – ROD 6 (SKU: 327209-2)
  • Position 041 – REAR FLAP COMPLETE (SKU: 141R98-7)
  • Position 042 – TORSION SPRING 8 (SKU: 232806-0)
  • Position 043 – STOP RING E-5 (SKU: 961018-5)
  • Position 044 – ROD 6 (SKU: 256A39-9)
  • Position 045 – TAPPING SCREW 4X20 (SKU: 266424-2)
  • Position 046 – DIAL 75 (SKU: 413R80-9)
  • Position 047 – LOCK OFF BUTTON (SKU: 413R81-7)
  • Position 048 – COMPRESSION SPRING 5 (SKU: 234003-4)
  • Position 049 – TAPPING SCREW 4X20 (SKU: 266424-2)
  • Position 050 – LOCK LEVER (SKU: 413B03-1)
  • Position 051 – COMPRESSION SPRING 7 (SKU: 231037-8)
  • Position 052 – LED CIRCUIT (SKU: 620M29-4)
  • Position 053 – COWLING ASSEMBLY (SKU: 122E94-6)
  • Position 054 – INDICATION LABEL (SKU: 8031N0-1)
  • Position 055 – HOLDER (SKU: 413R72-8)
  • Position 056 – TAPPING SCREW 4X20 (SKU: 266424-2)
  • Position 057 – ADJUST SCREW (SKU: 413R79-4)
  • Position 058 – COMPRESSION SPRING 23 (SKU: 232385-8)
  • Position 059 – ADJUST SCREW HOLDER (SKU: 413R71-0)
  • Position 060 – + PAN HEAD SCREW M5 (SKU: 251306-1)
  • Position 061 – SHAFT HOLDER (SKU: 312E25-5)
  • Position 062 – TAPPING SCREW 5X20 (SKU: 266021-4)
  • Position 063 – SHAFT 12 (SKU: 327C01-4)
  • Position 064 – BEARING RETAINER (SKU: 347B58-3)
  • Position 065 – TAPPING SCREW BIND CT 4X12 (SKU: 266026-4)
  • Position 066 – BLADE UNDER BRACKET (SKU: 413R76-0)
  • Position 067 – HEX. BOLT M6X20 (SKU: 921331-3)
  • Position 068 – SCARIFYING BLADE SET (SKU: 1913J5-0)
  • Position 069 – LINE FILTER (SKU: 688163-8)
  • Position 070 – MOTOR HOUSING (SKU: 459143-9)
  • Position 071 – PAN HEAD SCREW M3X6 (SKU: 652031-1)
  • Position 072 – LEAD UNIT (SKU: 632R64-0)
  • Position 073 – TAPPING SCREW PT 2X6 (SKU: 266490-9)
  • Position 074 – STOPPER (SKU: 687B69-9)
  • Position 075 – CONTROLLER B (SKU: 620H75-7)
  • Position 076 – STATOR (SKU: 629C28-3)
  • Position 077 – BAFFLE PLATE (SKU: 413R69-7)
  • Position 078 – TAPPING SCREW 4X20 (SKU: 266424-2)
  • Position 081 – BALL BEARING 6201DDW (SKU: 210195-3)
  • Position 082 – + PAN HEAD SCREW M5 (SKU: 251306-1)
  • Position 083 – PULLEY HOLDER (SKU: 312E24-7)
  • Position 084 – TAPPING SCREW 5X20 (SKU: 266021-4)
  • Position 085 – TAPPING SCREW 5X20 (SKU: 266021-4)
  • Position 086 – PULLEY 20 (SKU: 222204-6)
  • Position 087 – HEX. NUT M8-13 (SKU: 252154-1)
  • Position 088 – SHAFT 17 (SKU: 327B97-9)
  • Position 089 – BALL BEARING 6003LLU (SKU: 210126-2)
  • Position 090 – PULLEY 60 (SKU: 222205-4)
  • Position 091 – HEX. NUT M10 (SKU: 931503-2)
  • Position 092 – ECCENTRIC DISK (SKU: 313474-9)
  • Position 093 – BALL BEARING 608DDW (SKU: 210044-4)
  • Position 094 – PULLEY PLATE 30 (SKU: 347B45-2)
  • Position 095 – PAN HEAD SCREW M5X16 (SKU: 911223-4)
  • Position 096 – SYNCHRO BELT 15-525 (SKU: 225108-1)
  • Position 097 – BEARING COVER (SKU: 413R75-2)
  • Position 098 – P.H.SCREW M4X16 WITH WR (SKU: 911128-8)
  • Position 099 – GRASS CATCHER (SKU: 162C50-2)
  • Position 100 – GRASS CATCHER BRACKET (SKU: 162C49-7)
  • Position 101 – HEX. FLANGE HEAD BOLT M8X12 (SKU: 265324-3)
  • Position 102 – TIRE 180 COMPLETE (SKU: 141E34-5)
  • Position 103 – BALL BEARING 6001DDW (SKU: 210216-1)
  • Position 104 – REAR SHAFT (SKU: 327B98-7)
  • Position 105 – TAPPING SCREW 4X20 (SKU: 266424-2)
  • Position 106 – REAR SHAFT HOLDER (SKU: 313475-7)
  • Position 107 – HEX. FLANGE HEAD BOLT M8X12 (SKU: 265324-3)
  • Position 108 – TIRE 180 COMPLETE (SKU: 141E34-5)
  • Position 109 – BALL BEARING 6001DDW (SKU: 210216-1)
  • Position 110 – FRONT SHAFT (SKU: 162C48-9)
  • Position 111 – PLATE (SKU: 347869-4)
  • Position 112 – TAPPING SCREW 4X20 (SKU: 266424-2)
  • Position 113 – UNDER COVER (SKU: 413R70-2)
  • Position 114 – TAPPING SCREW 4X20 (SKU: 266424-2)
  • Position 115 – SPONGE (SKU: 422A35-1)
  • Position 116 – TERMINAL HOUSING SET (SKU: 183X12-3)
  • Position 117 – TERMINAL UNIT (SKU: 632T08-2)
  • Position 118 – PAN HEAD SCREW M3X6 (SKU: 652031-1)
  • Position 119 – TAPPING SCREW 4X20 (SKU: 266424-2)
  • Position 120 – TERMINAL HOUSING SET (SKU: 183X12-3)
  • Position 121 – TAPPING SCREW 4X20 (SKU: 266424-2)
  • Position 122 – TAPPING SCREW 4X20 (SKU: 266424-2)
  • Position 123 – STRAIN RELIEF (SKU: 687123-7)
  • Position 124 – STRAIN RELIEF (SKU: 687051-6)
  • Position 125 – TAPPING SCREW 4X20 (SKU: 266424-2)
  • Position 126 – PLATE (SKU: 347B46-0)
  • Position 127 – H.S.H.BOLT M8X12 WITH WR (SKU: 922413-4)
  • Position 128 – H.S.H.BOLT M8X25 WITH WR (SKU: 922443-5)
  • Position 129 – HANDLE BRACKET (SKU: 347B42-8)
  • Position 130 – DECK (SKU: 413R65-5)
  • Position 131 – HANDLE BRACKET R (SKU: 347B41-0)
  • Position 132 – H.S.H.BOLT M8X12 WITH WR (SKU: 922413-4)
  • Position 133 – H.S.H.BOLT M8X25 WITH WR (SKU: 922443-5)
  • Position 134 – CONTROLLER ASS'Y (SKU: 539269-4)
  • Position 135 – UV001G NAME PLATE (SKU: 8141G7-3)
  • Position 136 – UV001G SERIAL NO. LABEL (SKU: 8141G9-9)
