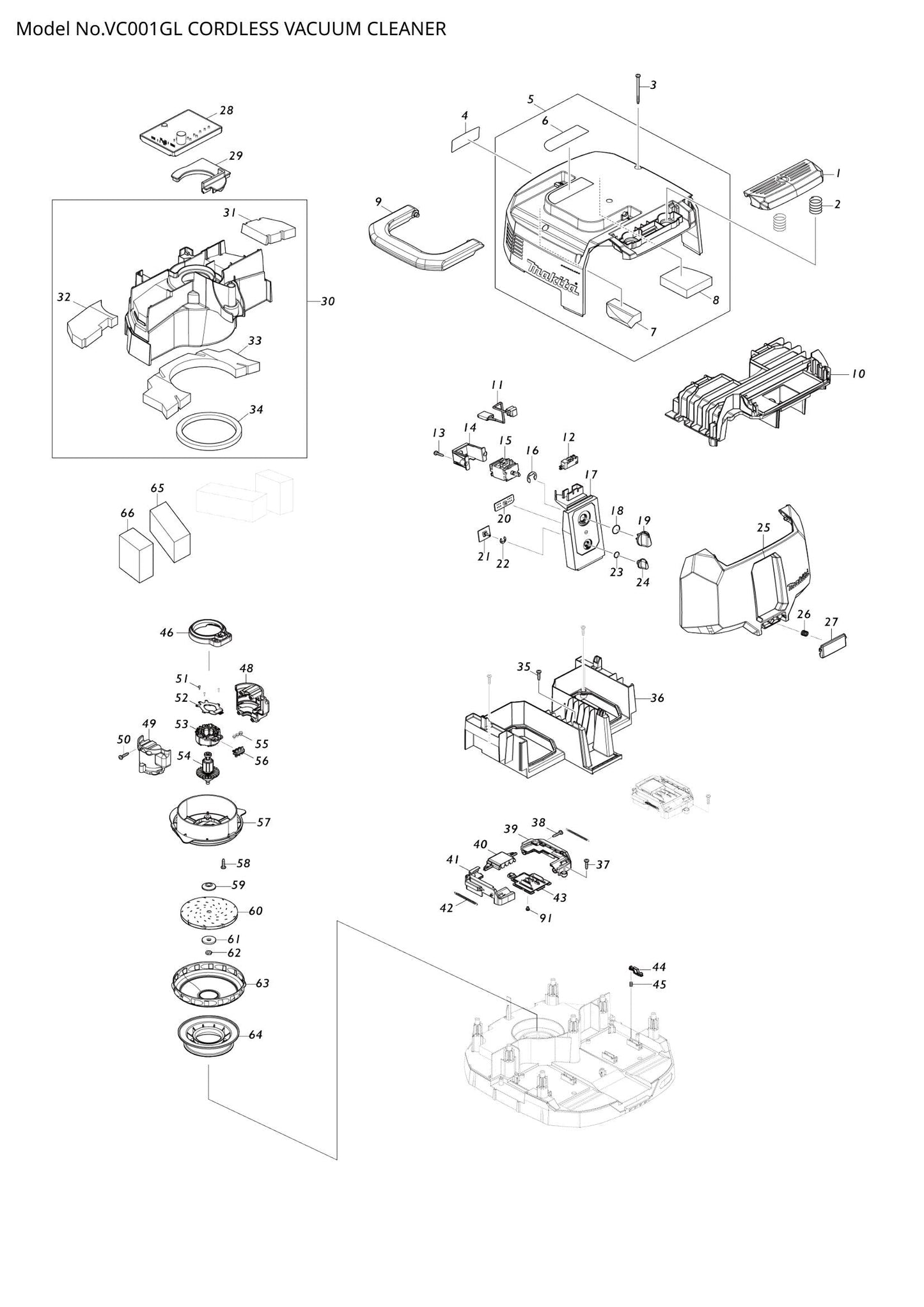

• VC001GL exploded view

Exploded View – VC001GL

Exploded View – VC001GL

Price: €0,00
List Price:
Price: €0,00
View Cart
  • Position 001 – SWITCH BUTTON (SKU: 413B26-9)
  • Position 002 – COMPRESSION SPRING 20 (SKU: 234273-5)
  • Position 003 – TAPPING SCREW 4X65 (SKU: 266340-8)
  • Position 004 – VC001GL NAME PLATE (SKU: 8112J1-3)
  • Position 005 – COWLING COMPLETE (SKU: 141F78-1)
  • Position 006 – CAUTION LABEL (SKU: 813A18-6)
  • Position 007 – TOP DAMPER A (SKU: 422796-7)
  • Position 008 – TOP DAMPER B (SKU: 422797-5)
  • Position 009 – GRIP (SKU: 413B27-7)
  • Position 010 – UPPER HOUSING (SKU: 413B33-2)
  • Position 011 – LEAD UNIT (SKU: 638A20-6)
  • Position 012 – SWITCH D2VW-01-3HS (SKU: 651910-0)
  • Position 013 – TAPPING SCREW 4X18 (SKU: 266326-2)
  • Position 014 – SWITCH HOLDER (SKU: 451343-7)
  • Position 015 – SWITCH 1703.4002 (SKU: 650013-7)
  • Position 016 – STOP RING E-12 (SKU: 961062-2)
  • Position 017 – SWITCH BASE COMPLETE (SKU: 141F75-7)
  • Position 018 – O RING 14 (SKU: 213176-6)
  • Position 019 – SWITCH LEVER (SKU: 455733-6)
  • Position 020 – INDICATION CIRCUIT (SKU: 620F40-4)
  • Position 021 – SUB CONTROLLER (SKU: 620D39-7)
  • Position 022 – STOP RING E-7 (SKU: 961013-5)
  • Position 023 – O RING 9 (SKU: 213054-0)
  • Position 024 – SWITCH DIAL (SKU: 451344-5)
  • Position 025 – BATTERY COVER (SKU: 413B28-5)
  • Position 026 – COMPRESSION SPRING 7 (SKU: 231456-8)
  • Position 027 – BATTERY COVER HOOK (SKU: 413B30-8)
  • Position 028 – CONTROLLER (SKU: 620F37-3)
  • Position 029 – RUBBER CAP (SKU: 422795-9)
  • Position 030 – SEPARATOR COMPLETE (SKU: 141F84-6)
  • Position 031 – BAND DUMPER E (SKU: 422802-8)
  • Position 032 – BAND DUMPER D (SKU: 422801-0)
  • Position 033 – BAND DUMPER B (SKU: 422799-1)
  • Position 034 – SEAL A (SKU: 422804-4)
  • Position 035 – TAPPING SCREW 4X18 (SKU: 266326-2)
  • Position 036 – LOWER HOUSING (SKU: 413B31-6)
  • Position 037 – TAPPING SCREW 4X18 (SKU: 266326-2)
  • Position 038 – TAPPING SCREW 4X18 (SKU: 266326-2)
  • Position 039 – TERMINAL CASE SET (SKU: 183U06-0)
  • Position 040 – TERMINAL COVER (SKU: 413B40-5)
  • Position 041 – TERMINAL CASE SET (SKU: 183U06-0)
  • Position 042 – TENSION SPRING 4 (SKU: 232722-6)
  • Position 043 – TERMINAL UNIT (SKU: 632T08-2)
  • Position 044 – LOCK LEVER (SKU: 413B41-3)
  • Position 045 – COMPRESSION SPRING 2 (SKU: 232472-3)
  • Position 046 – RUBBER RING (SKU: 422794-1)
  • Position 048 – MOTOR HOUSING SET (SKU: 183U05-2)
  • Position 049 – MOTOR HOUSING SET (SKU: 183U05-2)
  • Position 050 – TAPPING SCREW 4X18 (SKU: 266326-2)
  • Position 051 – TAPPING SCREW PT 2X6 (SKU: 266490-9)
  • Position 052 – CONTROLLER B (SKU: 620F39-9)
  • Position 053 – STATOR (SKU: 629A83-3)
  • Position 054 – ROTOR (SKU: 619704-9)
  • Position 055 – FLAT HEAD SCREW M3X6 (SKU: 652069-6)
  • Position 056 – LEAD UNIT (SKU: 632S88-2)
  • Position 057 – FAN BASE (SKU: 413B45-5)
  • Position 058 – TAPPING SCREW 4X18 (SKU: 266326-2)
  • Position 059 – FLANGE (SKU: 313062-2)
  • Position 060 – FAN 104 (SKU: 240178-9)
  • Position 061 – FLAT WASHER 8 (SKU: 253752-4)
  • Position 062 – HEX. NUT M6 (SKU: 252268-6)
  • Position 063 – FAN COVER (SKU: 347171-5)
  • Position 064 – SUPPORT RING (SKU: 422793-3)
  • Position 065 – REAR BLOCK FILTER A (SKU: 422803-6)
  • Position 066 – REAR BLOCK FILTER B (SKU: 422819-1)
  • Position 067 – TANK COVER COMPLETE (SKU: 141F83-8)
  • Position 068 – XGT LOGO LABEL (SKU: 8030S0-0)
  • Position 069 – TAPPING SCREW 4X18 (SKU: 266326-2)
  • Position 070 – HOOK COMPLETE (SKU: 162A10-2)
  • Position 071 – SEAL RING (SKU: 422805-2)
  • Position 072 – LOWER TANK COVER (SKU: 413B22-7)
  • Position 073 – TAPPING SCREW 4X25 (SKU: 266374-1)
  • Position 074 – FLOAT COMPLETE (SKU: 144627-7)
  • Position 075 – FLOAT CAGE (SKU: 457845-1)
  • Position 076 – TAPPING SCREW 4X25 (SKU: 266374-1)
  • Position 077 – CLOTH FILTER COMPLETE (SKU: 144625-1)
  • Position 078 – TAPPING SCREW 4X25 (SKU: 266374-1)
  • Position 079 – HOLDER PLATE (SKU: 457853-2)
  • Position 080 – HOLDER (SKU: 457852-4)
  • Position 081 – CORD SEAL (SKU: 421468-1)
  • Position 082 – TANK (SKU: 457854-0)
  • Position 083 – O RING 56 (SKU: 213655-4)
  • Position 084 – INLET (SKU: 457851-6)
  • Position 085 – BUMPER (SKU: 422176-7)
  • Position 086 – CASTER 50 (SKU: 168535-8)
  • Position 087 – CASTER 50 (SKU: 168434-4)
  • Position 088 – EARTH LINE 120 (SKU: 649150-2)
  • Position 091 – PAN HEAD SCREW M3X6 (SKU: 652031-1)
