• VC3211M exploded view

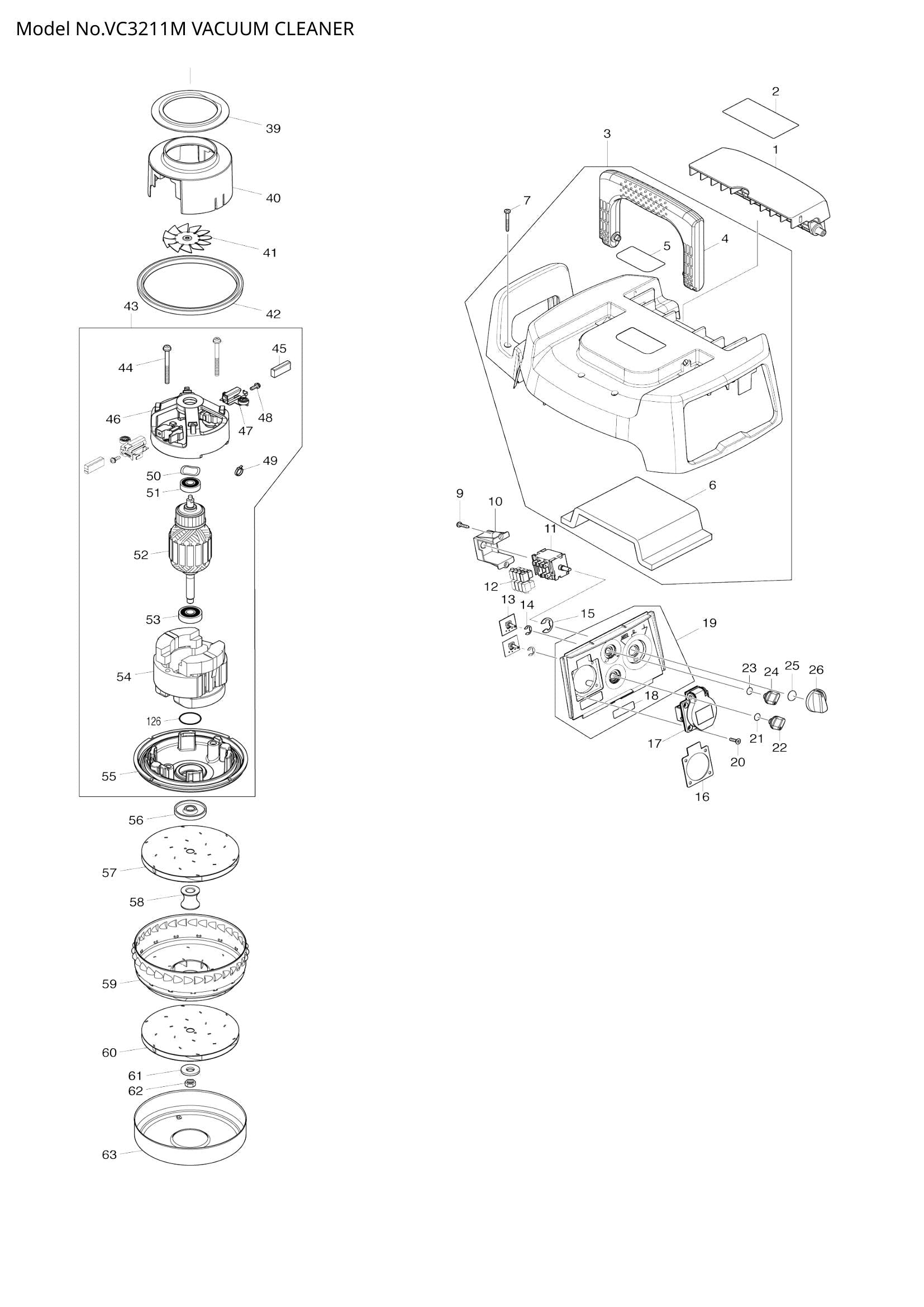

Exploded View – VC3211M

Exploded View – VC3211M

Price: €0,00
List Price:
Price: €0,00
View Cart
  • Position 001 – BASE HOOK (SKU: 452451-7)
  • Position 002 – CAUTION LABEL (SKU: 800W80-2)
  • Position 003 – COWLING COMPLETE (SKU: 141915-3)
  • Position 004 – GRIP (SKU: 451340-3)
  • Position 005 – CAUTION LABEL (SKU: 891977-8)
  • Position 006 – TOP DAMPER (SKU: 423456-4)
  • Position 007 – TAPPING SCREW 4X35 (SKU: 266053-1)
  • Position 009 – TAPPING SCREW 4X18 (SKU: 265995-6)
  • Position 010 – SWITCH HOLDER (SKU: 451343-7)
  • Position 011 – SWITCH (SKU: 650659-9)
  • Position 012 – RECEPTACLE SLEEVE (SKU: 686023-8)
  • Position 013 – SUB CONTROLLER (SKU: 620185-2)
  • Position 014 – STOP RING E-7 (SKU: 961013-5)
  • Position 015 – STOP RING E-12 (SKU: 961062-2)
  • Position 016 – RUBBER SHEET (SKU: 685740-7)
  • Position 017 – OUTLET (SKU: 655123-5)
  • Position 020 – +COUNTERSUNK TAPPING SCRE (SKU: 266630-9)
  • Position 021 – O RING 9 (SKU: 213054-0)
  • Position 022 – SWITCH DIAL (SKU: 451344-5)
  • Position 023 – O RING 9 (SKU: 213054-0)
  • Position 024 – SWITCH DIAL (SKU: 451344-5)
  • Position 025 – O RING 14 (SKU: 213176-6)
  • Position 026 – SWITCH LEVER (SKU: 451342-9)
  • Position 027 – REAR BLOCK FILTER (SKU: 423450-6)
  • Position 029 – POWER SUPPLY CORD 1.5-3-5.0 (SKU: 695350-2)
  • Position 030 – TAPPING SCREW 4X25 (SKU: 265999-8)
  • Position 031 – STRAIN RELIEF (SKU: 687149-9)
  • Position 034 – BUZZER CIRCUIT (SKU: 620186-0)
  • Position 035 – TAPPING SCREW 4X35 (SKU: 266053-1)
  • Position 036 – CORD GUARD 12-90 (SKU: 682575-7)
  • Position 037 – SEPARATOR COMPLETE (SKU: 141917-9)
  • Position 038 – DC MOTOR SEAL (SKU: 423462-9)
  • Position 039 – SEAL RING 70 (SKU: 423279-0)
  • Position 040 – MOTOR COVER (SKU: 451338-0)
  • Position 041 – FAN 62 (SKU: 241512-6)
  • Position 042 – RUBBER RING 120 (SKU: 424228-0)
  • Position 043 – MOTOR ASSEMBLY (SKU: 125876-5)
  • Position 044 – PAN HEAD SCREW M5X60 (SKU: 911283-6)
  • Position 046 – ENDBELL (SKU: 452106-4)
  • Position 047 – BRUSH HOLDER 6.5X13.5 (SKU: 643610-6)
  • Position 048 – PAN HEAD SCREW M4X12 (SKU: 911118-1)
  • Position 049 – BAND (SKU: 687010-0)
  • Position 050 – WAVE WASHER 20 (SKU: 267715-4)
  • Position 051 – BALL BEARING 629DDW (SKU: 211092-6)
  • Position 052 – ARMATURE ASS'Y 240V (SKU: 517849-6)
  • Position 053 – BALL BEARING 6200DDW (SKU: 211087-9)
  • Position 054 – FIELD ASS'Y 240V (SKU: 526204-1)
  • Position 055 – BASE (SKU: 454480-6)
  • Position 056 – FLANGE (SKU: 316795-8)
  • Position 057 – FAN 125 (SKU: 241910-4)
  • Position 058 – SPACER (SKU: 325747-8)
  • Position 059 – RETURN VANE (SKU: 346114-4)
  • Position 060 – FAN 125 (SKU: 241910-4)
  • Position 061 – FLAT WASHER 10 (SKU: 316799-0)
  • Position 062 – HEX. NUT M8 (SKU: 931403-6)
  • Position 063 – FAN COVER (SKU: 346115-2)
  • Position 064 – SUPPORT RING (SKU: 424229-8)
  • Position 065 – BAND DAMPER (SKU: 423451-4)
  • Position 066 – VYNIL TUBE (SKU: 684900-8)
  • Position 067 – CORD SEAL (SKU: 421468-1)
  • Position 068 – TANK COVER COMPLETE (SKU: 141916-1)
  • Position 069 – VALVE SEAL (SKU: 423455-6)
  • Position 070 – VC3211M NAME PLATE (SKU: 814D82-8)
  • Position 071 – TAPPING SCREW 4X35 (SKU: 266053-1)
  • Position 072 – DC MOTOR (SKU: 629981-5)
  • Position 073 – GEAR CASE (SKU: 454207-4)
  • Position 074 – PAN HEAD SCREW M3X6 (SKU: 911003-8)
  • Position 075 – FLAT WASHER 12 (SKU: 267067-3)
  • Position 076 – SPUR GEAR 15 (SKU: 226283-6)
  • Position 077 – SPUR GEAR 9 COMPLETE (SKU: 153228-0)
  • Position 078 – SPUR GEAR 15 (SKU: 226284-4)
  • Position 079 – INTERNAL GEAR 42 (SKU: 226285-2)
  • Position 081 – BALL BEARING 6805LLB (SKU: 211375-4)
  • Position 082 – FLAT WASHER 34 (SKU: 267464-3)
  • Position 083 – SPINDLE ASSEMBLY (SKU: 135554-9)
  • Position 084 – RUBBER RING (SKU: 424543-2)
  • Position 085 – SEAL RING (SKU: 424544-0)
  • Position 086 – RETAINING RING S-20 (SKU: 961060-6)
  • Position 087 – FLAT WASHER 20 (SKU: 267041-1)
  • Position 088 – O RING 20 (SKU: 213304-3)
  • Position 089 – CAM (SKU: 454208-2)
  • Position 090 – OUTER VALVE COMPLETE (SKU: 141919-5)
  • Position 091 – INNER VALVE COMPLETE (SKU: 141918-7)
  • Position 092 – LEAD UNIT (SKU: 632A68-0)
  • Position 093 – INNER COVER (SKU: 454204-0)
  • Position 094 – TAPPING SCREW 4X35 (SKU: 266053-1)
  • Position 095 – PROTECTOR (SKU: 454209-0)
  • Position 096 – TAPPING SCREW 4X35 (SKU: 266053-1)
  • Position 097 – COMPRESSION SPRING 20 (SKU: 234273-5)
  • Position 098 – LOCK PLATE (SKU: 454215-5)
  • Position 099 – LOCK LEVER (SKU: 454214-7)
  • Position 100 – PIN 4 (SKU: 268292-9)
  • Position 101 – TAPPING SCREW 4X28 (SKU: 266257-5)
  • Position 102 – HOLDER PLATE (SKU: 417587-9)
  • Position 103 – HOLDER (SKU: 451455-6)
  • Position 104 – TAPPING SCREW 4X14 (SKU: 266192-7)
  • Position 105 – TAPPING SCREW 4X14 (SKU: 266192-7)
  • Position 106 – HOOK (SKU: 168537-4)
  • Position 107 – HOOK SUPPORTER (SKU: 451545-5)
  • Position 109 – RUBBER RING T (SKU: 424346-4)
  • Position 110 – PAN HEAD SCREW M4X12 (SKU: 911118-1)
  • Position 111 – INLET COVER (SKU: 451546-3)
  • Position 112 – O RING 56 (SKU: 213655-4)
  • Position 113 – INLET (SKU: 451454-8)
  • Position 114 – PAN HEAD SCREW M4X6 (SKU: 911103-4)
  • Position 115 – EARTH LINE 120 (SKU: 649150-2)
  • Position 116 – BUMPER (SKU: 424270-1)
  • Position 117 – WHEEL CAP (SKU: 451643-5)
  • Position 118 – RETAINING RING S-20 (SKU: 961060-6)
  • Position 119 – FLAT WASHER 20 (SKU: 267299-2)
  • Position 120 – CASTER 170 (SKU: 451642-7)
  • Position 121 – JOINT PIPE 20-350 (SKU: 331888-0)
  • Position 122 – CASTER 75 (SKU: 168547-1)
  • Position 123 – POWDER FILTER M COMPLETE (SKU: 141875-9)
  • Position 124 – DAMPER (SKU: 423452-2)
  • Position 125 – PRE-FILTER SET (SKU: 196253-8)
  • Position 126 – O RING 30 (SKU: 213406-5)
