• VC4210M exploded view

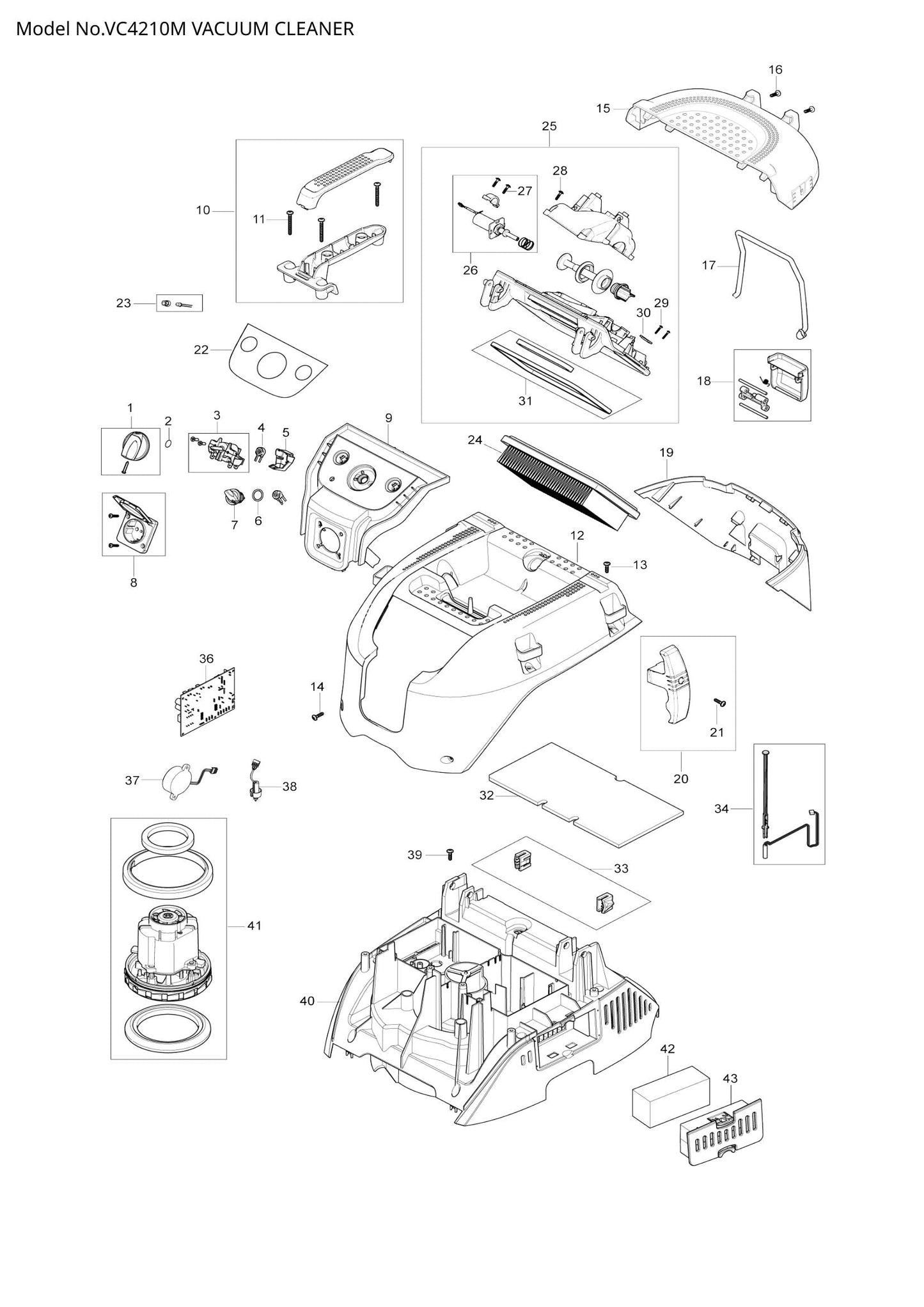

Exploded View – VC4210M

Exploded View – VC4210M

Price: €0,00
List Price:
Price: €0,00
View Cart
  • Position 001 – SWITCH KNOB MAKITA BLUE (SKU: W909100222)
  • Position 002 – O-RING 10x2.5 NBR70 (SKU: W9868)
  • Position 003 – ROTARY SWITCH 5POS. 16A (SKU: W107415085)
  • Position 004 – POTENTIOMETER (SKU: W107415024)
  • Position 005 – CAP FOR POTENTIOMETER (SKU: W107415080)
  • Position 008 – SOCKET *EU* - CEE7/4 (SKU: W302004034)
  • Position 009 – CONTROL PANEL VC4210M (SKU: W107418671)
  • Position 010 – HANDLE KIT (SKU: W107418217)
  • Position 011 – SCREW K50X45 (SKU: W128500203)
  • Position 012 – MAKITA TOP COVER (SKU: W107418665)
  • Position 013 – SCREW 5X18 TX20 (SKU: W302004029)
  • Position 014 – SCREW 5X18 TX20 (SKU: W302004029)
  • Position 015 – UPPER COVER (SKU: W107418666)
  • Position 016 – SCREW 5X18 TX20 (SKU: W302004029)
  • Position 017 – CORD STRAP FOR CABLE (SKU: W107415035)
  • Position 018 – HATCH DOOR CLAMP (SKU: W107415032)
  • Position 020 – HOSE/CABLE HOOK (SKU: W107415083)
  • Position 021 – SCREW 5X18 TX20 (SKU: W302004029)
  • Position 022 – CONTROL PANEL LABEL VC4210 (SKU: W107418672)
  • Position 023 – LED AIR CONTROL KIT 2PCS (SKU: W107415087)
  • Position 024 – MAKITA FLAT FILTER (SKU: W107413540)
  • Position 025 – FILTER RETAINER ASSY 220-240V (SKU: W107415027)
  • Position 026 – SOLENOID KIT 220-240V (SKU: W107415031)
  • Position 027 – SCREW 5X18 TX20 (SKU: W302004029)
  • Position 028 – SCREW 5X18 TX20 (SKU: W302004029)
  • Position 029 – SCREW 3,5X18 TX10 (SKU: W302004032)
  • Position 030 – STRAP 3X8X33 (SKU: W5697)
  • Position 031 – HATCH DOOR FILTER GASKET (SKU: W107415090)
  • Position 032 – FOAM SEALING 298X148 (SKU: W107417101)
  • Position 033 – HINGE SNAP 2PCS. (SKU: W107415075)
  • Position 034 – REED SENSOR (SKU: W107415060)
  • Position 036 – PCBA AUTO ON/OFF 220-240V (SKU: W107417103)
  • Position 037 – BUZZER KIT VC4210M (SKU: W107416958)
  • Position 038 – FLOW SENSOR (SKU: W107416952)
  • Position 039 – SCREW 5X18 TX20 (SKU: W302004029)
  • Position 040 – AIRGUIDE (SKU: W107418670)
  • Position 041 – MOTOR 220-240V (SKU: W107415055)
  • Position 042 – DIFFUSOR (SKU: W107415096)
  • Position 044 – SOUND ABSORBER 83X55X35 (SKU: W107417112)
  • Position 045 – SCREW 3,5X18 TX10 (SKU: W302004032)
  • Position 046 – STRAP FOR CORD (SKU: W302004030)
  • Position 047 – TERMINAL STRIP 6-POL 16A (SKU: W302004031)
  • Position 048 – CONTAINER CLAMP (SKU: W107415053)
  • Position 049 – POWER CORD EU (SKU: W107400573)
  • Position 050 – CONTACT SPRING W.WIRE (SKU: W107417113)
  • Position 051 – FLOATER WITH MAGNET (SKU: W107415063)
  • Position 052 – AIR FLOW COVER KIT (SKU: W107415061)
  • Position 053 – PT-SCREW K50X18 T20 (SKU: W1814614)
  • Position 054 – BASE PLATE ASSEMBLY (SKU: W107415074)
  • Position 055 – CONTAINER SEALING (SKU: W107415050)
  • Position 057 – HANDLE INNNER (SKU: W107417124)
  • Position 058 – SCREW 5X18 TX20 (SKU: W302004029)
  • Position 059 – LABEL >DUST CLASS M< (SKU: W302004201)
  • Position 060 – CASTOR WHEEL D100 W.BRAKE 2 (SKU: W107417573)
  • Position 061 – SCREW K50X35 T20 (SKU: W107417864)
  • Position 062 – WHEEL AXLE (SKU: W302004022)
  • Position 063 – WHEEL D175 (SKU: W107417121)
  • Position 064 – CLAMPING RING FOR WHEEL (SKU: W47302)
  • Position 065 – WHEEL CAP D145 (SKU: W107418043)
  • Position 066 – MAKITA CLEANING SET (SKU: W107418349)
  • Position 067 – MAKITA EXTENSION TUBES (SKU: W107418350)
  • Position 068 – FLOOR NOZZLE D36X300 WET/D (SKU: P-81789)
  • Position 069 – CREVICE NOZZLE 35x300 (SKU: W6084)
  • Position 070 – CURVED HAND TUBE INOX (SKU: P-70346)
  • Position 071 – PTFE FLAT FILTER VC4210L/M (SKU: W107418351)
  • Position 072 – MOTOR COOLING FILTER PET (SKU: W107418352)
  • Position 073 – TOOL ADAPTER 27 QUICKSYSTE (SKU: P-70378)
  • Position 074 – EXHAUST AIR ADAPTER (SKU: W107418358)
  • Position 075 – FLEECE FILTER BAGS VC4210L/M (SKU: W107418353)
  • Position 076 – LONG-LIFE FILTER BAG (SKU: W107418354)
  • Position 077 – DISPOSAL BAGS (SKU: W107418355)
  • Position 078 – MAK PAC HOLDER (SKU: W107418357)
  • Position 080 – METAL HANDLE (SKU: W107418356)
  • Position 081 – TOOL ADAPTER 38 (SKU: W107418688)
  • Position 082 – HOSE CONNECTOR CLICK SYSTE (SKU: W107417866)
