• VR003C exploded view

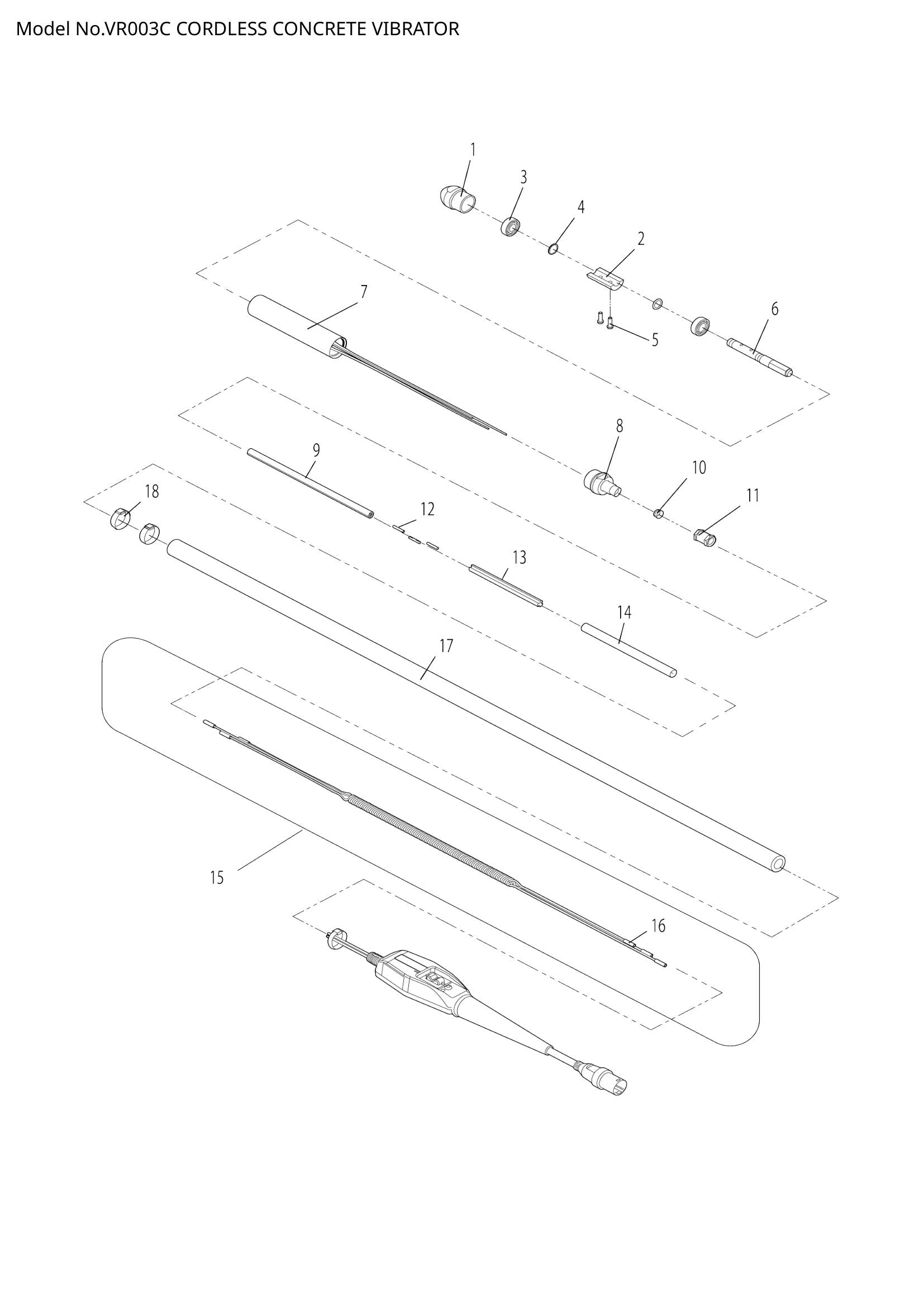

Exploded View – VR003C

Exploded View – VR003C

Price: €0,00
List Price:
Price: €0,00
View Cart
  • Position 001 – VIBRATOR CAP (SKU: HA00000364)
  • Position 002 – ECCENTRIC WEIGHT (SKU: HA00000365)
  • Position 003 – BEARING 6302JR2LLHC3 (SKU: HA00000366)
  • Position 004 – WASHER M15.5X22 (SKU: HA00000313)
  • Position 005 – H.S.H. BUTTON BOLT M6X25 (SKU: HA00000367)
  • Position 006 – ROTOR (SKU: HA00000368)
  • Position 007 – MOTOR ASSEMBLY (SKU: HA00000369)
  • Position 008 – HOSE JOINT (SKU: HA00000370)
  • Position 009 – TUBE R6.5X3.5-300 (SKU: HA00000318)
  • Position 010 – RUBBER RING M13X17 (SKU: HA00000319)
  • Position 011 – HOSE ADAPTER (SKU: HA00000320)
  • Position 012 – HEAT-SHRINK TUBING R1/8X30 (SKU: HA00000321)
  • Position 013 – INTERNAL CABLE GUIDE (SKU: HA00000322)
  • Position 014 – HEAT-SHRINK TUBING 15X220 (SKU: HA00000323)
  • Position 015 – INTERNAL CABLE ASSEMBLY(1.5 (SKU: HA00000324)
  • Position 016 – BUTT CRIMP CONNECTOR (SKU: HA00000325)
  • Position 017 – HOSE M20X33X1.5M (SKU: HA00000326)
  • Position 018 – HOSE CLAMP M38 W10 (SKU: HA00000327)
  • Position 019 – INVERTER CASE (SKU: HA00000328)
  • Position 021 – CIRCUIT BOARD LED (SKU: HA00000330)
  • Position 022 – PAN HEAD SCREW M3X6 (SKU: HA00000331)
  • Position 023 – SWITCH (SKU: HA00000332)
  • Position 024 – SWITCH COVER (SKU: HA00000333)
  • Position 025 – SWITCH PLATE (SKU: HA00000334)
  • Position 026 – PAN HEAD SCREW M3X12 (SKU: HA00000335)
  • Position 027 – CIRCUIT BOARD ASSEMBLY (SKU: HA00000336)
  • Position 028 – FUSE (SKU: HA00000337)
  • Position 029 – HEX BOLT M5X12 (SKU: HA00000338)
  • Position 030 – SPRING WASHER 5 (SKU: HA00000079)
  • Position 031 – LOCK NUT M5 (SKU: HA00000339)
  • Position 032 – RING TERMINAL (SKU: HA00000340)
  • Position 033 – INSULATION SHEET B (SKU: HA00000341)
  • Position 034 – CABLE STOPPER (SKU: HA00000342)
  • Position 035 – HARNESS BOARD (SKU: HA00000343)
  • Position 036 – CABLE ASS'Y (SKU: HA00000344)
  • Position 037 – CORD CLAMP (SKU: HA00000346)
  • Position 038 – PAN HEAD SCREW M4X10 (SKU: HA00000347)
  • Position 039 – CLOSED END CONNECTOR CE-8 (SKU: HA00000348)
  • Position 040 – CABLE TIES (SKU: HA00000349)
  • Position 041 – INSULATION SHEET (SKU: HA00000350)
  • Position 042 – RUBBER RING M15X22X16 (SKU: HA00000351)
  • Position 043 – WASHER M15.5X22 (SKU: HA00000313)
  • Position 044 – COMPRESSION NUT M15.5 (SKU: HA00000352)
  • Position 045 – CORD GUARD (SKU: HA00000353)
  • Position 046 – INVERTER COVER (SKU: HA00000354)
  • Position 048 – HEX BOLT M5X20 (SKU: HA00000356)
  • Position 049 – CLAMPING RING (SKU: HA00000357)
  • Position 050 – LABEL WARNING MANUAL (SKU: HA00000358)
  • Position 051 – LABEL MAKITA (SKU: HA00000359)
  • Position 053 – CLOSED END CONNECTOR CE-1 (SKU: HA00000345)
  • Position 054 – LED LENS COVER SEAL (SKU: HA00000380)
  • Position 055 – SEAL WASHER M3 (SKU: HA00000381)
