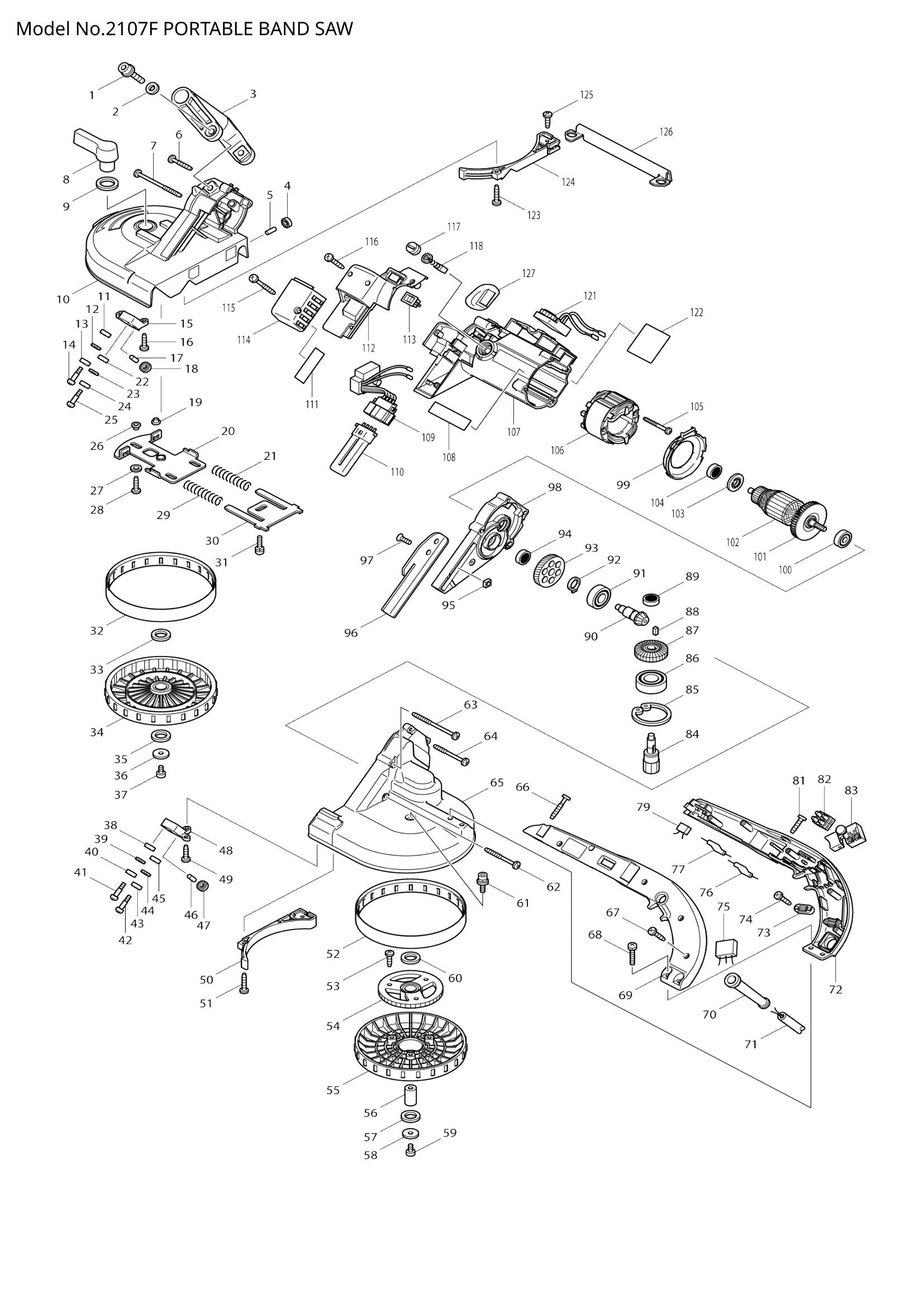

Exploded View – 2107F

Name: Exploded View – 2107F
Brand: Makita
Availability: InStock

Makita

Price:

€0,00

Quantity:

Share this product

Position 003 – GRIP (SKU: 273614-0)
Position 006 – TAPPING SCREW 4X25 (SKU: 265999-8)
Position 007 – TAPPING SCREW 4X55 (SKU: 266147-2)
Position 008 – LEVER 60 (SKU: 272223-2)
Position 009 – FLAT WASHER 20 (SKU: 267041-1)
Position 011 – BALL BEARING 696ZZ (SKU: 210033-9)
Position 012 – FLAT WASHER 6 (SKU: 941152-7)
Position 013 – BALL BEARING 696ZZ (SKU: 210033-9)
Position 014 – + PAN HEAD SCREW M5 (SKU: 251337-0)
Position 015 – UPPER HOLDER (SKU: 317824-0)
Position 016 – TAPPING SCREW CT 4X16 (SKU: 266034-5)
Position 017 – PIN 6 (SKU: 256033-5)
Position 018 – BALL BEARING 696ZZ (SKU: 210033-9)
Position 019 – SLEEVE 5 (SKU: 343494-9)
Position 020 – SLIDE PLATE (SKU: 163276-1)
Position 021 – COMPRESSION SPRING 11 (SKU: 231449-5)
Position 022 – BALL BEARING 696ZZ (SKU: 210033-9)
Position 023 – FLAT WASHER 6 (SKU: 941152-7)
Position 024 – BALL BEARING 696ZZ (SKU: 210033-9)
Position 025 – + PAN HEAD SCREW M5 (SKU: 251337-0)
Position 026 – SLEEVE 5 (SKU: 343494-9)
Position 027 – FLAT WASHER 4 (SKU: 941051-3)
Position 028 – TAPPING SCREW CT 4X16 (SKU: 266034-5)
Position 029 – COMPRESSION SPRING 11 (SKU: 231449-5)
Position 030 – TENSION PLATE (SKU: 343489-2)
Position 031 – PAN HEAD SCREW M5X16 (SKU: 911221-8)
Position 032 – RUBBER TIRE (SKU: 421333-4)
Position 033 – FLAT WASHER 16 (SKU: 253749-3)
Position 035 – FLAT WASHER 16 (SKU: 253749-3)
Position 036 – FLAT WASHER 6 (SKU: 253010-8)
Position 037 – HEX. SOCKET HEAD BOLT M6X12 (SKU: 922312-0)
Position 038 – BALL BEARING 696ZZ (SKU: 210033-9)
Position 039 – FLAT WASHER 6 (SKU: 941152-7)
Position 040 – BALL BEARING 696ZZ (SKU: 210033-9)
Position 041 – + PAN HEAD SCREW M5 (SKU: 251337-0)
Position 042 – + PAN HEAD SCREW M5 (SKU: 251337-0)
Position 043 – BALL BEARING 696ZZ (SKU: 210033-9)
Position 044 – FLAT WASHER 6 (SKU: 941152-7)
Position 045 – BALL BEARING 696ZZ (SKU: 210033-9)
Position 046 – PIN 6 (SKU: 256033-5)
Position 047 – BALL BEARING 696ZZ (SKU: 210033-9)
Position 048 – LOWER HOLDER (SKU: 317823-2)
Position 049 – TAPPING SCREW CT 4X16 (SKU: 266034-5)
Position 050 – SAW GUARD HOLDER (SKU: 418784-0)
Position 051 – TAPPING SCREW BIND CT 4X20 (SKU: 266042-6)
Position 052 – RUBBER TIRE (SKU: 421333-4)
Position 053 – TAPPING SCREW 5X20 (SKU: 266021-4)
Position 056 – LOWER SHAFT (SKU: 324513-0)
Position 057 – FLAT WASHER 16 (SKU: 253749-3)
Position 058 – FLAT WASHER 6 (SKU: 253010-8)
Position 059 – HEX. SOCKET HEAD BOLT M6X12 (SKU: 922312-0)
Position 060 – FLAT WASHER 16 (SKU: 253749-3)
Position 061 – HEX.SOCKET HEAD BOLT M6X16 (SKU: 922323-5)
Position 062 – TAPPING SCREW BIND CT 4X40 (SKU: 266203-8)
Position 063 – TAPPING SCREW 4X55 (SKU: 266147-2)
Position 064 – TAPPING SCREW 4X40 (SKU: 266048-4)
Position 066 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 067 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 068 – PAN HEAD SCREW M5X25 (SKU: 911243-8)
Position 069 – HANDLE SET (SKU: 183869-8)
Position 070 – CORD GUARD 10 (SKU: 682573-1)
Position 071 – POWER SUPPLY CORD 1.0-2-2.5 (SKU: 665865-3)
Position 072 – HANDLE SET (SKU: 183869-8)
Position 073 – STRAIN RELIEF (SKU: 687052-4)
Position 074 – TAPPING SCREW 4X18 (SKU: 265995-6)
Position 075 – NOISE SUPPRESSOR (SKU: 645253-0)
Position 076 – CHOKE COIL (SKU: 646078-5)
Position 077 – CHOKE COIL (SKU: 646137-5)
Position 079 – NOISE SUPPRESSOR (SKU: 645006-7)
Position 081 – TAPPING SCREW BIND CT 4X20 (SKU: 266042-6)
Position 082 – TERMINAL BLOCK 2P (SKU: 654531-7)
Position 083 – SWITCH SGEL115CDY-6 (SKU: 651284-9)
Position 084 – SPUR GEAR 8 (SKU: 227139-6)
Position 085 – RETAINING RING R-47 (SKU: 962203-3)
Position 086 – BALL BEARING 6204LLB (SKU: 211306-3)
Position 087 – SPIRAL BEVEL GEAR 29 (SKU: 227470-0)
Position 088 – KEY 4 (SKU: 254202-2)
Position 090 – SPIRAL BEVEL GEAR 11 (SKU: 227481-5)
Position 092 – RETAINING RING S-15 (SKU: 961055-9)
Position 093 – HELICAL GEAR 64 (SKU: 226593-1)
Position 095 – SQUARE NUT M6 (SKU: 252157-5)
Position 096 – STOPPER PLATE (SKU: 345467-8)
Position 097 – HEX. SOCKET HEAD BOLT M6X16 (SKU: 251981-3)
Position 098 – GEAR HOUSING COMPLETE (SKU: 154475-6)
Position 099 – BAFFLE PLATE (SKU: 418785-8)
Position 101 – FAN 60 (SKU: 241850-6)
Position 103 – INSULATION WASHER (SKU: 681644-1)
Position 105 – TAPPING SCREW 5X45 (SKU: 266056-5)
Position 106 – FIELD 220-240V (SKU: 634518-5)
Position 109 – LIGHT CIRCUIT (SKU: 631641-7)
Position 111 – LENZ (SKU: 418850-3)
Position 112 – LAMP COVER (SKU: 418782-4)
Position 113 – SWITCH SLE6A (SKU: 651514-8)
Position 114 – LAMP BOX (SKU: 418783-2)
Position 115 – TAPPING SCREW 4X40 (SKU: 266048-4)
Position 116 – TAPPING SCREW 3X20 (SKU: 265935-4)
Position 121 – CONTROLLER (SKU: 631639-4)
Position 122 – NAME PLATE 2107F (SKU: 860922-4)
Position 123 – TAPPING SCREW BIND CT 4X20 (SKU: 266042-6)
Position 124 – SAW GUARD HOLDER (SKU: 418784-0)
Position 125 – TAPPING SCREW CT 4X16 (SKU: 266034-5)
Position 127 – CAP (SKU: 421885-5)

Exploded View – 2107F
