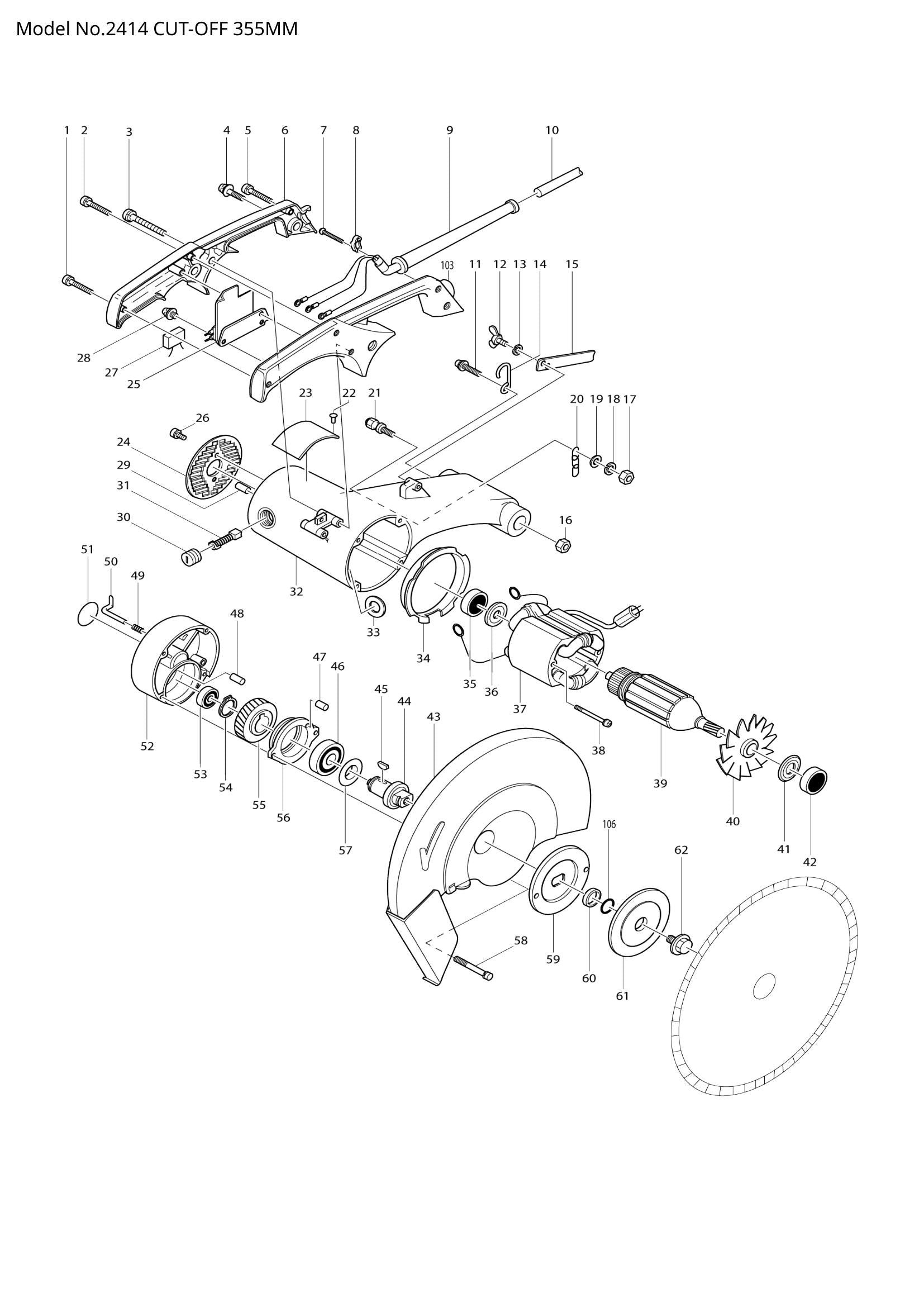

Exploded View – 2414

Name: Exploded View – 2414
Brand: Makita
Availability: InStock

Makita

Price:

€0,00

Quantity:

Share this product

Position 001 – PAN HEAD SCREW M4X25 (SKU: 911148-2)
Position 002 – PAN HEAD SCREW M4X25 (SKU: 911148-2)
Position 003 – PAN HEAD SCREW M5X50 (SKU: 911273-9)
Position 004 – PAN HEAD SCREW M5X30 (SKU: 911253-5)
Position 005 – PAN HEAD SCREW M4X25 (SKU: 911148-2)
Position 009 – CORD GUARD 12-200 (SKU: 682507-4)
Position 012 – HOOK (SKU: 322049-3)
Position 013 – WING BOLT M5X10 (SKU: 924206-5)
Position 014 – SPRING WASHER 5 (SKU: 942101-7)
Position 015 – STOPPER PLATE (SKU: 341395-5)
Position 017 – HEX. NUT M6 (SKU: 931302-2)
Position 018 – SPRING WASHER 6 (SKU: 942151-2)
Position 019 – FLAT WASHER 6 (SKU: 253011-6)
Position 024 – REAR COVER (SKU: 284010-7)
Position 026 – PAN HEAD SCREW M5X12 (SKU: 911211-1)
Position 028 – PAN HEAD SCREW M4X6 (SKU: 911103-4)
Position 029 – RUBBER PIN 4 (SKU: 263002-9)
Position 033 – INSULATION WASHER (SKU: 681002-1)
Position 034 – BAFFLE PLATE (SKU: 343299-7)
Position 035 – BALL BEARING 6200LLB (SKU: 211066-7)
Position 036 – DUST SEAL 10 (SKU: 213051-6)
Position 041 – DUST SEAL 15 (SKU: 213202-1)
Position 042 – BALL BEARING 6202LLB (SKU: 211206-7)
Position 044 – SPINDLE S (SKU: 325517-5)
Position 045 – WOODRUFF KEY 5 (SKU: 254032-1)
Position 046 – BALL BEARING 6204LLB (SKU: 211306-3)
Position 047 – RUBBER PIN 6 (SKU: 263005-3)
Position 048 – RUBBER PIN 4 (SKU: 263002-9)
Position 049 – COMPRESSION SPRING 7 (SKU: 231240-1)
Position 050 – STOPPER (SKU: 325518-3)
Position 053 – BALL BEARING 6000LLB (SKU: 211061-7)
Position 054 – RETAINING RING S-20 (SKU: 961060-6)
Position 055 – HELICAL GEAR 54 (SKU: 221628-3)
Position 056 – BEARING HOUSING (SKU: 157026-4)
Position 057 – FLAT WASHER 20 (SKU: 253755-8)
Position 058 – PAN HEAD SCREW M5X55 (SKU: 911276-3)
Position 059 – INNER FLANGE 120 (SKU: 224141-0)
Position 060 – RING 20 (SKU: 257054-0)
Position 061 – OUTER FLANGE 120 (SKU: 224142-8)
Position 062 – HEX. BOLT M10X25 (SKU: 251680-7)
Position 063 – FLAT WASHER 24 (SKU: 253751-6)
Position 064 – HEX. BOLT M8X40 (SKU: 251683-1)
Position 065 – SPRING WASHER 8 (SKU: 942201-3)
Position 066 – PIPE COVER (L) (SKU: 345141-8)
Position 067 – HEX. BOLT M8X40 (SKU: 251683-1)
Position 068 – SPRING WASHER 8 (SKU: 942201-3)
Position 069 – PIPE COVER (R) (SKU: 345142-6)
Position 070 – FLAT WASHER 24 (SKU: 253751-6)
Position 071 – PIPE 24 (SKU: 331087-4)
Position 072 – TORSION SPRING 26 (SKU: 231526-3)
Position 074 – HEX. BOLT M10X25 (SKU: 265201-9)
Position 076 – GUIDE PLATE (SKU: 345145-0)
Position 083 – BASE ASS'Y (SKU: 132385-7)
Position 085 – SPRING WASHER 8 (SKU: 942201-3)
Position 086 – FLAT WASHER 8 (SKU: 253752-4)
Position 088 – FLAT WASHER 6 (SKU: 253011-6)
Position 089 – PAN HEAD SCREW M6X14 (SKU: 911316-7)
Position 095 – PAN HEAD SCREW M8X30 (SKU: 911451-1)
Position 104 – VICE NUT (SKU: 322209-7)
Position 105 – MAKITA MARK (SKU: 819064-1)
Position 106 – O RING 16 (SKU: 213218-6)
Position 400 – SOCKET WRENCH 17 (SKU: 782210-8)

Exploded View – 2414

Description

Exploded View – 2414
