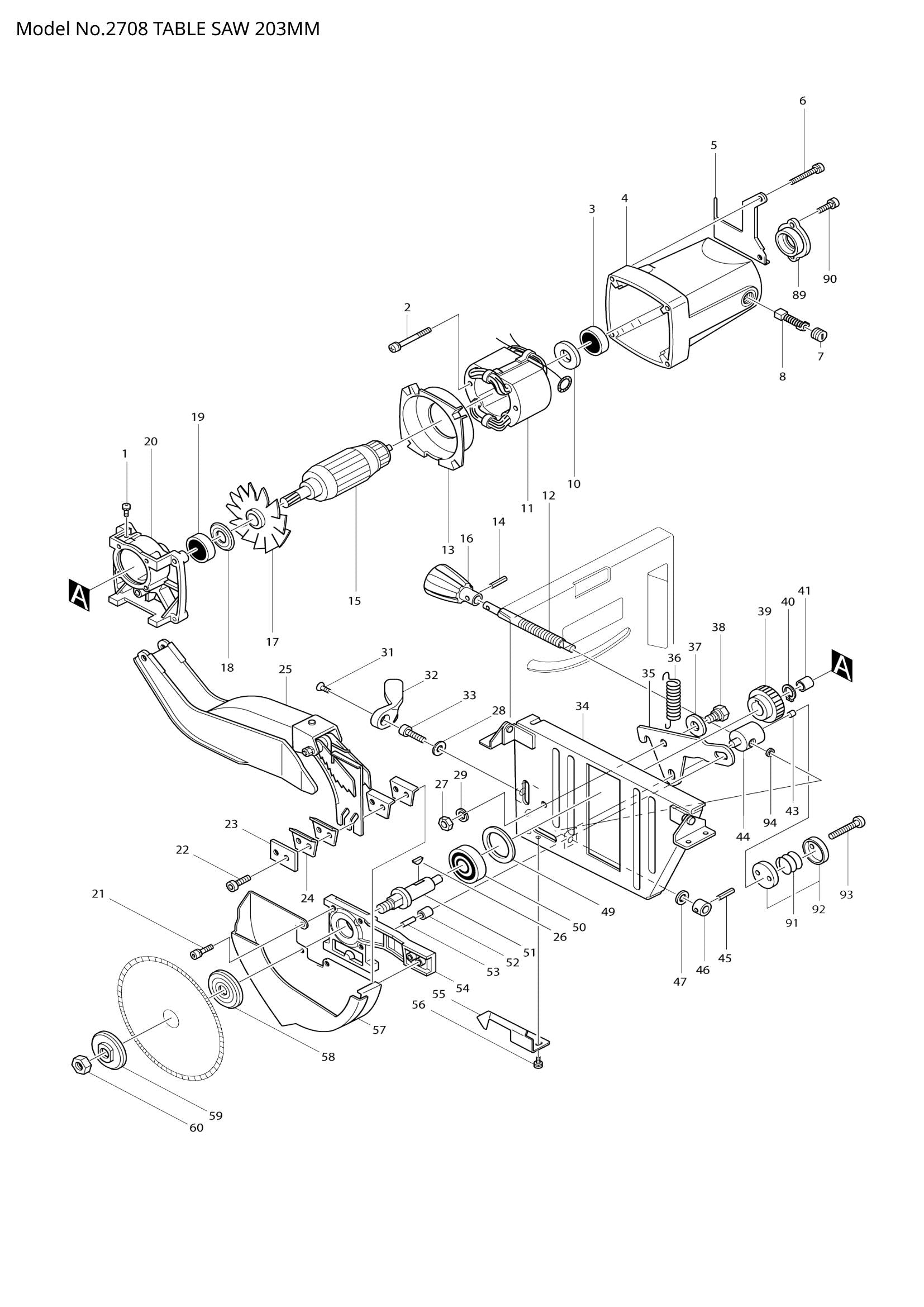

Exploded View – 2708

Name: Exploded View – 2708
Brand: Makita
Availability: InStock

Makita

Price:

€0,00

Quantity:

Share this product

Position 001 – PAN HEAD SCREW M4X8 (SKU: 652012-5)
Position 003 – BALL BEARING 6200LB (SKU: 211068-3)
Position 005 – POINTER B (SKU: 341887-4)
Position 006 – PAN HEAD SCREW M5X40 (SKU: 911263-2)
Position 012 – SCREW BAR M12 (SKU: 321478-7)
Position 013 – BAFFLE PLATE (SKU: 411448-5)
Position 014 – SPRING PIN 5-16 (SKU: 951157-9)
Position 016 – KNOB 45 (SKU: 271254-8)
Position 018 – DUST SEAL 15 (SKU: 213202-1)
Position 019 – BALL BEARING 6202LLB (SKU: 211206-7)
Position 020 – GEAR HOUSING (SKU: 315431-3)
Position 021 – PAN HEAD SCREW M5X25 (SKU: 911241-2)
Position 023 – PRESSURE PLATE (SKU: 341927-8)
Position 024 – ADJUST WASHER (SKU: 341928-6)
Position 026 – WOODRUFF KEY 5 (SKU: 254013-5)
Position 027 – HEX. NUT M10 (SKU: 931502-4)
Position 029 – SPRING WASHER 10 (SKU: 942251-8)
Position 034 – FRAME (SKU: 168098-4)
Position 035 – LINK (SKU: 341870-1)
Position 036 – TENSION SPRING 13 (SKU: 231758-2)
Position 037 – FLAT WASHER 12 (SKU: 253813-0)
Position 038 – HEX. BOLT M10 (SKU: 265279-2)
Position 040 – RETAINING RING S-20 (SKU: 961060-6)
Position 041 – NEEDLE BEARING 1015 (SKU: 212066-0)
Position 045 – SPRING PIN 5-16 (SKU: 951157-9)
Position 046 – SLEEVE 9 (SKU: 257588-3)
Position 047 – FLAT WASHER 9 (SKU: 253733-8)
Position 049 – FLAT WASHER 40 (SKU: 253847-3)
Position 050 – BALL BEARING 6204LLB (SKU: 211306-3)
Position 051 – SPINDLE (SKU: 321477-9)
Position 055 – POINTER A (SKU: 341886-6)
Position 056 – PAN HEAD SCREW M5X8 (SKU: 911204-8)
Position 057 – BLADE COVER (SKU: 164622-1)
Position 058 – INNER FLANGE 55 (SKU: 224195-7)
Position 059 – OUTER FLANGE 55 (SKU: 224196-5)
Position 060 – HEX. NUT M12 (SKU: 931602-0)
Position 065 – PAN HEAD SCREW M6X14 (SKU: 911316-7)
Position 066 – PAN HEAD SCREW M6X14 (SKU: 911316-7)
Position 070 – HEX. NUT M6 (SKU: 931302-2)
Position 071 – CAP 20 (SKU: 286202-4)
Position 072 – PAN HEAD SCREW M6X25 (SKU: 911344-2)
Position 079 – LOCK OFF SWITCH BUTTON (SKU: 411447-7)
Position 083 – NAME PLATE 2708 (SKU: 854783-2)
Position 089 – BEARING BOX (SKU: 312749-3)
Position 090 – PAN HEAD SCREW M5X16 (SKU: 911221-8)
Position 091 – COMPRESSION SPRING 24 (SKU: 231378-2)
Position 092 – RETAINER (SKU: 342797-8)
Position 093 – PAN HEAD SCREW M5X30 (SKU: 911252-7)
Position 094 – FLAT WASHER 9 (SKU: 267015-2)
Position 400 – KNOB 32 (SKU: 271401-1)
Position 401 – FLAT WASHER 6 (SKU: 253047-5)
Position 407 – CAP SQUARE NEC BOLT M8X500 (SKU: 265809-9)
Position 410 – RULE UNDER PLATE (SKU: 341888-2)
Position 412 – RULER (SKU: 164620-5)
Position 414 – PAN HEAD SCREW M5X12 (SKU: 911214-5)
Position 415 – INDICATION PLATE (SKU: 816099-3)
Position 416 – GRIP 28 (SKU: 273465-1)
Position 424 – HEX. WRENCH 5 (SKU: 783203-8)
Position 425 – LOCK OFF SWITCH BUTTON (SKU: 411447-7)
Position 426 – SPACER (SKU: 342690-6)

Exploded View – 2708
