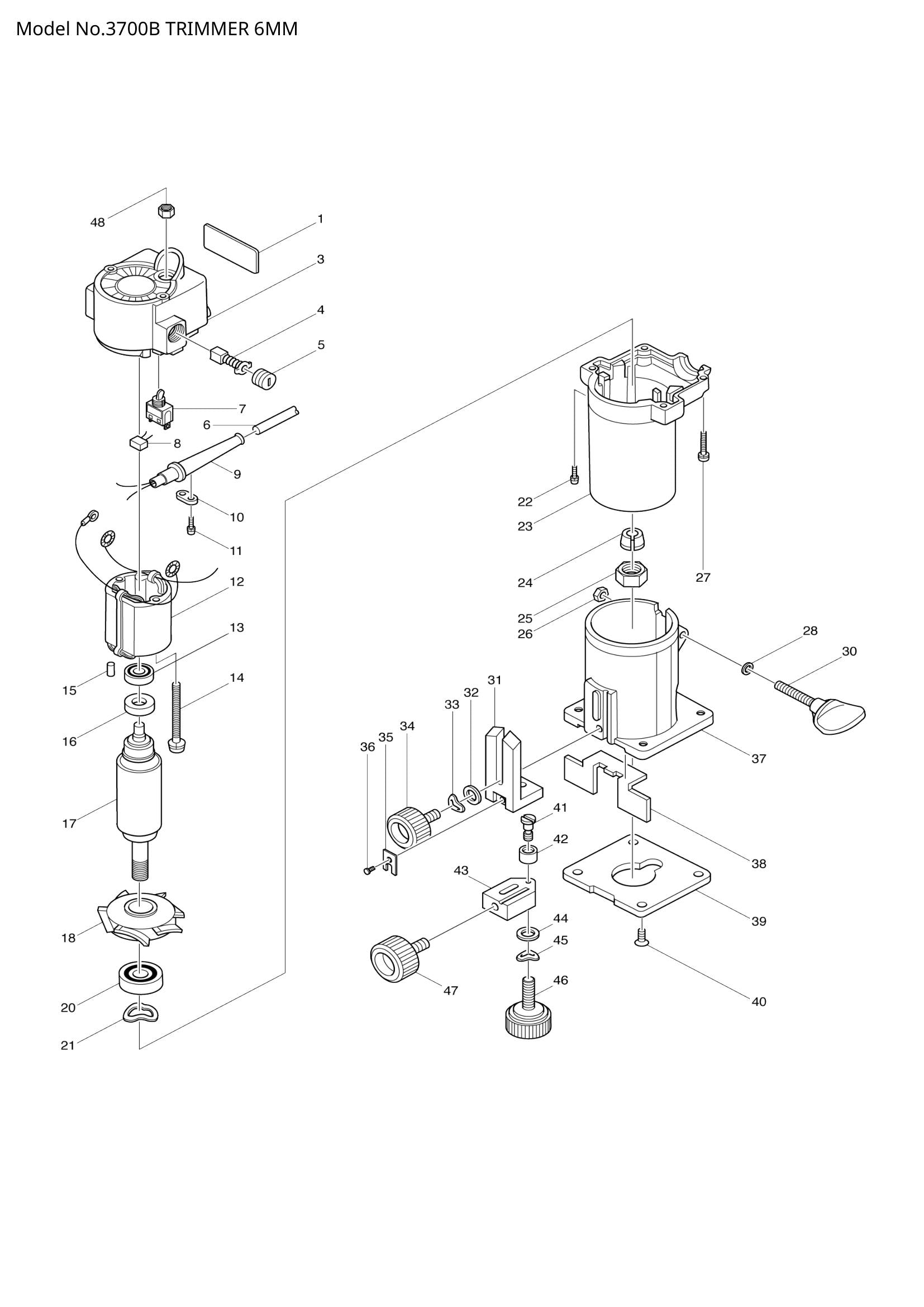

Exploded View – 3700B

Name: Exploded View – 3700B
Brand: Makita
Availability: InStock

Price:

€0,00

Quantity:

Share this product

Position 005 – BRUSH HOLDER CAP 5-8 (SKU: 643550-8)
Position 010 – STRAIN RELIEF (SKU: 687001-1)
Position 013 – BALL BEARING 627LB (SKU: 211028-5)
Position 015 – RUBBER PIN 4 (SKU: 263002-9)
Position 016 – INSULATION WASHER (SKU: 681614-0)
Position 021 – WAVE WASHER 23 (SKU: 253905-5)
Position 022 – PAN HEAD SCREW M4X18 (SKU: 911133-5)
Position 025 – COLLET NUT 6 (SKU: 763606-2)
Position 027 – PAN HEAD SCREW M4X25 (SKU: 911148-2)
Position 028 – FLAT WASHER 5 (SKU: 941101-4)
Position 032 – FLAT WASHER 6 (SKU: 941151-9)
Position 035 – HOOK (SKU: 341136-9)
Position 037 – BASE (SKU: 411113-6)
Position 039 – BASE PROTECTOR (SKU: 411114-4)
Position 040 – COUNTERSUNK HEAD SCREW M4 (SKU: 912112-6)
Position 044 – FLAT WASHER 6 (SKU: 941151-9)
Position 048 – HEX. NUT M12 (SKU: 652102-4)
Position 401 – WAVE WASHER 6 (SKU: 253903-9)
Position 402 – FLAT WASHER 6 (SKU: 941151-9)
Position 405 – WING NUT M6 (SKU: 934301-3)
Position 409 – WRENCH 10 (SKU: 781003-0)
Position 410 – WRENCH 17 (SKU: 781008-0)
