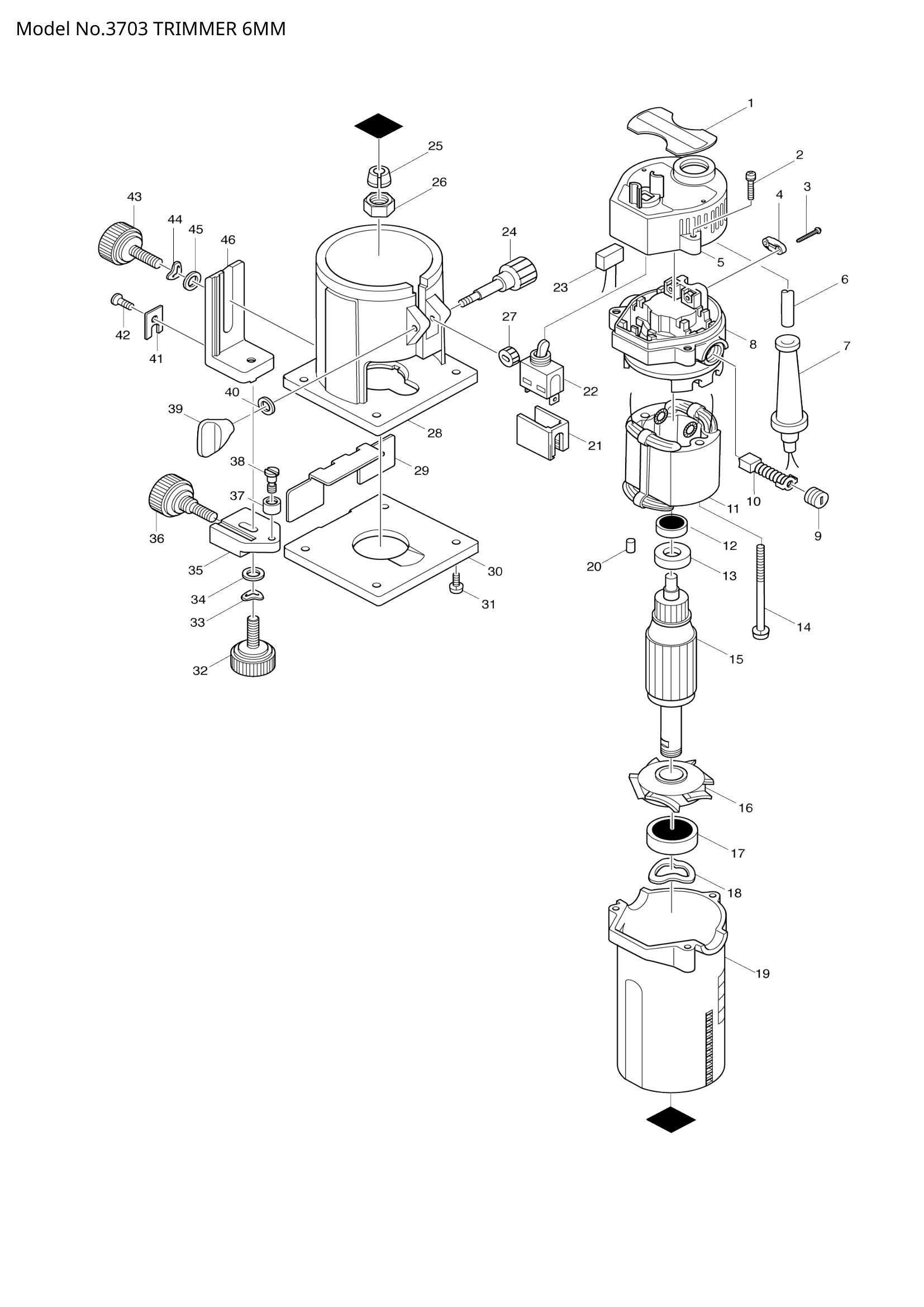

Exploded View – 3703

Name: Exploded View – 3703
Brand: Makita
Availability: InStock

Price:

€0,00

Quantity:

Share this product

Position 001 – NAME PLATE 3703 (SKU: 856566-6)
Position 002 – PAN HEAD SCREW M4X40 (SKU: 911168-6)
Position 005 – REAR COVER (SKU: 410062-4)
Position 009 – BRUSH HOLDER CAP 5-8 (SKU: 643550-8)
Position 012 – BALL BEARING 627LB (SKU: 211028-5)
Position 013 – INSULATION WASHER (SKU: 681614-0)
Position 018 – WAVE WASHER 23 (SKU: 253905-5)
Position 019 – MOTOR HOUSING (SKU: 414567-6)
Position 020 – RUBBER PIN 4 (SKU: 263014-2)
Position 021 – SWITCH HOLDER (SKU: 410069-0)
Position 024 – SCREW M5X33 (SKU: 251890-6)
Position 026 – COLLET NUT 6 (SKU: 763606-2)
Position 027 – SPUR GEAR 16 (SKU: 226217-9)
Position 028 – BASE (SKU: 411930-4)
Position 030 – BASE PROTECTOR (SKU: 410585-2)
Position 031 – + PAN HEAD SCREW M4X10 (SKU: 251308-7)
Position 034 – FLAT WASHER 6 (SKU: 941151-9)
Position 039 – WING NUT M5 (SKU: 252632-1)
Position 040 – FLAT WASHER 5 (SKU: 941101-4)
Position 041 – HOOK (SKU: 341136-9)
Position 045 – FLAT WASHER 6 (SKU: 941151-9)
