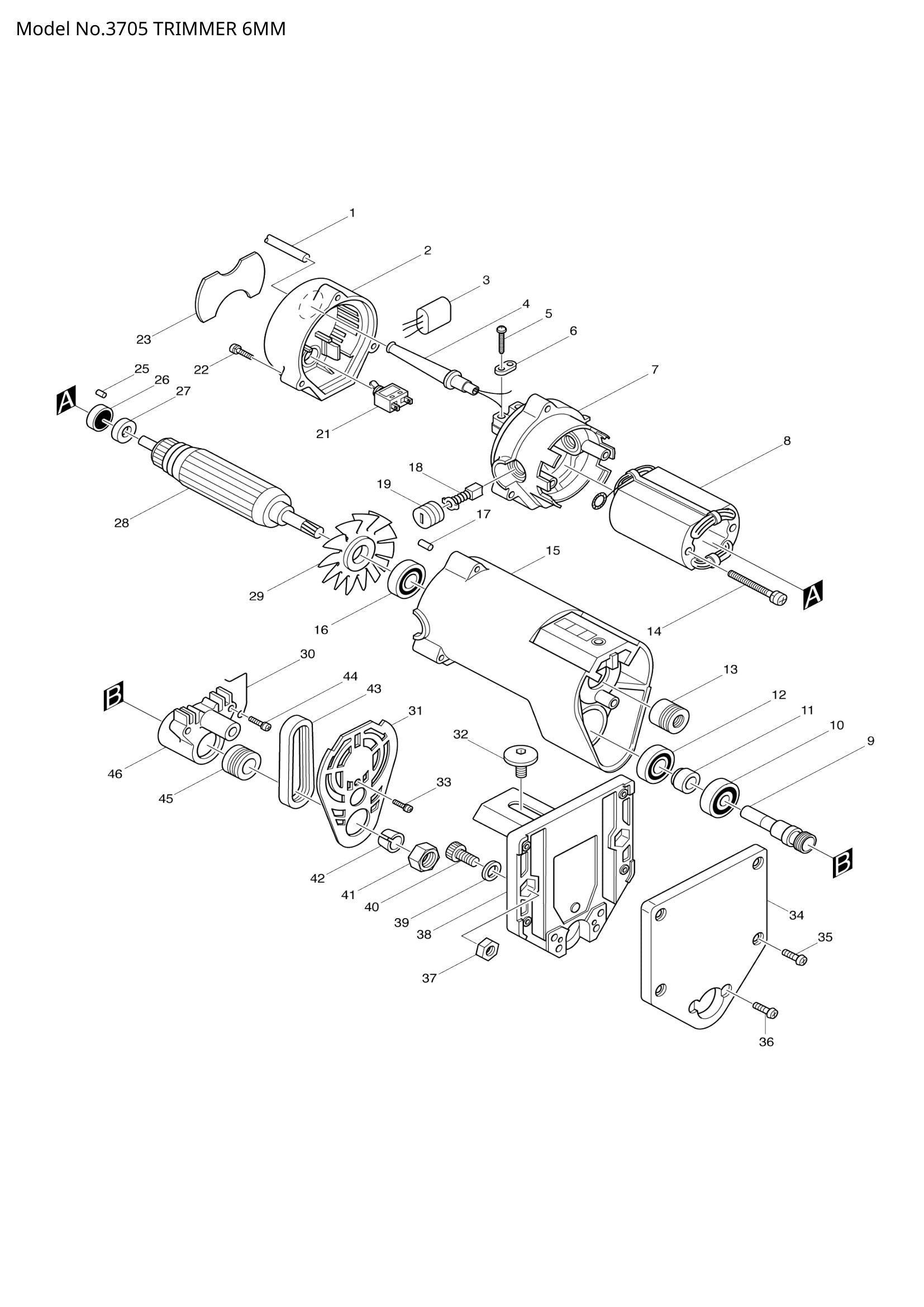

Exploded View – 3705

Name: Exploded View – 3705
Brand: Makita
Availability: InStock

Makita

Price:

€0,00

Quantity:

Share this product

Position 002 – REAR COVER (SKU: 410062-4)
Position 009 – DRIVE SHAFT (SKU: 321517-3)
Position 011 – RING 10 (SKU: 257095-6)
Position 012 – BALL BEARING 6000 (SKU: 211064-1)
Position 013 – V-PULLEY 3-19 (SKU: 222088-2)
Position 015 – MOTOR HOUSING (SKU: 156942-7)
Position 016 – BALL BEARING 6200LLB (SKU: 211066-7)
Position 017 – RUBBER PIN 4 (SKU: 263002-9)
Position 019 – BRUSH HOLDER CAP 5-8 (SKU: 643550-8)
Position 022 – PAN HEAD SCREW M4X40 (SKU: 911168-6)
Position 023 – NAME PLATE 3705 (SKU: 854936-3)
Position 025 – RUBBER PIN 4 (SKU: 263014-2)
Position 026 – BALL BEARING 627LB (SKU: 211028-5)
Position 027 – INSULATION WASHER (SKU: 681614-0)
Position 029 – FAN 52 (SKU: 241100-9)
Position 030 – TORSION BAR (SKU: 231930-6)
Position 031 – BELT COVER (SKU: 341946-4)
Position 032 – HEX. SOCKET HEAD BOLT M8X11 (SKU: 265814-6)
Position 033 – PAN HEAD SCREW M4X14 (SKU: 911121-2)
Position 034 – BASE PROTECTOR (SKU: 410061-6)
Position 035 – BINDING HEAD SCREW M4X12 (SKU: 915116-7)
Position 036 – BINDING HEAD SCREW M4X16 (SKU: 915126-4)
Position 037 – HEX. NUT M8 (SKU: 931403-6)
Position 038 – BASE (SKU: 168139-6)
Position 039 – FLAT WASHER 8 (SKU: 941202-8)
Position 040 – HEX. SOCKET HEAD BOLT M8X12 (SKU: 922412-6)
Position 041 – COLLET NUT 6 (SKU: 763606-2)
Position 043 – POLY V-BELT 3-170 (SKU: 225041-7)
Position 044 – PAN HEAD SCREW M4X18 (SKU: 911131-9)
Position 045 – V-PULLEY 3-23 (SKU: 222087-4)
Position 046 – BEARING BOX (SKU: 315618-7)
Position 400 – HEX. WRENCH 6 (SKU: 783204-6)
Position 401 – GUIDE HOLDER ASS'Y (SKU: 122281-7)
Position 402 – TEMPLET GUIDE (SKU: 321912-7)
Position 403 – WRENCH HOLDER 5.6 (SKU: 410047-0)
Position 404 – WRENCH 17 (SKU: 781008-0)
Position 405 – WRENCH 10 (SKU: 781003-0)
Position 406 – STRAIGHT GUIDE (SKU: 341947-2)
Position 407 – TRIMMER GUIDE (SKU: 163162-6)
