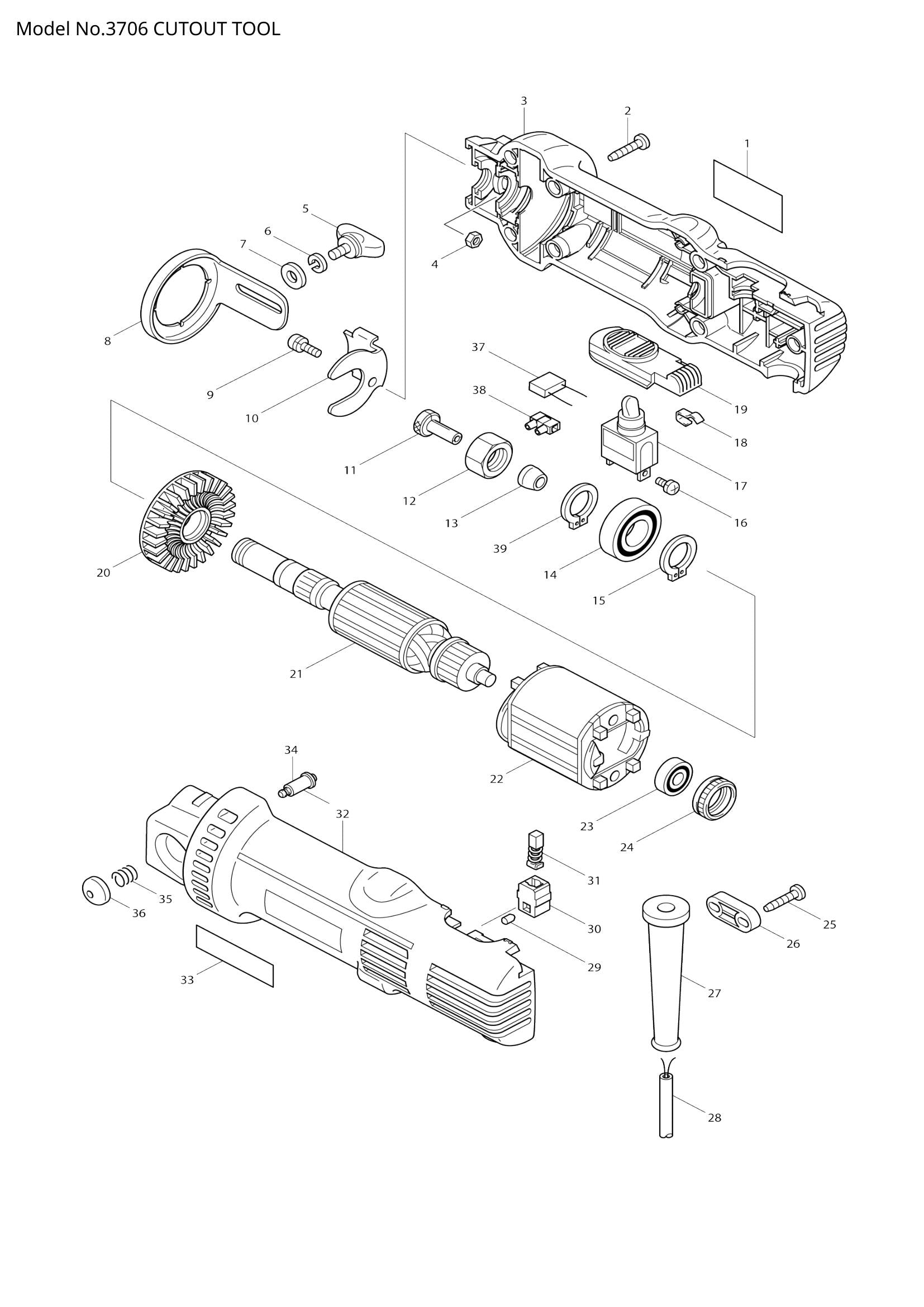

Exploded View – 3706

Name: Exploded View – 3706
Brand: Makita
Availability: InStock

Price:

€0,00

Quantity:

Share this product

Position 001 – NAME PLATE 3706 (SKU: 853169-7)
Position 003 – HOUSING SET (SKU: 183337-1)
Position 004 – HEX. NUT M4 (SKU: 931102-0)
Position 005 – THUMB SCREW M5X10 (SKU: 265750-6)
Position 006 – SPRING WASHER 5 (SKU: 942101-7)
Position 007 – FLAT WASHER 5 (SKU: 941101-4)
Position 008 – SHOE PLATE (SKU: 344964-1)
Position 009 – PAN HEAD SCREW M4X10 WITH (SKU: 911111-5)
Position 010 – SHOE SUPPORT (SKU: 344965-9)
Position 011 – ADAPTER (SKU: 324149-5)
Position 012 – COLLET NUT 6 (SKU: 763606-2)
Position 015 – RETAINING RING S-15 (SKU: 961055-9)
Position 016 – PAN HEAD SCREW M3.5X7 (SKU: 652008-6)
Position 018 – LEAF SPRING (SKU: 232166-0)
Position 019 – SWITCH LEVER (SKU: 417500-7)
Position 020 – FAN 56 (SKU: 240044-0)
Position 023 – BALL BEARING 607DDW (SKU: 210017-7)
Position 024 – RUBBER RING 19 (SKU: 421479-6)
Position 027 – CORD GUARD 8 (SKU: 682559-5)
Position 029 – RUBBER PIN 4 (SKU: 263002-9)
Position 030 – BRUSH HOLDER 5-8 (SKU: 643552-4)
Position 032 – HOUSING SET (SKU: 183337-1)
Position 033 – MAKITA LABEL (SKU: 819063-3)
Position 034 – PIN 4-6.5 (SKU: 256465-6)
Position 035 – COMPRESSION SPRING 8 (SKU: 233072-2)
Position 036 – PIN CAP (SKU: 417236-8)
Position 037 – NOISE SUPPRESSOR (SKU: 645200-1)
Position 038 – TERMINAL BLOCK 1P (SKU: 654532-5)
Position 039 – RETAINING RING S-15 (SKU: 961055-9)
