4013D exploded view

Roll over image to zoom in Click on image to zoom

4013D exploded view

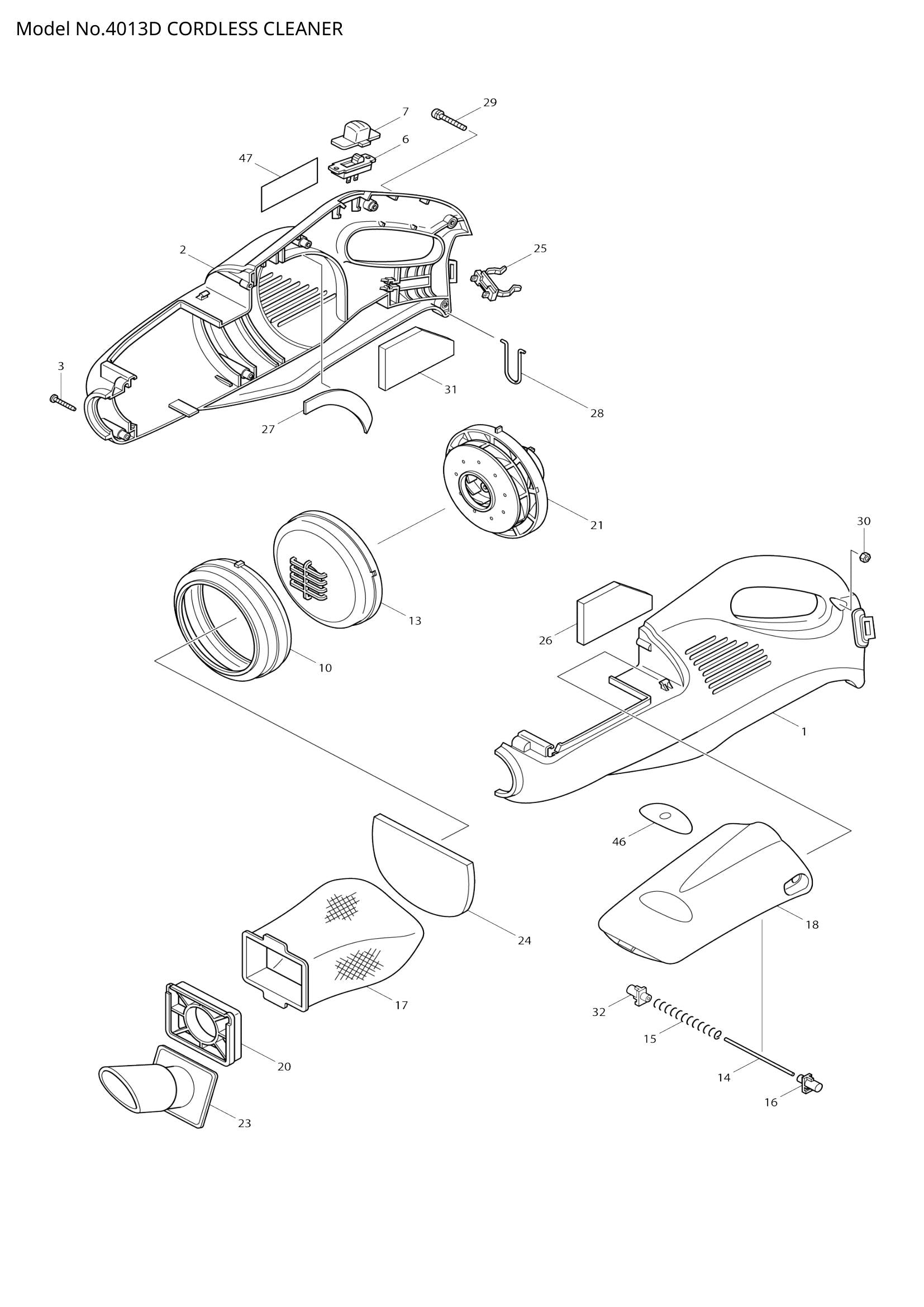

Exploded View – 4013D

Price:

€0,00

Quantity:

Share this product

Position 001 – HOUSING SET (SKU: KW00000500)
Position 002 – HOUSING SET (SKU: KW00000500)
Position 003 – + TAPPING SCREW PT 3X20 (SKU: 266127-8)
Position 006 – SWITCH CSW-T12U140 (SKU: KW00000501)
Position 007 – SWITCH COVER COMPLETE AP-15 (SKU: KW00000502)
Position 010 – RUBBER RING (SKU: 421554-8)
Position 013 – FAN COVER (SKU: KW00000504)
Position 014 – ROD 2.5 (SKU: 256839-1)
Position 015 – COMPRESSION SPRING 6 (SKU: 233161-3)
Position 016 – HOOK (SKU: 416032-1)
Position 017 – DUST BAG (SKU: 166043-3)
Position 018 – FRONT COVER COMPLETE (IVORY (SKU: 150624-3)
Position 020 – PACKING (SKU: 421553-0)
Position 021 – 12.0V DC MOTOR (SKU: KW00000505)
Position 023 – INLET (SKU: KW00000021)
Position 024 – SPONGE SHEET 70-106 (SKU: 423287-1)
Position 025 – BATTERY HOLDER (SKU: 643909-9)
Position 026 – SPONGE SHEET 65X65 (SKU: KW00000506)
Position 027 – SPONGE SHEET (SKU: KW00000507)
Position 028 – HANGER (SKU: 322867-9)
Position 029 – PAN HEAD SCREW M4X30 (SKU: 911158-9)
Position 030 – HEX. NUT M4 (SKU: 931102-0)
Position 031 – SPONGE SHEET 65X65 (SKU: KW00000506)
Position 032 – HOOK (SKU: 416032-1)
Position 047 – NAME PLATE (SKU: KW00000508)
