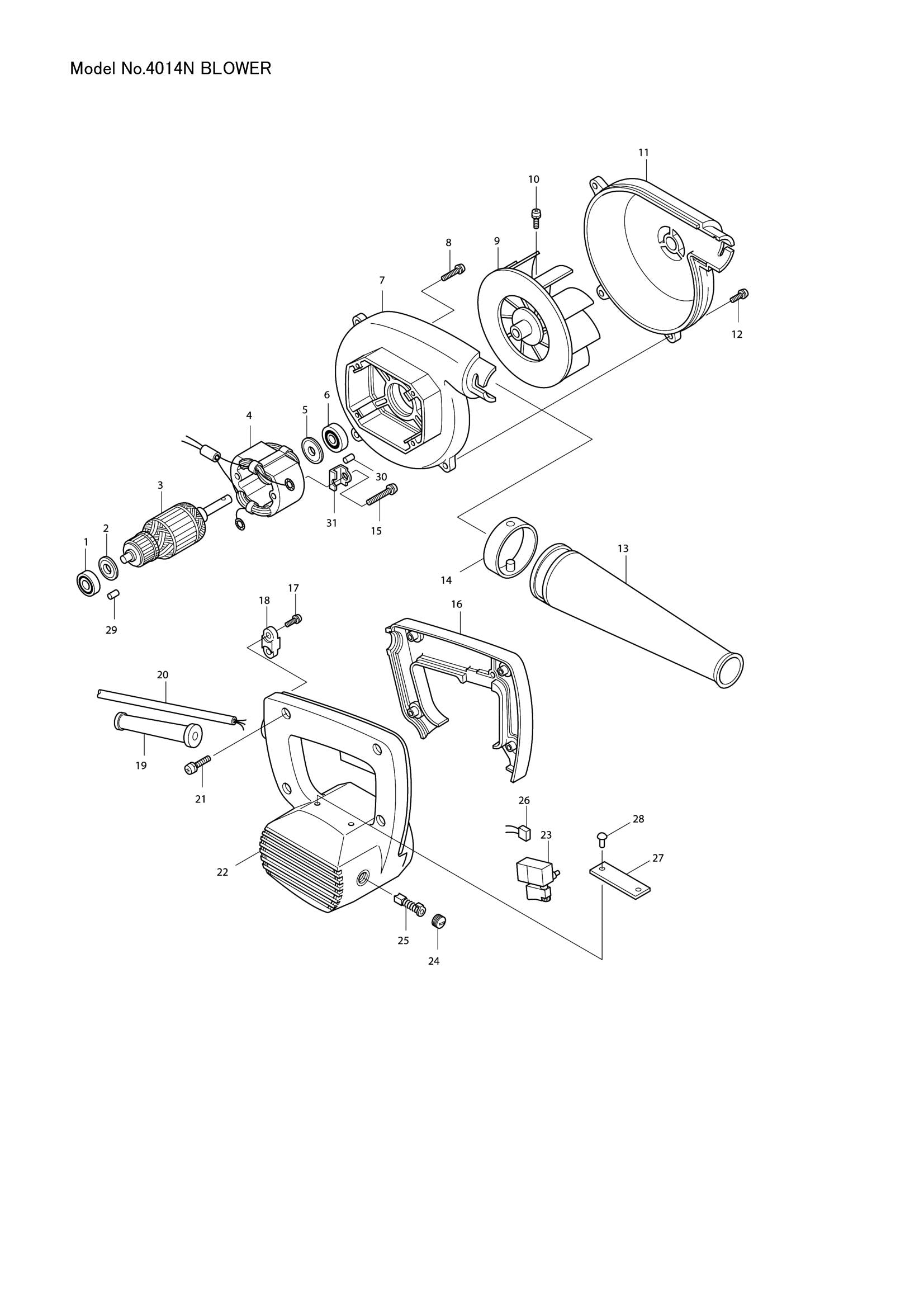

Exploded View – 4014N

Name: Exploded View – 4014N
Brand: Makita
Availability: InStock

Price:

€0,00

Quantity:

Share this product

Position 001 – BALL BEARING 608LB (SKU: 211033-2)
Position 002 – DUST SEAL 8 (SKU: 213002-9)
Position 005 – DUST SEAL 9 (SKU: 213052-4)
Position 008 – PAN HEAD SCREW M4X35 (SKU: 911163-6)
Position 010 – PAN HEAD SCREW M4X12 (SKU: 911117-3)
Position 012 – PAN HEAD SCREW M4X18 (SKU: 911133-5)
Position 016 – HANDLE COVER (SKU: 410480-6)
Position 021 – PAN HEAD SCREW M4X25 (SKU: 911148-2)
Position 022 – MOTOR HOUSING (SKU: 157463-2)
Position 023 – SWITCH SGEL208M (SKU: 651315-4)
Position 024 – BRUSH HOLDER CAP 6-10 (SKU: 643600-9)
Position 029 – RUBBER PIN 4 (SKU: 263002-9)
Position 030 – RUBBER PIN 4 (SKU: 263002-9)
Position 031 – RETAINER (SKU: 343657-7)
