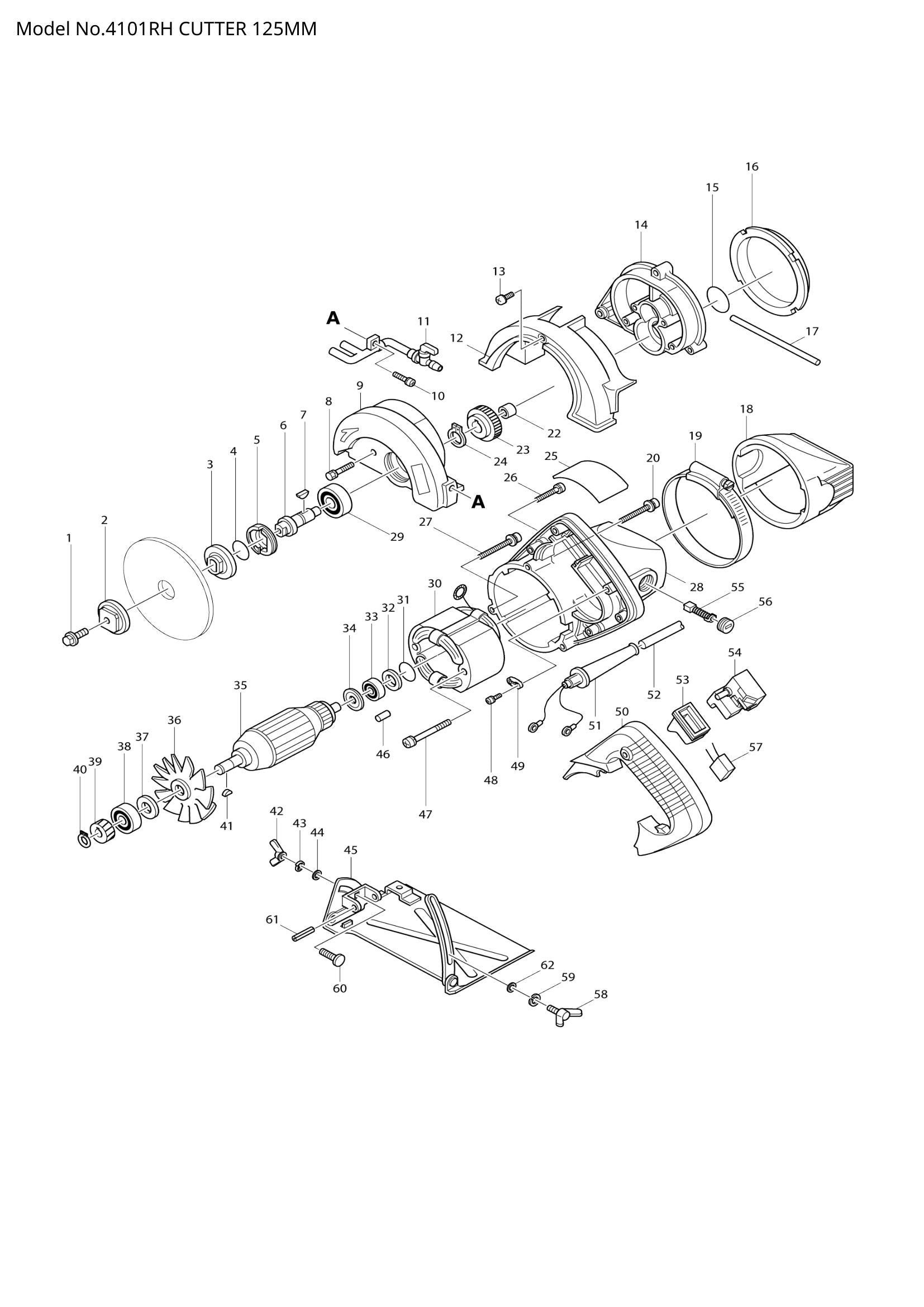

Exploded View – 4101RH

Name: Exploded View – 4101RH
Brand: Makita
Availability: InStock

Makita

Price:

€0,00

Quantity:

Share this product

Position 001 – HEX. SOCKET HEAD BOLT M6X20 (SKU: 266133-3)
Position 002 – OUTER FLANGE 36 (SKU: 224081-2)
Position 003 – INNER FLANGE 36 (SKU: 224080-4)
Position 004 – O RING 18 (SKU: 213255-0)
Position 005 – BEARING RETAINER 19-33 (SKU: 285815-8)
Position 006 – SPINDLE (SKU: 321197-5)
Position 007 – WOODRUFF KEY 4 (SKU: 254001-2)
Position 008 – + HEX. BOLT M4X25 (SKU: 925146-0)
Position 010 – PAN HEAD SCREW M4X14 (SKU: 911123-8)
Position 012 – COVER B (SKU: 410910-7)
Position 013 – PAN HEAD SCREW M5X8 (SKU: 911203-0)
Position 014 – GEAR HOUSING COMPLETE (SKU: 150926-7)
Position 015 – O RING 26 (SKU: 213407-3)
Position 016 – FAN GUIDE (SKU: 415403-9)
Position 017 – SEAL RUBBER (SKU: 423155-8)
Position 018 – COVER A (SKU: 414074-9)
Position 019 – CLAMP 90 (SKU: 163282-6)
Position 020 – PAN HEAD SCREW M5X35 (SKU: 911258-5)
Position 022 – NEEDLE BEARING 810 (SKU: 212004-2)
Position 023 – HELICAL GEAR 42 (SKU: 226420-2)
Position 024 – RETAINING RING (EXT) S-12 (SKU: 961052-5)
Position 025 – NAME PLATE 4101RH (SKU: 851596-2)
Position 026 – PAN HEAD SCREW M4X25 (SKU: 911148-2)
Position 027 – PAN HEAD SCREW M5X40 (SKU: 911263-2)
Position 028 – MOTOR HOUSING COMPLETE (SKU: 150927-5)
Position 029 – BALL BEARING 6201DDW (SKU: 211129-9)
Position 030 – FIELD ASS'Y 220V (SKU: 522843-5)
Position 031 – O RING 18 (SKU: 213262-3)
Position 032 – FLAT WASHER 14 (SKU: 253192-6)
Position 033 – BALL BEARING 608LB (SKU: 211033-2)
Position 034 – INSULATION WASHER (SKU: 681613-2)
Position 035 – ARMATURE ASS'Y 220V (SKU: 516343-5)
Position 036 – FAN 68 (SKU: 240007-6)
Position 037 – FLAT WASHER 9 (SKU: 253741-9)
Position 039 – HELICAL GEAR 19 (SKU: 226419-7)
Position 040 – RETAINING RING (EXT) S-8 (SKU: 961004-6)
Position 041 – WOODRUFF KEY 3 (SKU: 254002-0)
Position 042 – WING NUT M6 (SKU: 252623-2)
Position 044 – FLAT WASHER 6 (SKU: 941151-9)
Position 045 – BASE (SKU: 168216-4)
Position 046 – RUBBER PIN 4 (SKU: 263002-9)
Position 048 – PAN HEAD SCREW M4X18 (SKU: 911133-5)
Position 050 – HANDLE COVER COMPLETE (SKU: 152597-6)
Position 052 – POWER SUPPLY CORD UNIT (SKU: 699005-1)
Position 053 – DUST COVER (SKU: 421329-5)
Position 058 – WING BOLT M6X10 (SKU: 251886-7)
Position 060 – CAP SQUARE NECK BOLT M6X20 (SKU: 251919-8)
Position 061 – SPRING PIN 6-32 (SKU: 951219-3)
Position 062 – FLAT WASHER 6 (SKU: 941151-9)
Position 063 – TERMINAL BLOCK 1P (SKU: 654532-5)
Position 064 – LEAD UNIT (SKU: 632829-2)
Position 065 – PAN HEAD SCREW M4X8 (SKU: 652014-1)

Exploded View – 4101RH

Description

Exploded View – 4101RH
