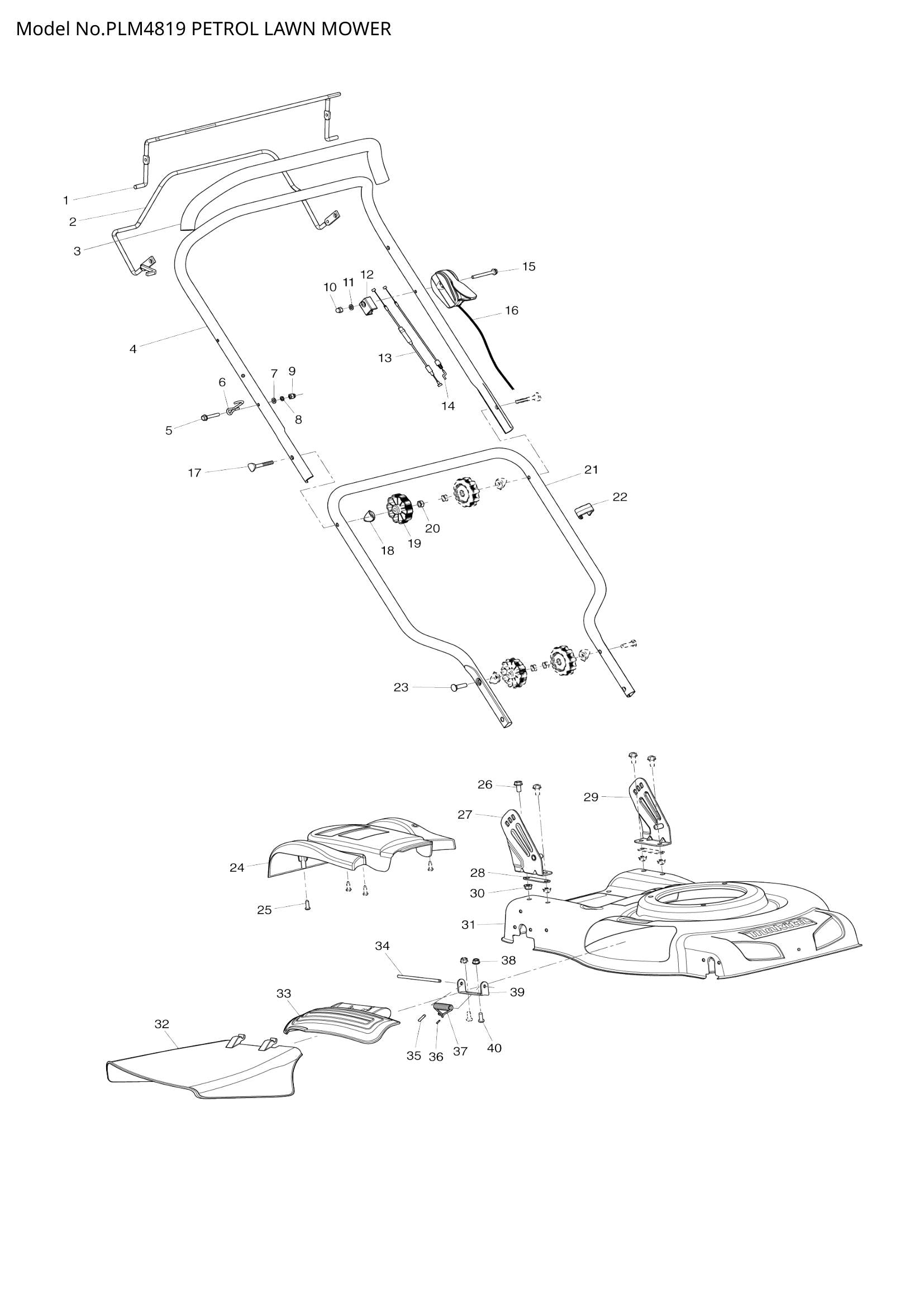

Exploded View – PLM4819

Name: Exploded View – PLM4819
Brand: Makita
Availability: InStock

Makita

Price:

€0,00

Quantity:

Share this product

Position 001 – FLAMEOUT POLE RED (SKU: DA00000581)
Position 002 – DRIVING POLE (SKU: DA00000616)
Position 003 – HANDLE SHEATH (SKU: DA00000580)
Position 004 – UPPER HANDLE (SKU: DA00000578)
Position 005 – HEX.FLANGE BOLT M6X35 (SKU: DA00000577)
Position 006 – STARTER GRIP HOOK (SKU: DA00000579)
Position 007 – FLAT WASHER 6 (SKU: DA00000574)
Position 008 – SPRING WASHER 6 (SKU: DA00000576)
Position 009 – HEX.CAP NUT M6 (SKU: DA00000575)
Position 010 – HEX.CAP NUT M6 (SKU: DA00000575)
Position 011 – FLAT WASHER 6 (SKU: DA00000574)
Position 012 – OUTER WIRE STOPPER (SKU: DA00000573)
Position 013 – DRIVING CABLE ASS'Y (SKU: DA00000615)
Position 014 – FLAMEOUT CABLE ASS'Y (SKU: DA00000570)
Position 015 – HEX.FLANGE BOLT M6X55 (SKU: DA00000572)
Position 016 – THROTTLE ASS'Y (SKU: DA00000571)
Position 017 – SADDLE HEAD BOLT M8X58 (SKU: DA00000569)
Position 018 – PLASTIC SADDLE WASHER 8 (SKU: DA00000565)
Position 019 – KNOB (SKU: DA00000564)
Position 020 – HEXAGON NUT M8 (SKU: DA00000563)
Position 021 – LOWER HANDLE (SKU: DA00000568)
Position 022 – CABLE CLAMP (SKU: DA00000567)
Position 023 – BOLT M8X40 (SKU: DA00000566)
Position 024 – PROTECTING COVER OF GEAR B (SKU: DA00000613)
Position 025 – TAPPING SCREW ST4.8X19 (SKU: DA00000614)
Position 026 – HEX.FLANGE BOLT M8X16 (SKU: DA00000562)
Position 027 – RIGHT HANDLE BRACKET BLUE (SKU: DA00000588)
Position 028 – HANDLE BRACKET WASHER (SKU: DA00000561)
Position 029 – LEFT HANDLE BRACKET BLUE (SKU: DA00000587)
Position 030 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 031 – DECK (MAKITA BLUE) (SKU: DA00000621)
Position 032 – SIDE DISCHARGE PROTECTING (SKU: DA00000560)
Position 033 – SIDE DISCHARGE FLAP COVER (SKU: DA00000559)
Position 034 – SIDE DISCHARGE FLAP HINGE R (SKU: DA00000558)
Position 035 – HEAT-SHRINKABLE TUBE (SKU: DA00000557)
Position 036 – HEAT-SHRINKABLE TUBE (SKU: DA00000547)
Position 037 – SIDE FLAP TORSION SPRING (SKU: DA00000556)
Position 038 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 039 – SIDE FLAP HINGE PLATE (SKU: DA00000555)
Position 040 – HEXAGON FLANGE BOLT (SKU: DA00000781)
Position 041 – SPUR GEAR 14 LEFT (SKU: DA00000605)
Position 042 – WHEEL COVER 7 INCH (SKU: DA00000536)
Position 043 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 044 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 045 – REAR WHEEL ASSY (SKU: DA00000601)
Position 046 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 047 – INTERNAL GEAR (SKU: DA00000602)
Position 048 – TAPPING SCREW ST4X16 (SKU: DA00000603)
Position 049 – STOP RING E-12 (SKU: DA00000604)
Position 050 – SPUR GEAR 14 RIGHT (SKU: DA00000607)
Position 051 – REAR WHEEL DUST-PROOF COVE (SKU: DA00000606)
Position 052 – STOP RING E-12 (SKU: DA00000604)
Position 053 – FLAT WASHER 1/2 INCH (SKU: DA00000608)
Position 055 – BEARING (SKU: DA00000609)
Position 056 – DRIVE SHAFT BEARING CASE (SKU: DA00000610)
Position 057 – STOP RING E-19 (SKU: DA00000612)
Position 058 – NYLON INSERT HEX.LOCK NUT M (SKU: DA00000549)
Position 059 – HANDLE ASS'Y (SKU: DA00000550)
Position 061 – TRUSS HEAD SCREW M6X16 (SKU: DA00000552)
Position 062 – HEX. FLANGE BOLT M6X12 (SKU: DA00000553)
Position 063 – HEIGHT ADJUSTMENT BOARD (SKU: DA00000554)
Position 064 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 065 – REAR WHEEL AXIS ASS'Y (SKU: DA00000611)
Position 066 – SCREW (SKU: DA00000541)
Position 067 – AXLE RETAINER (SKU: DA00000542)
Position 068 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 069 – WHEEL COVER 7 INCH (SKU: DA00000536)
Position 070 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 071 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 072 – REAR WHEEL ASSY (SKU: DA00000539)
Position 073 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 075 – SCREW (SKU: DA00000541)
Position 076 – FIXING RING FOR WHEEL AXIS (SKU: DA00000780)
Position 077 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 078 – FRONT WHEEL AXIS ASS'Y (SKU: DA00000544)
Position 079 – AXLE MOUNT (SKU: DA00000545)
Position 080 – BLADE TIGHTEN BOLT 3/8-24 UN (SKU: DA00000528)
Position 081 – DISH SPRING WASHER 10 (SKU: DA00000529)
Position 082 – OUTER FRANGE (SKU: DA00000530)
Position 083 – NYLON CUP WASHER 32 (SKU: DA00000531)
Position 084 – BLADE (SKU: DA00000532)
Position 085 – NYLON FLAT WASHER 32 (SKU: DA00000533)
Position 086 – BLADE SUPPORT (SKU: DA00000534)
Position 087 – HIGHT ADJUST SUPPORT SPRING (SKU: DA00000535)
Position 088 – BLADE SUPPORT LINING SHEAT (SKU: DA00000593)
Position 089 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 090 – COLUMN PIN 5X21.5 (SKU: DA00000597)
Position 091 – GT GEAR BOX ASS'Y (SKU: DA00000596)
Position 092 – GEAR BOX SPRING (SKU: DA00000595)
Position 093 – BELT PROTECTING COVER (SKU: DA00000594)
Position 094 – H.S.SET SCREW(FLAT POINT)M6X (SKU: DA00000598)
Position 095 – DRIVING WHEEL (SKU: DA00000599)
Position 096 – TRIANGLE BELT (SKU: DA00000600)
Position 097 – NYLON INSERT HEX.LOCK NUT M (SKU: DA00000549)
Position 098 – CONNECTION ROD (SKU: DA00000548)
Position 099 – CONNECTION ROD SPRING (SKU: DA00000546)
Position 100 – HEAT-SHRINKABLE TUBE (SKU: DA00000547)
Position 101 – NYLON INSERT HEX.LOCK NUT M (SKU: DA00000549)
Position 102 – SPECIAL HEX.BOLT M8X35/M8X1 (SKU: DA00000617)
Position 103 – SQUARE WASHER 8 (SKU: DA00000582)
Position 104 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 105 – ENGINE (SKU: DA00000618)

Exploded View – PLM4819
