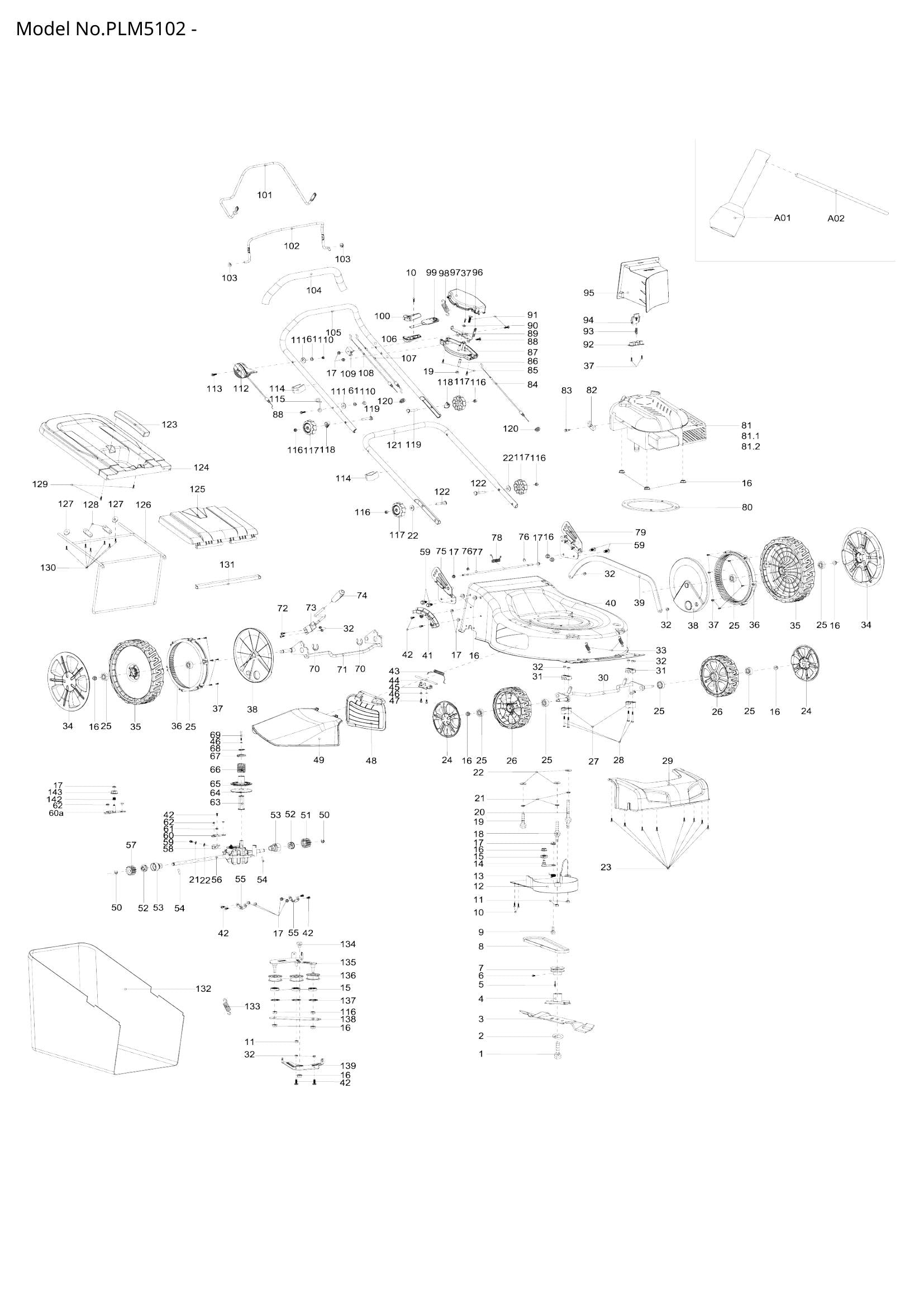

Exploded View – PLM5102

Share this product

Position 001 – BLADE TIGHTEN BOLT 3/8-24 UN (SKU: DA00000528)
Position 002 – DISH SPRING WASHER (SKU: 671010730)
Position 003 – BLADE 51 (SKU: DA00000973)
Position 004 – INNER FRANGE (SKU: 671015252)
Position 005 – HIGHT ADJUST SUPPORT SPRING (SKU: DA00000535)
Position 006 – H.S.SET SCREW(FLAT POINT)M6X (SKU: DA00000598)
Position 007 – V PULLEY (SKU: 671004013)
Position 008 – V BELT 10MMX6MM L=885MM (SKU: DA00000968)
Position 009 – HEX. BOLT M6X25 (SKU: 671006066)
Position 010 – SELF-TAPPING SCREW 4,2X15 (SKU: 671001047)
Position 011 – NYLON INSERT HEX.LOCK NUT M (SKU: 671005008)
Position 012 – BELT PROTECTING COVER (SKU: 671522001)
Position 013 – TORSION SPRING (SKU: 671011136)
Position 014 – FIXED PLATE (SKU: 671001539)
Position 015 – BALL BEARING 6001ZZ (SKU: 671004015)
Position 016 – HEX.FLANGE LOCK NUT M8 (SKU: DA00000537)
Position 017 – HEX.FLANGE LOCK NUT M6 (SKU: DA00000543)
Position 018 – SPECIAL HEX.BOLT M8X35/M8X1 (SKU: DA00000617)
Position 019 – HEX. BOLT M8X35 (SKU: DA00000586)
Position 020 – SPECIAL HEX. BOLT M8X60/M8X1 (SKU: 671003024)
Position 021 – SPRING WASHER 8 (SKU: DA00000832)
Position 022 – FLAT WASHER 8 (SKU: 671007007)
Position 023 – TAPPING SCREW ST4.2X10 (SKU: DA00000911)
Position 024 – WHEEL COVER 7 INCH (SKU: DA00000536)
Position 025 – BALL BEARING 6201ZZ (SKU: DA00000538)
Position 026 – WHEEL ASSY 8 INCH (SKU: 671020160)
Position 027 – FRONT AXLE MOUNT (SKU: 671418001)
Position 028 – PAN.HED SCREW M6X45 (SKU: 671002028)
Position 029 – FRONT AXLE COVER (SKU: 671513001)
Position 030 – FRONT AXLE (SKU: 671001573)
Position 031 – FRONT AXLE RETAINER (SKU: 671445001)
Position 032 – NYLON INSERT HEX.LOCK NUT M (SKU: DA00000549)
Position 033 – HEIGHT ADJUST TENSION SPRIN (SKU: 671011142)
Position 034 – WHEEL COVER 10 INCH (SKU: 671001322)
Position 035 – WHEEL ASSY 11 INCH (SKU: 671002021)
Position 036 – GEAR WHEEL (SKU: 671520001)
Position 037 – TAPPING SCREW ST4X16 (SKU: DA00000603)
Position 038 – INNER WHEEL COVER 11" (SKU: 671518001)
Position 039 – LINK ROD (SKU: 671001575)
Position 040 – DECK BLUE (SKU: 671132602)
Position 041 – HEIGHT ADJUSTER STOP PLATE (SKU: 671010280)
Position 042 – TRUSS HEAD SCREW M6X12 (SKU: 671002019)
Position 043 – SPRING (SKU: 671011130)
Position 044 – SIDE DISCHARGE FLAP HINGE R (SKU: 671001019)
Position 045 – SIDE FLAP HINGE PLATE (SKU: 671001571)
Position 046 – SPRING WASHER 5 (SKU: DA00000198)
Position 047 – PAN HEAD SCREW M5X10 (SKU: 671201501)
Position 048 – SIDE DISCHARGE FLAP COVER (SKU: 671514001)
Position 049 – PROTECTION COVER (SKU: DA00001043)
Position 050 – STOP RING E-12 (SKU: DA00000604)
Position 051 – SPUR GEAR 14 LEFT (SKU: DA00001090)
Position 052 – BALL BEARING R8ZZ (SKU: DA00001029)
Position 053 – DRIVE SHAFT BEARING CASE (SKU: 671002024)
Position 054 – COLUMN PIN 5X21.5 (SKU: DA00000597)
Position 055 – AXLE RETAINER (SKU: DA00000542)
Position 056 – GEAR ASSY FOR SELF DRIVING (SKU: 671501031)
Position 057 – SPUR GEAR 14 RIGHT (SKU: DA00000607)
Position 058 – GEAR BOX MOUNT ANGLE (SKU: DA00000915)
Position 059 – HEXAGON HEAD BOLT M8X6 (SKU: 671006064)
Position 060 – GEAR BOX MOUNT PLATE (SKU: 671001460)
Position 061 – SPRING WASHER 6 (SKU: DA00000576)
Position 062 – NYLON INSERT HEX.LOCK NUT M (SKU: 671005011)
Position 063 – VARIABLE SPEED PULLEY LOWER (SKU: 671001082)
Position 064 – VARIABLE SPEED PULLEY LOWER (SKU: 671001082)
Position 065 – VARIABLE SPEED PULLEY UPPER (SKU: 671010540)
Position 066 – VARIABLE SPEED PULLEY SPRING (SKU: 671011122)
Position 067 – CUP WASHER (SKU: 671001457)
Position 068 – RETAINING RING S-19 (SKU: 671009020)
Position 069 – HEX. BOLT M5X55 LH (SKU: 671006123)
Position 070 – SAFETY WASHER Ø19X1,5 (SKU: 671009003)
Position 071 – REAR AXLE (SKU: 671001574)
Position 072 – PAN. HEAD SCREW M6X14 (SKU: 671002030)
Position 073 – HEIGHT HANDLE SHEATH ASS'Y (SKU: DA00001074)
Position 074 – HEIGHT HANDLE SHEATH ASS'Y (SKU: DA00001074)
Position 075 – RIGHT HANDLE BRACKET BLUE (SKU: 671001325)
Position 076 – STOP RING E-6 (SKU: 671009017)
Position 077 – REAR FLAP HINGE ROD (SKU: 671001518)
Position 078 – REAR FLAP TORSION SPRING (SKU: 671011101)
Position 079 – LEFT HANDLE BRACKET BLUE (SKU: 671001324)
Position 080 – ENGINE MOUNT RUBBER RING (SKU: 671144701)
Position 084 – DRIVE SPEED ADJUST WIRE ASSY (SKU: 671011162)
Position 085 – SELF-TAPPING SCREW 4X22 (SKU: 671001028)
Position 086 – SHEATH (SKU: 671001513)
Position 087 – SPEED ADJUSTMENT BOX(LOWER (SKU: 671470001)
Position 088 – BOLT M6X35 (SKU: 671006011)
Position 089 – DRIVE SPEED ADJUST LEVER MO (SKU: 671001514)
Position 090 – FLAT WASHER 4 (SKU: 671002075)
Position 091 – HEX.BOLT M6X40 (SKU: 671006063)
Position 092 – PRESSING BOARD OF LOCKING (SKU: 671317001)
Position 093 – COMPRESSION SPRING (SKU: 671011005)
Position 094 – LOCKING BUTTON (SKU: 671316004)
Position 095 – MULCHING PLUG BOX (SKU: 671509001)
Position 096 – OUTER WIRE STOPPER PLATE (SKU: 671001511)
Position 097 – SPEED ADJUSTMENT BOX(UPPER) (SKU: 671470002)
Position 098 – EXTENTION SPRING (SKU: 671011123)
Position 099 – LEVER (SKU: 671001458)
Position 100 – DRIVE SPEED ADJUST GRIP UPPE (SKU: DA00000869)
Position 101 – LEVER, DRIVING (SKU: 671001731)
Position 102 – ENGINE CLUTCH LEVER (SKU: 671001448)
Position 103 – SADDLE WASHER 8 (SKU: 671001524)
Position 104 – HANDLE SHEATH (SKU: 671001029)
Position 105 – UPPER HANDLE BAR (SKU: DA00000963)
Position 106 – DRIVE SPEED ADJUST GRIP LOWE (SKU: DA00000870)
Position 107 – ENGINE CLUTCH WIRE (SKU: 671001151)
Position 108 – SELF DRIVE CONTROL WIRE ASSY (SKU: DA00000977)
Position 109 – OUTER WIRE STOPPER (SKU: DA00000573)
Position 110 – HEX.CAP NUT M6 (SKU: DA00000575)
Position 111 – WASHER Ø16XØ8X0,8 (SKU: 671007008)
Position 112 – THROTTLE CONTROL BOX ASSY (SKU: 671001150)
Position 113 – HEX.FRANGE BOLT M6X55 (SKU: 671006059)
Position 114 – CABLE CLAMP (SKU: DA00000567)
Position 115 – STARTER GRIP HOOK (SKU: DA00000579)
Position 116 – HEXAGON NUT M8 (SKU: DA00000563)
Position 117 – KNOB (SKU: DA00000564)
Position 118 – PLASTIC SADDLE WASHER 8 (SKU: DA00000565)
Position 119 – SADDLE HEAD BOLT M8X58 (SKU: 671006004)
Position 120 – CORD PROTECTING SHEATH (SKU: 671178001)
Position 121 – LOWER HANDLE BAR (SKU: 671001606)
Position 122 – SADDLE HEAD BOLT M8X35 (SKU: DA00000880)
Position 123 – GRASS CATCHER HANDLE (SKU: 671454001)
Position 124 – GRASS CATCHER UPPER BOARD (SKU: 671521001)
Position 125 – REAR FLAP (SKU: 671468001)
Position 126 – GRASS CATCHER FRAME (SKU: 671001443)
Position 127 – WASHER 4 (SKU: 671001436)
Position 128 – RETAINER PLATE (SKU: 671001203)
Position 129 – TAPPING SCREW ST5X16 (SKU: 671105502)
Position 130 – TAPPING SCREW ST5X12 (SKU: DA00000888)
Position 131 – GRASS CATCHER FRAME SHEATH (SKU: 671001353)
Position 132 – GRASS CATCHER CLOTH SET MA (SKU: 671144401)
Position 133 – SPRING (SKU: 671011021)
Position 134 – STEPPED BOLT M8 (SKU: 671003042)
Position 135 – SPEED CONTROL BELT TENSION (SKU: 671001455)
Position 136 – BELT TENSIONER PULLEY (SKU: 671001056)
Position 137 – RETAINING RING R-28 (SKU: 671009021)
Position 138 – BELT TENSIONER BRACE PLATE (SKU: 671001533)
Position 139 – LEVER (SKU: 671001456)
Position 142 – SPRING (SKU: 671011156)
Position 143 – SHAFT SHEATH (SKU: 671002038)
